FAVORIT 44860

Dishwasher

Instruction book

PERFEKT IN FORM UND FUNKTION

152959 47/2en 2-05-2007 12:15 Pagina 1

Dear customer,

Please read this User Information carefully and keep it to refer to at a

later date.

Pass it on to any subsequent owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Notes that concern your personal safety.

Attention! Notes that show how to avoid damage to the appliance.

Useful tips and hints

Environmental information

Your dishwasher has the new washing system ”IMPULSE WASHING”.

With this dishwashing system the motor speed and spray pressure

are varied during the wash cycle to achieve better cleaning of the

dishes. It is for this reason that the noise level varies during the

dishwashing cycle.

152959 47/2en 2-05-2007 12:15 Pagina 2

CONTENTS

Operating instructions 4

Safety instructions 4

Disposal 6

Economical and ecological dishwashing 6

Description of the appliance 7

The control panel 8

Prior to using for the first time 10

The water softener 10

Filling with dishwasher salt 13

Rinse aid 14

In daily use 16

Loading cutlery and dishes 16

The lower basket 18

The cutlery basket 19

The upper basket 20

Adjusting the height of the upper basket 21

Use of detergent 22

Different kinds of detergent 23

Washing programmes 25

Starting a washing programme 26

Maintenance and cleaning 31

Cleaning the filters 31

What to do, when... 34

Service 37

Guarantee terms 38

Technical specifications 41

Installation instructions 42

Fitting under a counter 42

Levelling 42

Water supply connections 43

Water inlet hose with safety valve 44

Water outlet hose connection 45

Electrical connection 46

Hints for test centres 47

Contents

152959 47/2en 2-05-2007 12:15 Pagina 3

OPERATING INSTRUCTIONS

Safety instructions

The safety of AEG electrical appliances conforms to accepted rules of

technology and the Appliance Safety Act. We as manufacturers,

however, see ourselves as being obliged to familiarise you with the

following safety instructions.

It is most important that this instruction book should be retained

with the appliance for future reference. Should the appliance be

sold or transferred to another owner, or should you move house

and leave the appliance, always ensure that the book is left with

the appliance in order that the new owner can get to know the

functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety.

You MUST read it carefully before installing or using the

appliance.

Installation

●Check your dishwasher for any transport damage. Never connect a

damaged machine. If your dishwasher is damaged, you should

contact your supplier.

●For safety reasons it is dangerous to alter the specifications or

attempt to modify this product in any way.

●Any electrical and plumbing work required to install this appliance

should be carried out by a qualified and competent person.

●Care must be taken to ensure that the appliance does not stand on

the electrical supply cable.

●The sides of the dishwasher must never be drilled to prevent

damage to hydraulic components.

Child safety

●This appliance is designed to be operated by adults.

●Children should not be allowed to tamper with the controls or play

with the product.

●Packaging parts may be dangerous for children, who could even be

suffocated! You should therefore keep all packaging well away

from children.

Operating instructions

152959 47/2en 2-05-2007 12:15 Pagina 4

●The water in your dishwasher is not for drinking. Detergent residues

may still be present in your machine. Keep children well away from

your dishwasher when the door is open.

●Keep all detergents in a safe place out of children’s reach.

Your dishwasher in day-to-day use

●Items that are contaminated by petrol, paint, steel or iron debris,

corrosive, acidic or alkaline chemicals must not be washed in this

dishwasher.

●Under no circumstances should you open the door whilst the

appliance is in operation, especially during the washing phase, hot

water may escape. However, if the door is opened, a safety device

ensures that the machine stops.

●Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

●Long bladed knives stored in an upright position are a potential

hazard.

●Long and/or sharp items of cutlery such as carving knives must be

positioned horizontally in the upper basket.

●Ensure that the door of the dishwasher is always closed when it is

not being loaded or unloaded. In this way you will avoid anybody

tripping over the open door and hurting themeselves.

●When finishing loading or unloading close the door, as an open

door can be a hazard.

●Do not sit or stand on the open door.

●Isolate the appliance from the power supply and turn off the water

supply after use.

●This product should be serviced by an authorised service engineer,

and only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine

yourself. Repairs carried out by inexperienced persons may cause

injury or serious malfunctioning. Contact your local Service Force

Centre. Always insist on genuine spare parts.

Operating instructions

152959 47/2en 2-05-2007 12:15 Pagina 5

Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material.

>PS< for polystyrene, e.g. padding material (always CFC-free).

>POM< for polyoxymethylene, e.g. plastic clips.

Cardboard packaging is manufactured from recycled paper and should

be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from

service, your should render it unserviceable before having it disposed

of.

Warning! Children at play could lock themselves in your dishwasher or

otherwise endanger their lives. Therefore cut off the power supply

cable and make the door closing device unusable to prevent children

from being trapped inside.

For the disposing of the appliance please take it to a recycling centre

or to your dealer who may, for a small contribution to the costs,

dispose it for you.

Economical and ecological dishwashing

●Ensure that the water softener is correctly adjusted.

●Do not pre-wash under running water.

●Select the wash programme to suit the nature and degree of the

soiling on the dishes.

●Do not use more detergent, special salt and rinse aid than is

recommended in these operating instructions and by the

manufacturer of the respective product.

Operating instructions

152959 47/2en 2-05-2007 12:15 Pagina 6

Operating instructions

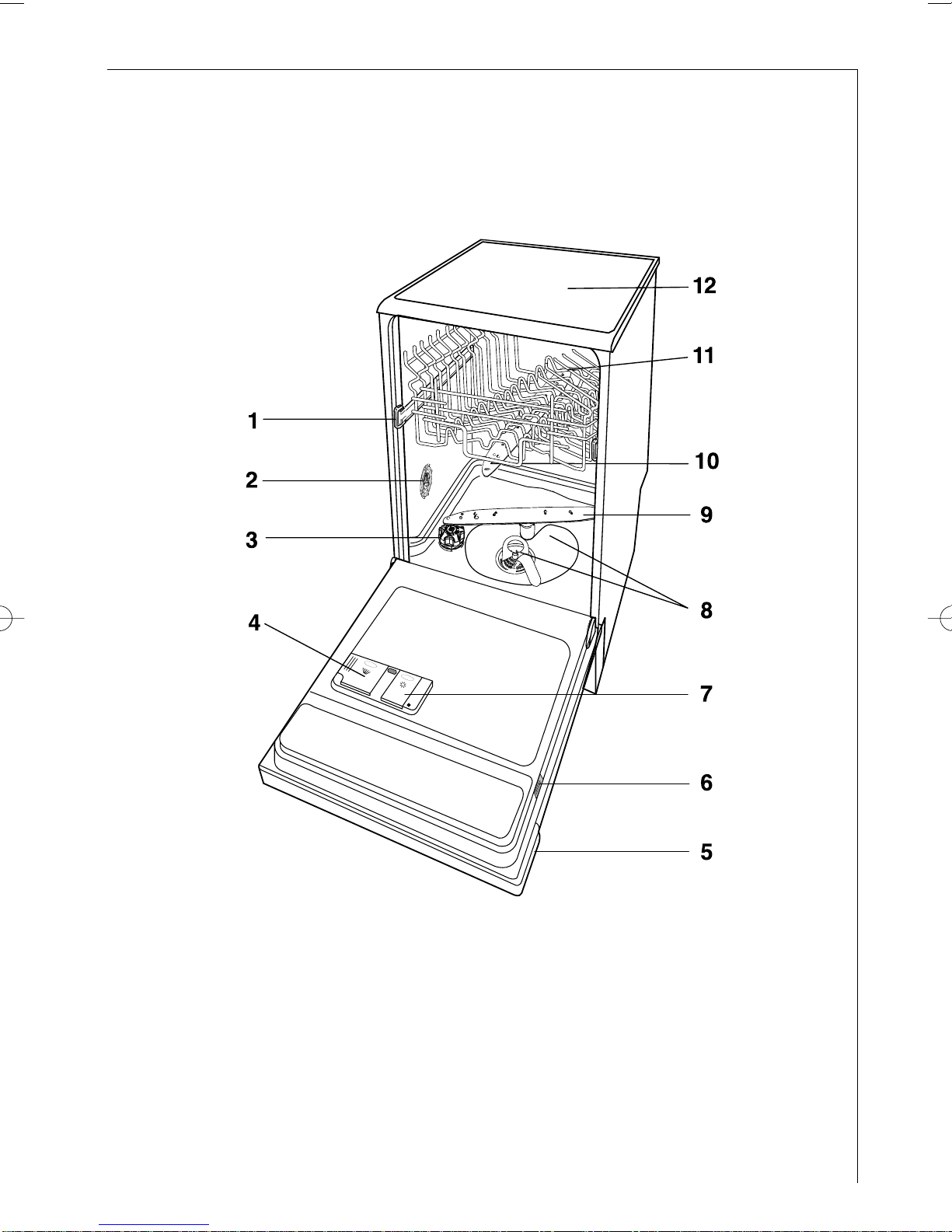

Description of the appliance

1. Upper basket stop

2. Water hardness switch

3. Salt container

4. Detergent dispenser

5. Control panel

6. Rating plate

7. Rinse aid dispenser

8. Filters

9. Lower spray arm

10. Upper spray arm

11. Upper basket

12.Worktop

IN154

152959 47/2en 2-05-2007 12:15 Pagina 7

Operating instructions

Function buttons: in addition to the dishwashing programme

selected, the following functions can also be set with the help of these

buttons:

- water softener setting,

- activation/deactivation of the rinse aid dispenser,

- the cancelling of a programme in progress.

Programme selection buttons: the selection of a washing

programme occurs by pressing one of these buttons (see "Washing

programmes" chart).

"Delay start" button: this option allows the start of the programme

to be delayed from 1 to 19 hours.

The digital display indicates:

- the level of hardness to which the water softener is set,

- if the rinse aid dispenser is activated/deactivated,

- the countdown of the delay start,

- the approximative remaining time of the running programme,

- fault codes concerning malfunction of the dishwasher.

On/Off button Programme selection

buttons

Function buttons

Indicator

lights

“Delay start”

button

123

“3 in 1” button

The control panel

Digital display

152959 47/2en 2-05-2007 12:15 Pagina 8

Operating instructions

Indicator lights: have the following meanings:

The salt and rinse aid indicator lights are never illuminated while a

washing programme is running even if filling with salt and rinse aid is

necessary.

"3 in 1" button: this appliance is equipped with the function "3 in

1", that allows the use of the "3 in 1" combi detergent tablets.

This function can be selected with all washing programmes.

With the selection of this function the inflow of rinse aid and salt

from each respective supply container is automatically deactivated and

also the indicator lights for salt and rinse aid are deactivated.

Once selected this function (button indicator light illuminated) it will

remain active also for the following washing programmes, to

deactivate the function, press the button (button indicator light off).

Salt refilling indicator light, illuminates when the salt has

run out

Rinse aid refilling indicator light, illuminates when the rinse

aid has run out

Programme in progress illuminates when a washing

programme has been setted.

When Delay start has been setted, this indicator light turns

off and will come on again once the countdown has elapsed

and the washing programme has started.

152959 47/2en 2-05-2007 12:15 Pagina 9

Operating instructions

Prior to using for the first time

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the

installation instructions

2. Remove all packaging from inside the appliance

3. Set the water softener

4. Pour 1 litre of water inside the salt container and then fill with

dishwasher salt

5. Fill the rinse aid dispenser.

Note:

If you want to use the "3 in 1" combi detergents, carefully read

the information given in "Different kinds of detergents".

The water softener

The dishwasher is equipped with a water softener designed to remove

minerals and salts from the water supply, which would have a

detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your

water is.

Water hardness is measured in equivalent scales, German degrees,

French degrees and mmol/l (millimol per litre).

The softener should be adjusted according to the hardness of the water

in your area. Your local Water Authority can advise you on the

hardness of the water in your area.

The water softener must be set in both ways: manually, using the water

hardness dial and electronically, using the function buttons on the

control panel.

152959 47/2en 2-05-2007 12:15 Pagina 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AEG Lave-vaisselle

AEG

AEG FSB42607Z Manuel utilisateur

AEG

AEG FFB73617PM Manuel utilisateur

AEG

AEG FAVORIT 56303W0 Manuel utilisateur

AEG

AEG FSE83717P Manuel utilisateur

AEG

AEG OKO_FAVORIT 875i electronic Manuel utilisateur

AEG

AEG F55402VI0P Manuel utilisateur

AEG

AEG FAVORIT COMPACT 505 Manuel utilisateur

AEG

AEG FEB52630ZM Manuel utilisateur

AEG

AEG FAVORIT 78005 VI Manuel utilisateur

AEG

AEG FAVORIT 85060 Vi Manuel d'utilisation

AEG

AEG Favorit 445 Manuel utilisateur

AEG

AEG FEB51400ZM Manuel utilisateur

AEG

AEG FAVORIT 448 i Manuel utilisateur

AEG

AEG FAVORIT 65020 I Manuel utilisateur

AEG

AEG OKO FAVORIT 5450 VI Manuel utilisateur

AEG

AEG OKO FAVORIT 677 Manuel utilisateur

AEG

AEG FSS73717P Manuel utilisateur

AEG

AEG FAV55VI1P Manuel utilisateur

AEG

AEG FAVORIT 88080 i Manuel d'utilisation

AEG

AEG FAVORIT 40630 Manuel utilisateur

AEG

AEG FAVORIT 88070 i Manuel d'utilisation

AEG

AEG FAVORIT 5041 Manuel utilisateur

AEG

AEG FAVORIT 88070 Vi Manuel d'utilisation

AEG

AEG KO_FAVORIT 5270 I Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
