A-44 Quick Setup Guide
www.advidia.com
A-44 Quick Setup Guide
Page 2Page 2
Table of Contents
A. Camera Physical Description ................................................................................................... 3
B. Installation .............................................................................................................................. 5
C. Search and Modify IP ............................................................................................................ 8
D. Preview via Web Browser ......................................................................................................11
E. Web Interface Configuration ...................................................................................................14
Channel Parameters > Display Setting ....................................................................................14
Channel Parameters > Video Settings ....................................................................................15
Channel Parameters > Motion Detection Setting .....................................................................16
Channel Parameters > Text Overlay Setting ...........................................................................16
Channel Parameters > Front Para Config ..............................................................................17
Network Parameters > Network Setting .................................................................................17
Network Parameters > NTP Setting .......................................................................................18
Network Parameters > E-mail Setting ....................................................................................18
Alarm Parameters > Alarm Input Setting .................................................................................19
Alarm Parameters > Alarm Output Setting ..............................................................................19
Alarm Deployment Time .........................................................................................................19
User Management ...............................................................................................................20
Add User ..............................................................................................................................20
Modify User ........................................................................................................................20
F. Adding Camera to Monitor Station ..........................................................................................21
A-44 Quick Setup Guide
Page 3
Camera Reset: When the camera is powered up, press the ‘INITIAL SET’ button for
about 10 seconds – then all parameters, including user name, password, IP address,
port number, etc., will be reset to the factory default settings.
A. Camera Physical Description

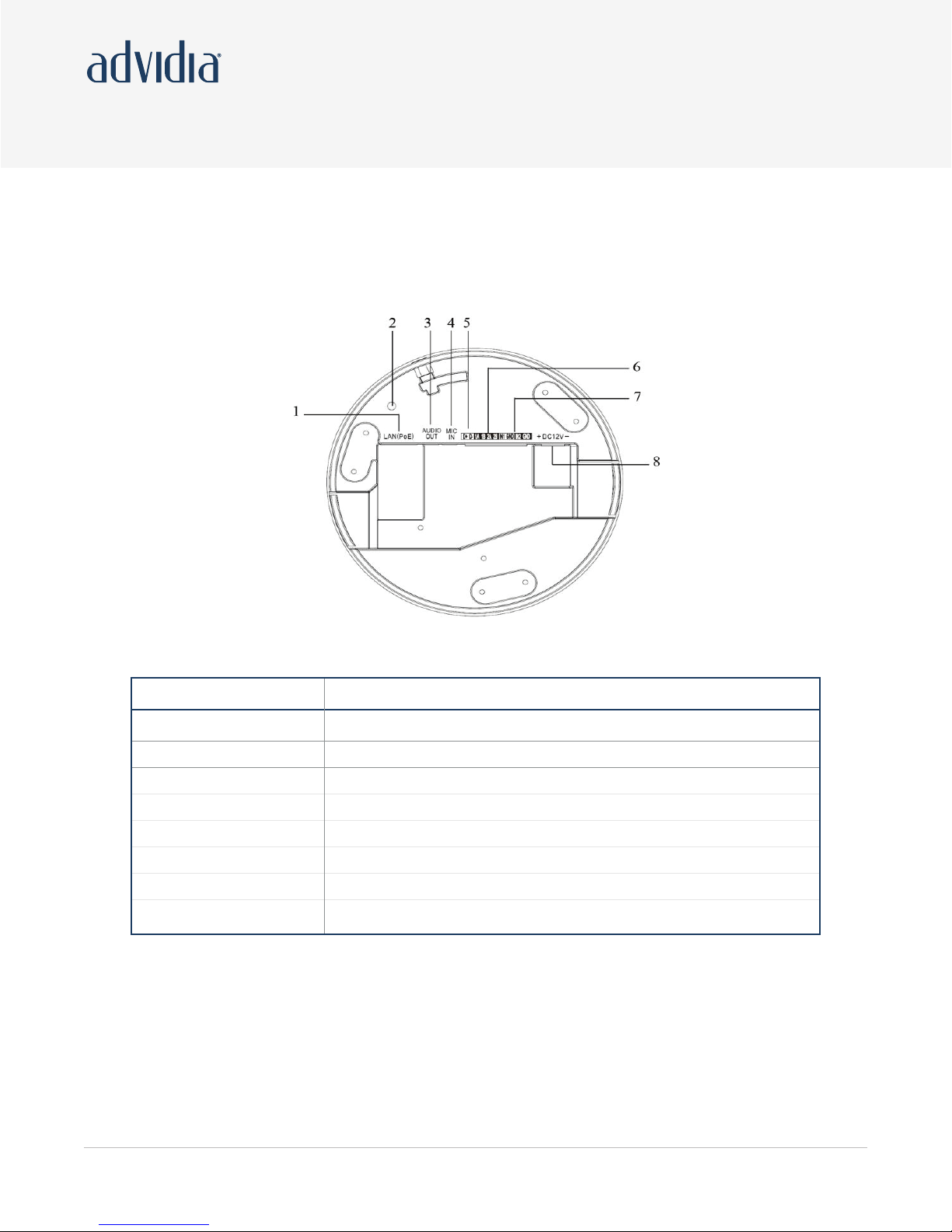

Serial No. Description
1 10M/100M self-adaptive Ethernet interface
2 INITIAL SET: Reset the camera
3 AUDIO OUT: Audio output interface
4 MIC IN: Audio input interface
5 D+, D-: RS-485 interface
6 1A, 1B, 2A, 2B: Alarm output interface
7 IN1, GND, IN2, GND: Alarm input interface
8 Power supply
A-44 Quick Setup Guide
Page 4
A-44 Quick Setup Guide
Page 5
B. Installation
Note:
√ Please check that all of the items on the package list have been included with your camera.
√ Read the following contents carefully before the installation.
√ Make sure that all of the related equipment is powered-off during the installation.
√ Check the power supply to prevent any damage caused by mismatching problems.
√ Do not place the camera in an extremely hot or damp environment. To avoid heat accumulation,
good ventilation is required for a proper operating environment.
√ If the product does not operate properly, please contact your dealer or the nearest service
center. Never attempt to disassemble the camera yourself. Users are responsible for any
problems caused by modification or repairing without authorization.
The ceiling mount is a suitable installation method for this camera. Please use the following steps:
Step 1: Use the screws to fix the bottom plate on the ceiling, rotate dome camera counterclockwise
to attach it to the bottom plate, and then use the lock screw to secure the
dome camera.
Note:
If required, user can apply pliers to
remove the clip (refer to the part
marked in dotted line) on the side of the
back box and then feed cables through
the opening to secure on the ceiling.
A-44 Quick Setup Guide
Page 6
Step 2: Loosen the set screws with a hexagonal screwdriver (included with the camera), and take
down the dome cover.
A-44 Quick Setup Guide
Page 7
Step 3: While viewing the video on the monitor, adjust the camera’s view angle to your needs.
Step 4: Install the dome cover and tighten the screws.
A-44 Quick Setup Guide
Page 8
SADP (Search Active Devices Protocol) software can automatically search the IP address of network
cameras in the same local area network (LAN) according to the connection diagram as follows:
C. Search and Modify IP
A-44 Quick Setup Guide
Page 9
1. Install the SADP software and then run the “sadpdlg.exe.”
2. Search IP address.
The operation of searching and modifying an IP address
is described as follows:
A-44 Quick Setup Guide
Page 10
3. Modify IP address.
