Advantek Networks ABT-SPK-A8 Manuel utilisateur
Page
1
of
14
6/18/2007
Bluetooth HI-FI Wireless
Speaker
User's Manual
Model # ABT-SPK-A8
Page
2
of
14
6/18/2007
Thank you very much for your purchase of Advantek Networks Bluetooth Wireless
Speakers (ABT-SPK-A ).
IMPORTANT
Before using this device, please make sure that you fully charge the unit for at least 3
hours before your first use.
Picture Sun Visor Picture of AC Adaptor Picture of Cable Picture of Manual
1. Packaging Includes:
One Bluetooth Wireless Speaker (ABT-SPK-A )
One 100-240V AC Power Adapter
One 3.5mm Audio Cable
One Sun Visor Clip
One User Manual
2. Product Features:
♦ Built-in DSP echo cancellation circuit to effectively reduce noise.
♦ Wireless connection to Bluetooth MP3 Player, Desktop or Laptop PC with Bluetooth
connections, Discman, CD/DVD and other Stereo Players with Bluetooth Capabilities.
♦ Line-in connection to other audio source (MP3 Player, Stereo Player…) using 3.5mm
cable.
♦ Built-in microphone to provide hands-free / speakerphone like function with
Cell-phones and VoIP communications such as Skype, MSN and Yahoo.
Page
3
of
14
6/18/2007
♦
Crystal clear stereo sound quality and effect, combined with powerful bass reflection.
♦ Priority answering to incoming phone calls automatically while temperately suspending
other functions, auto-resume back to its original function as soon as call is over.
♦
Ideal for Handsfree Car Kit, Conference-Call Device, Amplified Speakers…etc.
♦
Compact design for easy transportation between car, home and office or simply on the
road.
♦ Fashionable and compact design for easy carrying between car, home, office or just
simply on the road.
♦
Ideal for Handsfree Car Kit, Conference-Call Device, Amplified Speakers…etc.
3. Product Specification:
Bluetooth Specification Bluetooth v1.2 Class2
Bluetooth Profiles HSP、HFP、A2DP、AVRCP
Frequency Band 2.4GHz~2.4 35GHz ISM Band
Working Distance 10 meters
Standby Time 4 hours
Playing Time 10 hours/65dB
Battery 3.7V Li-Polymer rechargeable battery
Weight 210g
Pin Code 1234
4. Product Diagram and Indicators:
5. How to prepare the product:
Power Supply and Charging:
1) The speaker must be fully charged before the first use. Total charge time suggested is
3-4 hours.
2) Unit must be charged with the appropriate charger included in the package to avoid
damage and injury.
Page
4
of
14
6/18/2007
3) Connect the adapter into an electrical outlet. Plug the adapter’s connector into
charging port.
4) While charging, the amber indicator will stay on, green indicator means the unit is fully
charged. Re-charge time after first use usually takes approximately 2 hours.
Pairing and establish a connection:
Please make sure you have paired the product with Bluetooth AV sources before you
start to use. Kindly follow the instructions below for pairing:
1) Turn your ABT-SPK-A Bluetooth Wireless Speakers on by press and hold the
「 」
button until indicators blink rapidly. At this moment, the product is in pairing mode.
2) At this time, you need to activate your other Bluetooth devices for searching the
ABT-SPK-A Bluetooth Wireless Speaker, please follows the original instruction of your
other Bluetooth devices. Choose the device name and enter「
「「
「1234」
」」
」on your keyboard
to establish a pairing connection.
3) The ABT-SPK-A Bluetooth Wireless Speakers supports two audio connections.
Please select HEADSET/HANDSFREE profile if you like to connect to the mobile phone.
Or A2DP/AVRCP profile for stereo sound effect to your audio sourcing.
4) After successful connection, the indicators will turn to regular blinking at twice every
second.
Note: f the pairing can not be established within 60 seconds, the blue
indicator turns to regular blinking once every 2 second automatically. A
re-pairing procedure is needed to establish connections again. Please repeat
pairing procedure listed above.
6. Connect ABT-SPK-A8 to PC or Notebook Computers with Bluetooth Capabilities.
(Please check if your PC or Notebook computers have Bluetooth ability or not. If not, you can purchase Advantek Networks
ABT-02U (USB Bluetooth Dongle) to make your computers Bluetooth compatible. Detail specification for ABT-02U can be
found on-line at: http://www.advanteknetworks.com/products/bluetooth/abt02u.html)
6.1 To play music via a Bluetooth connection with your computer, please make sure the
ABT-SPK-A Bluetooth Wireless Speaker has been paired with your PC or Notebook
computer. (Refer to Pairing and establish a connection section of this manual for
instructions for pairing.)
Note: The device did not support “remote control” function when connecting
with a Bluetooth AV Transmitter; button will act as “mute” function.
6.2 To play music via a Bluetooth USB Dongle, please complete AV pairing and then activate
intended audio player interface. When completed, the music will be transmitted to the
speaker automatically.
Note: The Bluetooth USB Dongle should support AVRCP profile to activate
Page
5
of
14
6/18/2007
“remote control” function.

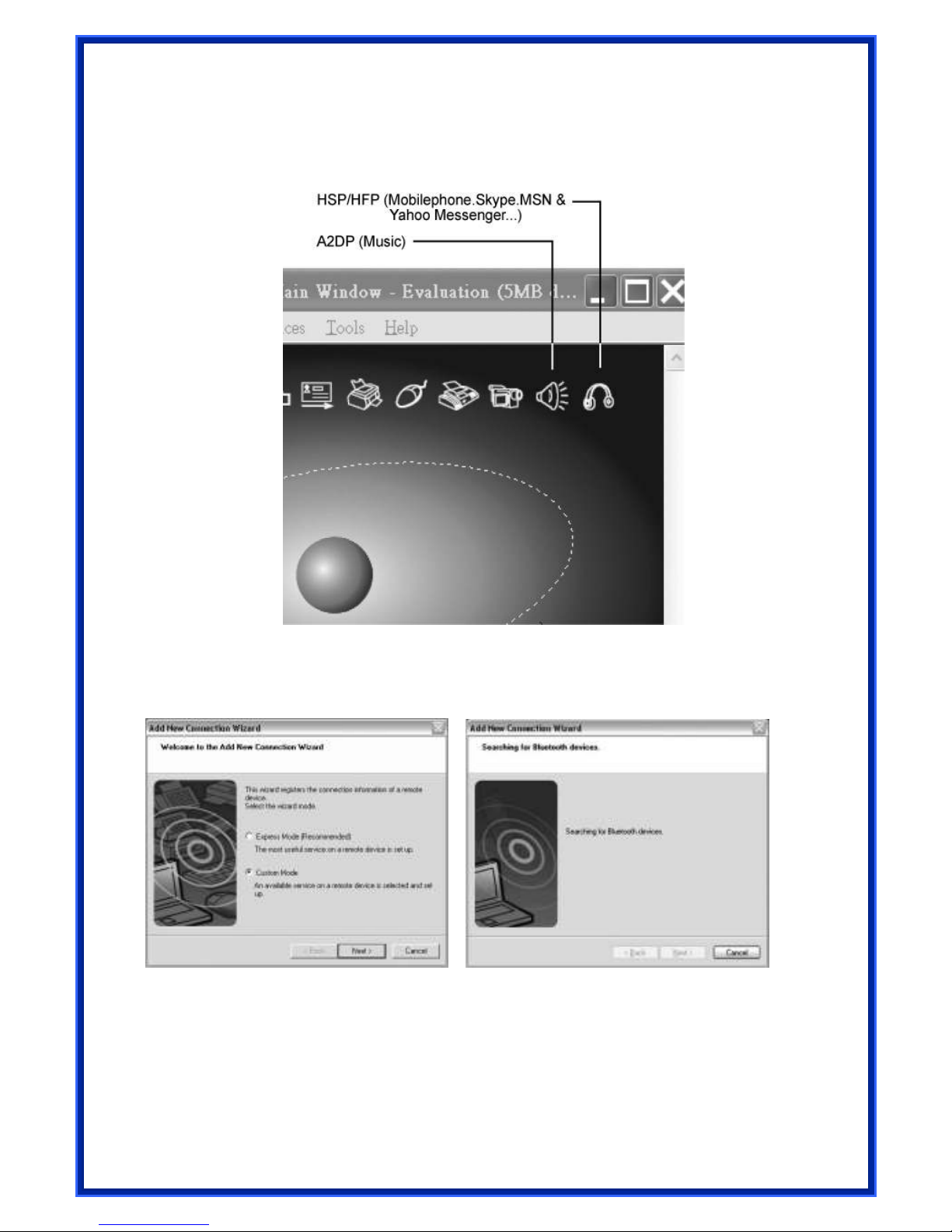

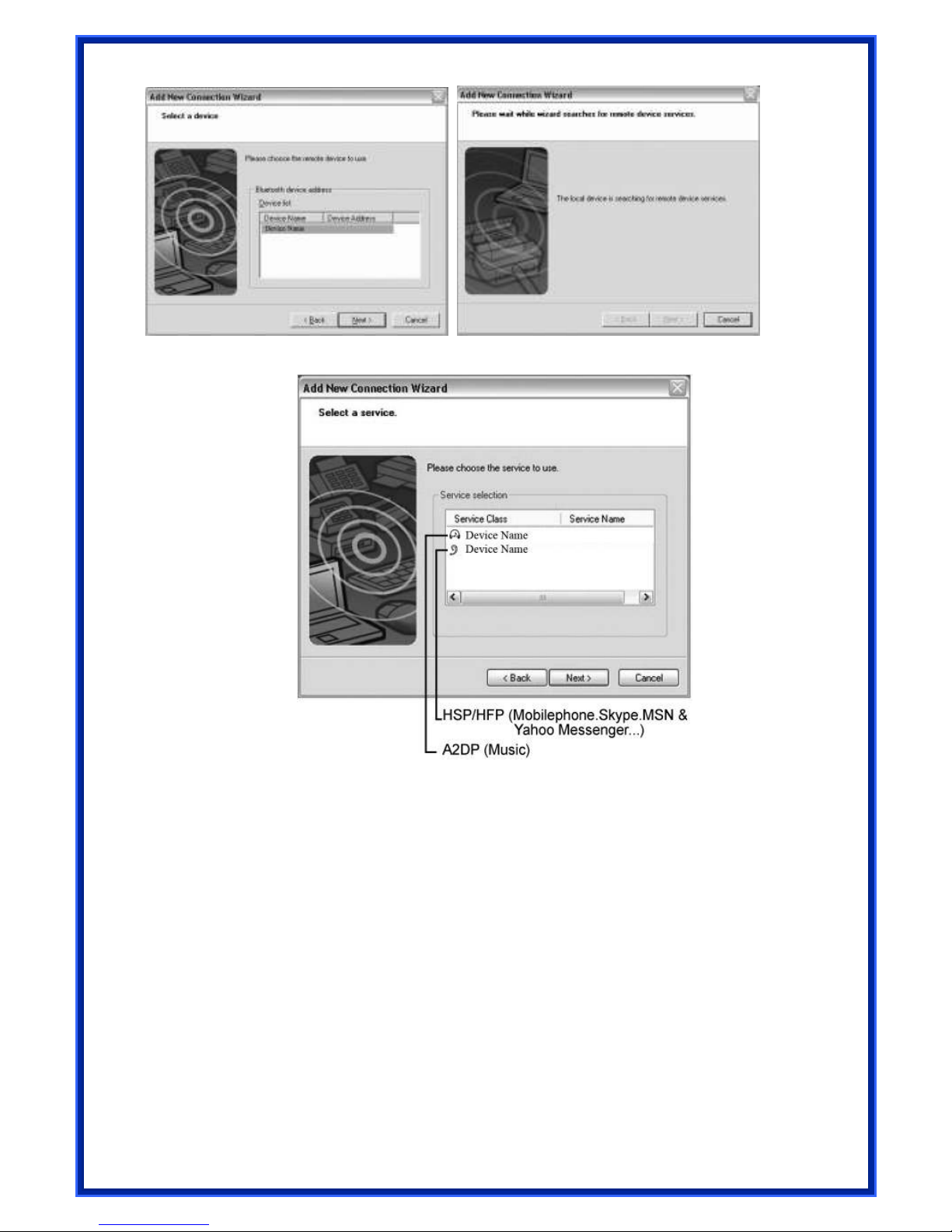

Example A：
：：
：IVT Driver Via USB Dongle：
：：
：
Example B：
：：
：TOSHIBA Driver Via USB Dongle：
：：
：
Page
6
of
14
6/18/2007
7. Connect ABT-SPK-A8 to Cell-phones with Bluetooth Capabilities.
7.1 Check your cell phone’s user guide, find out the procedure for Bluetooth Connectivity and
follow the direction to complete pairing with ABT-SPK-A Bluetooth Wireless Speakers. If
your cellphone support only HANDSFREE profile, please activate connection from the
cell-phone.
7.2 Your Cell-phone will always be in top priority for accepting incoming or making outgoing calls,
it will interrupt the on-going activity and music will be muted temporarily. As soon as the
call ends, the music will resume.
8. Connect ABT-SPK-A8 directly to other audio sources.
Use rear “LINE-IN” jack to directly connect to audio sources; such as MP3 player, Discman,
Laptop computer or other audio and stereo players. Simply plug the 3.5mm AV cable that is in
the package into the “LINE-IN” jack located in the rear and the other end to your audio sources,
Page
7
of
14
6/18/2007
then press button to play music. All functional buttons on the device will be disable as
soon as “LINE-IN” jack is connected, please operate function from the audio sources directly.
9. Connect to a 2.5mm External Microphone
Using rear “MIC-IN” jack for external microphone, simply plug the connector into the jack and
turn on the Mic. Please adjust the position of microphone tube for sensitivity and sound quality.
10. Connect to use internet VoIP functions:
10.1 Using Skype
Step 1
Please make sure you have paired the product with PC or Notebook Computer, before you
start to use.

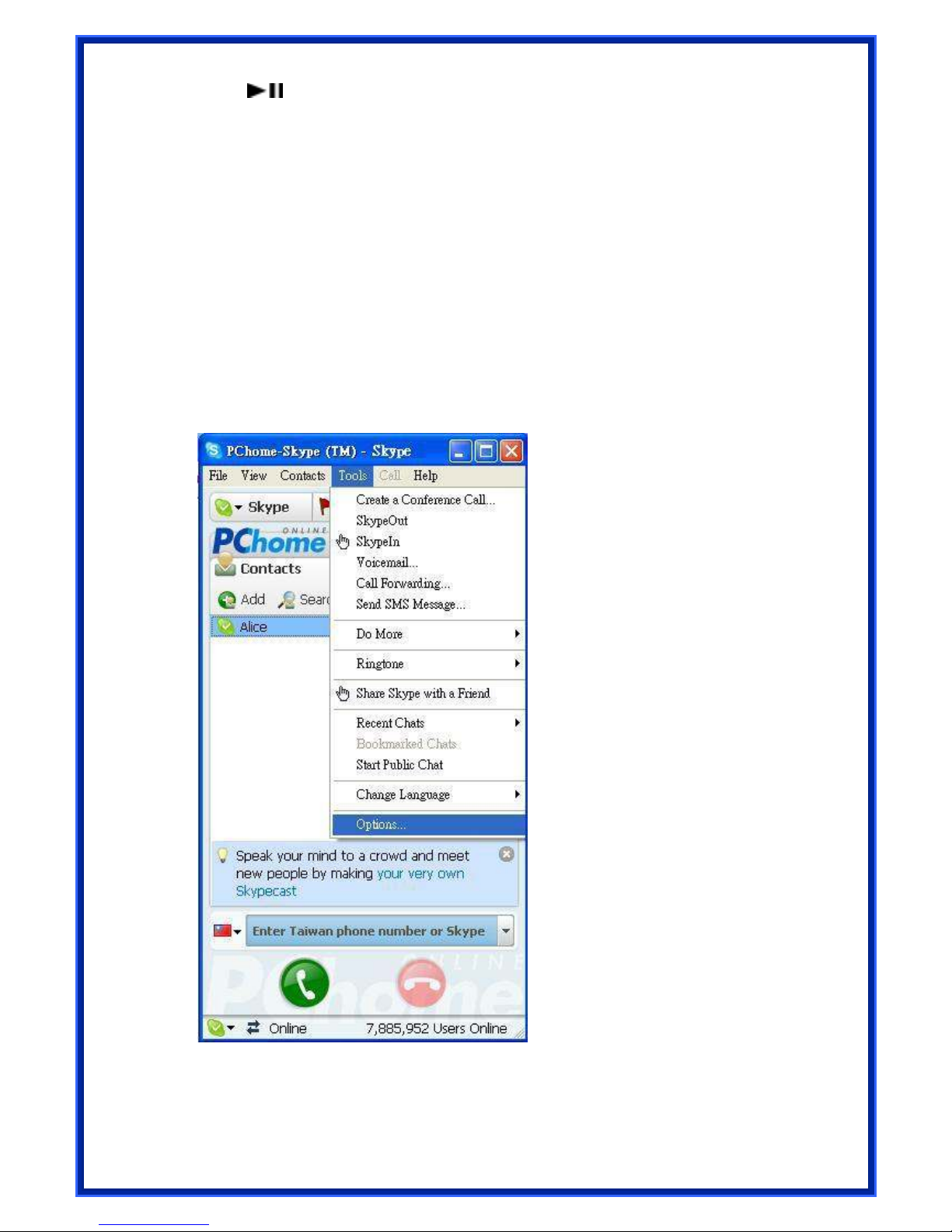

Open Skype program in your compute then, Choose「Tool」→「Option」
Page
8
of
14
6/18/2007

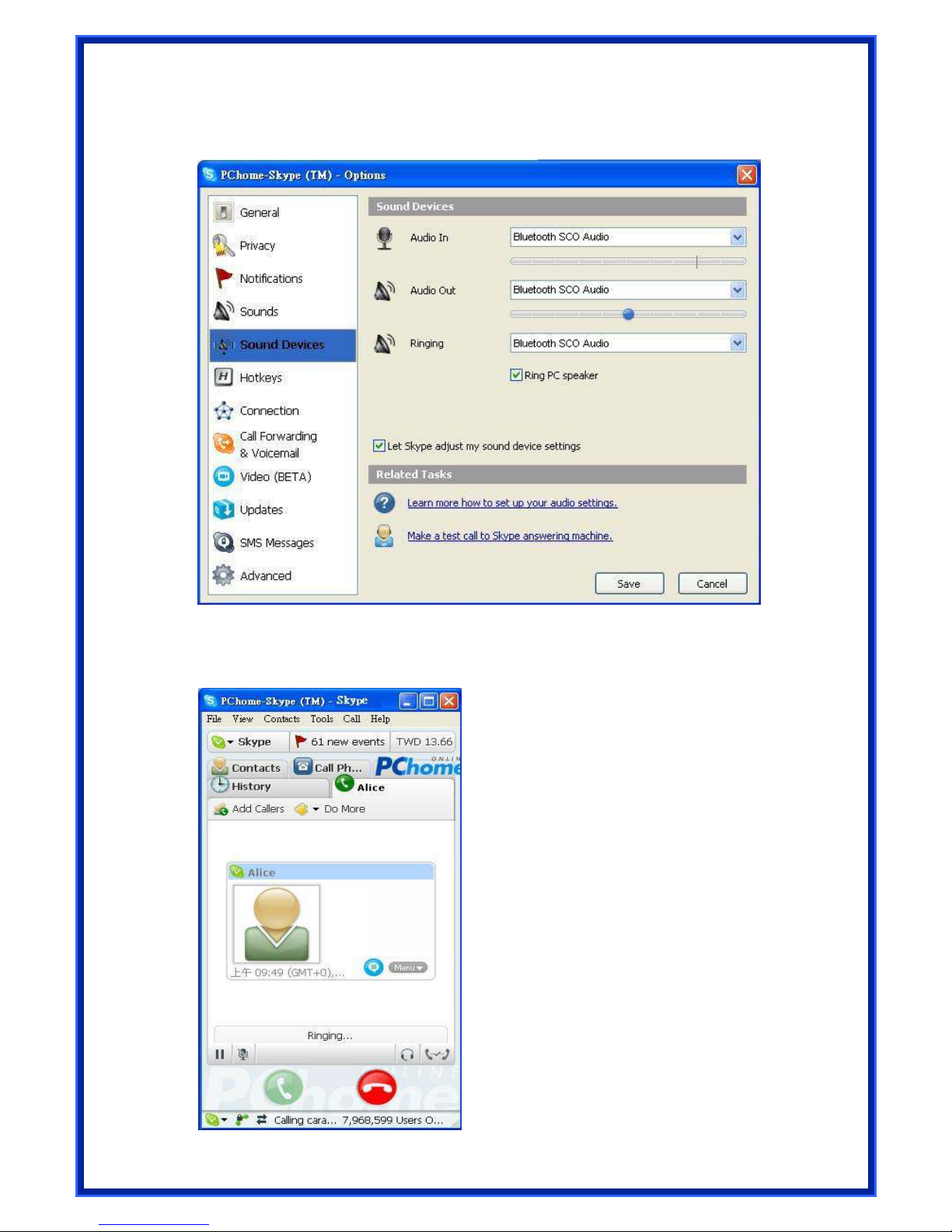

Step 2
Choose 「Sound Devices」, and check are 3 items 「Audio In」, 「Audio Out 」and 「Ringing」
all select「Bluetooth SCO Audio」, then press「Save」.
Step 3
Make a skype call with your friends by using the ABT-SPK-A Bluetooth Wireless Speaker.
Page
9
of
14
6/18/2007
10.2 Using MSN or Yahoo Messenger
Step 1

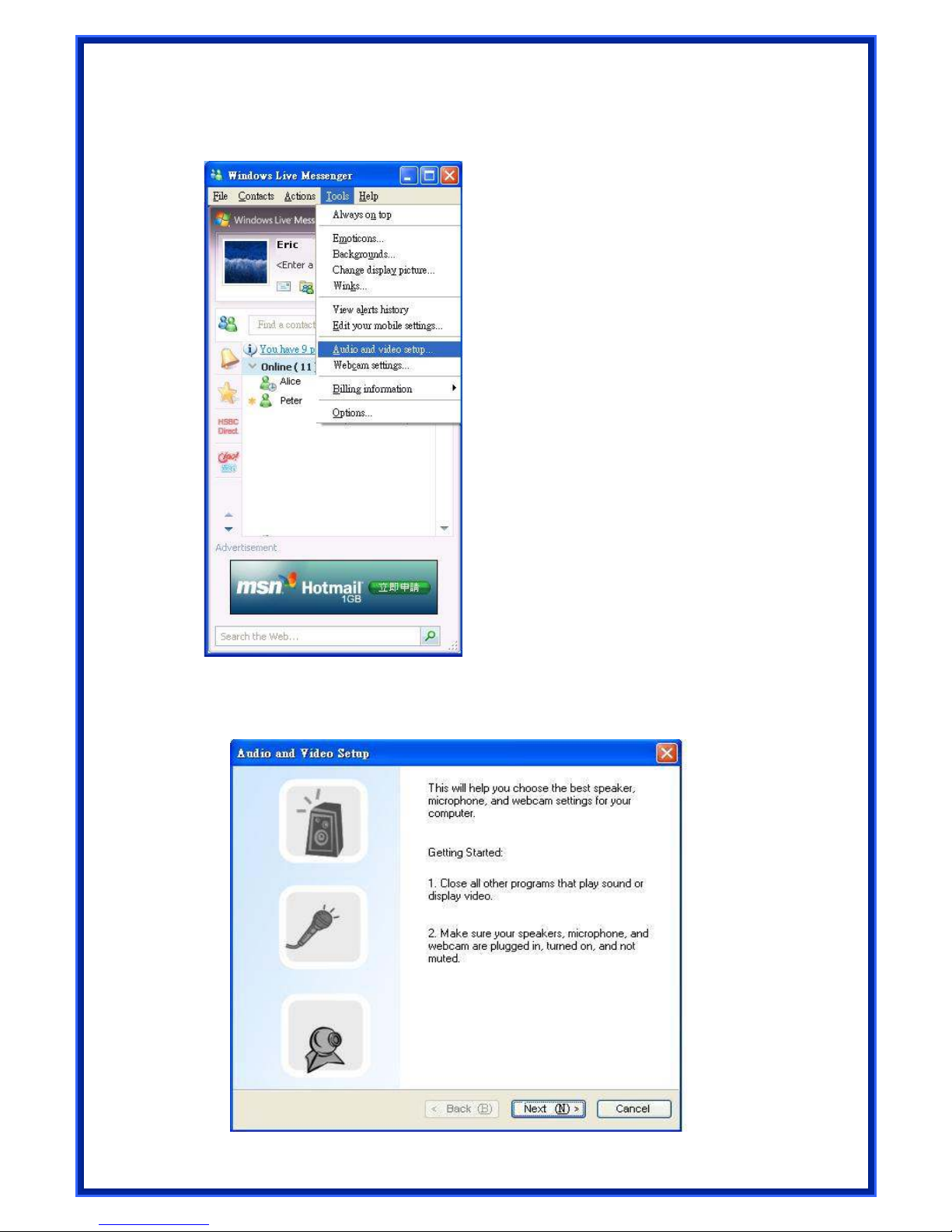

Choose「Tool」→「Audio and Video setup」
Step 2
Press「Next」to enter the Speaker Setup
Page
10
of
14
6/18/2007

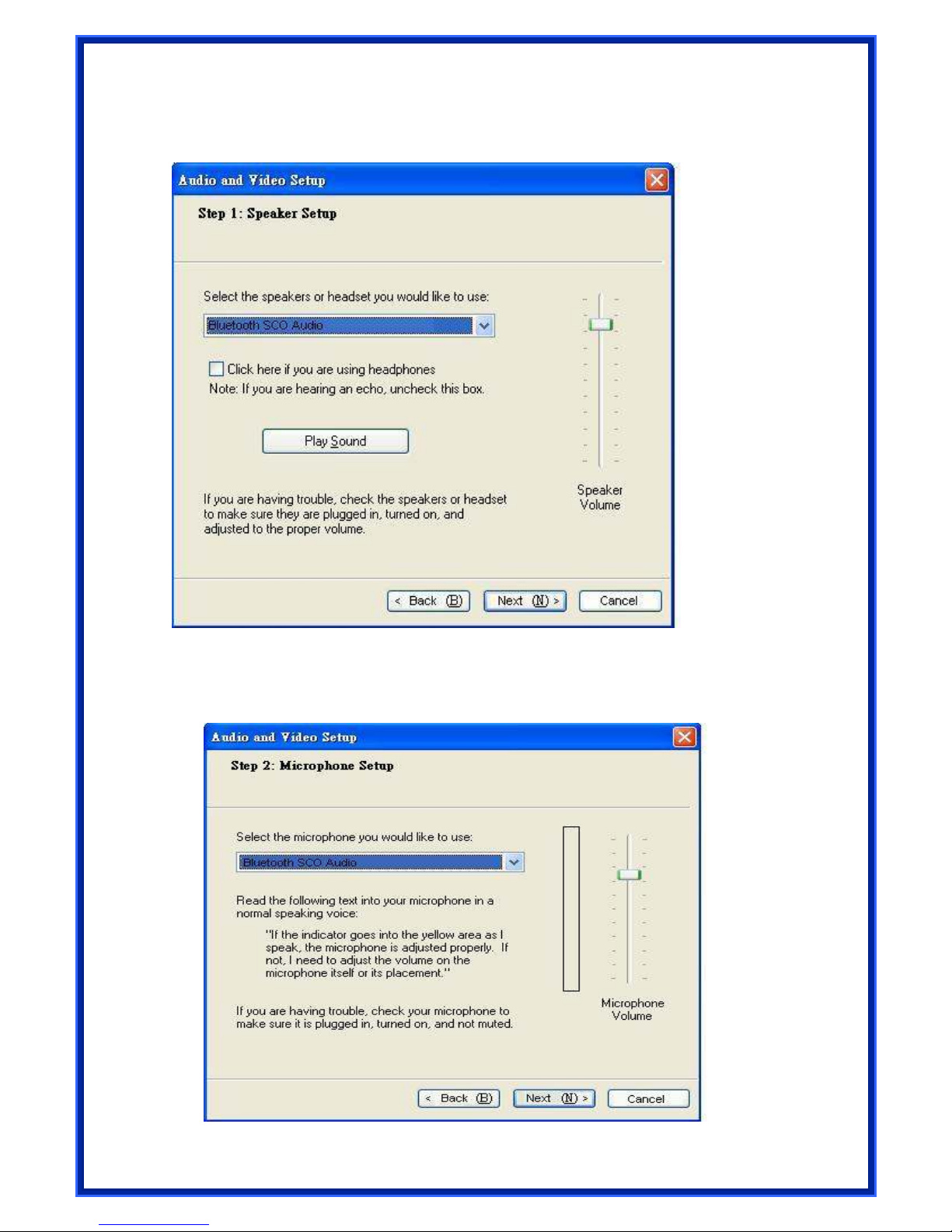

Step 3
Select「Bluetooth SCO Audio」, then press「Next」to enter the Microphone Setup
Step 4
Select「Bluetooth SCO Audio」, and then press「Next」to enter the Webcam setup
