Advantech ACK-A001E Manuel utilisateur

3.5" Single Board Computers

Features

ACK-A001E Compact Embedded 3.5" SBC Chassis

3.5" SBC chassis supports front & rear I/O interfaces

Fanless system with wall-mount & desk mount support, Mounting ﬂange is

removable

Bottom door for access to devices on the solder side of motherboard

Flexible cutouts I/O in the rear bezel up to 4 x COM , 4 x USB, audio, and

LPT/PS2/LVDS

Easy assembling & maintenance of 2.5" hard disk

Supports dedicated Advantech 3.5" SBC: PCM-9362/PCM-9363

Speciﬁcations

Disk Drive Bay 2.5" (internal) w/ PCM-9362

w/ PCM-9363

Front I/O Openings

USB 2 2

COM 1 (1 x RS-232) 1 (1 x RS-232)

RJ-45 2 2

Audio 3 (Mic-in, Line-out, Line-in) 3 (Mic-in, Line-out, Line-in)

VGA 1 1

Rear I/O Openings

COM 3 (2 x RS-232,1 RS-232/422/485) 2 (1 x RS-232,1 RS-232/422/485)

USB 4 4

Audio 1(Mic-in, Line-out, Line-in) 1(Mic-in, Line-out, Line-in)

Antenna 1 1

Circular cutouts 1(Reserved for LVDS, PS/2 & LPT cable) 1(Reserved for LVDS, PS/2 & LPT cable)

Miscellaneous LED Indicators Power, HDD

Control Power switch (Push-on/off type)

Environment

Operating Non-operating

Temperature

0 ~ 40° C (32 ~ 104° F)

w/ 0.7m/s airﬂow

w/o system Fan

-20 ~ 60° C (-4 ~ 140° F)

Humidity 40° C @ 95% RH Non-Condensing 60° C @ 95% RH non-condensing

Vibration (5 ~ 500 Hz) 1 Grms (w/o 2.5" HDD) N/A

Physical Characteristics Dimensions (W x H x D) System dimension:200 x 60 x 145 mm

System dimension with mounting bracket:230 x 65 x 145 mm

Weight 0.95 kg (2.09 lb)

Front View Rear View

RoHS

COMPLIANT

2002/95/EC

2 USB

2 LAN 1 VGA 12V DC

Power input

1 COM Power LED

HDD

LED

Power

switch

4 USB Audio

4 COM

Circular cutout for

LVDS, PS/2 & LPT cable Antenna

All product specifications are subject to change without notice Last updated : 10-May-2012

www.advantech.com/products

Online Download

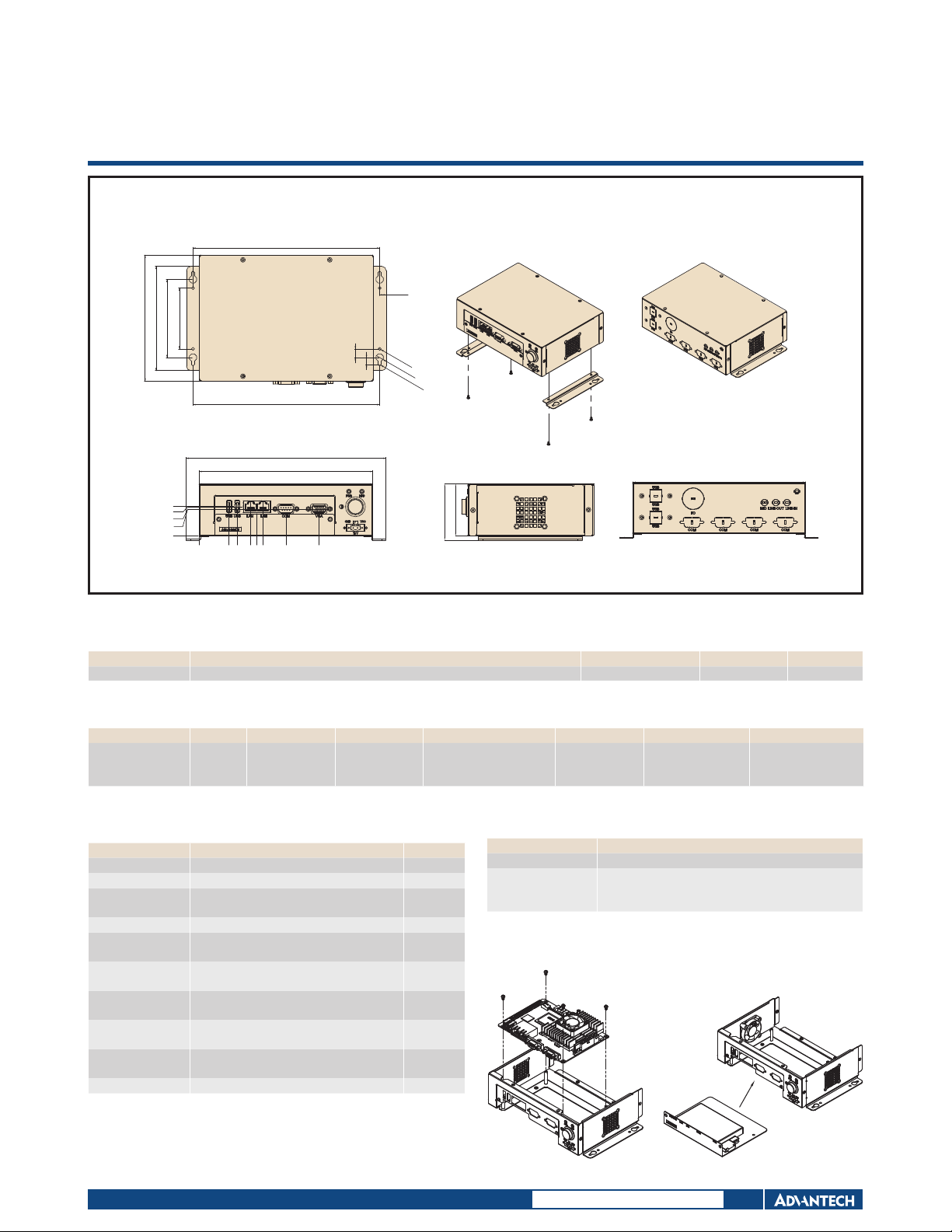

Dimensions Unit: mm

ACK-A001E

Packing List

Part Number Description Quantity

3.5" SBC Chassis 1

1700018730 2 ports USB cables 25cm for ACK-A001E 2

1700018436 PCM-9362 SATA power cable 10cm from

inverter connector 1

1700009001 Phoenix to DC power cable 4.5cm 1

1930001241 Screws for 2.5" HDD installation

(S/S D=4.8 H=1.0 + M3*5L ST BLACK) 2

1930004706 Screws for USB cable-1700018730

installation (M3*8L s/s D=5.3 H=1.2 + st ni) 4

1935030500 Screws for motherboard installation (R/S

D=5.5 H=2 + M3*5L ST Ni) 4

1930005475 Screws for system Fan-1750006619

(Screw T 3.8*10L S/S D=6.0 H=1.0 + ST BZn) 4

1990020671S000 Snap bushing for circular cutout to protect

ﬁnger from injuring 1

1990020672S000 Hole plugs for circular cutout 1

Ordering Information

Part Number Recommended 3.5" SBC System Fan Power Supply Regulation

ACK-A001E PCM-9362N-S6A1E, PCM-9362D-S6A1E, PCM-9363N-S6A1E, PCM-9363D-S8A1E TBD (Optional) 1757003553 CE/FCC

Power Supply Options

Part Number Watts Input Output Operating Temperature Dimensions Safety MTBF

1757003553

(AC-DC, w/o PFC) 36 W AC 100 ~ 240 V DC 12 V @ 3 A 0 ~ 40° C (32 ~ 104° F) 91.5 x 37.5 x 2

CE/FCC/CCC/UL/

CB/BSMI/KC/PSE/

GS/GOST-R

50,000 hours @ 25° C

230

33.95

33.50

33.88

34.61

44.01

59.61

66.59

73.58

100.11

138.29

200

215

7.50

145

120

Ø3.50

Ø9

ØR1.75

Installation

Optional Accessories

Part Number Description

1757003553 DC power 12V@3A /max 36Watts.

TBD

Fan 40 x 40 x 10mm 0.15A 12V 8000RPM and internal

SATA power cables drained power from PCM-9362/9363

inverter connector
