Advantech-DLoG DLT-V6210FL Manuel utilisateur

Quick Start and

Installation Guide

(EN)

DLT-V6210FL

1 Introduction – For Your Safety

−Read and observe this document and

the accompanying “DLT-V6210 Safety

Instructions” carefully.

−Keep all documents for future

reference.

−Go to www.advantech.com for detailed

manuals, e.g. “DLT-V6210 Manual”

and “MDevice Configuration Manual”.

DANGER

Observe the intended use.

Observe the intended use of the DLT-V6210, e.g.: No use in potentially

explosive zones and on ships, on railed vehicles, no use in life-supporting

systems or security-critical facilities.

Observe the required qualification.

This document is intended for qualified skilled personnel. Only skilled

personnel may put the DLT-V6210 into operation.

−Do not put the DLT-V6210 into operation if it is damaged.

−Do not open or modify the DLT-V6210.

−Only connect or disconnect electrical connections when the device is in a

de-energized state (electrically dead).

Design method in this document

Hazards that pose a risk to life and limb – Personal injury:

DANGER / WARNING / CAUTION

DANGER: Danger that immediately leads to death or severe injury.

WARNING: Danger that can lead to death or severe injury.

CAUTION: Danger that can lead to slight injuries.

2 Technical data of DLT-V6210

DLT-V6210

Weight 3.2 kg

Dimensions Width x height x depth in mm: 285 x 256 x 70

(height including antenna cap)

Operating temp. -30 to +50 °C

Storage temp. -30 to +60 °C

Relative humidity 10~95% non-condensing

Ambient temperature +25 °C

IP protection class IP65

Shock/Vibration Class 5M3 according to EN 60721-3-5

US Highway Truck as MIL-STD 810F

3 External connectors of DLT-V6210

Connectors under the cable cover

RSMA

External Wi-Fi antenna interface

Power

Power supply 12/24/48 nominal

Network

adapter

2 x network adapter (RJ45 connection jack) with

10/100/1000 Mbit per second

USB 2 x USB 2.0 Hi-Speed HOST A type, 5 VDC 500 mA

Fused at 0.5 A per channel

Serial COM Max. 115,200 Baud (16550A compatible, 16 byte FIFO)

Supports EIA-232-E on external 9-pin D-Sub connection

5V at Pin 9

CFast slot under the antenna cap

−

Exercise special care when

removing and re-inserting

the CFast card.

−Only use CFast cards that

have been approved by

Advantech.

Opening the antenna cap:

−Loosen the two screws of the antenna cap using a Torx screwdriver.

−Carefully lift up the antenna cap.

Closing the antenna cap:

−Place the antenna cap back onto DLT-V6210. The antenna cap seal must not

be damaged; it must be seated correctly in the groove.

−Tighten the two screws of the antenna cap again (1 Nm torque).

4 Overview of operation elements

NOTE: Users of the DLT-V6210 must be trained by skilled personnel and

instructed about the operation of the device.

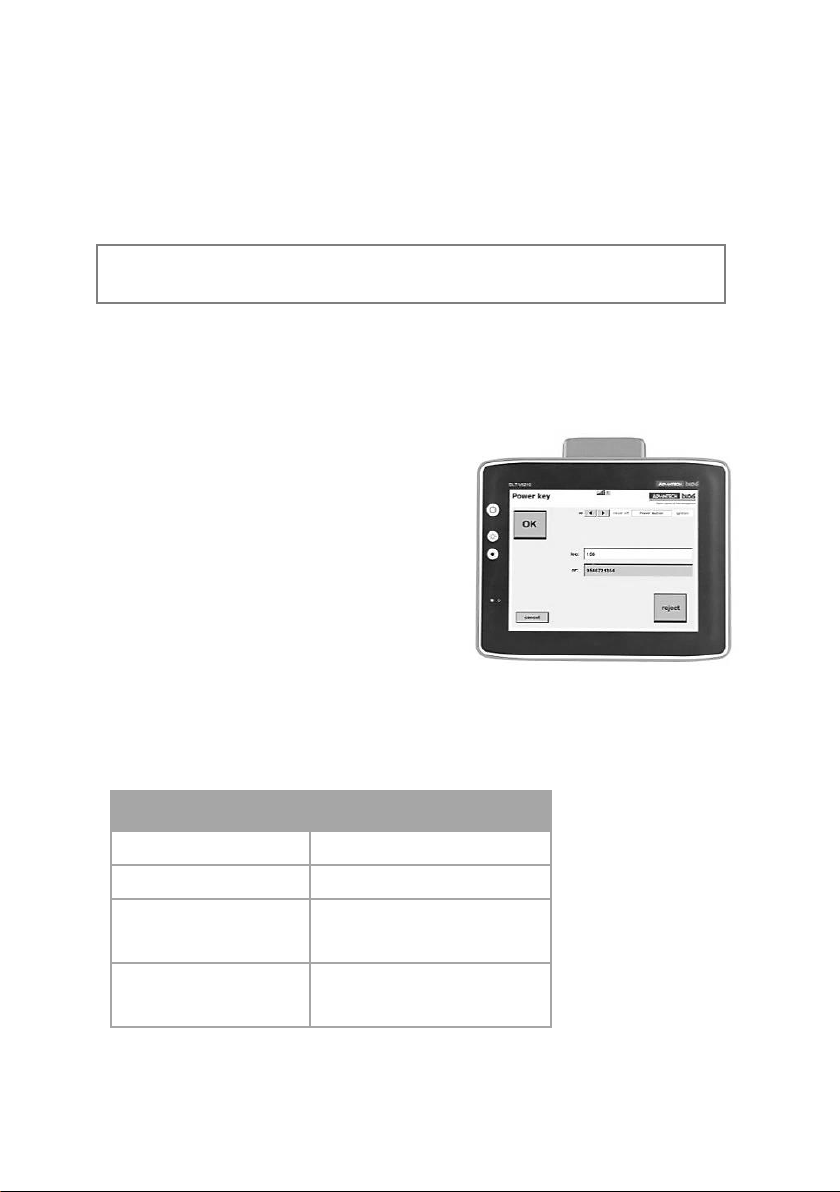

Operate the touchscreen with:

−Clean, dry fingers

−Clean, dry, thin gloves

−Suitable touch stylus

Function of the front keys (left side):

−Power on/off

−LCD Brightness up

−LCD Brightness down

LED indication:

System Status LED Status

System power on Static on

System power off Off

System over/under

temperature

Blinking

0.2 sec. on / 0.8 sec. off

System thermal

sensor faulty

Blinking

0.5 sec. on / 0.5 sec. off

5 Software configuration (e.g. Wireless)

Basic software settings for DLT-V6210 are defined at the factory, for example

with regard to Wi-Fi settings, network settings, etc. To adapt this, use the

configuration tool for the respective operating system:

WES7, WE8S,

Win 10 IoT Ent., etc.

MDevice tool, etc.

WEC7 WEC7 WLAN Client manager, etc.

Linux ADLoG Standard Linux Image configuration.

Remark: DLT-V6210 with ADLoG Linux contains software

that is GPL licensed, e.g. the Linux kernel. You can, within

3 years, get the source code for those GPL programs from

Advantech. Contact [email protected]om.

Find details in the configuration manuals at www.advantech.com.

WARNING

Safety information about radiation emission.

This device emits high-frequency energy (abbreviation: HF). To protect

people from HF radiation and to comply with country-specific regulations:

−Install the DLT-V6210 so that persons maintain a minimum distance of

20 to 50 cm to the antenna.

−Observe the applicable regulations for your deployment location/country

with regard to channels, frequencies and the maximum permissible

transmitting power. Responsibility for this lies with the company operating

the DLT-V6210. The regulatory authorities in the relevant country can

provide information on this.

Any changes or modifications which are not expressly approved by the

party responsible for the compliance can lead to the withdrawal of the

operating license and guarantee for this device.

6 Important notes before installation

General:

The DLT-V6210 installation environment must not result in a closed system. The

cooling system of the device requires a supply of fresh air. Otherwise, there is a

danger of overheating and damage to the device.

Overview: Recommended installation steps

1. Find a suitable installation position for the DLT-V6210.

2. Please ensure an ergonomic operability of the DLT-V6210.

Additionally, on vehicles, the driver’s field of vision must remain free.

3. Secure the device mounting (mounting bracket, RAM mount) to the

targeted subject/vehicle.

4. Connect external accessories to the DLT-V6210.

5. Install an easily accessible disconnecting device such as a switch close

to the device.

6. Connect all cables (power supply, etc.).

7. Seal cable passages with cable grommets and dummy grommets.

8. Close the DLT-V6210 with the cable cover.

9. Install the DLT-V6210 on the device mounting (follow the mounting

instructions).

In case of installing the DLT-V6210 on vehicles: Observe the vehicle

manufacturer’s instructions

−Observe the vehicle manufacturer’s instructions about the installation of

peripheral devices. This is particularly important when welding or drilling load

bearing parts.

−Observe the instructions for connecting additional loads, for instance, in

conjunction with an emergency shut-off switch.

−The vehicles must be properly prepared (e.g. connection to the ignition,

correct voltage, etc.)

Notes about the attachment of device mounts and accessory mounts

Mechanical expert knowledge is required for correct attachment of device

mounts (e.g. mounting bracket, RAM mount) and accessory mounts (e.g. for

scanner, keyboard) on the DLT-V6210.

−Use suitable mounting material (screws and washers).

−Observe the maximum screw-in depth of the holes of the DLT-V6210:

The recommended screw-in depth of D x 1 always applies

(screw diameter x 1).

ATTENTION: Screws that are too long, e.g. in the VESA mounting hole

pattern, can pierce the rear side of the DLT-V6210 and cause irreparable

damage to the device.

VESA mounting hole pattern 75 x 75 mm:

7 Connect cables and cable cover

Parts required

NOTICE: Some screws and grommets delivered are spare parts.

Part Name / Purpose

Phillips screw, flat screw head, M3x5L F/S D=5.0 H=0.8

(1+)SUS BZn NK:

−For fixing the cable cover to the terminal

−For securing thinner cables to the terminal’s strain relief rail

Phillips screw, middle round screw head, M3x10L R/S D=5.5

H=2.0 (2+)SUS BZn NK:

−For securing regular cables to the terminal’s strain relief rail

Hexagon screw M3x12L H/S D=5.5 H=3 SUS/H Nylok:

−For securing thicker cables to the terminal’s strain relief rail

Cable clip for securing the cables to the strain relief rail

Cable grommets which openings have different sizes; must be

attached to all cables before the cables are inserted into the

cable passages

Dummy grommets for sealing up unused cable passages

Tooth washer D=8.5 d=4.2 t=0.5 ST Ni

−For grounding the power supply cable

Nut (W) B=6 M4*0.7 H=2.5 ST Zn

−For grounding the power supply cable

Power supply cable Cable cover

STEP 1: Plugging in and screwing on the power supply cable

−Plug the power supply cable into the

power supply plug-in location.

−Tighten both mounting screws hand-

tight. The screws required for this are

already fixed in the delivered cable

plug.

STEP 2: Secure the ring tongue of the power supply cable to the

ground bolt (important for correct grounding!)

NOTICE: To make sure the device

is grounding correctly, it is

important to follow the correct

order to put the components on the

ground bolt as below (from inside

to outside):

1. Place toothed washer first:

2. Then put the ring tongue of

the power supply cable (flat

side faces the DLT-V6210

connector panel):

3. Place the nut and tighten it

hand-tight:

STEP 3: Securing the power supply cable to the strain relief rail

−

Attach the matching cable grommet to the power supply

cable.

NOTICE: The cable grommet must completely surround the

cable. The opening of the cable grommet must be slightly

smaller than the cable diameter. If the opening is too large

or too small, the sealing of the device will not be ensured.

As a delivery standard, screws and cable clips are fixed on the DLT-V6210

strain relief rail.

−Unscrew and remove the screws and the cable clip fixed on the cable

passage you want to use for the power supply cable.

−Insert the power supply cable and the cable grommet in the cable passage of

the strain relief rail.

−Place the cable clip on the power supply cable.

−Secure the cable clip to the strain relief rail using 2 pcs of Phillips screws

(middle round screw head) M3x10L:

−Tighten the mounting screws alternatingly.

NOTICE: Tighten the mounting screws sufficiently but on no account pinch or

crush the cable. If you do, the cables may break or the cable insulation may

get damaged.

STEP 4: Connecting the USB, Ethernet, COM and antenna cables

Proceed as described with the power supply cable above.

−Attach the matching cable grommet to the cable.

−Insert both components in the cable passage.

−Secure it to the strain relief rail using cable clip and appropriate screws:

For thinner cables: Phillips screws M3x5L

For regular cables: Phillips screws M3x10L

For thicker cables: Hexagon screws M3x12L

Autres manuels pour DLT-V6210FL

Table des matières

Autres manuels Advantech-DLoG PC industriel

Advantech-DLoG

Advantech-DLoG DLT-V4108 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG MTC 6 Series Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V4108 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V83 Series Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V6210 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V72 Series Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V6210 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V72 Series Manuel utilisateur

Advantech-DLoG

Advantech-DLoG MPC 6 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V83 Series Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLTV72INT Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V6210FL Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V6210 Instructions d'installation

Advantech-DLoG

Advantech-DLoG DLT-V8310 Manuel utilisateur

Advantech-DLoG

Advantech-DLoG DLT-V6210FL Manuel utilisateur

Manuels PC industriel populaires d'autres marques

Chipsee

Chipsee PPC-A72-101 Manuel utilisateur

Advantech

Advantech UNO-2184G Manuel utilisateur

MSI

MSI MS-9A76 Manuel utilisateur

Stackrack

Stackrack THOR200 Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-682C Series Manuel utilisateur

Nodka

Nodka eBOX-3000-ETC Manuel utilisateur

Siemens

Siemens SIMATIC IPC627E Manuel utilisateur

MSI

MSI MS-9A89 Manuel utilisateur

Artila

Artila Matrix-516 Manuel utilisateur

Siemens

Siemens SIMATIC Rack PC 840 V2 Manuel utilisateur

Advantech

Advantech IPPC-6152A Manuel utilisateur

Beckhoff

Beckhoff CX9020 Manuel utilisateur

Dell

Dell Embedded Box PC 5000 Manuel utilisateur

IBASE Technology

IBASE Technology ASB200-918 Series Manuel utilisateur

Lenovo

Lenovo ThinkCentre M90q Manuel du propriétaire

IXXAT

IXXAT Econ 100 Manuel utilisateur

Kontron

Kontron KBox A-151-TGL Manuel utilisateur

AXIOMTEK

AXIOMTEK ICO500-518 Series Manuel utilisateur
