Product Manual

Addressable Emergency Lighting Control Panel

www.acornfiresecurity.com

Specifications:

Item

Specification Details

Model

LX-9400

LX-9400/D

LX-9800

Enclosure

Steel IP30, RAL 7035

Dimensions H x W x D mm

385 x 450 x 125

475 x 450 x 190

950 x 450 x 190

Weight (not including batteries)

8.6kg

12kg

23kg

Temperature

-5°to 40°C

Humidity

95 % Max

Cable Entries (20mm knockouts)

18x top, 9x top rear and 2x bottom

36x top, 9x top rear and 2x bottom

36 x top, 9 x top rear and 2 x bottom

Mains Supply

220-240V, +10%,-15%, 47–63 Hz AC,

1 A max

220-240V, +10%,-15%, 47–63 Hz AC,

1 A max

220-240V, +10%,-15%, 47–63 Hz AC,

2 A max

Safety

EN 60950-1, Class 1, Pollution Degree 2, Overvoltage category II

Battery Capacity

24V 4Ah Internal (min), 24V 12Ah

Internal (max)

24V 4Ah Internal (min), 24V 38Ah

Internal (max)

24V 4Ah Internal (min), 24V 38Ah

Internal (max) per chassis

Charging Current

2.4A

Temperature Compensated

2.4A

Temperature Compensated

2 x 2.4A

Temperature Compensated

Power Supply

Separate 24V DC, 5A Off-Line

Switched Mode

Separate 24V DC, 5A Off-Line

Switched Mode

2x Separate 24V DC, 5A Off-Line

Switched Mode

Number of Loops

1 to 4

2 to 8

Devices per Loop (Total)

249 (996)

249 (1992)

Loop Current

500mA max. per Loop

Protocols

Pulse

Auxiliary Supply Output1

24V DC, 500mA

2x 24V DC, 500mA

Event Log

1000 Event & Diagnostic

2x 1000 Event & Diagnostic

Number of Zones

200 max, across 4 loops (1000 when networked)

Number of Test Groups

2x 50 (50 per chassis)

Number of Scheduled Tests

400

2x 400 (400 per chassis)

Integral Modem (Optional)

For connection to remote logging computer

Integral Printer (Optional)

For printing test results and warnings (automatic or manual activation)

External Printer (Optional)

For printing test results and warnings (automatic or manual activation) –RS232 Serial Interface

As our policy is one of constant product improvement the right is therefore reserved to modify product specifications without prior notice. E&OE

Aux supply tracks a maximum of 0.5V below battery terminal voltage when no mains supply is available

www.acornfiresecurity.com

Table of Contents Page

1INTRODUCTION.............................................................................................................................................6

1.1 STANDARDS.............................................................................................................................................6

1.2 CAUTIONS AND WARNINGS .......................................................................................................................6

1.3 DESCRIPTION ...........................................................................................................................................6

1.3.1 System Features................................................................................................................................7

1.3.2 Luminaire Control / Monitor Modules.................................................................................................7

1.3.2.1 Lxp-302 Control / Monitor Module............................................................................................................7

1.3.2.2 Lxp-304 Light Monitor Module .................................................................................................................8

1.3.2.3 Lxp-110 I/O Control Module.....................................................................................................................8

1.3.2.4 Lxp-111 AC Current to Light Converter....................................................................................................8

1.4 INSTALLATION APPROVALS.......................................................................................................................9

1.4.1 Emergency Lighting Installations.......................................................................................................9

1.4.2 Wiring Regulations.............................................................................................................................9

2INSTALLATION............................................................................................................................................10

2.1 IDENTIFICATION OF PARTS ......................................................................................................................10

2.2 INSTALLING THE LX-9400 ENCLOSURE....................................................................................................10

2.2.1 Opening the Enclosure Cover..........................................................................................................10

2.2.2 Removing the Chassis.....................................................................................................................10

2.2.3 Mounting the Enclosure...................................................................................................................11

2.2.4 Remounting the Chassis..................................................................................................................11

2.2.5 Recommended Cable Routing Arrangement...................................................................................12

2.2.6 Installing Additional Option Modules................................................................................................13

2.2.6.1 Additional Signalling Line Circuits..........................................................................................................13

2.2.6.2 Removing a Loop Driver Card ...............................................................................................................13

2.2.6.3 Integral Modem Option ..........................................................................................................................14

2.2.6.4 Integral Network Option Cards...............................................................................................................14

2.2.6.5 Integral Printer Option............................................................................................................................14

2.2.6.5.1 Printer Power Supply ........................................................................................................................14

2.2.6.5.2 Printer Diagnostics............................................................................................................................15

2.2.6.5.3 Changing the Paper Roll...................................................................................................................15

2.3 WIRING INSTALLATION............................................................................................................................16

2.3.1 AC Mains Wiring ..............................................................................................................................16

2.3.1.1 Cable Gland...........................................................................................................................................16

2.3.2 Battery Installation ...........................................................................................................................17

2.3.3 Signalling Line Installation ...............................................................................................................18

2.3.3.1 General Considerations.........................................................................................................................18

2.3.3.2 Radial Wiring Format.............................................................................................................................18

2.3.3.3 Loop Wiring Format ...............................................................................................................................19

2.3.3.4 Pulse Luminaire Serial Numbers............................................................................................................19

2.3.4 Auxiliary Supply Output....................................................................................................................19

3USER OPERATION......................................................................................................................................20

3.1 CONTROLS AND INDICATIONS..................................................................................................................20

3.1.1 Graphical Display.............................................................................................................................20

3.1.2 LED Status Indicators ......................................................................................................................21

3.1.3 Control Buttons ................................................................................................................................21

3.1.4 Navigation Buttons...........................................................................................................................21

3.1.5 Number and Letter Buttons..............................................................................................................22

3.1.6 Buzzer..............................................................................................................................................22

3.2 OPERATION............................................................................................................................................22

3.2.1 Access Levels..................................................................................................................................22

3.2.1.1 Changing from Access Level 1 to 2 .......................................................................................................22

3.2.1.2 Changing from Access Level 2 to 1 .......................................................................................................23

3.2.2 Fault Condition.................................................................................................................................23

3.2.3 Alarm Condition ...............................................................................................................................24

3.2.4 Menu Functions ...............................................................................................................................25

3.2.4.1 Using the Buttons to Navigate Menus....................................................................................................25

3.2.4.1.1 Selecting Menu Options....................................................................................................................25

3.2.4.1.2 Selecting Individual Zone Numbers...................................................................................................26

3.2.5 Test..................................................................................................................................................26

3.2.5.1 Test –Lights..........................................................................................................................................27

3.2.5.1.1 Test –Lights (By Group)...................................................................................................................27

www.acornfiresecurity.com

3.2.5.1.2 Test –Lights (Individually)................................................................................................................28

3.2.5.2 Test - Display ........................................................................................................................................29

3.2.5.3 Test –Print............................................................................................................................................29

3.2.6 Viewing............................................................................................................................................ 30

3.2.6.1 View - Faults..........................................................................................................................................30

3.2.6.2 View - Log .............................................................................................................................................30

3.2.6.3 View Inputs............................................................................................................................................30

3.2.6.4 View Outputs.........................................................................................................................................31

3.2.6.5 View - Panel..........................................................................................................................................32

3.2.6.6 View - Network ......................................................................................................................................33

3.2.7 Time / Date...................................................................................................................................... 33

3.2.8 Status.............................................................................................................................................. 33

3.2.9 Lock Controls.................................................................................................................................. 33

3.2.10 Print............................................................................................................................................. 34

3.2.10.1 Print –Test Results...............................................................................................................................34

3.2.10.2 Print –Log.............................................................................................................................................35

3.2.10.3 Print –Feed Paper................................................................................................................................35

3.2.10.4 Print –Stop............................................................................................................................................35

3.2.10.5 Print –Set-Up Printer ............................................................................................................................35

3.2.10.6 Printer Diagnostics ................................................................................................................................36

4PROGRAMMING......................................................................................................................................... 37

4.1 INTRODUCTION ...................................................................................................................................... 37

4.1.1 Memory Lock................................................................................................................................... 37

4.1.2 Navigating through menus.............................................................................................................. 37

4.1.3 Changing Text Descriptions............................................................................................................ 37

4.1.4 Numeric data entry.......................................................................................................................... 38

4.2 RECOMMENDED PROGRAMMING PROCEDURE......................................................................................... 39

4.3 LEVEL 3MENU FUNCTIONS.................................................................................................................... 39

4.3.1 Loops .............................................................................................................................................. 40

4.3.1.1 Loops - View/Edit ..................................................................................................................................40

4.3.1.1.1 State.................................................................................................................................................42

4.3.1.1.2 Test Group........................................................................................................................................42

4.3.1.1.3 Zone .................................................................................................................................................42

4.3.1.1.4 Description (Device Text) .................................................................................................................42

4.3.1.1.5 Serial Number...................................................................................................................................42

4.3.1.1.6 Type..................................................................................................................................................42

4.3.1.1.7 Light..................................................................................................................................................43

4.3.1.1.8 Battery..............................................................................................................................................43

4.3.1.1.9 I/O Module Input Action....................................................................................................................44

4.3.1.1.10 Testing Luminaires..........................................................................................................................44

4.3.1.2 Loops - Auto Learn................................................................................................................................45

4.3.1.2.1 Normal Procedure / Initial learn........................................................................................................45

4.3.1.2.2 Procedure if the Panel finds Devices Missing...................................................................................45

4.3.1.2.3 Procedure if the Panel finds Devices Added.....................................................................................46

4.3.1.2.4 Procedure if the Panel finds Devices Changed ................................................................................46

4.3.1.3 Loops –Search PLU .............................................................................................................................46

4.3.1.3.1 Search All PLU .................................................................................................................................47

4.3.1.3.2 Assign From Panel Configuration Memory .......................................................................................47

4.3.1.4 Loops –Driver.......................................................................................................................................48

4.3.2 Zones .............................................................................................................................................. 48

4.3.3 Exit .................................................................................................................................................. 48

4.3.4 Tests ............................................................................................................................................... 49

4.3.4.1 Group ....................................................................................................................................................49

4.3.4.2 Date.......................................................................................................................................................49

4.3.4.3 Time ......................................................................................................................................................49

4.3.4.4 Period....................................................................................................................................................49

4.3.5 Time and Date................................................................................................................................. 50

4.3.6 View Options................................................................................................................................... 50

4.3.7 Passwords....................................................................................................................................... 50

4.3.8 PC Config........................................................................................................................................ 51

4.3.9 Setup............................................................................................................................................... 51

4.3.9.1 Network.................................................................................................................................................51

4.3.9.2 Panel Zone............................................................................................................................................51

4.3.9.3 Service Number.....................................................................................................................................51

4.3.9.4 Service Due Date ..................................................................................................................................51

4.3.9.5 Trace Logging Mode..............................................................................................................................52

4.3.9.6 Company LCD Logo..............................................................................................................................52

4.3.9.7 Program ID............................................................................................................................................52

www.acornfiresecurity.com

4.3.9.8 Config Data............................................................................................................................................52

5SERVICE AND MAINTENANCE..................................................................................................................53

5.1 MAINTENANCE /INSPECTION SCHEDULE..................................................................................................53

5.1.1 Daily Actions ....................................................................................................................................53

5.1.2 Monthly Actions................................................................................................................................53

5.1.3 Quarterly Actions .............................................................................................................................53

5.1.4 Annual Actions.................................................................................................................................53

5.2 REPLACEMENT OF COMPONENTS ............................................................................................................54

5.2.1 Batteries...........................................................................................................................................54

5.2.1.1 Standby Batteries...................................................................................................................................54

5.2.1.2 Lithium Battery.......................................................................................................................................54

5.2.1.3 Printer Battery Pack...............................................................................................................................54

5.2.2 Liquid Crystal Display ......................................................................................................................55

6APPENDICES...............................................................................................................................................56

6.1 APPENDIX 1–FORGOTTEN LEVEL 3PASSWORD .....................................................................................56

6.2 APPENDIX 2–RECOMMENDED CABLES...................................................................................................57

6.3 APPENDIX 3–BATTERY STANDBY CALCULATION CHART.........................................................................58

6.4 APPENDIX 3–COMMISSION RECORD SHEET ...........................................................................................59

www.acornfiresecurity.com

1 Introduction

1.1 Standards

The Lux Intelligent Addressable Emergency Lighting Control Panels conform to the requirements of the

following standards and codes of practice:

BS5266-1:2011 Code of practice for emergency lighting

EN50172:2004 / BS5266-8:2004 Emergency escape lighting systems

Low Voltage Directive 2006/95/EC

EN60950-1: 2006 +A12:2011 Safety of information technology equipment

Electromagnetic Compatibility Directive 2004/108/EC

EN61000-6-3:2007 +A1:2011 Emissions, Class B

EN50130-4: 1995 +A1:1998 +A2: 2003 Immunity, Product Family Standard

EN50130-4: 2011 Immunity, Product Family Standard

1.2 Cautions and Warnings

STOP

BEFORE INSTALLATION –Refer To the Ratings shown on the label inside the

product and to the ‘Specifications Chart’ in this document.

Please read this manual carefully. If you are unclear on any point DO NOT

proceed. Contact the manufacturer or supplier for clarification and guidance.

Only Trained service personnel should undertake the Installation, Programming

and Maintenance of this equipment.

This product has been designed to comply with the requirements of the Low

Voltage Safety and the EMC Directives. Failure to follow the installation

instructions may compromise its adherence to these standards.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

SENSITIVE DEVICES

This equipment is constructed with static sensitive components. Observe anti-

static precautions at all times when handling printed circuit boards. Wear an

anti-static earth strap connected to panel enclosure earth point. Before

installing or removing any printed circuit boards remove all sources of power

(mains and battery).

1.3 Description

This manual covers the installation, programming, commissioning and use of the Lx-9400 Addressable

Emergency Lighting Control Panel. Additionally, a User Guide (Document No. 680-070) is also available.

The Lx-9400 is a Multiple Loop, Addressable Emergency Lighting Control Panel with provision for up to four

signalling loops and is designed for use with Emergency Light Luminaires equipped with the Advanced

Electronics Pulse addressing and monitor PLU module.

The Lx-9800 is a Multiple Loop, Addressable Emergency Lighting Control Panel with provision for up to eight

signalling loops and is designed for use with Emergency Light Luminaires equipped with the Advanced

Electronics Pulse addressing and monitor PLU module

Install the panel, signalling loops, monitored output circuits, etc. in accordance with the instructions in

Section 2 and then program the operation in accordance with the instructions detailed in Section 4.

User operation is described in Section 3.

www.acornfiresecurity.com

1.3.1 System Features

The Lux Intelligent system provides real-time monitoring and automatic testing of emergency lighting. It is

designed to satisfy the requirements of BS5266 part 1 and prEN50172 standards for emergency lighting

systems.

Each Lux Intelligent control panel supports maintained, non-maintained and slave luminaires in either self-

contained central battery or static inverter systems.

The control panel electronics are housed in a high quality steel enclosure with sealed front label protecting the

control keys, LED Indicators and liquid crystal display. The graphic display is backlit to improve visibility in poor

ambient light conditions.

The system is modular in construction. For small systems, a single line driver is used to connect up to 249 Pulse

Line Unit (PLU) addressable luminaires or I/O modules over a 2-core cable. Each line driver takes the form of a

small, plug-in circuit card and each panel can control up to 4 line drivers. Further expansion is easily achieved

by networking up to 200 Lux Intelligent panels.

The installation may be divided up into a maximum of 200 Zones (1000 Zones when networked) to correspond

with the building fire zones, with each luminaire capable of being identified by its zone description and individual

location description. In addition, the installation may be divided up into 50 Test Groups, per panel, for automatic

or manual testing, thereby permitting the testing of alternate luminaires within a zone.

A User-friendly, menu driven software is used to assist in commissioning systems and for general operation of

the panel. Once luminaires are connected to the panel, a simple ‘Learn’ procedure is run to quickly identify the

quantity and types connected on each line.

Automatic testing can be carried out at any time of day or night. Flexible programming allows the time, date and

duration of test for multiple groups of lights to be quickly specified, with up to 400 unique time / date / periods

per year. The panels can be fully on site programmed using the front panel alphanumeric keypad. Alternatively,

the panel programming may be configured from a PC via the isolated RS232 serial port.

Alternatively, the data can be transferred to a database on a central PC for subsequent analysis, listing and

printing.

Remote monitoring is also possible via an internal modem option or using a serial to Ethernet converter.

Software running on a remote PC can be set to periodically dial into each panel and check for any faults. Again

proof of all tests carried out on each luminaire, showing the time, date and duration of each test can be

automatically printed from the PC.

An internal (or external) printer can be fitted to print the test results, etc. where the PC logging system is not

required.

1.3.2 Luminaire Control / Monitor Modules

The control panel is compatible with all Pulse Line Units. Models: Lxp-302, Lxp-304 Light Only, Lxp-110 I/O and

Lxp-111 AC Current to Light Converter.

The control panel is also compatible with the AEL-302 (luminaire powered) control / monitor module.

For full information on each module, refer to document 680-075. The salient features of each module are as

follows:

1.3.2.1 Lxp-302 Control / Monitor Module

The Pulse Line Unit is a device which checks for correct light levels, AC and battery power and provides the

following major features:

Self (Soft) Addressing –No DIL Switches to set in the luminaire fitting

Removal of double addressing at the panel –no need to go to luminaire

Loop powered so does not affect the luminaire battery supply

AC Mains sensing and control

Real-time Analogue Light Level Monitoring (via a unique fibre-optic sensor) available at the panel

Real-time Analogue Battery Level Monitoring available at the panel

www.acornfiresecurity.com

1.3.2.2 Lxp-304 Light Monitor Module

The Pulse Light Only Line Unit is a device which checks for correct light levels, but does not monitor a battery or

AC supply and provides the following major features:

Self (Soft) Addressing –No DIL Switches to set in the luminaire fitting

Removal of double addressing at the panel –no need to go to luminaire

Loop powered so does not affect the luminaire battery supply

Real-time Analogue Light Level Monitoring (via a unique fibre-optic sensor) available at the panel

1.3.2.3 Lxp-110 I/O Control Module

The Pulse Input/Output Line Unit is available to support central battery systems, or any other situation in which

additional loop powered inputs or outputs are required and provides the following major features:

Self (Soft) Addressing –No DIL Switches to set in the luminaire fitting

Removal of double addressing at the panel –no need to go to luminaire

Loop powered

Output Relay to control the central battery / static inverter luminaire test operation

Input for monitoring of Alarms or Warnings

1.3.2.4 Lxp-111 AC Current to Light Converter

The Pulse Line Unit provides the following major features:

AC powered so does not affect the luminaire battery supply

Senses current drawn by the lamp and converts to a light output for monitoring via the Lxp-302 or Lxp-

304 modules.

Suitable for applications where it is not possible / convenient to monitor the actual light –e.g. tungsten

lamps.

www.acornfiresecurity.com

1.4 Installation Approvals

1.4.1 Emergency Lighting Installations

The panel must be installed and configured for operation in accordance with these instructions and the

applicable code of practice or national standard regulations for emergency lighting systems installation

appropriate to the country and location of the installation.

1.4.2 Wiring Regulations

The panel and system must be installed in accordance with these instructions and the applicable wiring codes

and regulations appropriate to the country and location of the installation.

Insulation coordination for equipment within low voltage systems:

The normal category for fire detection and fire alarm products (and associated equipment) is as permanently

connected equipment supplied from the building wiring (Overvoltage Category II). The equipment is not

classified as being an integral part of the building wiring (Overvoltage Category III).

In accordance with EN60950-1, the products are assessed to, and comply with, the requirements for

Overvoltage Category II devices for connection to the AC Mains supply.

This category is the normal category for this type of equipment and installation and the use of additional surge

protection devices (SPD) is not normally required.

However:

- If the equipment is subjected to special requirements with regard to reliability and availability, or

- If the equipment is likely, when installed, to be subjected to transient over-voltages that exceed Category II,

then

Additional surge protection devices (SPD) shall be provided in the AC Mains Supply feed to the equipment to

limit any overvoltage transients to the levels of Category II.

www.acornfiresecurity.com

2 Installation

2.1 Identification of Parts

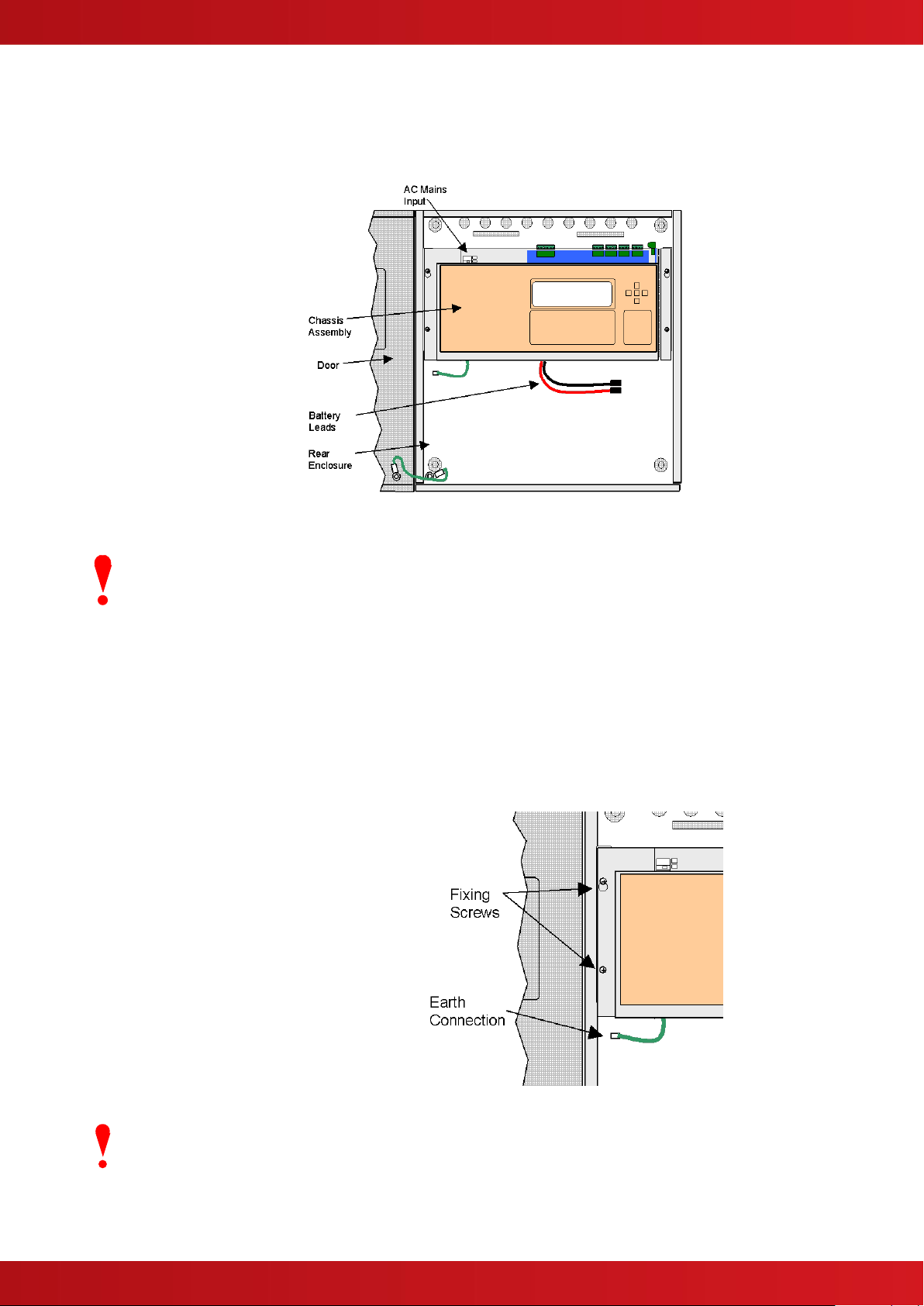

The diagram opposite shows

the major parts of the panel.

2.2 Installing the Lx-9400 Enclosure

The panel can weigh in excess of 20kg when the batteries are installed. Use

the appropriate fixing hardware necessary to secure the panel to the wall.

Observe recommended lifting practices to guard against spinal injury.

2.2.1 Opening the Enclosure Cover

The Lx-9400 is provided with a captive screw fixing for securing the hinged door to the back box.

The Lx-9400/D and Lx-9800 are provided with key-lock assemblies for securing the hinged door to the back

box. Insert and turn the key to open the enclosure.

2.2.2 Removing the Chassis

It is recommended that the chassis be removed

before fitting the panel to the wall. To remove

the chassis:

Refer to the diagram opposite.

Disconnect the earth cable connecting the

chassis to the spade terminal on the rear

enclosure.

Remove the bottom two screws holding the

chassis to the back box. Keep these items in a

safe place for later re-use.

Loosen the top two screws holding the chassis

to the back box via the keyhole slots. The

chassis assembly can now be removed.

Carefully remove the chassis from the rear

enclosure and place in a safe place to prevent

accidental damage.

Do not lift the chassis by holding onto any of the printed circuit cards. Hold

the chassis by the metal plate only.

www.acornfiresecurity.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Advanced Panneau de contrôle

Advanced

Advanced ExGo Series Manuel utilisateur

Advanced

Advanced LIFELINE Px-100 Manuel utilisateur

Advanced

Advanced MxPro4 Series Manuel utilisateur

Advanced

Advanced LIFELINE Px-100 Manuel utilisateur

Advanced

Advanced Ex-3001 Manuel utilisateur

Advanced

Advanced Quick Zone XL Mode d’emploi

Advanced

Advanced MxPro 5 Instructions d'installation et d'utilisation

Advanced

Advanced MxPro 4 4100S Manuel utilisateur

Advanced

Advanced MxPro4 Series Manuel utilisateur

Advanced

Advanced MxPro4 Mx-4200 Manuel utilisateur

Advanced

Advanced Mx-5101xR Manuel utilisateur

Advanced

Advanced Mx Pro 4 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
