ADS ADS120D Plus Instructions d'utilisation d'origine
Installation & Operation Guide
ADS120D Plus
Mixer Amplifier
PLEASE NOTE: THIS MANUALAND THE NOTES CONTAINED HEREIN ARE COPYRIGHTAND MAY
NOT BE REPRODUCED EITHER WHOLLY OR IN PART, IN ANY WAYWHATSOEVER, WITHOUT
WRITTEN CONSENT OFADSworldwide.
Audio Design Services Ltd, St David’s House,Adcroft St, Higher Hillgate, Stockport, Cheshire SK1 3HW, UK.
TEL: +44 (0)161 666 6363 FAX: +44 (0)161 666 6366. WEB: www.ads-worldwide.net
© 2019
1
Product Compliance to EC directives for Standard Products
All standard products conform to the relevant directives, regulations and standards for
electronic and associated apparatus. The equipment is CE marked both on the apparatus
and the packaging.
Our products meet the appropriate British and International standards. A product
‘Declaration of Conformity’ Statement is available for each of the product ranges (available
on request). This covers both the Electromagnetic Compatibility (EMC) and Low Voltage
Directives.
UNPACKING
While all ADSworldwide equipment is carefully packed to prevent damage in transit, we
recommend that the equipment is unpacked and inspected immediately on receipt. If
damage has occurred please advise your carrier and your supplier who will arrange
appropriate action.
If it is necessary to re-pack the equipment for onward shipping or returning to
ADSworldwide for service PLEASE ENSURE THAT THE ORIGINAL PACKING OR
EQUIVALENT IS USED.
2
1. Product Description
1.1 Features
Integral USB audio player.
Bluetooth connectivity for wireless streaming.
Signal level indicator (SIG), Clip Indicator (CLIP), and Protection indicator (PRO).
2 MIC inputs, 1 with phantom power and 1 with priority, 2 line inputs.
100V input and line auxiliary inputs.
With short-circuit, overload and high temp protection, temperature-controlled fan.
Individual volume control for Mic 1-2, line 1-2, bass/treble and master volume control.
Remote control.
3
2. Appearance Description
2.1 Front panel
1. Mic 1 priority input
2. MIC1 volume adjustment
Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down.
3. MIC2/AUX1 volume adjustment
Adjust the volume of MIC2/AUX1, turn clockwise to turn up, turn counter clockwise to turn down.
4. AUX2 volume adjustment
Adjust the volume ofAUX2, turn clockwise to turn up, turn counter clockwise to turn down.
5. Bass volume adjustment
The central position as the benchmark, turn counter clockwise to turn down the bass, turn clockwise to turn
up the bass
6. Treble volume adjustment
The central position as the benchmark, turn counter clockwise to turn down the treble, turn clockwise to turn
up the treble
7. Master volume adjustment
Adjust the level of all signals, turn clockwise to turn up the volume, turn counter clockwise to turn down the
4
volume.
8. Power switch
Press “ON” to turn on the power, press “OFF” to close the power
9. Signal level indicator（
（（
（SIG）
））
）
10. Clip Indicator（
（（
（CLIP）
））
）
11. Protection indicator（
（（
（PRO）
））
）
12. Display screen
13. USB interface
Insert the USB drive to provide audio playback
14. Mode selector
Bluetooth orAux
15. Play/Pause
In USB and Bluetooth mode, pause play
In Line mode, this key is to mute
16. Last song
In USB and Bluetooth mode, press this key to switch to the “last song”, long press this key to turn down the
volume
17. Next song
In USB and Bluetooth mode, press this key to switch to the “next song”, long press this key to turn up the
volume
5

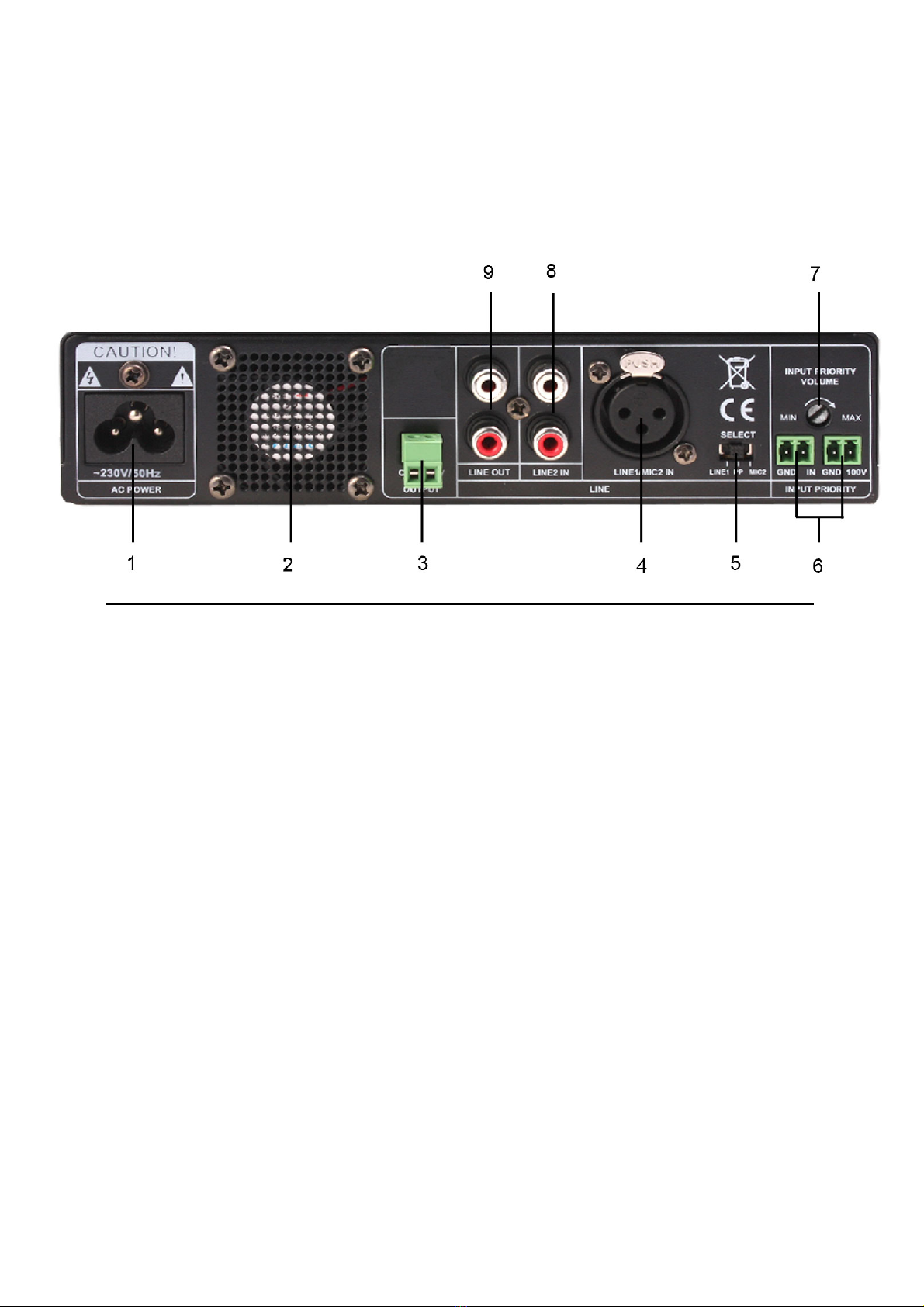

2.2 Rear panel
1. AC 220-240V Power input socket
The interface is to supply the working power. Insert the plug onto the machine, then connect the power grid.
2. Cooling fan window
3. Speaker output interface
100V line
4. LINE1 /MIC2 IN balanced input interface
Can connect with microphone or other external audio
5. LINE1/PP/MIC2 switcher
LINE1/PP/MIC2 audio selection switcher, can left and right slide to chooseAUX1 or MIC2 or phantom
power for MIC2 (PP switch)
6. Priority & 100V input interface
This interface has the highest priority input.
7. Priority input volume adjustment
8. AUX2 input interface
9. Line Out
6
2.3 Side Panel
3. Audio source selection
The mode selector (M) button is located the front panel and is used to select Bluetooth orAux inputs
3.1Bluetooth mode
Press MODE to display “bt” on the digital screen, the “bt” will always flash until device and
mobile phone pairing success. After finishing the pairing, the user can play music on the mobile phone or
other Bluetooth enabled product.
3.2 Line mode
In line mode, press MODE, digital screen will display “Aux”
3.3 USB mode
When the USB drive is plugged in the digital screen will display “USB” and start playing files stored
on it.
Heat dissipation vent
7
4. Remote Control Instructions
As shown in the following figure:
Function key description：
：：
：
①Mode main function key，working mode switch.
②Power switch
③Play & Pause/
④EQ sound effect
⑤0-9 song selection key，can be composed of digital channel selection
⑥Mute key
⑦Last song/
⑧Next song/
⑨Vol -
⑩Vol +
⑪Single repeat
⑫Record key
8
General Installation
•ALWAYS ensure that the equipment is properly earthed (grounded). Operating
without an earth is dangerous and may cause high levels of audible hum from the
speaker outputs.
•NEVER remove the top cover of the amplifier or make an internal adjustment with the
ac mains supply connected. All internal servicing should be performed by a competent
and qualified engineer.
•DO NOT expose the unit to rain or moisture. If any fluids or foreign objects should
enter the unit, disconnect the power plug immediately.
•DO NOT site the equipment in locations exposed to direct sunlight, near heaters or
other heat sources. Avoid locations with high humidity or dust levels.
•DO NOT obstruct the ventilation slots in the amplifier case and allow adequate
ventilation. (Ensure that a 1U ventilation panel is fitted above the unit if the amplifier is
rack-mounted.)
•DO NOT run microphone cables near mains, data, telephone or 100V lines.
•AVOID jointing the microphone cables if possible. If this is unavoidable, make sure a
good screen connector is used.
•ALWAYS use a balanced or floating low impedance microphone on long microphone
runs, terminating in a balanced input.
Packing list
No. List Quantity
1 ADS120D Plus Mixer Amplifier 1
2 Manual 1
3 Mains Lead 1
4 Remote control 1
9
Specification
Model ADS120D
Rated Power 120W RMS
Speaker Output 100V
Sensitivity
MIC 0.006 VRMS
Line 0.3 VRMS
100V-IN 100 VRMS
SNR MIC ≥74db (Maximum)
AUX ≥80dB（Maximum）
Frequency Response 80Hz-15kHz（±3dB）
Distortion ≤0.5 %
Power Supply AC220V- 240V,50-60Hz
DC24V
Tone Bass ±10dB （100Hz）
Treble ±10dB （10KHz）
Power Consumption 150W
Size（W×H×L）200×190×44mm
Net Weight 1.5kg
Gross Weight 2kg
Technical specifications are subject to change without prior notice.
