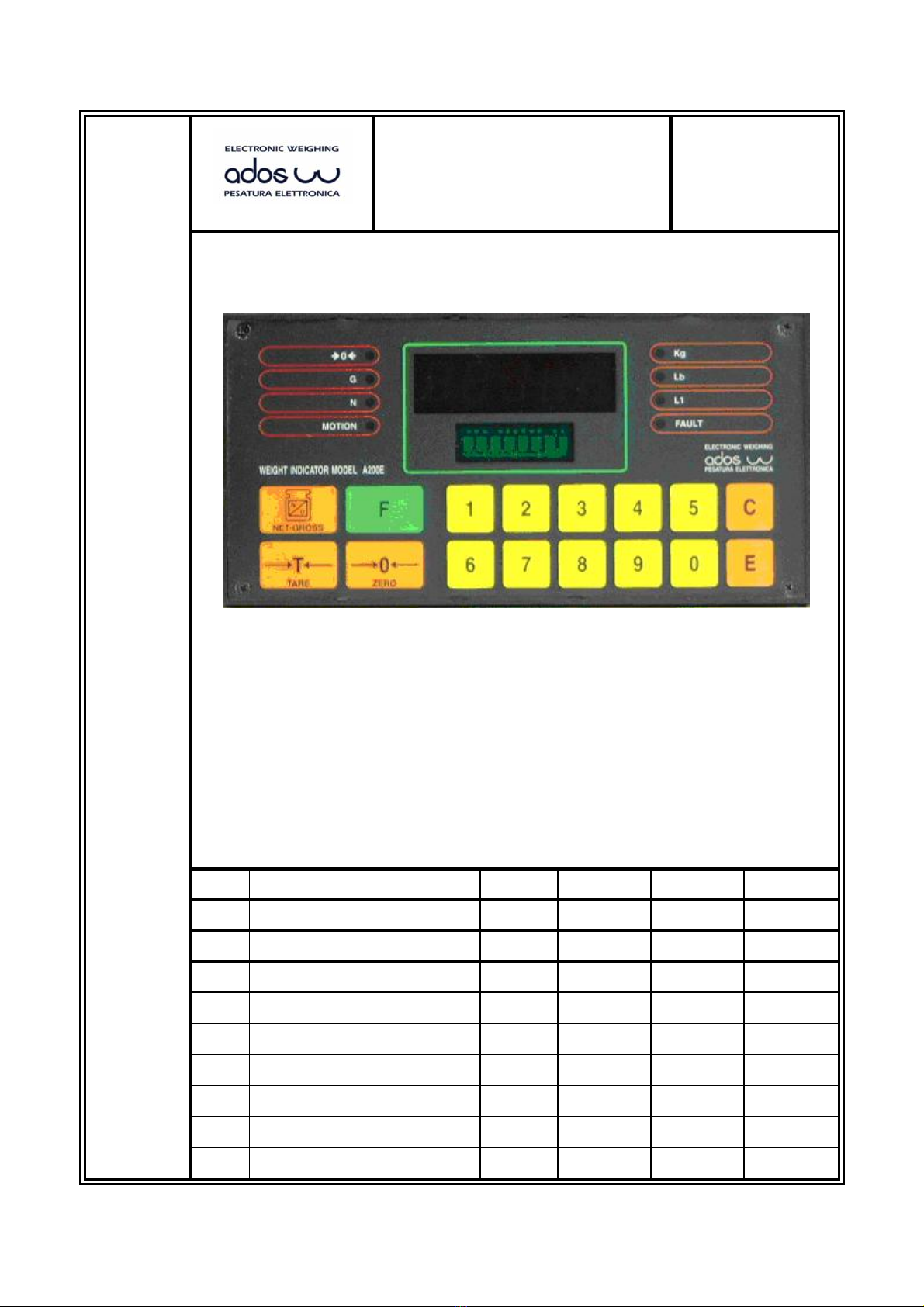

Ados A200E Manuel utilisateur

417-MTA200I1 Rev. 9 Page 1 of 77

INSTRUCTION

MANUAL A200E

SW Release 1.54

Change of Modbus registers table 06/06/05 Paulitti G. Laserra C.

Update to Software revision 1.53 08/03/04 Omodeo S.

Update to Software revision 1.52 25/11/02 Golinelli G. Paulitti G.

Update to Software revision 1.51 23/01/01 Golinelli G. Paulitti G.

Update to Software revision 1.42 23/03/00 Golinelli G. Paulitti G.

Update to Software revision 1.41 15-10-99 Golinelli G. Paulitti G.

Update to Software release 1.40 10-10-98 Golinelli G. Paulitti G.

Update to Software release 1.20 22-01-97 Golinelli G. Paulitti G.

Issue 30/11/95 Golinelli G. Paulitti G.

417_9.doc Rev. Subject of the revision Date Prepared Checked Approved

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 2 of 77

Contents

1. INTRODUCTION .................................................................................................................................5

1.1 General................................................................................................................................................5

1.2 Versions/options.................................................................................................................................5

1.3 Documentation ...................................................................................................................................5

1.4 Equipment marking description.......................................................................................................6

1.5 Technical data ....................................................................................................................................7

2. INSTRUMENT OPERATIONS...........................................................................................................8

2.1 Turning on the instrument................................................................................................................8

2.1.1 Load cell signal averaging.............................................................................................................................. 9

2.2 Display indication.............................................................................................................................10

2.2.1 Primary display............................................................................................................................................. 10

2.2.2 Auxiliary display .......................................................................................................................................... 10

2.3 Tare operations ................................................................................................................................11

2.3.1 Tare selection................................................................................................................................................ 11

2.3.2 Manual tare data entry .................................................................................................................................. 11

2.3.3 Auto tare ....................................................................................................................................................... 11

2.4 Peak handling...................................................................................................................................12

2.4.1 Peak load value indication............................................................................................................................ 12

2.4.2 Peak value printout....................................................................................................................................... 12

2.4.3 Peak reset...................................................................................................................................................... 12

2.5 LED status indicators ......................................................................................................................13

2.6 Key functions....................................................................................................................................14

2.7 Switch................................................................................................................................................15

2.8 Self diagnostic...................................................................................................................................16

2.8.1 Configuration memory integrity check......................................................................................................... 16

2.8.2 Configuration parameter integrity check...................................................................................................... 17

2.9 Digital input......................................................................................................................................18

2.10 Output relay operation....................................................................................................................20

2.10.1 Relay operation in Set point mode............................................................................................................ 20

2.10.2 Relay operation in Batch mode................................................................................................................. 21

2.11 Batch mode.......................................................................................................................................23

2.11.1 Load batch cycle....................................................................................................................................... 24

2.11.2 Unload batch cycle ................................................................................................................................... 27

2.12 Dosed material totalizer...................................................................................................................29

2.12.1 Totalizer display ....................................................................................................................................... 29

2.12.2 Totalizer report ......................................................................................................................................... 30

2.13 Batch report......................................................................................................................................31

2.13.1 Load batch report...................................................................................................................................... 31

2.13.2 Unload batch report .................................................................................................................................. 31

2.14 SERIAL INTERFACE MANAGEMENT.....................................................................................32

2.14.1 Primary serial interface............................................................................................................................. 32

2.14.2 Multidrop networks .................................................................................................................................. 33

2.14.3 Continuous modality................................................................................................................................. 33

2.14.4 Bi-directional modality with ADOS protocol........................................................................................... 33

2.14.5 Print On Request modality........................................................................................................................ 35

2.14.6 MODBUS protocol................................................................................................................................... 36

2.14.7 Auxiliary serial interface .......................................................................................................................... 43

2.15 ANALOG OUTPUT MANAGEMENT .........................................................................................44

2.15.1 Analog signal adjustment.......................................................................................................................... 44

3. INSTALLATION.................................................................................................................................45

3.1 Material receiving............................................................................................................................45

3.2 Instrument mounting.......................................................................................................................45

3.3 Connections ......................................................................................................................................46

3.3.1 Wiring the instrument to the protective earthing system.............................................................................. 47

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 3 of 77

3.3.2 Power supply connection.............................................................................................................................. 47

3.3.3 Load cell connection..................................................................................................................................... 48

3.3.4 Digital input connection ............................................................................................................................... 49

3.3.5 Relay output connection ............................................................................................................................... 50

3.3.6 Primary serial port connection...................................................................................................................... 51

3.3.7 Auxiliary serial port connection ................................................................................................................... 51

3.3.8 Analog output connection (option)............................................................................................................... 52

4. MAINTENANCE.................................................................................................................................53

4.1 Preventive maintenance...................................................................................................................53

4.2 Corrective maintenance...................................................................................................................53

5. INSTRUMENT CONTROL...............................................................................................................54

5.1 Introduction......................................................................................................................................54

5.2 Control function selection ...............................................................................................................55

5.2.1 Password....................................................................................................................................................... 56

5.2.2 Keyboard time out ........................................................................................................................................ 56

5.2.3 Keyboard disable function............................................................................................................................ 56

5.3 Operating parameter configuration...............................................................................................57

5.3.1 Operating parameter selection...................................................................................................................... 57

5.3.2 Modifying the value of the operating parameters......................................................................................... 58

5.3.3 Graduation .................................................................................................................................................... 59

5.3.4 Resolution..................................................................................................................................................... 59

5.3.5 Decimal point................................................................................................................................................ 59

5.3.6 Averages....................................................................................................................................................... 60

5.3.7 Language selection ....................................................................................................................................... 60

5.3.8 Opening on AZM.......................................................................................................................................... 60

5.3.9 Motion band.................................................................................................................................................. 60

5.3.10 Zero tracking limit.................................................................................................................................... 61

5.3.11 Keyboard disable...................................................................................................................................... 61

5.3.12 Operating Mode........................................................................................................................................ 61

5.3.13 Baud rate................................................................................................................................................... 62

5.3.14 Primary serial port .................................................................................................................................... 62

5.3.15 Address on RS485 .................................................................................................................................... 62

5.3.16 Digital input function................................................................................................................................ 63

5.3.17 Relay function........................................................................................................................................... 63

5.3.18 Relay threshold......................................................................................................................................... 64

5.3.19 Dead Band ................................................................................................................................................ 64

5.3.20 D/A converter function............................................................................................................................. 65

5.3.21 D/A Zero................................................................................................................................................... 65

5.3.22 D/A Full Scale .......................................................................................................................................... 65

5.4 Batch parameter configuration.......................................................................................................66

5.4.1 Zero band...................................................................................................................................................... 66

5.4.2 Maximum balance load................................................................................................................................. 66

5.4.3 Stabilization time.......................................................................................................................................... 66

5.4.4 Wait time ...................................................................................................................................................... 66

5.4.5 Totalization coefficient................................................................................................................................. 66

5.4.6 Set point........................................................................................................................................................ 67

5.4.7 Slow.............................................................................................................................................................. 67

5.4.8 Fly................................................................................................................................................................. 67

5.4.9 Tolerance ...................................................................................................................................................... 67

5.5 Calibration........................................................................................................................................68

5.5.1 Zero calibration............................................................................................................................................. 69

5.5.2 Span calibration............................................................................................................................................ 70

5.6 Date and time set up.........................................................................................................................71

5.7 Test....................................................................................................................................................72

5.7.1 Load cell test................................................................................................................................................. 72

5.8 System Initialization ........................................................................................................................74

5.8.1 Switch controlled initialization..................................................................................................................... 74

6. INSTRUMENT CONFIGURATION TABLE..................................................................................75

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 4 of 77

6.1 General parameters .........................................................................................................................75

6.2 Batch parameters.............................................................................................................................76

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 5 of 77

1. INTRODUCTION

1.1 General

The A200E instrument is a microprocessor based weight amplifier and indicator.

When fitted with SW release 1.53e it can be configured to handle setpoint or simple batch control.

In set point mode the 3+8 relay operation is based on simple threshold.

In batch mode the unit can handle the charge of up to 3 components (double speed) and the

discahrge of one component (dual speed).

In set point mode the unit has added the load peak function (gross weight)

It was designed to connected to a maximum of 8 load cells (350 Ωbridge), connected in parallel.

The keyboard can be used to carry out all the programming, configuration and calibration functions.

A series of display messages guides the operator through all the phases.

A series of options sets up the instrument for the main functions related to electronic weighing.

1.2 Versions/options

A200EXXS

Type of power supply (1-2-3-4-5)

Version with analog output 4-20 mA (A) - 0-10V (V)

Version set up for management: Threshold (S) Batch (D)

Code Power supply

1 115 Vac

2 230 Vac*

3 24 Vac

4 24 Vdc

5 12 Vdc

* Versione standard - * Standard version

SAMPLE ORDER

A200E wired for 230 Vac operation and set up with analog output 4-20 mA option and batch:

A 2 0 0 E 2 A D

1.3 Documentation

This technical manual is relevant to the threshold version of the instrument.

The manual relevant to the Batch version of the instrument is 352-MTA200E4.

The manual relevant to the continuos belt weighing version is 553-MTA200BE.

The manual relevant to the L:I.W. weighing version is 554-MTA200LE.

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 6 of 77

1.4 Equipment marking description

A200E is marked with symbols compliant with European Standard EN61010-1 (April 1993).

SYMBOL DESCRIPTION

∼

Alternating current

Protective conductor terminal

Earth (ground) terminal

Caution (refer to accompanying

documents)

Caution, risk of electric shock

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 7 of 77

1.5 Technical data

Power supply 230 Vac 50/60 Hz (standard version)-15%.+10%

(see 1.2 for others power supply versions)

Consumption 10VA (15 VA MAX.)

Fuse 230 Vac: 125 mAT

120 Vac: 250 mAT

Operating temperature from - 10 °C to + 40 °C

Storage temperature from - 40 °C to + 70 °C

Relative humidity 95% non-condensing

Load cell power supply 8 Vdc (short-circuit proof)

Maximum current 190 mA ( 8 x 350 Ωload cells in parallel)

Electric connection 4 wires (standard), 6 wires with sense on request

Analog signal 0.5 - 2.5mV/V

Resolution 0.8 µV/Grad

Conversion speed 55 conversion/sec

Graduation 1000-2000-4000-5000-10000-20000

Resolution 1-2-5-10-20-50

Off scale limit (UL/OL) 20% of full scale load

Display Primary: five (5) digits LED

Auxiliary: eight (8) alphanumeric characters

Polarity sign -

Keyboard sixteen (16) keys in matrix 8x2

Status indicators eight (8) LED indicators

Decimal point user defined: 0 - 0.0 - 0.00 - 0.000 - 0.0000

Zero tracking user defined (0.5 - 1 - 2 - 5 - 10 div/s)

AZM aperture user defined (OFF - 1.9% - 100% of F.S.)

Motion band user defined (OFF - 0.5 - 1 - 2 - 5- 10- 20 div)

Serial outputs main output RS232 or RS485 Half-duplex, aux

output RS232, Tx only

Digital inputs three (3) optoinsulated digital inputs (12/24 dc)

Digital outputs three (3) base relay outputs and eight (8) extra

Contact rating 0.5 A @ 24 Vdc

Housing Anodized aluminum construction for assembly on

board front panel (Standard DIN 43700)

Dimensions 96 x 192 x 140

Drilling 91 x 188

Weight 1.5 Kg

Mounting Front panel mounting with two holding brackets

mounted on the sides of the enclosure

Analog output 0-10V (option) Voltage output 0-10V, 16 bit resolution,

min. 10 KΩoptoinsulated 1000 V

Analog output 4-20 mA (option) Current output 4-20 mA, 16 bit resolution,

500 Ωmax. optoinsulated 1000 V

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 8 of 77

2. INSTRUMENT OPERATIONS

2.1 Turning on the instrument

When the instrument is turned on, the primary display indicates the following:

−−−−−

and the auxiliary display indicates the following, at intervals of about two seconds:

A D O S S r L

A 2 0 0 E

R e v 1 . 5 4 (Revision of the installed software)

After this phase, the instrument is immediately operative.

SW1

TP3

TP2

BT1

ZS1



Figure 1

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 9 of 77

2.1.1 Load cell signal averaging

Starting with SW rev 1.50 a new load cell signal averaging method have been introduced (FIR

filters). This method is based upon Digital Signal Processing (DSP) methodologies and is useful

when the load cell signal has a large amount of harmonics (due for instance to mixers, agitators or

similar).

In configuration phase user can select one of three classic ( mobile average) and five DSP filters.

First type of filter has a fester response time but are less efficient against disturbance and can be

used when fast changing loads have to be detected.

Second type of filter are very efficient against noise and disturbances (having a higher filter effect)

but have of course a higher response time.

In both cases higher filter coefficient corresponds to higher filtering effect and higher response

time.

As example the following graphic shows the answer to a step changing load signal as function of

different filters.

As can be noticed FIR 1 has a response time of about 0.2 seconds and FIR 5 has a response time of

about 2.5 second.

500000

1000000

1500000

2000000

2500000

3000000

3500000

-1,00 -0,50 0,00 0,50 1,00 1,50 2,00 2,50 3,00

Cella FIR 1-12 FIR 2-24 FIR 3-42 FIR 4-62 FIR 5-80

ADOS S.R.L. Buccinasco (MI)

417-MTA200I1 Rev. 9 Page 10 of 77

2.2 Display indication

2.2.1 Primary display

Under normal operating condition the display shows the value of weight, using the following criteria:

•leading zeroes will presented as blank

•if the value is greater then 99999 only the 5 less significant digit are displayed and the display

will blink to indicate that there is another digit, which value is 1, not displayed (please note that

during configuration is not possible to set any combination of graduation and resolution which

leads to results higher than 199999)

•the polarity “minus” (in case of negative values) is indicated in the leftmost digit

•if the negative value is composed of five digits (for example -32420), the leftmost digit will

show alternatively the “minus” and the fifth digit value.

•if the negative value is composed of six digits only the 5 less significant digit are displayed and

the display will blink to indicate that there is another digit, which value is 1, not displayed. The

leftmost digit will show alternatively the “minus” and the fifth digit value.

Indication limits are the following:

lower limit: - 20% of full scale

higher limit: 120% of full scale

if the weight is under the lower limit the following will be displayed:

−−U L −

if the weight is over the upper limit (or if the load cell signal is higher than 20 mV the following

will be displayed:

−−O L −

2.2.2 Auxiliary display

Under normal operating conditions and with the instrument in GROSS, the auxiliary display

indicates the current time, in the format hours-minutes-seconds:

0 9 : 1 1 : 5 5

Press 0on the display to indicate the current date, in the format day-month-year, for two seconds:

1 5 - 0 5 - 9 6

Under normal operating conditions and with the instrument in NET, the auxiliary display shows the

value of the TARE with two alternating messages:

T A R E 1

1 2 3 . 4

In the configuration and calibration phase, the auxiliary display is used to guide the operator in

carrying out the functions.

In batch mode the display shows the batch status.

Autres manuels pour A200E

Table des matières

Autres manuels Ados Accessoires

Ados

Ados A200E Manuel utilisateur

Ados

Ados A100E Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
