User Manual

EVENT BAR PRO

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trade-

marks or registered trademarks of their respective companies and are hereby acknowledged. All

non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

Date Document

Version

Software

Version DMX Channels Notes

07/22/2021 1.0 1.3 2 / 17 / 20 / 22 / 25

channels Update for Primary/Secondary mode.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of

this document may be available online.

Please check www.adj.com for the latest revision/update of this manual

before beginning installation and/or programming.

GENERAL INFORMATION

Unpacking: Thank you for purchasing the Event Bar Pro by ADJ Products, LLC. Every Event Bar Pro

has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping. If the carton appears to have

been damaged, carefully inspect your xture for any damage and be sure all equipment necessary to

operate the unit has arrived intact. In the event damage has been found or parts are missing, please

contact our toll free customer support number for further instructions. Please do not return this unit

to your dealer without contacting customer support rst.

Introduction: The Event Bar Pro is DMX intelligent 4-head moving pinspot LED xture. The Event

Bar Pro has 3 DMX Modes: 1 Channel DMX Mode, 12 Channel Mode, and 14 Channel Mode. The

xture has three operating modes: sound active mode, show mode, or DMX controlled. The Event

Bar Pro can only be run as a stand alone unit or in primary-secondary conguration. This unit is suit-

able for theaters, studios, retail stores, and other similar locations. For best results, use fog or spe-

cial eects smoke to enhance the light projections.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help

and to answer any questions that may arise during set up or initial operation. You may also visit us

on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through

Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Warning! This unit may cause severe eye damage. Avoid looking directly into the light source at all

times!

To optimize the performance of this product, please read these operating instructions carefully to

familiarize yourself with the basic operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please keep this manual with the unit for

future reference.

GENERAL INSTRUCTIONS

FEATURES

• 5 DMX Channel Modes: 2 Channel Mode, 17 Channel Mode, 20 Channel Mode, 22 Channel Mode,

& 25 Channel Mode.

• 3 Operating Modes - Show Mode, Sound Active, & DMX Control

• 8 Built-In Shows

• UC3 Controller Compatible (Sold Separately)

• Digital Display for Address and Function Setting

• Power Cord Daisy Chain (See Power Cord Daisy Chain section of this manual)

• Omega Bracket for Truss Mounting

• Built-In Mount for a lighting stand (Stand Sold Separately)

WARRANTY REGISTRATION

The Event Bar Pro carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty

card to validate your purchase and warranty.

You may also register your product online at www.adj.com. All returned service items, whether under

warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. If

the unit is under warranty, you must provide a copy of your proof of purchase invoice. Please contact

ADJ customer support for an R.A. number.

HANDLING PRECAUTIONS

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

During operation the housing may become hot. Avoid touching the unit with bare hands while in use.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-

vance of this manual or any unauthorized modication to this unit.

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before

You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit with the cover removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 7.9”

(20cm) between this device and a wall.

• Do not attempt to operate this unit if it has been damaged in any way.

• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.

• Always mount this unit in a safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point at which they exit from the applicance.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the

Cleaning section of this manual for details.

• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A.Objects have fallen onto, or liquid has been spilled into, the appliance.

B.The appliance has been exposed to rain or water.

C.The appliance does not appear to operate normally or exhibits a marked change in perfor-

mance.

SAFETY PRECAUTIONS

DMX SET UP

Power Supply: The ADJ Event Bar Pro contains an automatic voltage switch which will automatically

sense the voltage when it is plugged into the power source. With this switch there is no need to worry

about the correct power voltage, and this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and con-

troller manufacturers as a form of communication between intelligent xtures and controllers. A DMX

controller sends DMX data instructions from the controller to the xture. DMX data is sent as serial

data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals located on all

DMX xtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. When using several DMX xtures, try to use the shortest cable path possible in order to

ensure proper DMX data transmission. The order in which xtures are connected in a DMX line does

not inuence the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed

anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

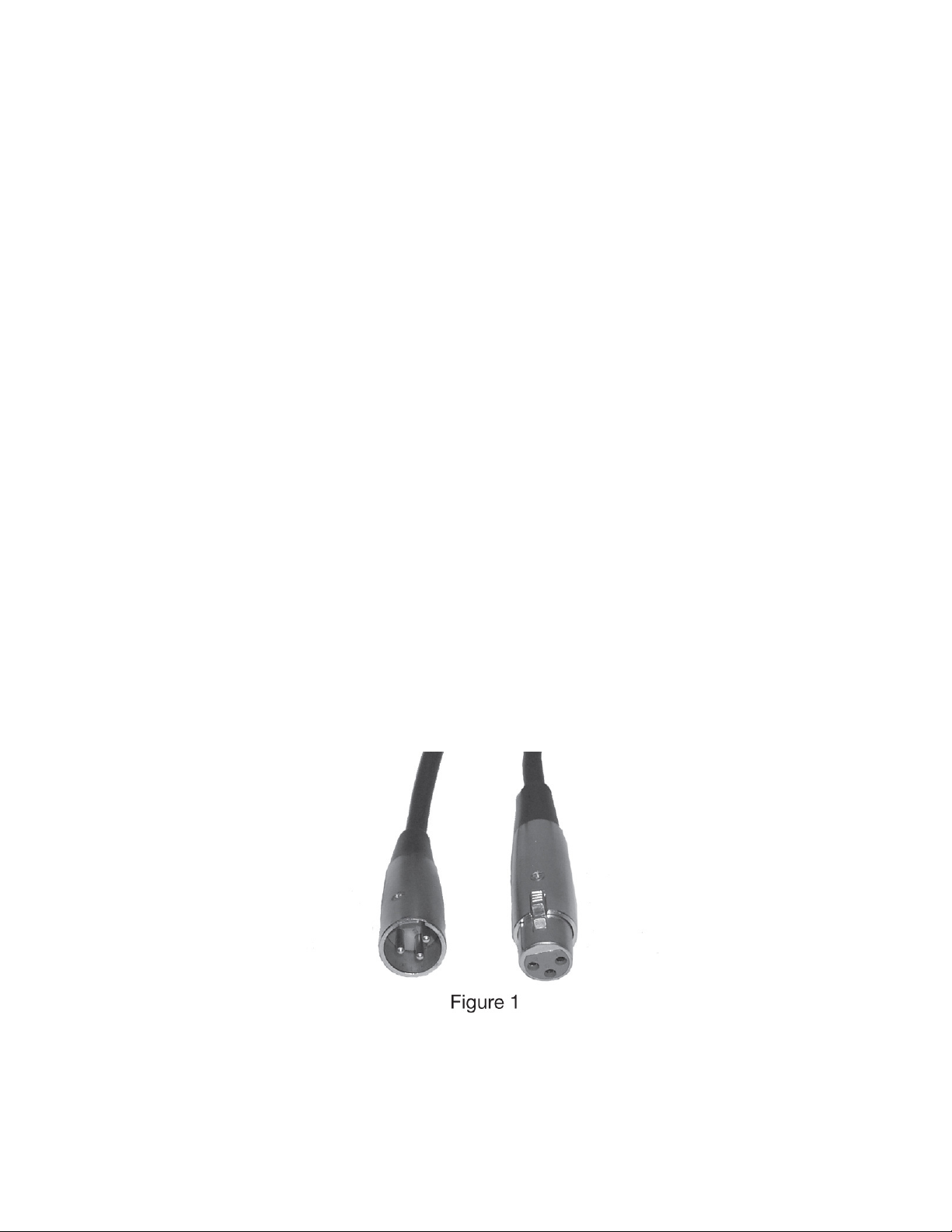

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Event

Bar Pro has 5 DMX channel modes: 2 channel mode, 17 channel mode, 20 channel mode, 22 channel

mode, & 25 channel mode. The DMX address is set electronically using the controls on the rear of the

bar. Your unit and your DMX controller require an approved DMX-512 110 Ohm Data cable for data

input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables,

be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro-

fessional sound and lighting stores). Your cables should be made with a male XLR connector on one

end of the cable and a female XLR connector on the other. Also remember that DMX cable must be

daisy chained and cannot be split.

DMX SET UP

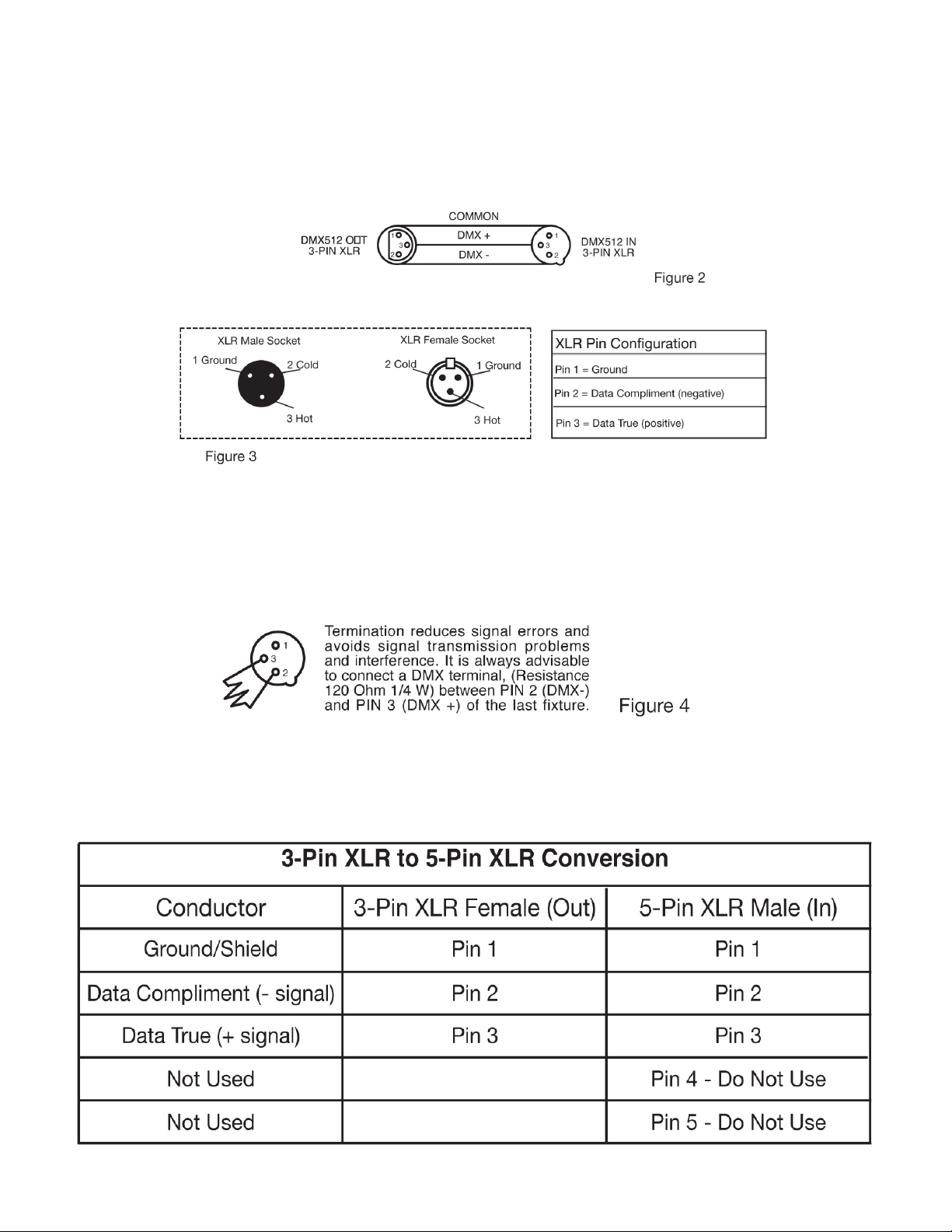

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground

lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the

shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a

short circuit and result in erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-

nator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is

connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted

into the female XLR connector of the last unit in your daist chain to terminate the line. Using a cable

terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission

in place of 3-pin. 5-pin XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting

standard 5-pin XLR connectors into a 3-pin line, a cable adaptor must be used. These adaptors are

readily available at most electronics stores. The chart below details a proper cable conversion.

INSTALLATION

The Event Bar Pro is fully operational in two dierent mounting positions: hanging upside-down from

a ceiling or trussing, or attached to a sturdy tripod stand. The unit should be mounted using a mount-

ing clamp (not provided), and axing it to the mounting bracket that is provided with the unit. Always

ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always ensure that

the structure to which you are attaching the unit is secure and is able to support a weight of 10 times

the unit’s weight. Also, always use a safety cable that can hold 12 times the weight of the unit when

installing the xture.

The equipment must be installed by a professional, and it must be installed in a place where it is out

of the reach of people’s grasp.

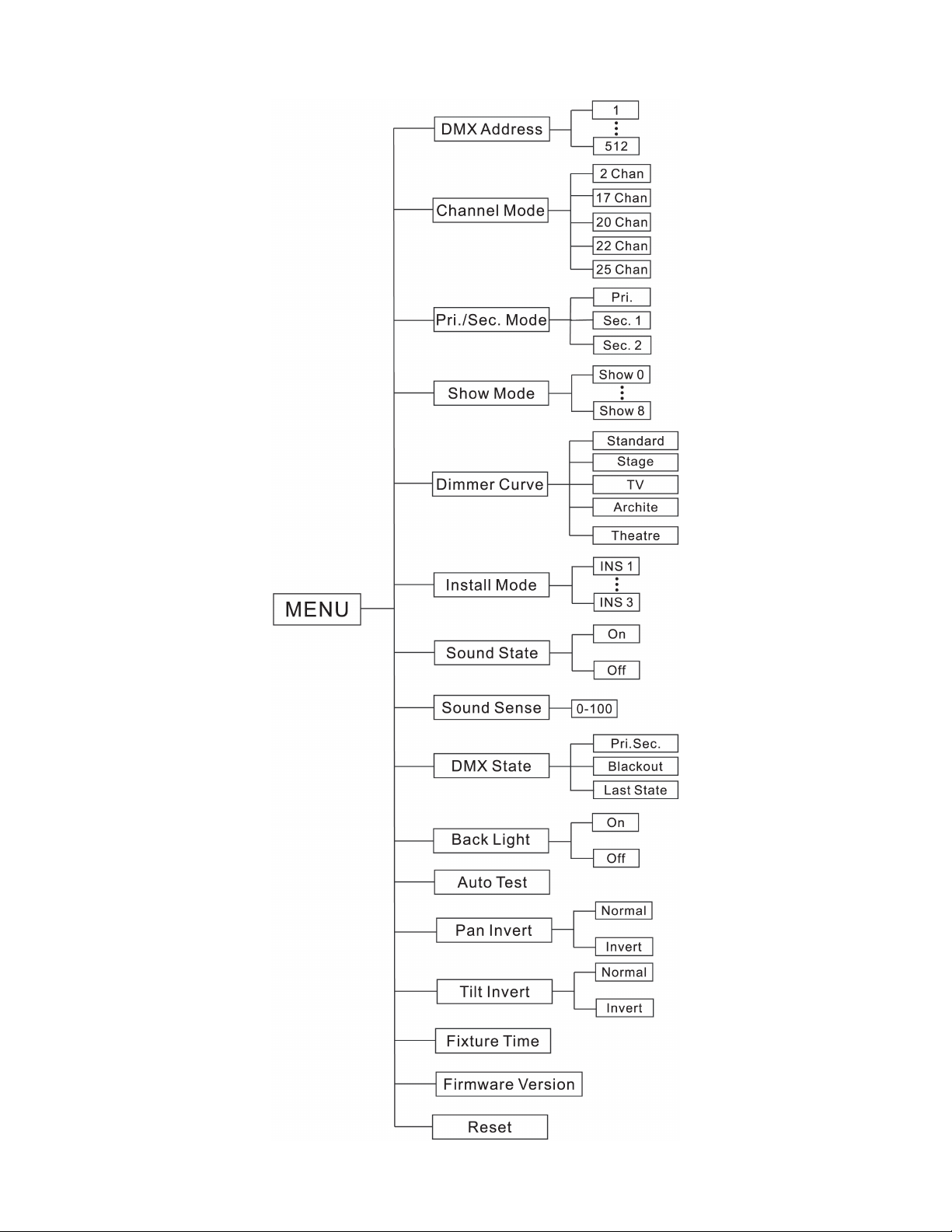

SYSTEM MENU

DMX Address - Set the DMX Address.

1. Press the MENU button until “DMX Addresss” is displayed, then press ENTER.

2. The currently selected address will now be displayed. Press the UP or DOWN buttons to scroll to

your desired address.

3. Press ENTER to conrm, and then press and hold the MENU button for at least three seconds to

assign.

Channel Mode - This will let you select your desired DMX Channel mode.

1. Press the MENU button until “Channel Mode” is displayed, then press ENTER.

2. The currently selected DMX Channel Mode will be displayed. Press the UP or DOWN buttons to

scroll to your desired Channel mode.

3. Press ENTER to conrm.

Pri/Sec Mode - This will let you set your unit as a primary or a secondary in a primary/second-

ary conguration.

1. Press the MENU button until “Pri/Sec Mode” is displayed, then press ENTER. Either “Pri”, “Sec

1”, or “Sec 2” will be displayed.

2. Press the UP or DOWN buttons until your desired setting is displayed, and press ENTER to con-

m.

NOTE: If one xture is set to “Pri”, and the next xture is set to “Sec 2”, the xtures will now have

contrasting movement with respect to each other.

Show Mode - Show modes 0-8 (Factory programs). Show mode can run with or without sound

active mode.

1. Press the MENU button until “Show Mode” is displayed, then press ENTER.

2. The currently selected show number will be displayed. Programs 1-8 are factory programs, while

“Show 0” is random mode. Press the UP or DOWN buttons to nd your desired show.

Dimmer Curve - In this mode you can select the dimmer curve. See the Dimmer Curve Chart

section of this manual for the dierent dimmer curve modes.

1. Press the MENU button until “Dimmer Curve” is displayed, then press ENTER.

2. The current dimmer mode will be displayed.

3. Press the UP or DOWN buttons to nd your desired dimmer mode and press ENTER to conrm.

Install Mode - This mode allows you to control the beam spread of the xture.

1. Press the MENU button until “Install Mode” is displayed, then press ENTER.

2. Either “INS 1”, “INS 2” or “INS 3” will be displayed.

• INS 1 - Long range beam (ceiling hanging)

• INS 2 - Short range beam (ceiling hanging)

• INS 3 - Front range beam (for truss or wall mounting)

3. Press the UP or DOWN buttons until your desired installation setting is displayed, and press EN-

TER to conm.

SYSTEM MENU

Table des matières

Autres manuels ADJ Équipement d'éclairage

ADJ

ADJ Event Bar Q4 Manuel utilisateur

ADJ

ADJ MEGA PAR Manuel utilisateur

ADJ

ADJ FLAT PAR TW12 Manuel utilisateur

ADJ

ADJ INNO POCKET SPOT TWINS Manuel utilisateur

ADJ

ADJ FS600LED Manuel utilisateur

ADJ

ADJ Lightning COB Cannon Manuel utilisateur

ADJ

ADJ MEGA GO FLOOD BAR Manuel utilisateur

ADJ

ADJ HYDRO SPOT 2 Manuel utilisateur

ADJ

ADJ Mega Bar RGBA Manuel utilisateur

ADJ

ADJ VIZI BEAM CMY Manuel utilisateur

ADJ

ADJ Micro Galaxian II Manuel utilisateur

ADJ

ADJ GALAXIAN GEM IR Manuel utilisateur

ADJ

ADJ Ikon Profile Manuel utilisateur

ADJ

ADJ ELIMINATOR Stinger Spot 30 Manuel utilisateur

ADJ

ADJ Royal Sky Manuel utilisateur

ADJ

ADJ STAGE SETTER 8 Manuel utilisateur

ADJ

ADJ 12P HEX PEARL Manuel utilisateur

ADJ

ADJ INNO POCKET ROLL Manuel utilisateur

ADJ

ADJ micro hypnotic Manuel utilisateur

ADJ

ADJ SWEEPER BEAM QUAD LED Manuel utilisateur

ADJ

ADJ Flat Par Tri18 Manuel utilisateur

ADJ

ADJ WiFlY EXR HEX PAR Manuel utilisateur

ADJ

ADJ H2O IR Manuel utilisateur

ADJ

ADJ quad phase Instructions d'installation

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
