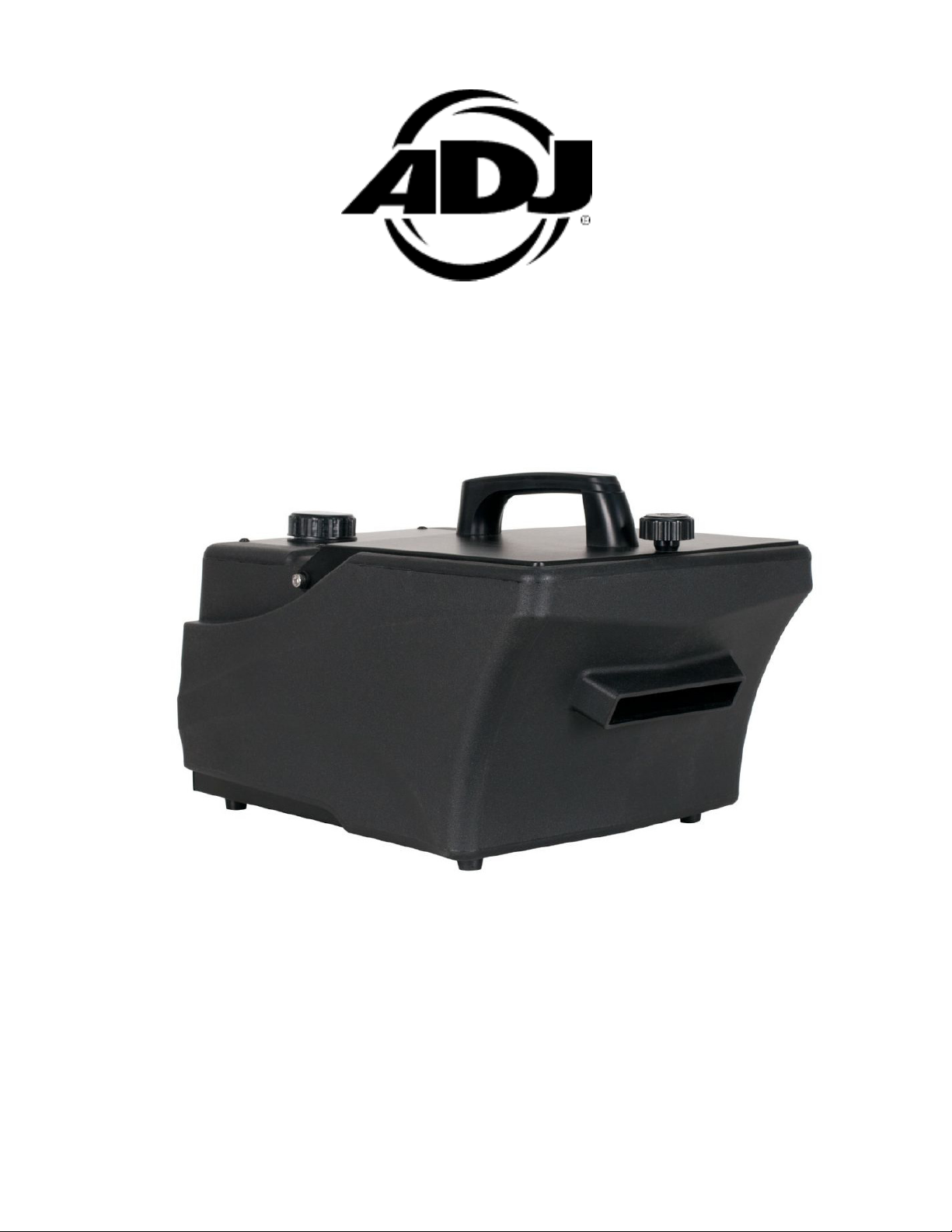

ADJ ENTOUR CHILL Manuel utilisateur

User Manual

ENTOUR CHILL

US SKU#: ENT791

UPC#: 818651028249

ITF-14#: 10818651028246

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document

may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning

installation and/or programming.

07/09/20 1.0 1.0 1 Initial Release

Date Document

Version

Software

Version > DMX Channel Mode Notes

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 3

Entour Chill Table of Contents

Introduction

Features I Warranty Registration | Installation

Safety Guidelines

Overview

General Set Up

System Menu

DMX Traits

Wired Timer Remote Control

Dimensional Drawings

Fluid Sensor | Maintenance | Storage

Breaker Reset | Trouble Shooting | Error Warnings

Limited Warranty

Specications 17

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 4

Introduction: Congratulations, you have just purchased one of the most reliable low lying machines

on the market today! The Entour Chill machine has been designed to perform reliably for years when

the guidelines in this booklet are followed. Please read and understand the instructions in this manual

carefully and thoroughly before attempting to operate this unit.

These instructions contain important safety information regarding the use and maintenance of this

unit. Please keep this manual with the unit for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)

http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax 323-532-2941 | www.adj.com | info@adj.com

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

+31 (0)45 546 85 00 | Fax +31 45 546 85 99

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

WARNING! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,

please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

SAFETY ISSUES:

NEVER POINT OR AIM A FOG MACHINE TOWARDS PEOPLE OR THEIR CLOTHING. THIS

UNIT EMITS HOT VAPOR AND SHOULD BE USED WITH THE SAME CARE THAT YOU WOULD

OBSERVE WHEN USING AN ELECTRIC KETTLE OR IRON.

Entour Chill Introduction

Entour Chill Features

• DMX-512 protocol (1 DMX Channel)

• Locking 3 -Pin XLR Connector In/Out

• Locking Power Connector In

• Low-Lying Fog Output

• Rapid Heater Technology

• Automatic Circuit Cut-Off (Protects the pump in the case of no fog fluid)

• Low Fluid LED Indicator

• Removable Fluid Tank

Included:

1 x Entour Chill

1 x Timer Remote

1 x Locking Power Cable

1 x Drainage Tube

1 x Drainage Bag

Entour Chill Warranty Registration

The Entour Chill carries a two-year limited warranty. Please fill out the enclosed warranty card to

validate your purchase. All returned service items, whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A. number must be written on the

outside of the return package. A brief description of the problem and R.A. number must also be writ-

ten down on a paper included in the shipping carton. If the unit is under warranty, you must provide a

copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer

support team on our customer support number. All packages returned to the service department not

displaying an R.A. number on the outside of the package will be returned to the shipper.

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 5

Entour Chill Installation

- This device is intended for indoor use only. NEVER operate in the rain or damp conditions!

- Disconnect from power before filling the fluid tank and icebox.

- The device can be placed directly on the ground, stage, or other flat, stable surface.

- The device must remain upright, with the handle side facing upwards.

- The device must be installed in a place where it is out of the reach of people’s grasp.

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 6

Entour Chill Safety Guidelines

For your own personal safety, please read and understand this manual

completely before you attempt to install or operate this unit!

- CAUTION: Fog machines may set off smoke alarms!

- Be sure to save the packing carton in the unlikely event the device may have to be

returned for service

- Do not spill water or other liquids into or on to the device. Be sure that all the fog fluid

is kept inside the fluid reservoir

- Be sure that the local power outlet matches the required voltage for the device

- Do not remove the top cover under any conditions. There are no user-serviceable parts

inside

- Disconnect the device’s main power when left unused for long periods

- Never connect this device to a dimmer pack

- Do not attempt to operate this device if it has been damaged in any way

- Never use this device with the cover removed

- To reduce the risk of electrical shock or fire, do not expose this device to rain or

moisture

- Do not attempt to operate this device if the power cord has been frayed or broken. Do

not try to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short

- Disconnect from main power before making any connection

- Never block the ventilation holes. Always be sure to mount this device in an area that

will allow proper ventilation. Allow about 6” (15cm) between this device and a wall

- This unit is intended for indoor use only. Use of this product outdoors voids all

warranties

- Always mount this unit in a safe and stable matter

- Please route your power cord out of the way of foot traffic. Power cords should be

routed, so they are not likely to be walked on, or pinched by items placed upon or

against them

- The device should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen on, or liquid has been spilled into the device.

C. The device has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a marked change in

performance.

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 7

Entour Chill Overview

1. Carrying Handle

2. Fluid Tank

3. Ice Box

4. Smoke Outlet

5. LCD Display

6. LCD Screen Buttons

7. DMX Input

8. DMX Output

9. Remote Control Jack

10. Power Switch

11. No-Fuse Breaker (NFB)

12. Power Input

13. Drain Valve

14. Fluid Level Gauge

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 8

Entour Chill General Set Up

1. Open the shipping carton and carefully remove the device from the shipping carton.

2. Be sure to remove ALL the packing material, paying particular attention to the area around the fog

outlet vent.

3. Set the device on a flat dry surface. Open the icebox by unscrewing the knob located at the

top front of the unit. Once the box is opened, fill the box with ice. The lid should close quickly and

securely. Do not overfill the box.

4. After filling the icebox, unscrew and remove the tank reservoir cap.

5. Fill the reservoir with ADJ brand fog juice only, and replace the reservoir cap. Never run the

device on anything other than an approved, ADJ branded water-based fog juice, as doing so can

result in severe damage to your device.

6. Connect one end of the drainage tube to the drainage spout on the rear of the unit. Insert the

other end of the drainage tube into the drainage bag. When the ice melts, the water will empty

into the drainage bag.

7. Remove the timer remote control and firmly attach the remote control to the remote control jack

located on the rear unit. Follow the operating instructions in the Wired Timer Remote Control

section of this manual.

8. Plug the device into a matching power supply and flip the power switch to the ON position.

9. After power is applied, the device will begin to warm up. The device should be fully warmed up

after 180 seconds. “Ready To Fog” will be displayed on the screen once the device is warmed up

and ready to emit a fog. Additionally, if the Tank Lamp has been turned on, it will indicate device

status by changing colors: red when the device is warming up, and green when ready for use. See

the System Menu section for details on how to operate the tank lamp.

NOTE: When more than one means of control is connected to the device, the following command

priority applies:

- First Priority: DMX Signal

- Second Priority: Wired Timer Remote Control

- Third Priority: Control Panel

DMX SIGNAL TAKES PRIORITY OVER ALL OTHER MEANS OF DEVICE CONTROL.

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 9

Entour Chill System Menu

SYSTEM MENU

The xture includes a user-friendly system menu control display where all necessary settings and

adjustments are made. (See image below) During regular operation, pressing the MENU button once

will access the xture’s main menu. Continue to press the MENU button to cycle through the vari-

ous menu options. When you reach a eld that requires adjusting, use the UP and DOWN buttons to

improve the eld. Pressing the STOP button to return to the beginning of the menu.

After 10 seconds of non-operation, the system will return to the “Ready to Fog” status screen.

ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 10

Entour Chill System Menu

SYSTEM MENU - The submenus included in the system menu are the settings that are used for

Timer fogging. These settings should be set to the desired values before beginning timed fogging

operations.

- INTERVAL - In this submenu you can adjust the Interval Setting. This setting allows the user to adjust the

length of the intervals or breaks between fog outputs, during which the device emits no fog.

- DURATION - In this submenu you can adjust the Duration Setting. This setting allows the user to adjust

the length of time during which the device emits fog.

- DMX512 ADD - In this submenu you can adjust the DMX address of the device.

- QUICK START - In this submenu you can activate the Quick Start feature. When Quick Start is active,

all settings or adjustments made before shut down will be retained, and can be used immediately

when the unit is powered on again.

- TANK LAMP - In this submenu you can turn the Tank Lamp On/O to aid in illuminating the tank level

indicator. The tank lamp can also indicate the warm-up status of the device:

- Red indicates that the device us warming up.

- Green indicates that the device is ready for use.

- Yellow indicates a fault or abnormal condition.

Table des matières

Autres manuels ADJ Machine à brouillard

ADJ

ADJ VF FLURRY Manuel utilisateur

ADJ

ADJ VF400 Manuel utilisateur

ADJ

ADJ ENTOUR SNOW Manuel utilisateur

ADJ

ADJ VF1100 Manuel utilisateur

ADJ

ADJ VF1600 Manuel utilisateur

ADJ

ADJ MISTER KOOL II Manuel utilisateur

ADJ

ADJ VF1600 Manuel utilisateur

ADJ

ADJ Fog Fury Jett Pro Manuel utilisateur

ADJ

ADJ FOG FURY JETT Manuel utilisateur

ADJ

ADJ FOG FURY 1000 Manuel utilisateur

ADJ

ADJ VF VOLCANO Manuel utilisateur

ADJ

ADJ VF1300 Manuel utilisateur

ADJ

ADJ Fog Fury Jett Pro Manuel utilisateur

ADJ

ADJ BubbleTron Manuel utilisateur

ADJ

ADJ VFI600 Manuel utilisateur

ADJ

ADJ Fog Fury Jett Pro Manuel utilisateur

ADJ

ADJ VF1000 Manuel utilisateur

ADJ

ADJ ENTOUR FAZE Manuel utilisateur

ADJ

ADJ VF400 Manuel utilisateur

ADJ

ADJ Fog Fury 3000 Manuel utilisateur

ADJ

ADJ FOG FURY FAZE Manuel utilisateur

ADJ

ADJ VF VOLCANO Manuel utilisateur

ADJ

ADJ Eliminator Lighting VF1300 EP Manuel utilisateur

ADJ

ADJ Fog Fury 2000 Manuel utilisateur

Manuels Machine à brouillard populaires d'autres marques

Antari

Antari ICE Manuel utilisateur

Boost

Boost BOOST-FOG400LED-BK Manuel utilisateur

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manuel utilisateur

EuroLite

EuroLite ZEITGEIST FOG-1200 Manuel utilisateur

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manuel utilisateur

PROEL

PROEL DRAGO HEAVY PLFD150HY Manuel utilisateur

Sparklyn

Sparklyn Y846 Manuel utilisateur

Magicfx

Magicfx CO2 Gun Manuel utilisateur

Ibiza

Ibiza LSM500LAS Manuel utilisateur

Antari

Antari M-5 Manuel utilisateur

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manuel utilisateur

High End

High End F-100 Manuel utilisateur

Chauvet

Chauvet ARENA 2100 FLEX Manuel utilisateur

Antari

Antari X FAZER Manuel utilisateur

Beamz

Beamz F1600 Manuel utilisateur

Sagitter

Sagitter SG ARS900C Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-STF-480 Manuel utilisateur

Orion

Orion OT-U250PP Mode d’emploi
