ADI P950 Manuel utilisateur
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT
Standards and Recommendations
Safety and Radio Interference Approvals
Conformity with the above basic requirements is certified by means of the CE marking on the product.
Manufacturer's Disclaimer
This product is designed in conformity with the following standards or other normative documents :
Safety : EN 60950 : 1992 + A1, A2, A3, A4
EMC : EN 55022 : 1998, EN 55024 : 1998
EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995
to satisfy the basic requirements of Safety and EMC required by following Directives :
All responsibility is declined :
The manufacturer reserves the right to carry out modifications to the product described in this
documentation at any time and without notice.
EMC Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
If the product is stored, transported, installed, modified, or used in a way that is different from that
described in the documentation.
If the product is used in conditions different from those described in the documentation.
If any repair is carried out by unauthorised personnel.
For any damage caused by normal wear and tear, uncontrollable events and/or connection to devices
that are not original.
BACK
NEXT
BACK
NEXT
Contents 1. Introduction ...............................1/20
2. Safety Information ...................1/20
3. Installing the monitor ..............3/20
3-1. Packing List ....................................3/20
3-2.
Fastening the swivel and tilt base ...
4/20
3-3. Selecting a suitable location .........4/20
3-4. Connecting the monitor ................5/20
3-5. Setting the refresh rate.................8/20
Preset Timing Table.......................8/20
4. Adjusting the picture.....................9/20
4-1. Using the On-Screen-Display........10/20
4-2. Direct access buttons...................10/20
4-3. OSD Adjustments.........................11/20
5. Display power management.........16/20
Reducing power consumption...........16/20
6. Troubleshooting.............................17/20
7. Specifications.................................20/20
P950
Multiscanning Color Monitor
1. Introduction
2. Safety Information
1/20
BACK
NEXT
This manual contains instructions for installing and operating P950
P950 is a highly ergonomic color display unit;
• 19” diagonal Flat(18” viewable) 0.25mm dot pitch CDT
• Supporting high screen refresh rates and full scan flicker-free picture quality
• With On Screen Display menus for user control
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
When you set up and use your display unit, follow the safety instructions below.
• Do not use the display unit in humid environments like bathrooms, damp
cellars, swimming pools, etc.
• This equipment must be connected to an earthed outlet which is close to the
display unit and accessible in case you need to disconnect the display.
• Do not connect an extension cord.
• Never insert objects into the openings on the outside of the device as you can
come into contact with live electrical components. This can cause fire or give
strong electrical shocks.
• Slots in the cabinet are provided for ventilation. Do not block the ventilation
slots in the display unit cabinet.
• Do not under any circumstances open the display unit cabinet.
P950
Multiscanning Color Monitor
2/20
BACK
NEXT
• To avoid risk of electric shock, do not disassemble the display unit cabinet.
The unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong solvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• To clean display unit cabinet, use a cloth lightly dampended with a mild
detergent.
• During the transportation of the monitor, the swivel base has to be removed in
every case.
Cleaning and Maintenance
P950
Multiscanning Color Monitor

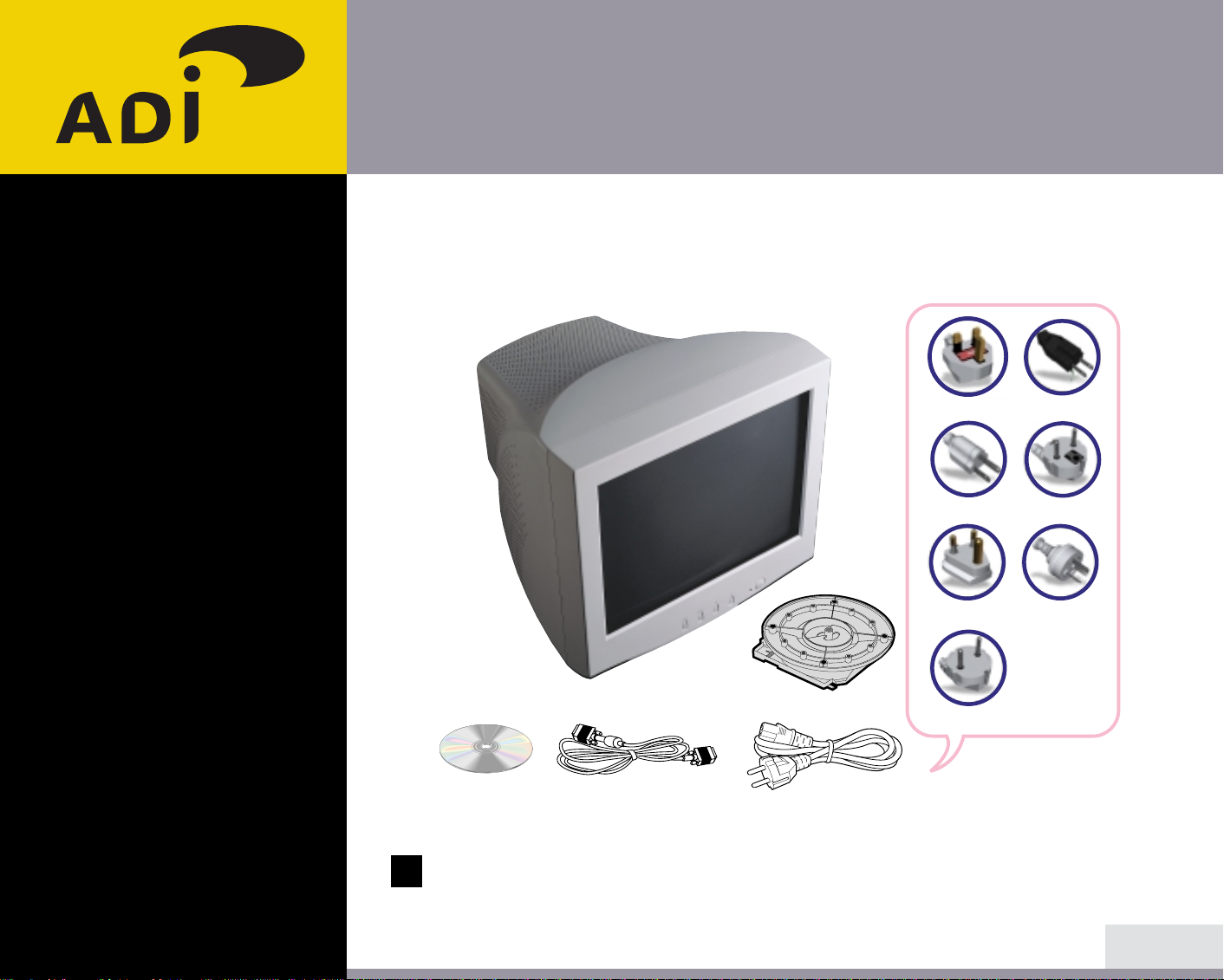

The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
UK
American/Canada
Japan
Australia
Korea
Europe
South Africa
3/20
BACK
NEXT
3. Installing the
monitor
3-1. Packing List
Tilt and Swivel
Compact Disc Signal Cable
Monitor
Power cord
!
P950
Multiscanning Color Monitor
4/20
BACK
NEXT
3-2. Fastening the swivel
and tilt base
3-3. Selecting a suitable
location
•Place the base against the bottom of the monitor so that the base fasteners are
aligned with appropriate slots.
•Push the base towards the front of the monitor until the latch locks into
position.
•Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
•Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
•To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•Position the monitor so that the top of the screen is no higher than eye level.
•Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)
P950
Multiscanning Color Monitor
