Adexa EP-1ST Manuel utilisateur

Electric Pizza Oven

EP-1ST

EP-2ST

User’s Manual

Thank you for purchasing and using this product.

In order to make full use the appliance and reduce the unnecessary loss and damage,

please read this book carefully and keep it for file for reference.

WARNING!

！This appliance is not apply to physical, sensory or metal defect or people who

lack of experience or knowledge (includes child);

！Any refitting, incorrect installation, adjustment and maintenance may cause

wealth damage and death. Please contact the supplier and ask the trained

professionals to adjust and maintain the product.

！Do not store any flammable or corrosive gas, liquid or substances near the

appliance.

！Do use the standard power. The appliance must be grounding safely for

safety before using.

！Do not use any sharp or hard substance to damage the surface of the body or

heating element.

1. Parameters:

Model EP-1ST EP-2ST

Voltage 220-240V/50Hz 220-240V/50Hz

Input power 2000W 3000W

Chamber layer 1 2

Chamber dimension

L×W×H mm 410x400x120 410x400x120

Outline dimension

L×W×H mm 580x561x275 580x561x435

Temp. range 50~350°C 50~350°C

Timing range 120min 120min

Temp. Fuse 360℃360℃

Net weight（kg）20 33

2. Exterior Structure

EP-1ST

EP-2ST

3. Installation

1、The electric connection should be done by the certificated stuff. The ground wire should be

firm.

2、Locate the appliance on a stable place which avoid water.

3、The service voltage should be identical with the supply voltage. Please install disconnecting

device with at least 3 mm distance on the fixed circuit. It is suggested to install a leakage

protection switch.

NOTICE!

！If the appliance is installed close to the wall, clapboard, kitchen equipments

or decoration plate, please use inflammable materials with these equipments.

Otherwise, cover these equipments with inflammable insulation materials and

pay attention to fire safety regulations.

！If the radiant heater is closed to other appliance or area, please make them

with inflammable materials. Otherwise, they should be covered with

inflammable materials and pay attention to fire safety regulations.

4. Instruction:

1、Make sure the service voltage is corresponding with the rated voltage and grounding is safety

before installation.

2、Do not put any substances on the top of the appliance during operation, especially the

flammable substances, like towel or clothes.

3、Please stop using and cut off the power if any error happens.

NOTICE!

The appliance will have smoke for the first time to use. Please rotate the

thermostat to 200℃and plug in with nothing for 30 minutes to discharge the

humidity before roasting.

5. Maintenance

1．Make sure to cut off the power before cleaning and maintenance for safety.

2．Make sure the appliance has cooled down before cleaning and maintenance.

3．Clean the appliance with wet towel with non-corrosive cleaner after using daily.

NOTICE!

！DO NOT CLEAN THE APPLIANCE WITH SPRAYING WATER.

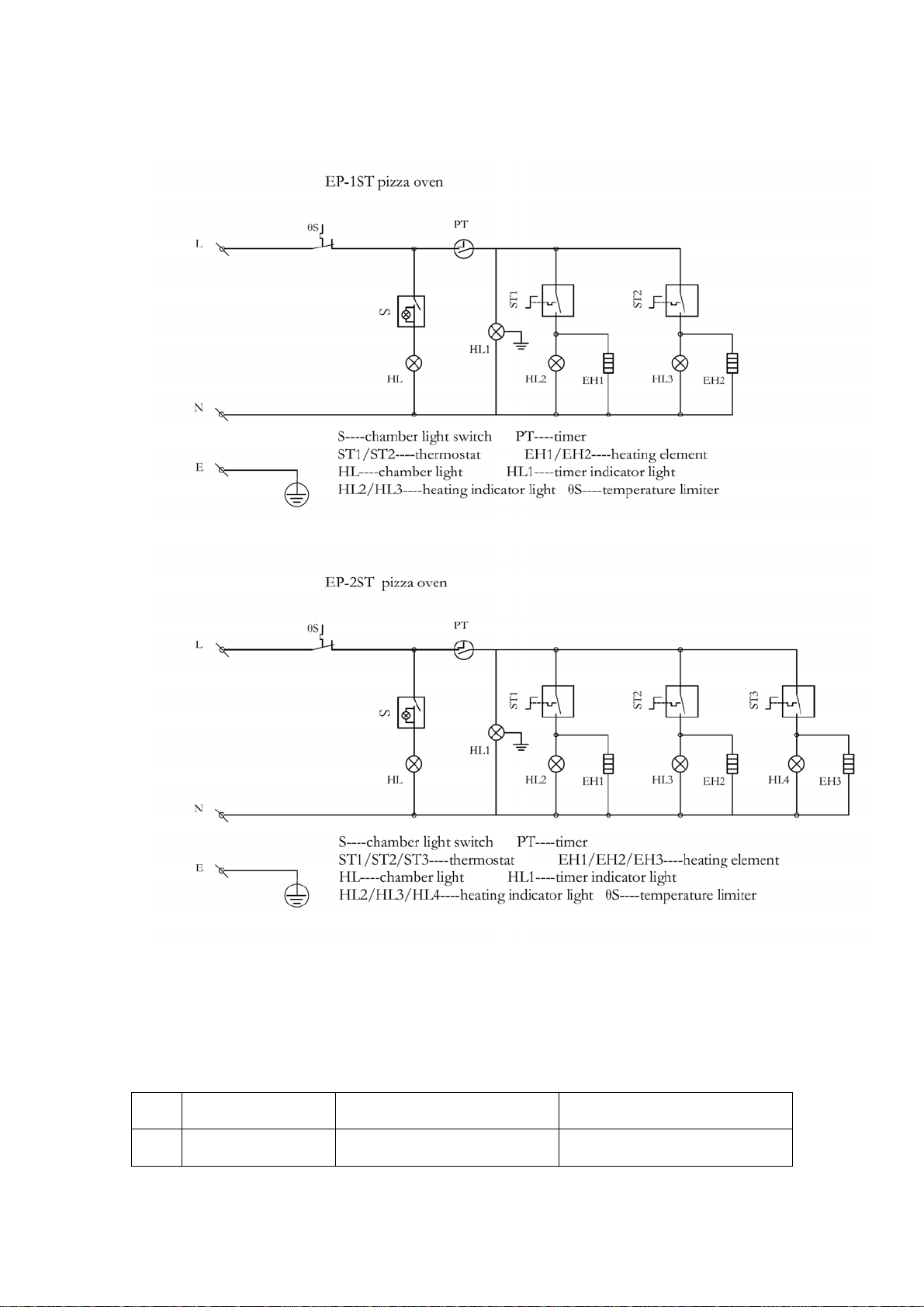

6. Circuit Diagram

7. Troubleshooting

1、Make sure the power is cut off before maintenance.

2、It is prohibited to short the circuit after the thermal circuit breaker is damaged.

NO. Error Reason Repair

1 Do not work The power is not on Connect the power

2 The leakage

protection switch is

stripped

The electric components

leakage

Stop using and repair

3 The heating time is

too long

The power is not

corresponding with the

requirements

Heating elements damaged

Connect the electric as required

Stop using and repair

4 The temperature is

out of control

Temperature sensor drop off

Temperature control

components damaged

Fix the temperature sensor

Stop using and repair

NOTICE!

！The maintenance should be done by the certificated stuff. Otherwise, the

inspection by other people could be dangerous.

！If the power soft wire is damaged, please change it with oil proof soft

protection jacket (No. 57 of GB/T 5013.1（IEC 60245，IDT）bought from the

manufactory or maintenance department. Otherwise, they should be changed

by the stuff from similar department.

ADEXADIRECTLIMITED

GROUNDFLOORUNIT1214PURLEYWAYCROYDONCR04XGLONDONUNITEDKINGDOM

T: +44 1483 931040 [email protected] www.adexa.co.uk

ECDeclarationofConformity



AdexaDirectLimiteddeclaresthat:



EquipmentType:  Electricpizzaoven



Model:EP‐1ST,EP‐2ST



ImportedBy:ADEXADIRECTLIMITED

GROUNDFLOORUNIT1214PURLEYWAYCROYDONCR04XG

LONDON,UNITEDKINGDOM

SerialNumber:



YearofManufacture:



Brand:ADEXA



ApplicationofCouncilDirective(s):EMC2014/30/EU

LVD2014/35/EU

Standards:

EN55014‐1:2017

EN61000‐3‐2:2014

EN61000‐3‐3:2013

EN55014‐2:2015

EN60335‐1:2012+A11:2014+A13:2017

+A1:2019+A2:2019+A14:2019

EN60335‐2‐36:2002+A1:2004+A2:2008+A11:2012

EN62233:2008



I,theundersigned,herebydeclarethattheequipmentspecifiedaboveconformstotheabove

Directive(s)andStandard(s).



Date:  01.09.2017

Signature: 



FullName:HakanBaykal



Position:PurchaseManager


