Welcome
This quick start guide covers the AS-4CR device. It describes the fundamental procedures that are
required to install and operate the Smart Card Reader.
ADDERView™Secure
Quick Start
© 2020 Adder Technology Limited • All trademarks are acknowledged.
Part No. MAN-QS-000044_V0.1 RC2
www.adder.com
NIAP protection profile
This product is certied to the NIAP protection prole PSD version 4.0 certication for peripheral
sharing devices.
Security Vulnerability
• Web form: https://www.adder.com/en/support/contact-support
• Email: compliance@adder.com
• Tel: +44 (0)333 2079766
Notes and warnings
• Note: Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual
indication if it has been opened or compromised.
• WARNING: If the unit’s enclosure appears disrupted or if all of the LEDs are red, remove the
product from service immediately and contact Technical Support.
Dimensions
• 175 (W) x 60 (D) x 33 (H) mm, Weight 0.5 kg
• 7.0 (W) x 1.34 (H) x 1.34 (H) inches,Weight 1.1 lbs

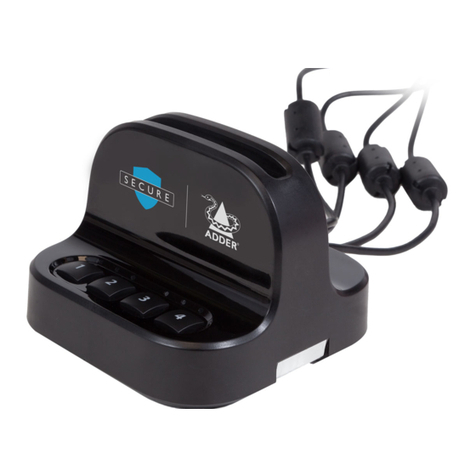

4-Port Card Reader
Where:
1 USB Cables with numbered connectors.
2 Card Reader Slot
3 PC Association LED
4 PC Number Button
5 PC Number LED
Do not connect this product to computing devices that:
• are TEMPEST computers,
• include telecommunication equipment,
• include frame grabber video cards,
• include special audio processing cards.
Operation
Pre-requisites
1 Install the applications, drivers and les of the cryptographic software (CSP) which corresponds to
your selected smart card vendor.
2 A smartcard.
3 Verify that your smart card setup works correctly on each PC using a standard smart card reader
prior to connecting the Card Reader.
4 Connect the Card Reader to each PC and power on. The PC Number LEDs will blink constantly.
Inserting the Smartcard
Insert your smart card into the Card Reader socket, ensuring that the smart card chip is facing
towards you.
Initial Association
Press rst PC Number Button to initialize the Card Reader with the corresponding PC. The PC
Number LED blinks for 5 seconds and when the association is complete, the LED is ON constantly.
The Card Reader appears as a smartcard reader under PC’s device manager.
Further Associations
Press a PC Number Button to initialize the Card Reader with the corresponding PC. The current PC
Number Button LED turns OFF and disassociates with the PC. The new PC Number LED blinks for 5
seconds and then LED turns ON constantly when the association is complete.
Looking at the device manager; the previous PC card will disappear and will appear under device
manager of the new PC.
Smartcard Removal
Removing the smartcard from the Reader immediately de-associates the card and Reader from all
associated PCs. As a result, smartcard-aware applications will notice the smartcard absence and
respond accordingly.
For example, a Windows PC that is congured to require smartcards for user logon may be set to lock
the user’s desktop once the smartcard is removed.
Re-associating the Card Reader
In order to use the smartcard after it’s been previously removed from the Reader, the user has to
insert the smartcard into the Reader and complete the Initial Association procedure.
