Adaptec AFW-4300 Manuel

HARDWARE

INSTALLATION GUIDE

AFW-4300

400 MBPS FIREWIRE HOST BUS ADAPTER

1394IG.fm Page 12 Thursday, November 9, 2000 8:55 AM

With the Adaptec AFW-4300 Host Adapter (or AFW-4300), you

can connect Digital Video (DV) camcorders or other devices

with a1394 (also known as FireWire® ori.LINK) digital interface

to any PC compatible or Power Macintosh® computer with PCI

expansion slots. The AFW-4300 is specified for a maximum

transmission speed of 400 Megabits per second (Mbps),

providing anideal interconnectfor multimediaapplicationswith

high data transfer rate requirements. This adapter is a 32-bit and

33 MHz PCI card and will work in only 32-bit or 64-bit, 33 MHz

or 66 MHz slots.

This installation guide explains how to:

•Install the AFW-4300

•Install the appropriate driverselection through the operating

system

•Attach standard 1394 cables between the AFW-4300 to your

DV camcorder or other 1394 device.

INTRODUCTION

AFW-4300

Adapter

External

Connectors

1394IG.fm Page 1 Thursday, November 9, 2000 8:55 AM

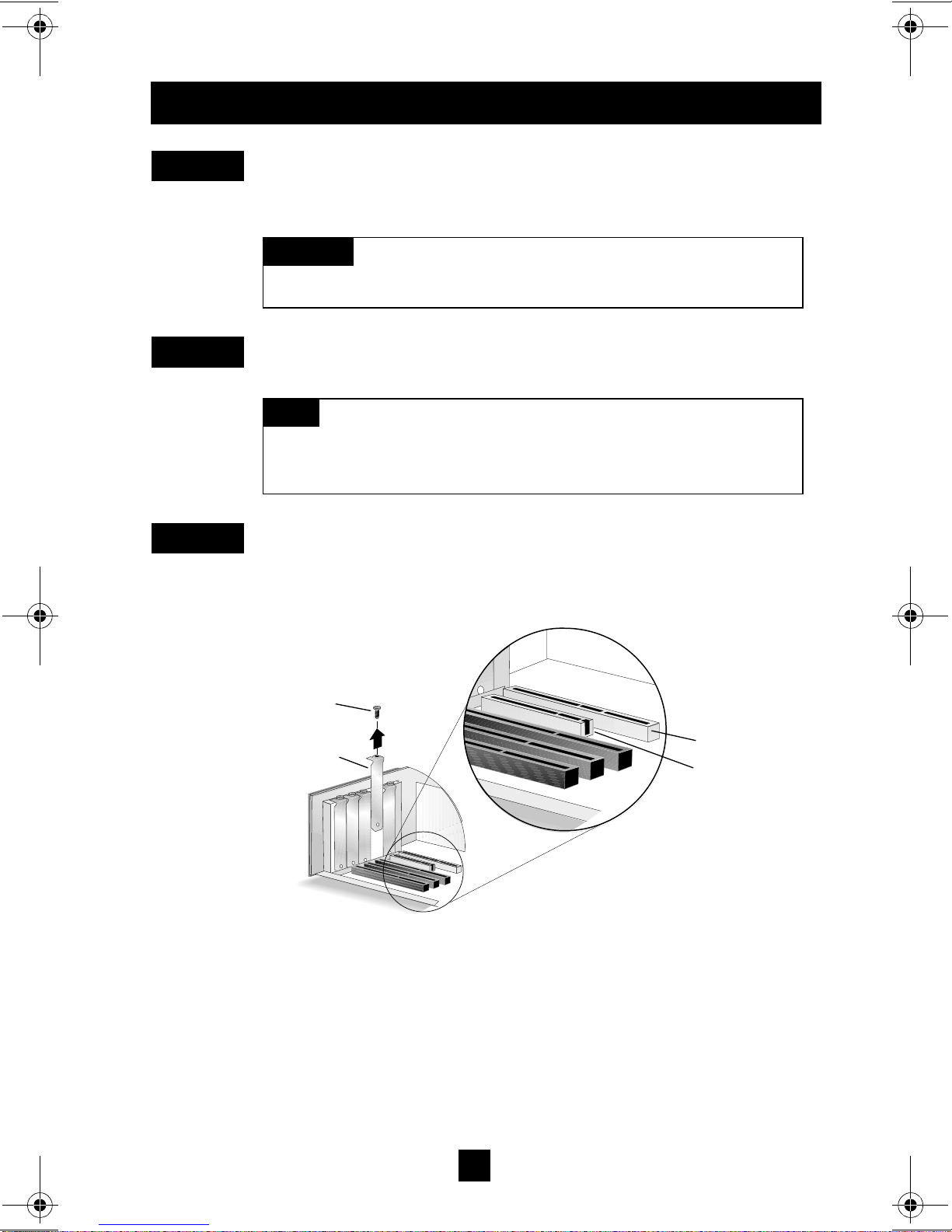

Discharge any static electricity build-up before handling the

AFW-4300 by touching a grounded metal object (such as the

exposed metal parts on the back of your computer).

After you turn OFF your computer and unplug the power cord,

remove the cover from the computer.

Locateanunused32-bitor 64-bitPCIexpansionslotand remove

the expansion slot cover.

Save the slot cover screw for use in Step 4.

INSTALLING THE AFW-4300

STEP 1

Turn OFF power to the computer and disconnect

the power cord.

WARNING

STEP 2

See your computer system’s manual for specific

instructions on opening your computer and installing a PCI

card.

NOTE

STEP 3

64-bit PCI Slot

32-bit PCI Slot

Slot Cover

Expansion

Slot Cover

Screw

1394IG.fm Page 2 Thursday, November 9, 2000 8:55 AM

Insert the AFW-4300 intothe PCI expansion slot. Press down

firmly until the card clicksinto place; then replace the slot cover

screw. When installed properly, the card should appear level with

the expansion slot, as shown below.

Once the AFW-4300 is installed in your system complete the

following steps.

Windows Installation

After physically installing thecardinto thePCI slotand replacing

theslotcoverscrew,replacethecoveronyourcomputerandthen

reattach the power cord. Once this is done, power up the

computer.

During the operating system startup, the card will automatically

be detected and Windows will load an embedded driver for the

card. If your system prompts you to restart the computer, do so.

STEP 4

Depending on thetightness of the PCI slot,

considerable force might be required to insert the card.

NOTE

COMPLETING THE INSTALLATION

STEP 1

STEP 2

1394IG.fm Page 3 Thursday, November 9, 2000 8:55 AM

Go in the Windows Device Manager and checkto see if the

adapter is installed correctly under the IEEE 1394 Bus Host

Controller section.

Macintosh Installation

Insert the Installation CD into your Macintosh CD-ROM drive.

Double-click on the Start Installation Here file on your

Installation CD.

Follow the instructions to install the latest Macintosh FireWire

drivers.

After installation is complete, click Restart to reboot your

Macintosh and have the new settings take effect.

STEP 3

STEP 1

STEP 2

STEP 3

STEP 4

1394IG.fm Page 4 Thursday, November 9, 2000 8:55 AM

Follow these steps to attach a Digital Video Camera to your

AFW-4300.

Using a standard 6-to-4-pin 1394 cable, plug the larger connector

(6-pin) of the cable into the external 1394 port on AFW-4300.

Plug the smaller connector (4-pin) of the 1394 cable into the

1394 port on your digital video camera.

You are now ready to install the 1394 software included with the

AFW-4300. See the installation instructions included on your

CD-ROM jacket cover for more information.

ATTACHING ADIGITAL VIDEO CAMERA

STEP 1

4-pin Connector 6-pin Connector

STEP 2

When inserting the 4-pin connector of the 1394

cable into the DV camera, make surethe connector and the

1394 port are properly aligned. Failure to do so can bend the

pins and damage the internal connector of the camera.

There are two types of 1394 connectors commonly

used; a 4-pin anda 6-pin. The AFW-4300 has three 6-pin

connectors on it. Digital Video cameras use a 4-pin

connection and may not include the cable.Other peripherals

typically use a 6-pin connection and include a corresponding

6-to-6-pin cable for you toconnect the device toyour

FireConnect 4300.

CAUTION

NOTE

STEP 3

1394IG.fm Page 5 Thursday, November 9, 2000 8:55 AM

You can connect up to 62 1394 devices to the AFW-4300 in

almost any configuration using either 6-to-6-pin or 6-to-4-pin

1394 cables.

If you have any problems while installing the AFW-4300, check

the followingitems first:

•Is the card seated evenly all the way into the PCI slot?

•Isbus mastering support provided and enabled for the PCI

slot containing the AFW-4300? (Check your motherboard

documentation for information on this.)

•Isyour 1394 DV camcorder or device powered on?

•Isthe 1394 cable properly connected to AFW-4300 and the

DV camcorder, or other 1394 device?

•Checked the Windows 2000 Event Log if you encounter

problems loading the drivers on your Windows 2000

operating system?

•Checked the troubleshooting section of your operating

system user manual?

•Checked the Software Tutorial and Read Me file on the CD if

you encounter any problems with the software?

•If the driver fails to load, moved the card to a different PCI

slot?

CONNECTING OTHER 1394 DEVICES

The AFW-4300 host adapter supports hot-plugging,

allowing 1394 devices to be attached and recognizedeven

when the computer is powered on.

Some peripheral manufacturers support hot-plugging

in different ways. Please see instructions for each device to

determine the best way to attach and mount the peripheral.

NOTE

TROUBLESHOOTING

1394IG.fm Page 6 Thursday, November 9, 2000 8:55 AM

•Forthe PowerMacintoshsystem,verifiedthatthe card isseen

by the Apple System Profiler?

To verify that the card is seen bythe Apple System Profiler,

follow these steps:

1. Pull down from the Apple Menu to Apple System Profiler.

2. Click the Devices and Volumes tab.

3. In the window that appears, scroll down to the PCI area

and click the arrow next to each PCI slot to reveal the PCI

card information. Ifthe AFW-4300 is installed properly,

you will see the following information listed under one of

the slots:

Card type: Not available

Card name: pci104c,8010

Card model: Not available

Card ROM #: Not available

Card Revision: 0

Card vendor ID: 104C

4. Ifthe card is not seen, verifythe AppleFireWire 2.4 or later

extensions are loaded and enabled.

5. If the extensions are loaded and enabled, verify that the

card is seated properly.

If you are still unable to resolve a problem, see the Adaptec Web

site at http://www.adaptec.com, or the Adaptec Support

Knowledgebase at http://ask.adaptec.com for additional

troubleshooting information.
