A5X

Safety Instructions

Please read the following safety instructions before setting up your

system. Keep the instructions for subsequent reference. Please heed

the warnings and follow the instructions.

Caution: To reduce the risk of electric shock, do not open the loud-

speaker. There are no user-serviceable parts inside. Refer servicing to

qualiﬁed service personnel.

This product, as well as all attached extension cords, must be terminated

with an earth ground three-conductor AC mains power cord like the one

supplied with the product. To prevent shock hazard, all three components

must always be used.

Never replace any fuse with a value or type other than those speciﬁed.

Never bypass any fuse.

Always switch off your entire system before connecting or disconnecting

any cables, or when cleaning any components.

Do not place this unit on an ustable cart, stand or tripod, bracket or table.

The unit may fall, causing serious injury and/or serious damage. When cart

is used, use caution when moving the cart/apparatus combination.

Do not expose this product to rain or moisture, never wet the inside with

any liquid and never pour or spill liquids directly onto this unit. Please do

not ut any objects ﬁlled with liquids (e.g. vases, etc.) onto the speaker.

Check if the speciﬁed voltage matches the voltage of the power supply

you use. If this is not the case do not connect the loudspeakers to a power

source! Please contact your local dealer or national distributor.

Caution

Risk of electrical shock

Do not open

Risque de shock electrique

Ne pas ouvrier

CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE BACK COVER OR ANY OTHER PART.

NO USER-SERVICABLE PARTS INSIDE.

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

REFER SERVICING TO QUALIFIED PERSONNEL.

English

Safety Instructions

Protect the cord from being walked on or pinched.

Always use fully checked cables. Defective cables can harm your speakers.

They are a common source for any kind of noise, hum, crackling etc.

Always keep electrical equipment out of the reach of children.

Always unplug sensitive electronic equipment during lightning storms.

The monitor should be installed near the socket outlet and disconnection of

the device should be easily accessible.

To completely disconnect from AC mains, disonnect the power supply from

the AC receptacle. Never use ﬂammable or combustible chemicals for

cleaning audio components.

Avoid touching the speaker membranes and do not block the woofer’s

ventilation ports.

Never expose this product to extremely high or low temperatures. Never

operate this product in an explosive atmosphere.

High SPL’s may damage your hearing! Please do not get close to the

loudspeakers when using them at high volumes.

Please note that the diaphragms build up a magnetic ﬁeld. Do not ply with

magnetic items at close range to the diaphragms.

Assure free airﬂow behind the speakers to maintain sufﬁcient cooling.

Table of contents

Safety Instructions.........................2-3

1. Introduction ...................................5

2. Quick Start.....................................6

2.1 Important Information....................6

2.2 Quick Start A5X .............................6

3. Connecting the Speaker.................7

3.1 Basic Connections .........................7

3.2 The Stereo Link..............................7

4. Speaker Placement........................8-10

4.1 Vertical set up................................8

4.2 Horizontal set up............................8

4.3 Tweeter at height of ears ...............9

4.4 The stereo triangle.........................9

4.5 Surround placement ......................10

4.6 Stand/Wall mounting.....................10

5. Speaker Adjustments.....................11

5.1 Control panel .................................11

5.1 Tweeter level..................................11

5.1 Room EQs (Shelve ﬁlter) ................11

6. Trouble Shooting............................12

6.1 No or distorted signal ....................11

6.1 Parasitic noises..............................11

7. Maintenance ..................................13

8. Transportation / Package ..............13

9. Environmental Information.............13

10. EU Declaration of Conformity ........14

11. Limited Warranty............................15

11.1 Terms and Conditions ....................15

11.2 How to claim..................................15

12. Technical Data /Technische Daten 16

English

1. Introduction

Dear customer,

Thank you for choosing the ADAM Audio A5X Nearﬁeld monitor!

ADAM loudspeakers are built for maximum quality reproduction and audio

perfection. With the A5X you have selected a precise, high-resolution speaker

system that allows you to both evaluate and enjoy audio recordings. This

monitor meets highest expectations in sound quality and craftsmanship.

This manual is intended to provide you with information about your new

ADAMs. It contains important information regarding safety, setting up,

handling, and warranty. We request that you read these sections carefully

to ensure easy set up and prevent potential problems.

The A5X is a compact near ﬁeld monitor. It is perfectly suited for a wide

variety of stereo and multi-channel professional applications including small

control rooms, desktops, mobile facilities and post-production edit bays as

well as connection to your favorite mp3-players and gaming consoles…in

other words, in any situation where a combination of no-compromise sound

reproduction and a small footprint is required.

The A5X is a two-way ported active system that uses ADAM’s proprietary

X-ART folded ribbon tweeter ensuring full compatibility with the latest

expanded high frequency resolution media formats, and a conventional

bass/midrange driver below the crossover frequency of 2.5kHz. Each section

uses an individual amp with continuous output of up to 50 Watts (RMS).

If you have any questions about this or any of our products, please don’t

hesitate to contact us – we will be happy to assist you.

For detailed information concerning ADAM’s technologies and products,

complete reviews, and a list of worldwide ADAM users and studios, please

visit our website:

www.adam-audio.com

We hope very much that you really enjoy your new loudspeakers, and wish

you many delightful hours with them.

The ADAM Audio Team

2. Quick Start

Important Information for set up

After having unpacked your loudspeaker, please allow the system to acclimate

to the temperature of the room for approximately an hour.

It is important to ensure the speakers sit ﬁrmly on a solid surface!

We recommend that you retain the original packaging, as it is the best way to

guarantee safe transportation should the need to do so arise.

Please note that the loudspeakers will take some break-in time to achieve

optimum sonic performance.

Quick Start

Before connecting the loudspeakers to your audio components and the

power source make sure that both the loudspeakers and your audio system

are switched off and set the level controls fully counterclockwise.

There are two options of connection:

Basic active speaker use. Connect your sound source or mixing console to the

speakers. Use either the RCA (unbalanced) or the XLR (balanced) connectors.

You will ﬁnd the connector wiring printed on the speaker’s rear panel (for

further information, see 3.1).

Stereo Link. If you want to use the Stereo Link (controlling the overall volume

by one control), please see 3.2.

Check if the speciﬁed voltage matches the voltage of the power supply you

use. If this is not the case do not connect the loudspeakers to a power source!

Please contact your local dealer or national distributor.

If the voltages match, use the included power cables to connect the

loudspeaker to the AC sockets.

Switch on the main on/off switches on the front panel of the loudspeakers.

Make sure that the line out level (volume) of your stereo is either at a low level

or all the way off. Then, switch on your audio system.

Turn on your source of music and adjust the volume carefully.

2.1

2.2

English

3. Connecting the Speakers

Basic active speaker connection

For the basic active speaker connection,

please use mono XLR or RCA cables.

In most professional applications XLR

will be the best choice, while RCA is

more common in HiFi applications. Each

one of the two loudspeakers has to be

connected to one channel of the sound

source.

The Stereo Link

If you wish to use the Stereo Link that

allows adjustment of the volume of

both loudspeakers with a single master

control, please proceed as follows:

First, connect Speaker 1 (that is supposed

to control the overall volume) to your

preampliﬁer, sound source, etc., using a

stereo RCA (*1) cable.

Second, connect Speaker 2 to Speaker 1

via the Stereo Link output of Speaker 1

and the Analog Input of Speaker 2. Please

use the provided (or another) mono RCA

cable.

Please note:

On the front side of the unit functioning as master, a corresponding

white LED will illuminate as soon as mono RCA is connected to the

Stereo Link output.

Unlike the common ‘master-slave-conﬁguration’, any A5X that is connected

accordingly can function as either a master or a slave unit.

For an equal volume level of both speakers please make sure that the volume

knob of speaker 2 is snapped in the middle position.

3.1

3.2

white

LED

ﬁg. 2: Stereo Link

RCA (stereo)

Speaker 1 Speaker 2

mono RCA (*2)

TWEETER LEVEL

A5X

LOW SHELFHIGH SHELF

OUTPUT

STEREOLINK

INPUT

UNBALANCED IN

BALANCED IN

CONTROLS

IN-/ OUTPUTS

-6 dB +6 dB

-4 dB +4 dB

Serial No.

T1.6AL (230V~,50Hz)

T3AL (115V~,60Hz)

130WATTS

TWEETER LEVEL

A5X

LOW SHELFHIGH SHELF

OUTPUT

STEREOLINK

INPUT

UNBALANCED IN

BALANCED IN

CONTROLS

IN-/ OUTPUTS

-6 dB +6 dB

-4 dB +4 dB

Serial No.

T1.6AL (230V~,50Hz)

T3AL (115V~,60Hz)

130WATTS

ﬁg. 1: Common connection

2 x RCA

2 x XLR

Speaker 1 Speaker 2

TWEETER LEVEL

A5X

LOW SHELFHIGH SHELF

OUTPUT

STEREOLINK

INPUT

UNBALANCED IN

BALANCED IN

CONTROLS

IN-/ OUTPUTS

-6 dB +6 dB

-4 dB +4 dB

Serial No.

T1.6AL (230V~,50Hz)

T3AL (115V~,60Hz)

130WATTS

TWEETER LEVEL

A5X

LOW SHELFHIGH SHELF

OUTPUT

STEREOLINK

INPUT

UNBALANCED IN

BALANCED IN

CONTROLS

IN-/ OUTPUTS

-6 dB +6 dB

-4 dB +4 dB

Serial No.

T1.6AL (230V~,50Hz)

T3AL (115V~,60Hz)

130WATTS

4. Speaker Placement

Please make sure that there are no obstacles in the way from the monitor to

your ears. You should be able to see the speakers completely.

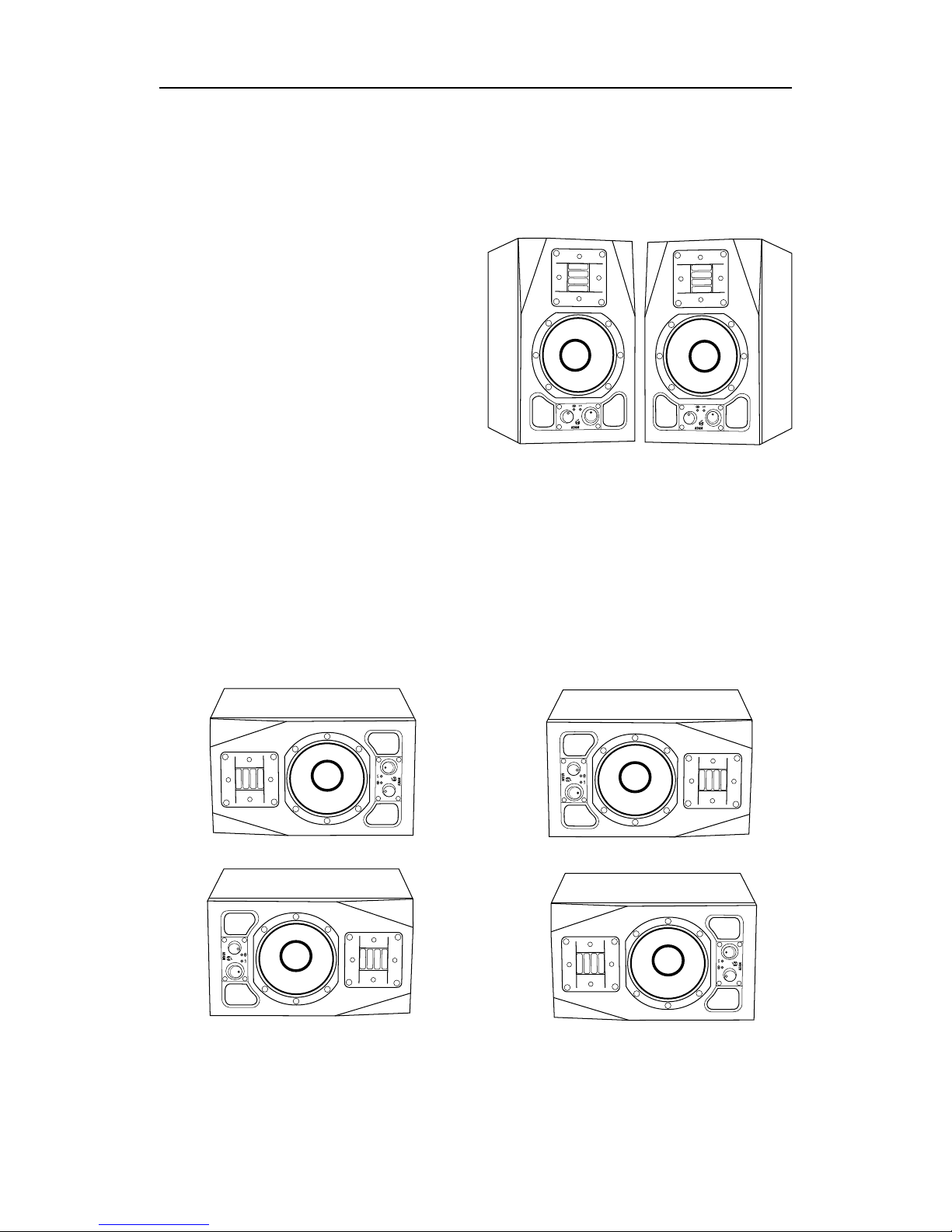

Vertical set up

Hoizontal set up

If you choose to use your speakers in horizontal position as indicated below,

please make sure that the set up is mirrored/symmetrical, i.e. that the

tweeters both face either the outwards or inwards. This is crucial for a precise

stereo signal.

ﬁg 4: horizontal / mirror symmetrical set up

4.1

so:

or so:

4.2

The A5X has been designed for a

vertical set up. The speakers must

be positioned on a solid surface or

a stand.

Please note that vibrating parts of

nearby objects can mask the sound.

ﬁg 3: vertical set up

A3X

English

4. Speaker Placement

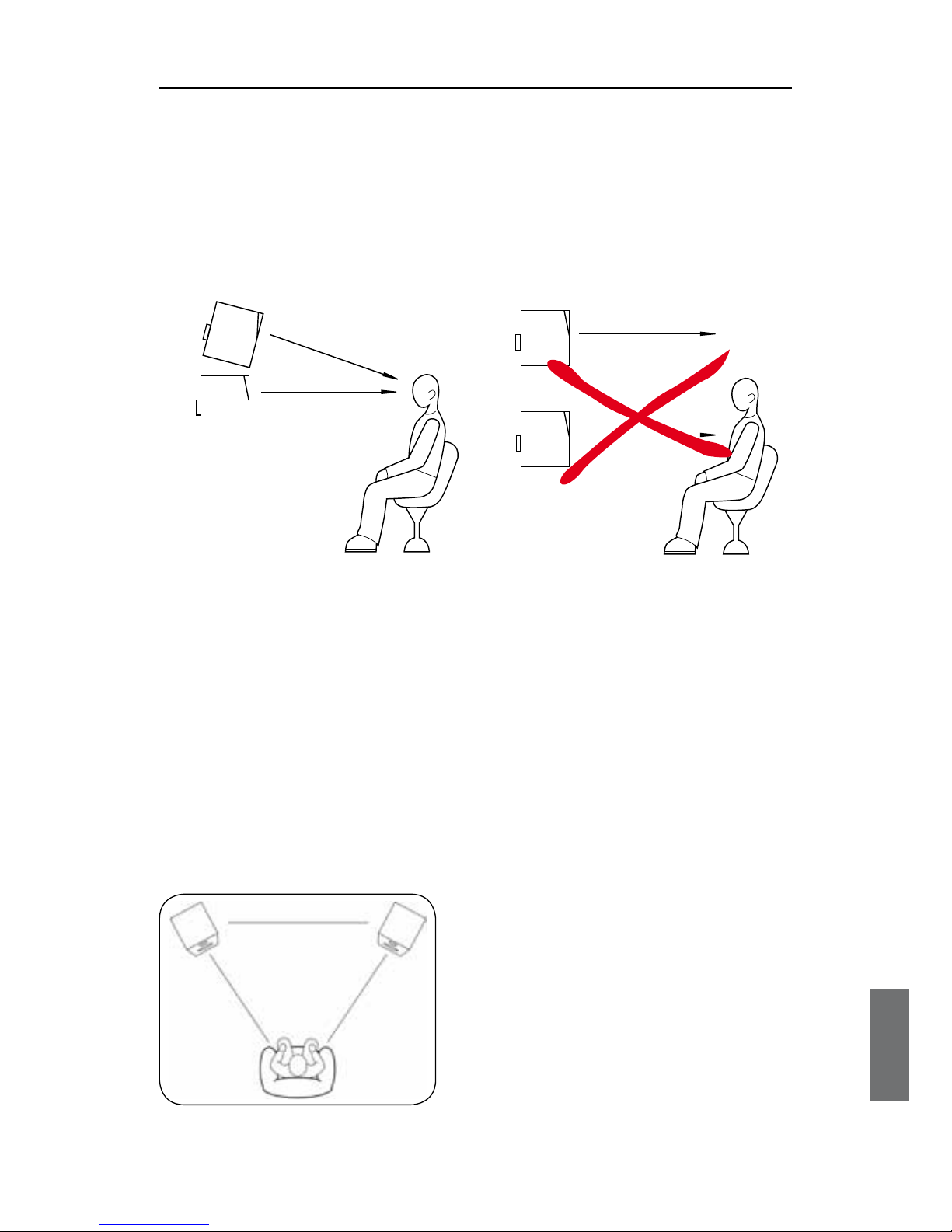

Tweeter at the height of ears

The Tweeter should be positioned approximately at the height of your ears. In

case you need to position the speaker in a signiﬁcant lower or higher position,

the monitor should be angled accordingly.

ﬁg 5: Tweeter at height of ears / speaker angling

The Stereo Triangle

If the loudspeaker is going to be used for stereo applications, the optimum

listening position should be at the top of an imaginary equilateral triangle

with the two loudspeakers should be placed at the other two points of this

triangle (see ﬁg. 6).

The loudspeakers should be aligned with the listener’s position.

4.3

4.4

ﬁg. 6: Stereo Triangle

• bothloudspeakerandthelisteningspotshould

form a equilateral triangle with approx. the

samedistancesbetweenloudspeakersandthe

loudspeakers/thelisteningspot

• alignmenttowardslisteningspot

4. Speaker Placement

Surround Placement

Speaker positioning for multi-channel stereo purposes is ideally based on

a circle with speakers placed at 0° (Center), 30° (Front Right), 110° (Rear

Right), 250° (Rear Left), 330° (Front Left), with the listener being the circle’s

center (Radius between 0.7-2.0 m). This ITU recommended conﬁguration may

vary depending on the purpose of the control room (music or ﬁlm). However,

it is recommended to create a symmetrical listening position with the front

side and surround speaker pointing to the listener’s ear.

The distance to the surrounding walls should be at least 40 cm to avoid early

reﬂections, which can degrade the sound.

ﬁg 7: Surround set up

Stand/Wall Mounting

On the rear side, you will ﬁnd two M8 (8 mm) metric strew threads for stand/

wall mounting. Further equipment (e.g. Omnimount) for mounting is also

available.

4.6

4.5

Table des matières

Langues :

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
