ActronAir Easyconnect Serene Instructions de montage
ActronAir Easyconnect
Installation and Setup Guide for Wall Hung
Systems
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.
Compatible with:
Serene Serene 2
WRE-026AS WRE-026CS
WRE-035AS WRE-035CS
WRE-050AS WRE-050CS
WRE-071AS WRE-072CS
WRE-080AS WRE-085CS
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
2
Table of Contents
01. Specification and Precautions .............................. 3
02. Installation ...........................................................4
03. Download and Install the Easyconnect App .......... 5
04. Create an Account................................................ 5
05. Device Configuration ........................................... 7
05.01. Amazon Alexa 7
05.02. Google Home 9
05.03. Smart Device (Easyconnect) 11
06. Operation and Control ........................................16
06.01. Amazon Alexa 16
06.02. Google Home 17
06.03. Smart Device (Easyconnect) 19
07. Smart Device - Operating Functions................... 20
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
3
01. Specification and Precautions
Model: OSK105
Standard: IEEE 802.11b/g/n
Antenna Type: External omnidirectional Antenna
Frequency: Wi-Fi 2.4G
Maximum Transmitted Power: 15dBm Max
Operation Temperature: 0 °C ~45 °C/32 °F~113 °F
Operation Humidity: 10%~85%
Power Input: DC 5V/300mA
Applicable system: iOS, Android
NOTE
Easyconnect App will require software updates from time to time to ensure
compatibility with the latest Android and iOS operating versions. ActronAir will
ensure updates are made quickly but will ultimately not be responsible for any
issues relating to Android and iOS operating systems.
Wireless safety strategy:
Smart kit only supports WPA-PSK/WPA2-PSK encryption and non encryption.
WPA-PSK/WPA2-PSK encryption is recommended.
NOTE
• The Smart phone camera needs to be 5 megapixels or more to scan the QR
code.
• Network encryption may need to be reconfigured, when necessary, to
ensure connectivity.
• Where issues in connectivity arise from the wireless network, there may
be some differences in the display between the Easyconnect App and
connected controllers.
NOTE
ActronAir will not be liable for any issues and problems caused by network
connections, Wi-Fi router and smart devices. Please contact the product
supplier of these third party devices directly to get further assistance.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
4
02. Installation
BEFORE STARTING:
Isolate the power to the indoor unit and ensure power is not being
supplied to the system to prevent electric shock. Ensure correct lockout/
tag out procedures are adhered to.

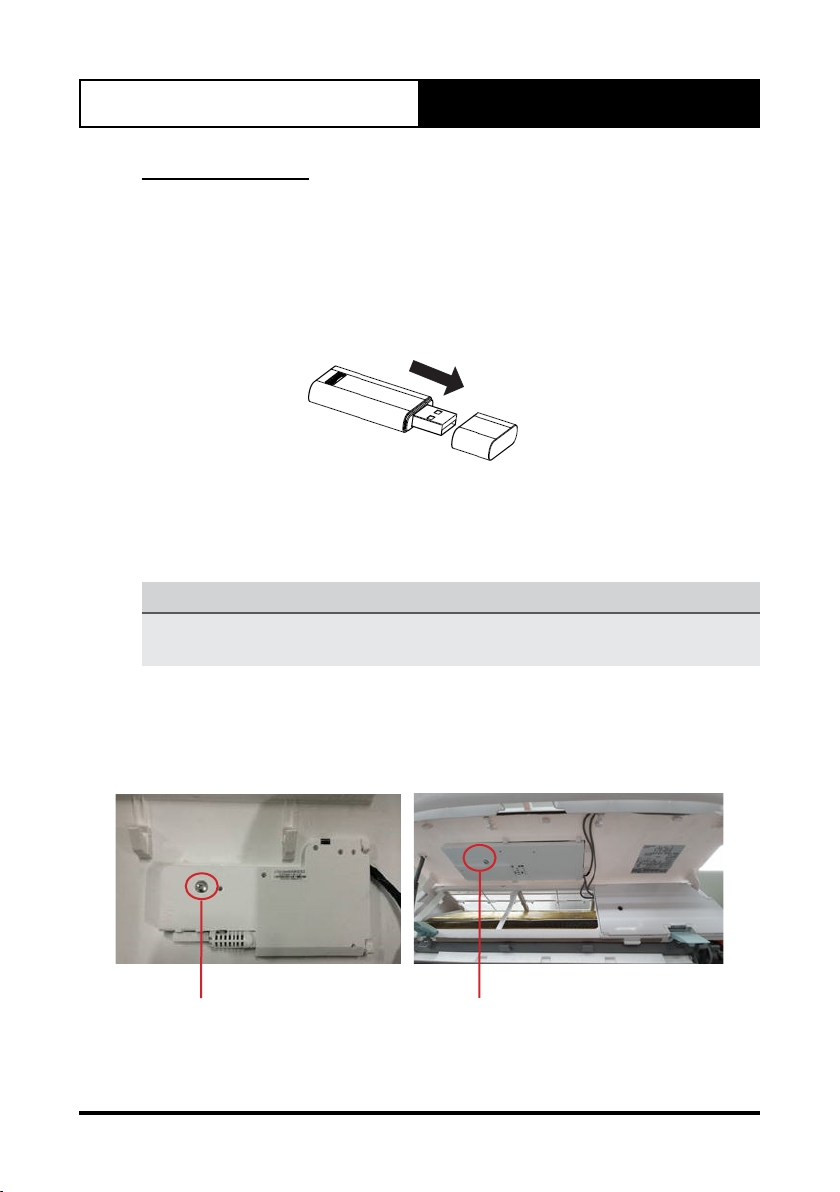

Remove the Easyconnect USB kit from the box and take off the protective cap.

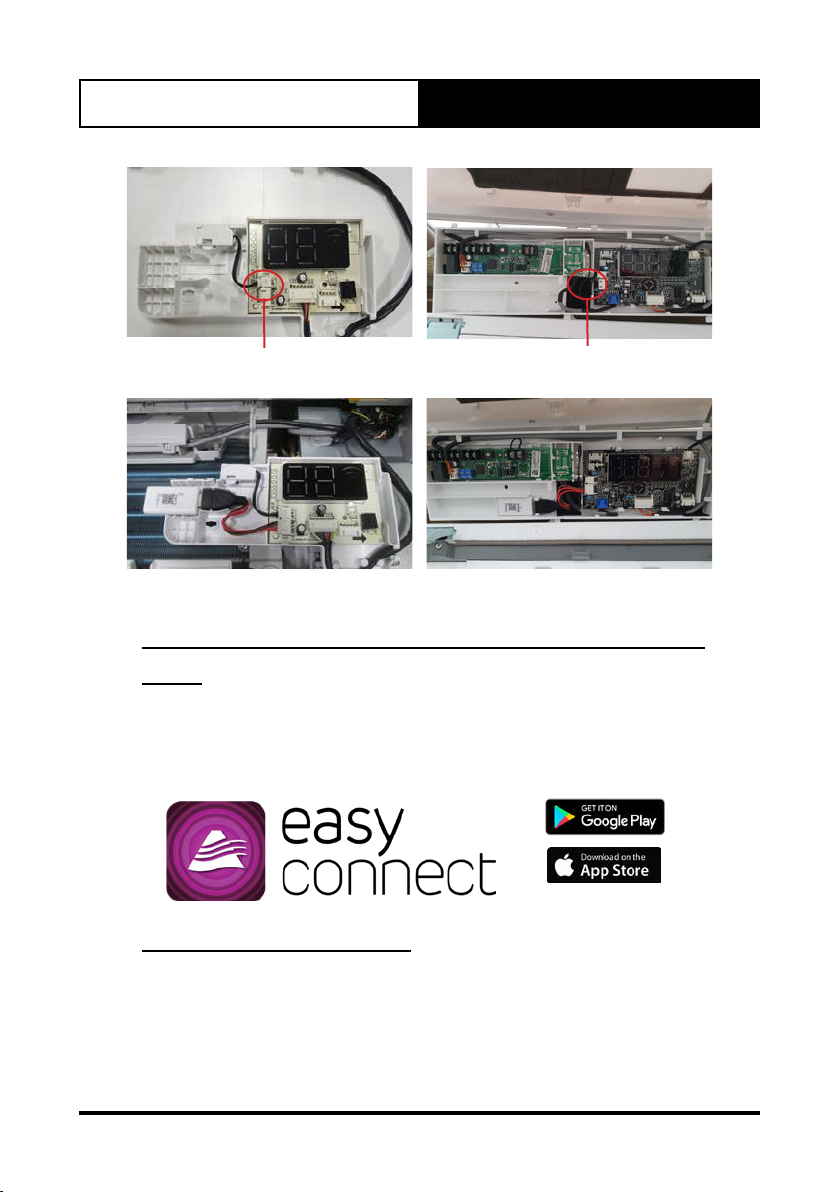

1. Open the front panel of the indoor unit and insert the Easyconnect USB
kit into the USB port on the display receiver PCB. If the port is not present,
install the supplied USB port cable plug into the vacant CN3 plug which is
provided in the WUK-WH1 bag.
NOTE
USB ports are factory standard for all units manufactured after February,
2018. Check the serial number to identify the correct manufacturing date.
2. Please place the QR code sticker on the side of the indoor unit near the
manufacturing label, providing sufficient access to the side of the unit.
Serene Serene 2
Open the receiver board
by unscrewing the screw.
Open the receiver board
by unscrewing the screw.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
5
Serene Serene 2
Install the Wi-Fi USB cable
into CN03 if required.
Install the Wi-Fi USB cable
into CN03 if required.
Serene Serene 2
Ensure that the Easyconnect Module is secured into the receiver panel.
3. Close the panel and reset power to the Air conditioner.
03. Download and Install the Easyconnect
App
Search Easyconnect on your compatible mobile phone, tap download and
then open the app to create a new account.
(Refer to Section 04, for new account setup)
04. Create an Account
●Please ensure that you have a secure and operational internet
connection readily available for the creation of your account and
system setup.
●You will also require an active e-mail address which will be used as
your username when creating an account, logging into and using the
Easyconnect app.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
6

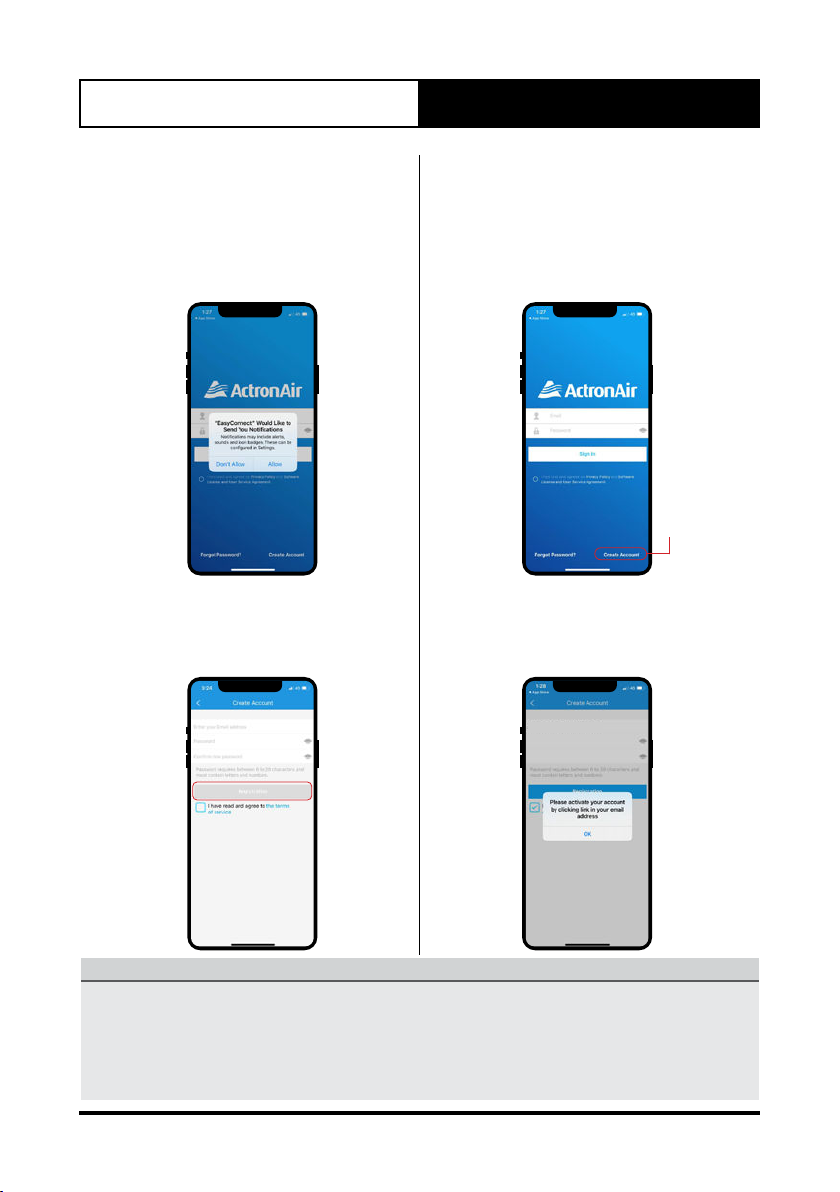

1. When the app is opened for the first
time, it will ask permission for sending
notifications. It is the discretion of the
user to allow or disallow the permission.
The user can change this permission at
any time in the phone’s settings.
2. Tap on Create Account.
Click here
3. Enter your e-mail address, create and
confirm a unique password, confirm
the terms and conditions and tap on
Registration.
4. Once you have successfully registered
with the app, it will prompt you to
activate your account by clicking the
link in your registered email address.
NOTE
• Please check your email for an email from iot1@annto.com titled
“Hi, please activate your account to complete the registration”.
• If you do not see the email in a few minutes, check your “junk or spam” folder.
• Activation time is sensitive and the account will need to be activated within the first
5 minutes of completing the registration.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
7
05. Device Configuration
05.01. Amazon Alexa

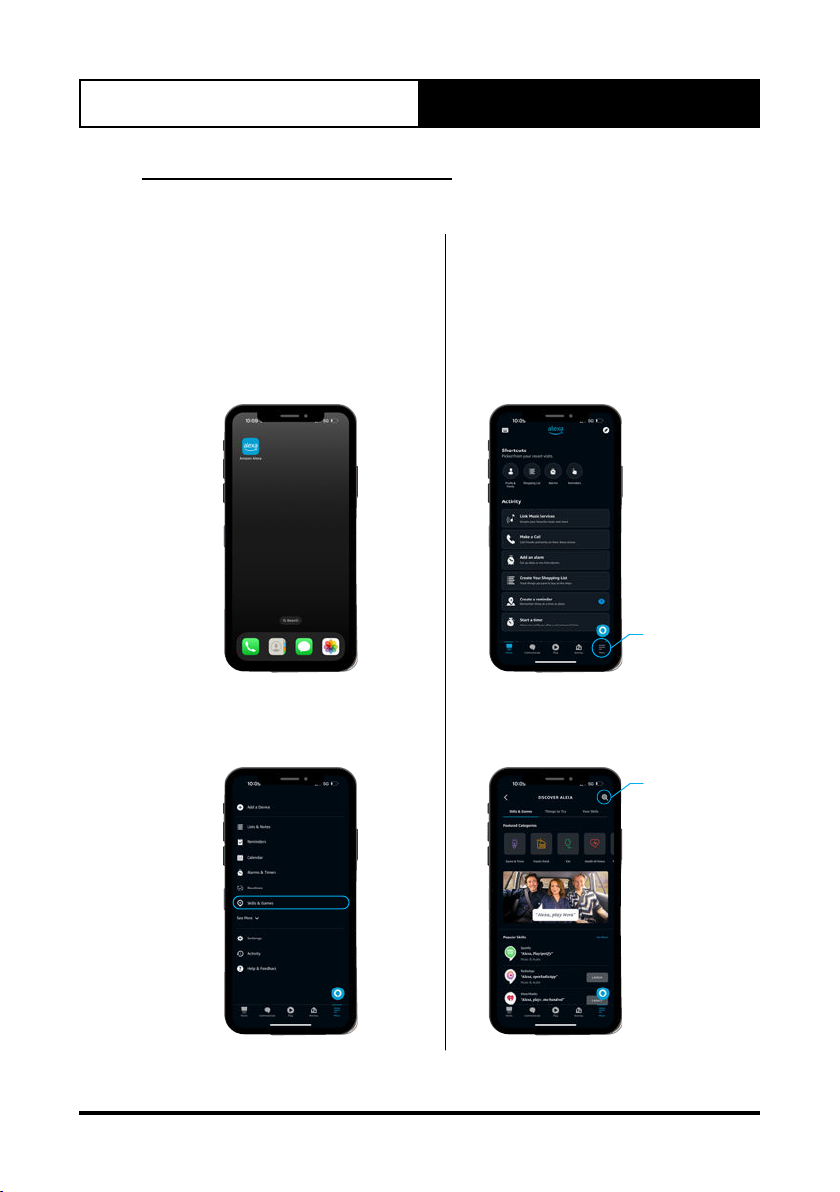

1. Download Amazon Alexa from
google playstore or apple if you
haven’t done so already. Once
logged in, follow below steps
2. Once the Amazon Alexa app has
been installed on your device,
open up the app. Click on the
“More” button which is positioned
at the bottom right hand side of
the screen. When you click “More”
this will take you to a new screen.
Click Here
3. On this new screen, click on “Skills
& Games” which will take you to a
new search screen
4. Tap on the search tool on the top
right hand corner.
Click Here
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
8
5. Search for “easyconnect” skill. 6. Select Easyconnect” from the
results list.
7. Once you have selected
EasyConnect from the results list,
click on “Enable to Use” button
which will take you to the next
step.
8. A login prompt for easyconnect
will appear, login with your
Easyconnect app credentials.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
9

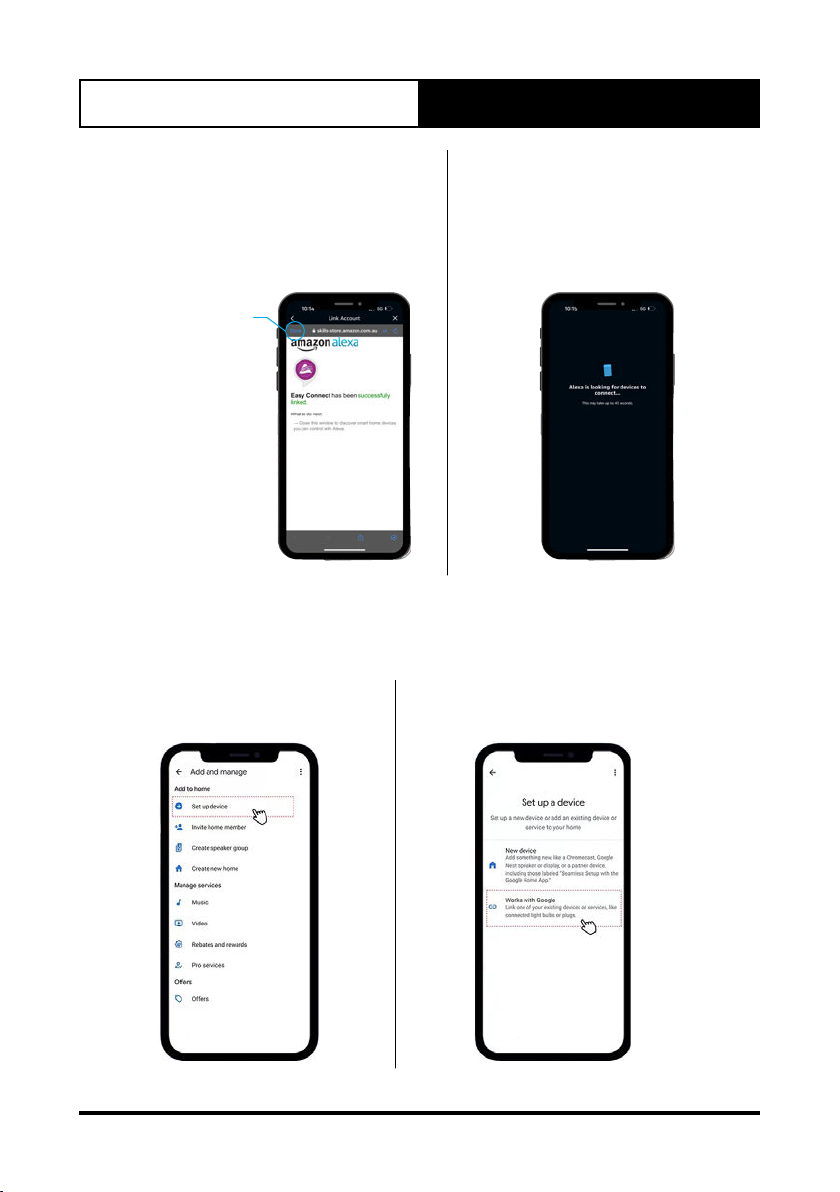

9. Once logged in, the Amazon Alexa
App will confirm the successful
linking of your account. You can
now close this window by clicking
on “Done” on the top left hand
corner.
10. Alexa will then start looking for
devices to connect with.
Click Here
05.02. Google Home
1. Download the latest version of Easyconnect App and add the smart
device.
2. Download and open Google
Home App, tap “Set up device”-
3. Select ”Works with Google”, and
enter to search “easyconnect”.
Installation Guide Easyconnect App
Installation Guide - Easyconnect App
Document: 9590-4008 Ver. 6 230501
10

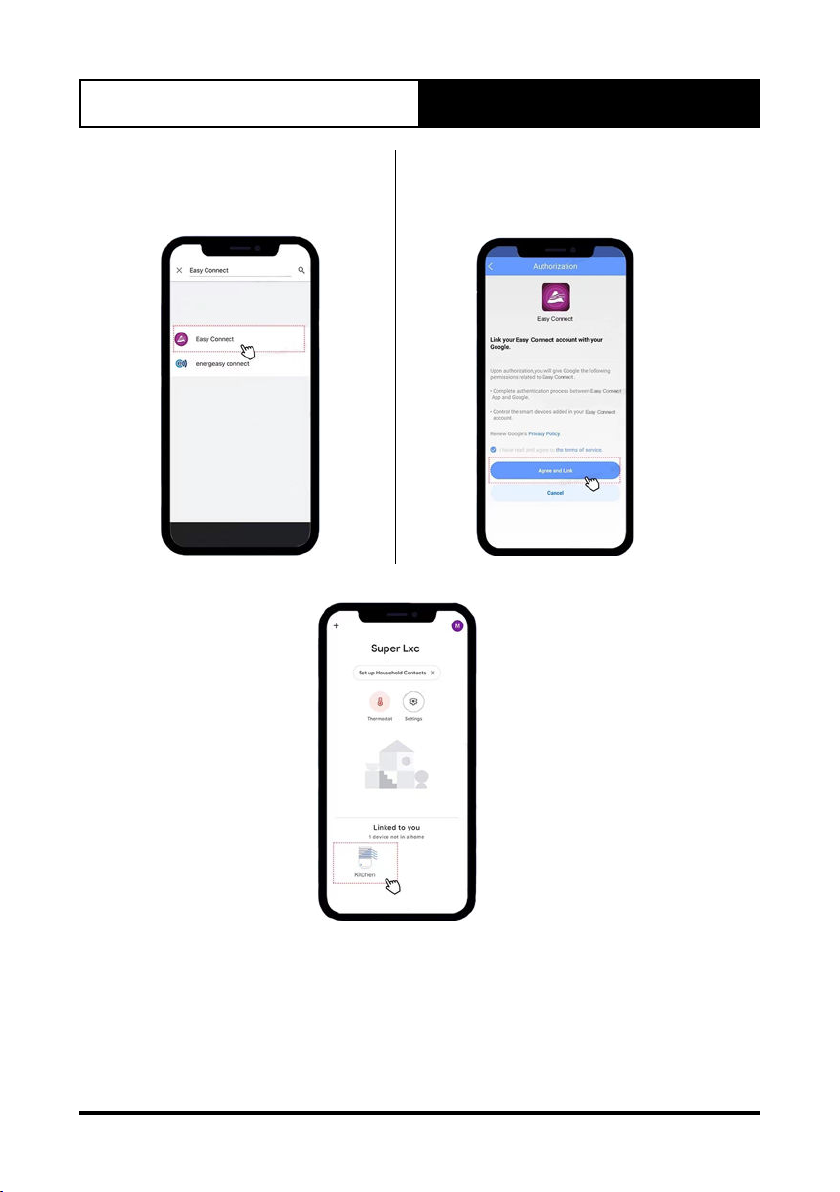

4. Choose “easyconnect” and jump
to the authorisation page of
Easyconnect App.
5. After logging in to your
Easyconnect account, tap “Agree
and Link”.
5. You will be redirected to Google Home App and the device will be shown.
Now you can use Google Home voice controller to control your devices.
