ActronAir Easyconnect CRE-071AS Instructions de montage

ActronAir Easyconnect

Installation and Setup Guide for

UltraSlim Ducted, Bulkhead Ducted

and Cassette Systems

IMPORTANT NOTE:

Please read this manual carefully before installing or operating your air conditioning unit.

That’s better. That’s Actron.

Smart Port compatible with:

CRE-071AS MRE-035AS

CRE-100AS MRE-050AS

CRE-125AS BRE-026BS

CRE-140AS BRE-035BS

LRE-071AS BRE-052BS

LRE-100AS BRE-071BS

LRE-130AS

Installation Guide Easyconnect App

2Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

Table of Contents

01. Speciﬁcation and Precautions .............................. 3

02. Components ........................................................4

03. Installation........................................................... 5

04. Download and Install the Easyconnect App ........ 10

05. Create an Account.............................................. 10

06. Get Started.......................................................... 11

07. Operating Functions ...........................................18

Installation Guide Easyconnect App

Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

01. Speciﬁcation and Precautions

Model: WUK-CAC1 (CAC#WF-60A1)

Standard: IEEE 802.11b/g/n

Antenna Type: External omnidirectional Antenna

Frequency: Wi-Fi 2.4G

Maximum Transmitted Power: 15dBm Max

Operation Temperature: 0 °C ~45 °C

Operation Humidity: 10%~85%

Power Input: DC 5V/300mA

Applicable system: iOS, Android

NOTE

Easyconnect App will require software updates from time to time to ensure

compatibility with the latest Android and iOS operating versions. ActronAir will

ensure updates are made quickly but will ultimately not be responsible for any

issues relating to Android and iOS operating systems.

Wireless safety strategy:

Smart kit only supports WPA-PSK/WPA2-PSK encryption and non encryption.

WPA-PSK/WPA2-PSK encryption is recommended.

NOTES

• The Smart phone camera needs to be 5 megapixels or more to scan the QR

code.

• Network encryption may need to be reconﬁgured, when necessary, to

ensure connectivity.

• Where issues in connectivity arise from the wireless network, there may

be some diﬀerences in the display between the Easyconnect App and

connected controllers.

• ActronAir will not be liable for any issues and problems caused by network

connections, Wi-Fi router and smart devices. Please contact the product

supplier of these third party devices directly to get further assistance.

Installation Guide Easyconnect App

4Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

02. Components

Name Shape Quantity

Smart Port Reciever and CN2 Cable 1

Extension Cable (6 m) 1

4 Core Wire Control Cable 1

Disposable Remote Controller

(Easyconnect setup only) 1

Easyconnect Wi-Fi USB 1

QR Label 1

Screw 3

Wall Mounting Plug 3

AAA Battery (1.5V) 2

Installation Guide Easyconnect App

Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

03. Installation

Wi-Fi controller structure size ﬁgure:

( All dimensions are in mm unless speciﬁed).

36.8

Ø120.0

Figure 4-1

Do not exceed supplied cable lengths between indoor unit and smart port.

Extension of this length may create loss of communication between the PCB

and/or wired control Wi-Fi Smart Port. We recommend the following wired

controller cable length maximums:

Wiring Speciﬁcations

Wiring type Size Total Length

Shielded PVC or

Cable

0.75mm2≤ 20m

1.5mm2≤ 50m

NOTE

In order to avoid potential interference, it is recommended that the Wi-Fi

Smart Port is mounted inside the living space, as close to the internet router

as is practical. It is not recommended to install the Smart Port inside the

wall cavity or roof space. If possible, avoid items which can cause potential

interference in direct line between the modem and the Smart Port.

Installation Guide Easyconnect App

6Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

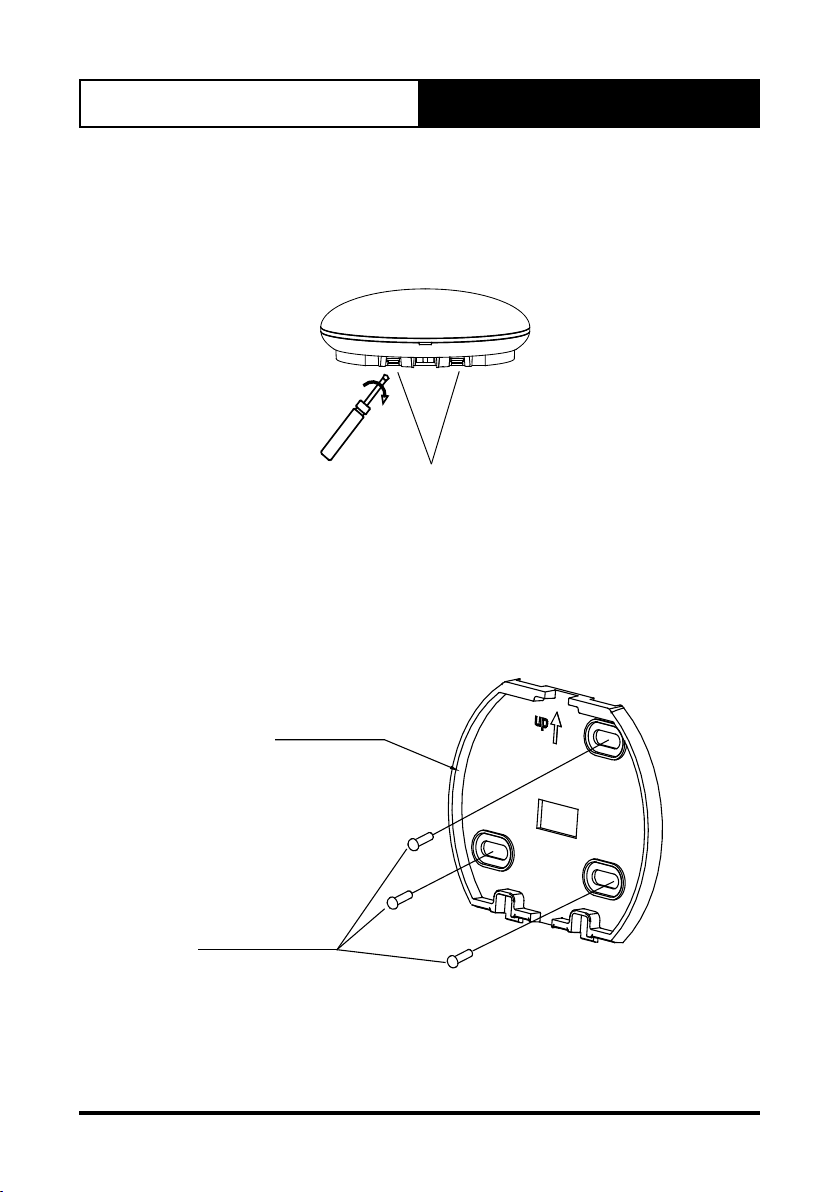

1. Remove the backing plate from the Smart Port Reciever.

Insert a screwdriver into the two slots in the lower part of the Smart Port

Reciever and remove the backing plate. (See Figure 4-2)

Fig 4-5

4. INSTALLATION METHOD

4.Remove the upper part of the smart port

For exposed mounting, fasten

the back plate on the wall with

the 3 screws (M4×20) and plugs.

(Fig.4-6)

6. Insert the smart kit with slightly strength into the main PCB

of the smart port .(Fig.4-7)

5. Fasten the back plate of the smart port

Slots

Insert a slot screwdriver into the slots in the

lower part of the smart port (2 places), and

remove the upper part of the smart port.

(Fig.4-5)

Fig 4-6

Back plate

Screws (M4×20)

Fig 4-7

Figure 4-2

Slots

2. Mount the backing plate of the Smart Port Reciever inside the

conditioned area, on the wall or ceiling, as close to the Wi-Fi router as is

practical , using the three screws (M4x20) provided. (See Figure 4-3)

Fig 4-5

4. INSTALLATION METHOD

4.Remove the upper part of the smart port

For exposed mounting, fasten

the back plate on the wall with

the 3 screws (M4×20) and plugs.

(Fig.4-6)

6. Insert the smart kit with slightly strength into the main PCB

of the smart port .(Fig.4-7)

5. Fasten the back plate of the smart port

Slots

Insert a slot screwdriver into the slots in the

lower part of the smart port (2 places), and

remove the upper part of the smart port.

(Fig.4-5)

Fig 4-6

Back plate

Screws (M4×20)

Fig 4-7

Figure 4-3

Backing Plate

Screws (M4x20)

Installation Guide Easyconnect App

Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

3. Insert the supplied Easyconnect Wi-Fi USB into the port at the back of the

Smart Port Reciever. (See Figure 4-4)

Fig 4-5

4. INSTALLATION METHOD

4.Remove the upper part of the smart port

For exposed mounting, fasten

the back plate on the wall with

the 3 screws (M4×20) and plugs.

(Fig.4-6)

6. Insert the smart kit with slightly strength into the main PCB

of the smart port .(Fig.4-7)

5. Fasten the back plate of the smart port

Slots

Insert a slot screwdriver into the slots in the

lower part of the smart port (2 places), and

remove the upper part of the smart port.

(Fig.4-5)

Fig 4-6

Back plate

Screws (M4×20)

Fig 4-7

Figure 4-4

4. Connect the Smart Port:

There are two ways to connect the Smart Port to the air conditioning unit.

a. Connection to indoor unit and wired controller

Remove the top cover as shown in Figure 4-5 and Figure 4-6. Use the

wired control cable (supplied) to connect the wired controller and CN3

of the Smart Port. (See Figure 4-7). Use the extension cable (supplied)

to connect the Smart Port Receiver from the CN2 port to the indoor PCB

CN40 port.

4. INSTALLATION METHOD

NOTE:

Connection for wired control function by KJR-120C/TF-E

KJR-120G2/TFBG-E

9. Connect the smart port to the wire controller （if needed）

Fig 4-12

①Remove the top cover from the gap between the top cover

and bottom by a tool with at head. (See Fig.4-12)

②Use the connective cable to connect the wire controller

and CN3 of the smart port. (See Fig.4-13)(refer to the Wire

controller manual for details)

Fig 4-13

CN3

Figure 4-5 Figure 4-6

CN3

Installation Guide Easyconnect App

8Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

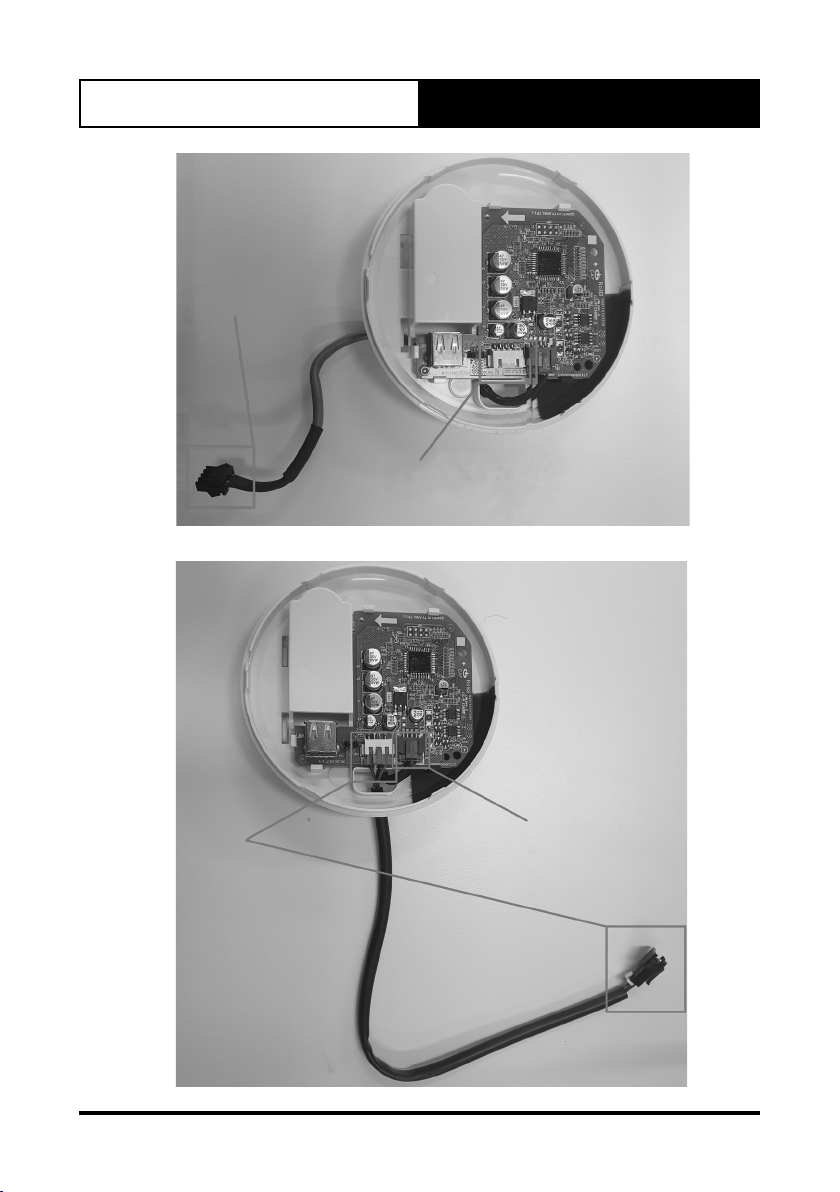

Figure 4-7

To main PCB

CN3 Terminal

(4 Core Wire Control

Cable Connection)

Figure 4-8

CN2 Cable

Connected

To the

Wired

Controller

Installation Guide Easyconnect App

Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

4. INSTALLATION METHOD

Fig 4-4

smart port

CN3

4-core shielding wire

Extension cord

The connective wires group-2

wire controller

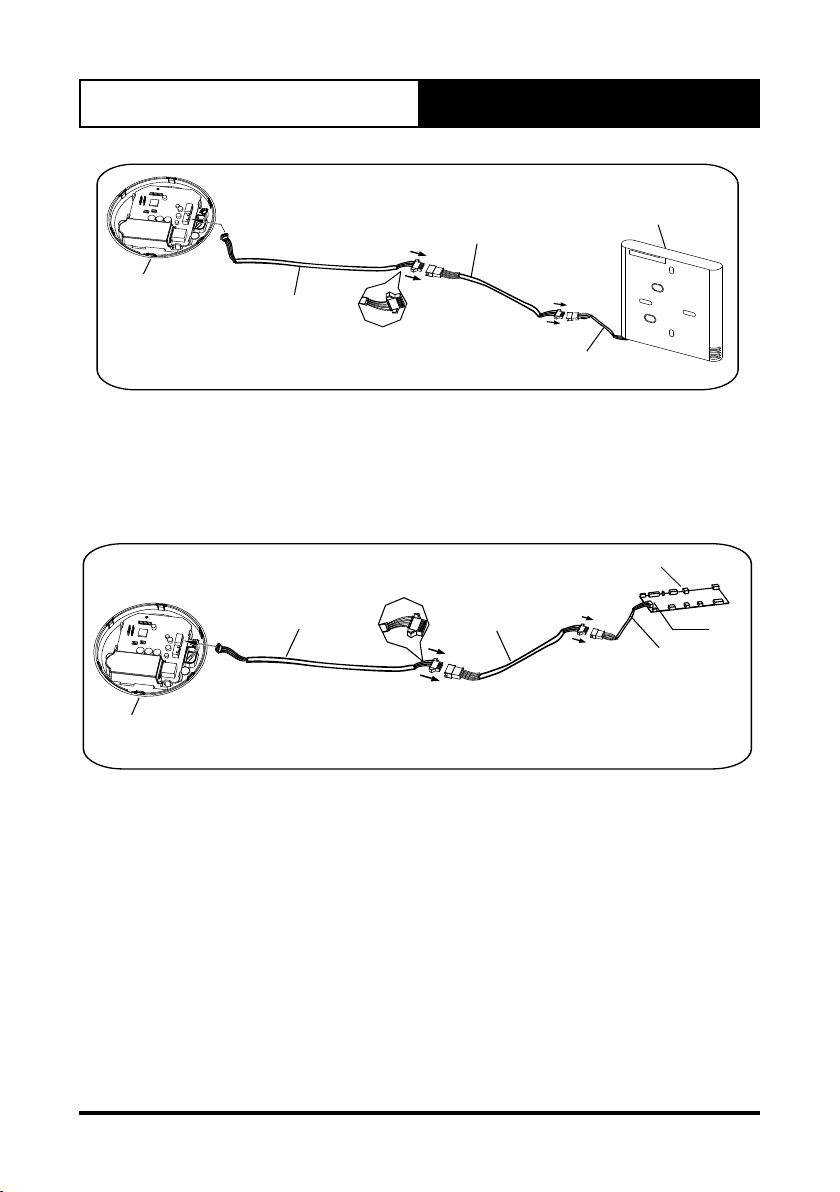

If you want to use both wire controller and WIFI control at the

same time , you can use the CN3 port on the smart port

terminal to connect the wire controller ( shown as Fig 4-4).

Figure 4-9

b. Conection to indoor unit with no wired connection.

Run the 6m Extension Cable (Supplied) from the Smart Port Receiver CN2

connector to the indoor pcb terminal CN40. See Figure 4-10.This is the

required method of installation if using exclusively with Wi-Fi or if using

with a remote controller.

4. INSTALLATION METHOD

Please conrm the connective wires group-1 (shown in

Fig 4-3) , one side is connected to the port CN40 on indoor

main PCB board , another side is plugged into CN40 on the

WIFI smart port terminal . On some case , when you need

a extension cord , please contact your distributor .

Fig 4-3

3.Wiring gure

If want to extent the wire ,please use extension cord

(purchased separately) . (See Fig.4-3)

smart port

Mainboard

4-core shielding wire

Extension cord

(purchased separately)

The connective wires group-1

CN40

Figure 4-10

Extension cord

CN2

Installation Guide Easyconnect App

10 Installation Guide - Easyconnect App

Document: 9590-4009 Ver. 2 201126

5. Reattach the upper part to the PCB backing cover.

Buckle the upper case after adjusting it, to avoid clamping the wiring

during installation and clip it into place onto the backing plate mounted

on the wall or ceiling. (See Figure 4-11)

Fig 4-10

4. INSTALLATION METHOD

CAUTION

Avoid the water enter into the smart port, use trap and putty

to seal the connectors of wires during wiring installation. (Fig.

4-9) When under installation, reserve certain length of the

connecting wire for convenient to take down the smart port

while during maintenance.

Putty Putty

Trap

8. Reattach the upper part of the smart port

After adjusting the upper case and then buckle the upper

case; avoid clamping the wiring during installation. (

Fig 4-11

)

Fig 4-11

Figure 4-11

04. Download and Install the Easyconnect App

Search Easyconnect on your compatible mobile phone, tap download and

then open the app to create a new account. (Refer to Section 05, for new

account setup)

05. Create an Account

●Please ensure that you have a secure and operational internet

connection readily available for the creation of your account and

system setup.

●You will also require an active e-mail address which will be used as

your username when creating an account, logging into and using the

Easyconnect app.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ActronAir Climatiseur

ActronAir

ActronAir HERCULES Series Manuel utilisateur

ActronAir

ActronAir PRV15AT-TFFT-EV Series Manuel utilisateur

ActronAir

ActronAir MULTIELITE MRC-052AS-2 Manuel utilisateur

ActronAir

ActronAir SCA260C Manuel utilisateur

ActronAir

ActronAir Serene 2 Manuel utilisateur

ActronAir

ActronAir CRV290T Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF Series Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF Series Manuel utilisateur

ActronAir

ActronAir Bulkhead 2 Manuel utilisateur

ActronAir

ActronAir MRE-035CS Manuel utilisateur

ActronAir

ActronAir Serene 2 WRC-026CS Manuel utilisateur

ActronAir

ActronAir ESP ULTIMA SYSTEM Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series Manuel utilisateur

ActronAir

ActronAir CRV720T Manuel utilisateur

ActronAir

ActronAir BULKHEAD BRE-026BS Manuel utilisateur

ActronAir

ActronAir ULTRASLIM URC-071AS Manuel utilisateur

ActronAir

ActronAir AIRES CRS10AS Manuel utilisateur

ActronAir

ActronAir LRC-071CS Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF Series Manuel utilisateur

ActronAir

ActronAir CRV140S Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF Series Manuel utilisateur

ActronAir

ActronAir UltraSlim URC-071AS Manuel utilisateur

ActronAir

ActronAir WRC-026CS Manuel utilisateur

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

ActronAir easyconnect CRE-071AS Instructions de montage

Manuels Climatiseur populaires d'autres marques
