Active AC 500 Mode d’emploi

Safety and operation instruction

AC 500

- 2 -

- 3 -

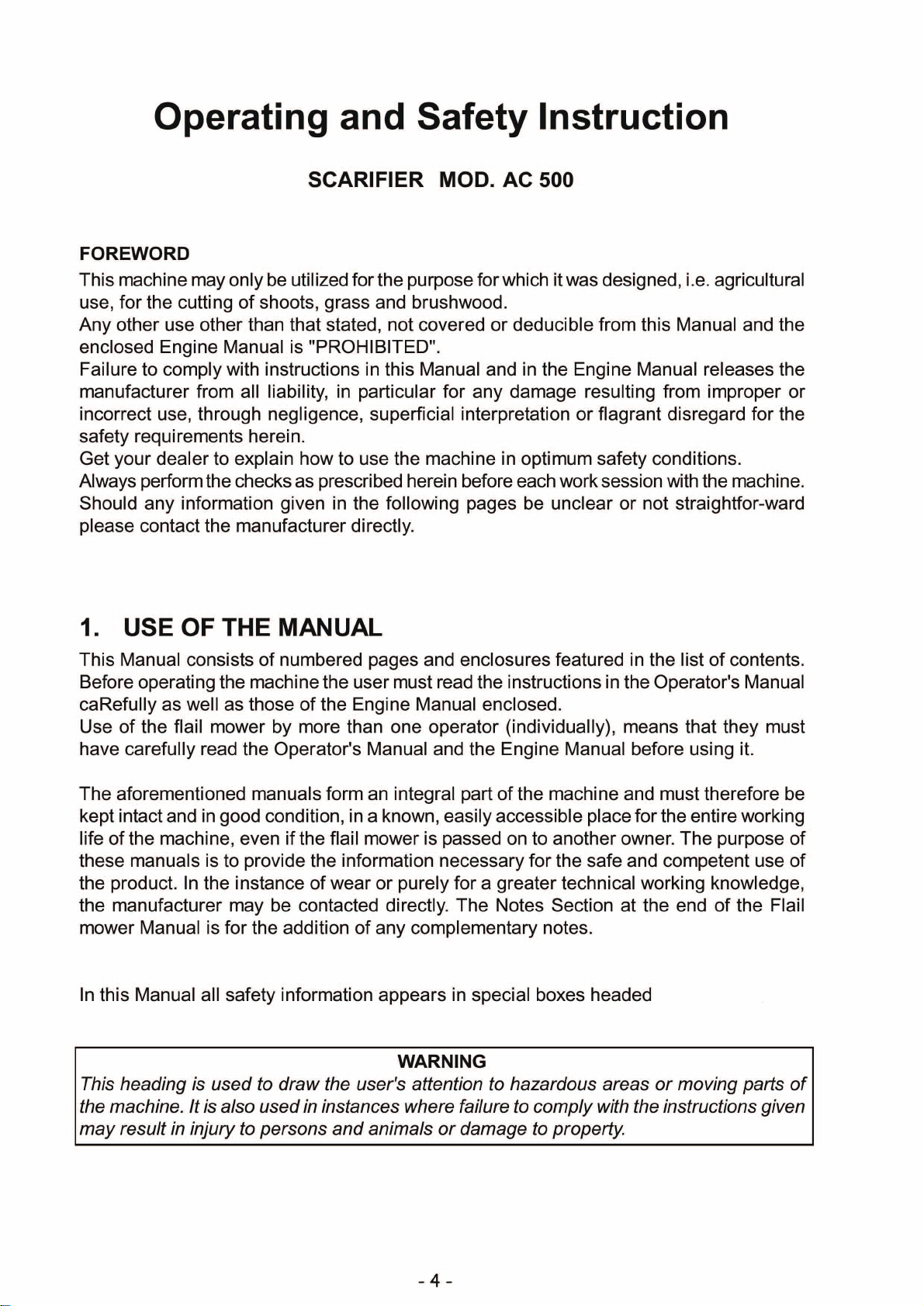

1. USEOFTHEMANUAL............................................................................pag. 4

2. NOTICES ONTHE MACHINE..................................................................pag. 5

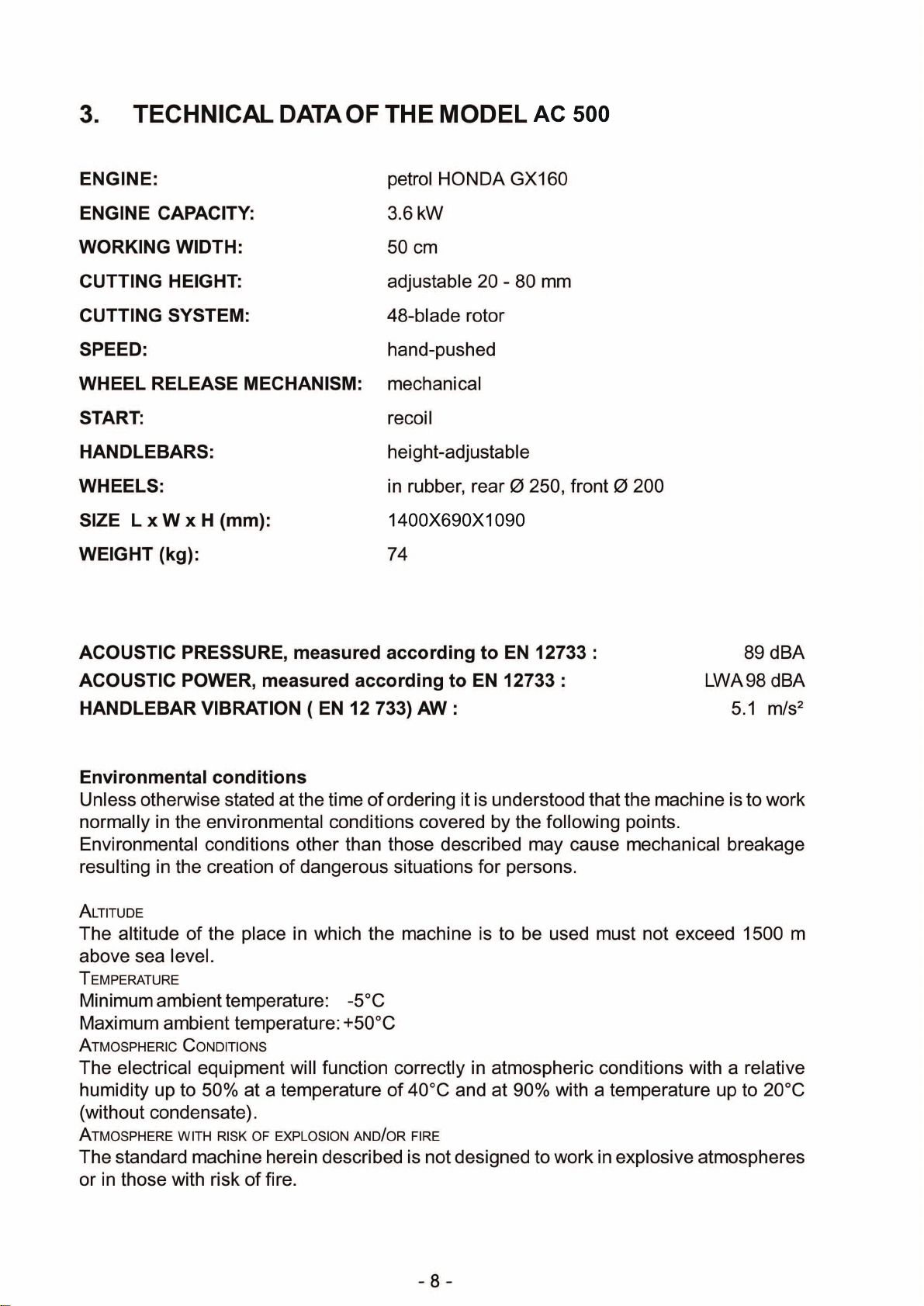

3. TECHNICALDATA.....................................................................................pag. 8

4. LIFTINGANDTRANSPORTATION...........................................................pag. 9

5. MAIN PARTS OF THE MACHINE............................................................pag. 9

6. CONTROLS AND ADJUSTMENTS.......................................................pag. 10

7. ASSEMBLYINSTRUCTIONS FOR THE HANDLEBARS........................pag. 11

8. SAFETY INFORMATION

A) GENERALINSTRUCITONS..............................................................pag.12

B) TRAINING..........................................................................................pag.12

C) PREPARATION.................................................................................pag. 12

D) WORKINGUSE.................................................................................pag.13

E) AFTERWORK...................................................................................pag.14

9. TRANSPORTATIONOFTHEMACHINE.................................................pag.14

10. SAFETYSYSTEMSANDGUARDS.........................................................pag.15

11. OPERATIONSTO BE CARRIED OUTBEFORESWITCHINGON........pag.16

12. STARTING AND DRIVING THE SCARIFIER........................................pag. 17

13. CUTTING TIPS......................................................................................pag. 18

14. CHECKS

A) CABLECONTROL ADJUSTMENT....................................................pag.19

B) BLADE ROTOR BELT ADJUSTMENT..............................................pag. 19

C)CHECKINGAND REPLACINGTHE BLADES...................................pag. 20

D) ROTOR BRAKE................................................................................pag. 21

15. MAINTENANCEAND STORAGE..........................................................pag. 22

16. CLEANINGTHE MACHINE....................................................................pag.22

17. SEASONALLONG-TERM STORAGE PERIODS..................................pag. 23

18. DECOMMISSIONINGANDSCRAPPING................................................pag.23

19. TECHNICAL ASSISTANCE......................................................................pag.23

20. WARRANTY..............................................................................................pag.24

21. CE MARKING........................................................................................pag. 24

Enclosure 1. NOTES

Enclosure 2. Declaration of Conformity

- SCARIFIER MANUAL -

CONTENTS

- 5 -

2. NOTICES ON THE MACHINE

The symbols affixed to the machine serving to warn of danger during its use and

maintenance are as follows:

THE USER MUST READ THE INSTRUCTION MANUAL PROVIDED

DANGER OF FOREIGN OBJECTS BEING THROWN

OUTWARDS. KEEPA SAFE DISTANCE

ALWAYS DISCONNECT THE CABLE FROM THE ENGINE SPARK PLUG.

DANGER OF HAND INJURY. SWITCH OFF THE ENGINE

- 6 -

DANGER OF CRUSHING. KEEPASAFE DISTANCE

DANGER OF INJURY TO BOTH UPPER AND LOWER LIMBS.

DO NOT PUT HANDS OR FEET INSIDE THE CUTTING

ELEMENT WHILE IN MOTION

DANGER OF GETTING CAUGHT UP IN ROTATING PARTS.

DO NOT PUT HANDS IN THE ROTATING PARTS

DANGER OF FOREIGN OBJECTS BEING THROWN OUTWARDS.

SAFETY GOGGLES MUST BE WORN

- 7 -

EAR DO NOTALLOW CHILDREN NEAR THE MACHINE

WHEN IN OPERATION.MUFFS MUST BE WORN

CAUTION: HOT PARTS. DANGER OF BURNS. FIRE HAZARD

Thesymbolsaffixedtothe machineservetowarnofdanger duringitsuseandmaintenance.

It is vitally important to understand the meaning of the danger notices and all messages

shouldbekeptinlegiblecondition.Intheinstance ofwearthesenoticesshouldbe replaced

and use of the machine suspended while without such notices.

The operator is advised to observe the warnings given on the affixed notices.

Consult this page whenever doubts about their meaning arise.

1400X690X1090

AC 500

- 9 -

4. LIFTING AND TRANSPORTATION

All material is carefully checked by the manufacturer before shipping. The scarifier is

delivered in a wooden crate or cardboard box with the handlebars disassembled.

Upon receipt of the machine make sure that it has not been damaged during transit and

that the packaging has not been tampered or any parts removed. Report any damage or

missing parts immediately to the carrier and the manufacturer with photographic

documentation.

After assembling the handlebars, as per the instructions given in paragraph 7 of this

manual, the machine may be moved on its own wheels.

The manufacturer is not liable for any damage caused by transportation of the machine

after its delivery.

WARNING

Extreme care must be taken during handling to prevent overturning. Avoid steep gradi-

ents to prevent loss of control. Make sure that there are no persons present within the

danger area.

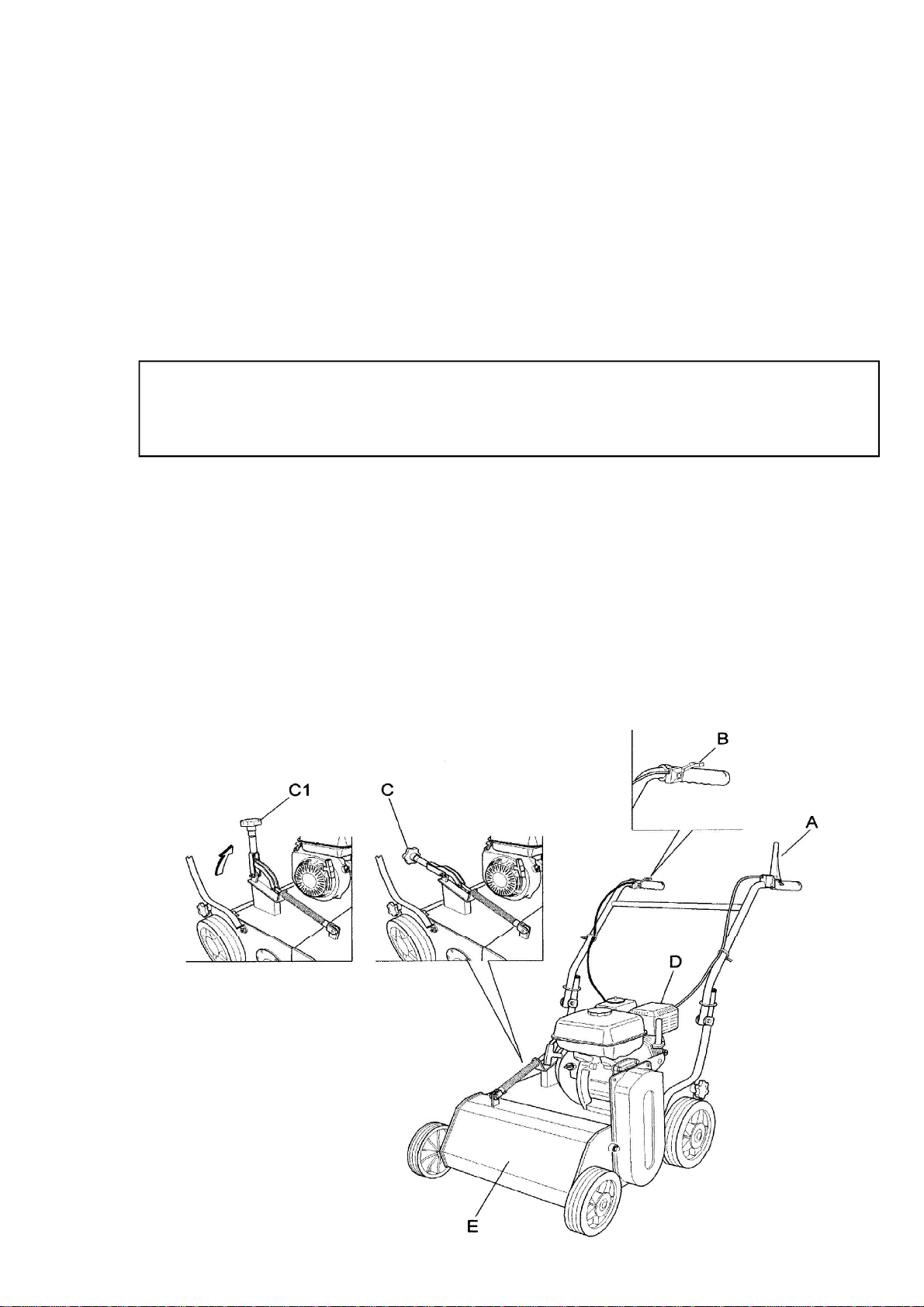

5. MAIN PARTS OF THE MACHINE

The machine consists of the following main parts:

A - BLADE ENGAGEMENT CLUTCH LEVER

B - ACCELERATOR CONTROL LEVER

C/C1 - CUTTING HEIGTHADJUSTMENT LEVER

D - ENGINE

E - FRONT GUARD

Figure 1

- 10 -

6. CONTROLS AND ADJUSTMENTS

A) BLADE ENGAGEMENT CLUTCH LEVER

This is used to engage and disengage rotary movement of the blade holder rotor.

Lowering the lever engages the clutch and releasing it disengages the clutch.

B) ACCELERATOR CONTROL LEVER

This is used to adjust the number of engine revolutions according to the operations to be

carried out. Hence at switch on the lever will be positioned on the minimumsetting whilst

during work operations it will be positioned as required by use.

C) ) CUTTING HEIGHT ADJUSTMENT LEVER

The lever has two positions. In position C1 it raises the front guard to which the wheels

are fixed, permitting the operator to shift the scarifier without the blades touching the

ground.

In position C it permits millimetric adjustment of blade cutting height by turning the knob

(Fig. 1 Ref. C1) clockwise or anticlockwise.

E) FRONT GUARD

The front guard to which the wheels are fixed determines use of the scarifier on the basis

of the position selected (See point C) with the cutting height adjustment lever.

H) FRONT GUARD

The front guard (Fig. 1 Ref. H) opens or closes automatically according to the amount of

grass to be cut. Use of the machine with the guard left open is strictly prohibited.This may

cause the outward projection of objects.

The guard may only be set in the open position during flail replacement operations with

the machine switched off.

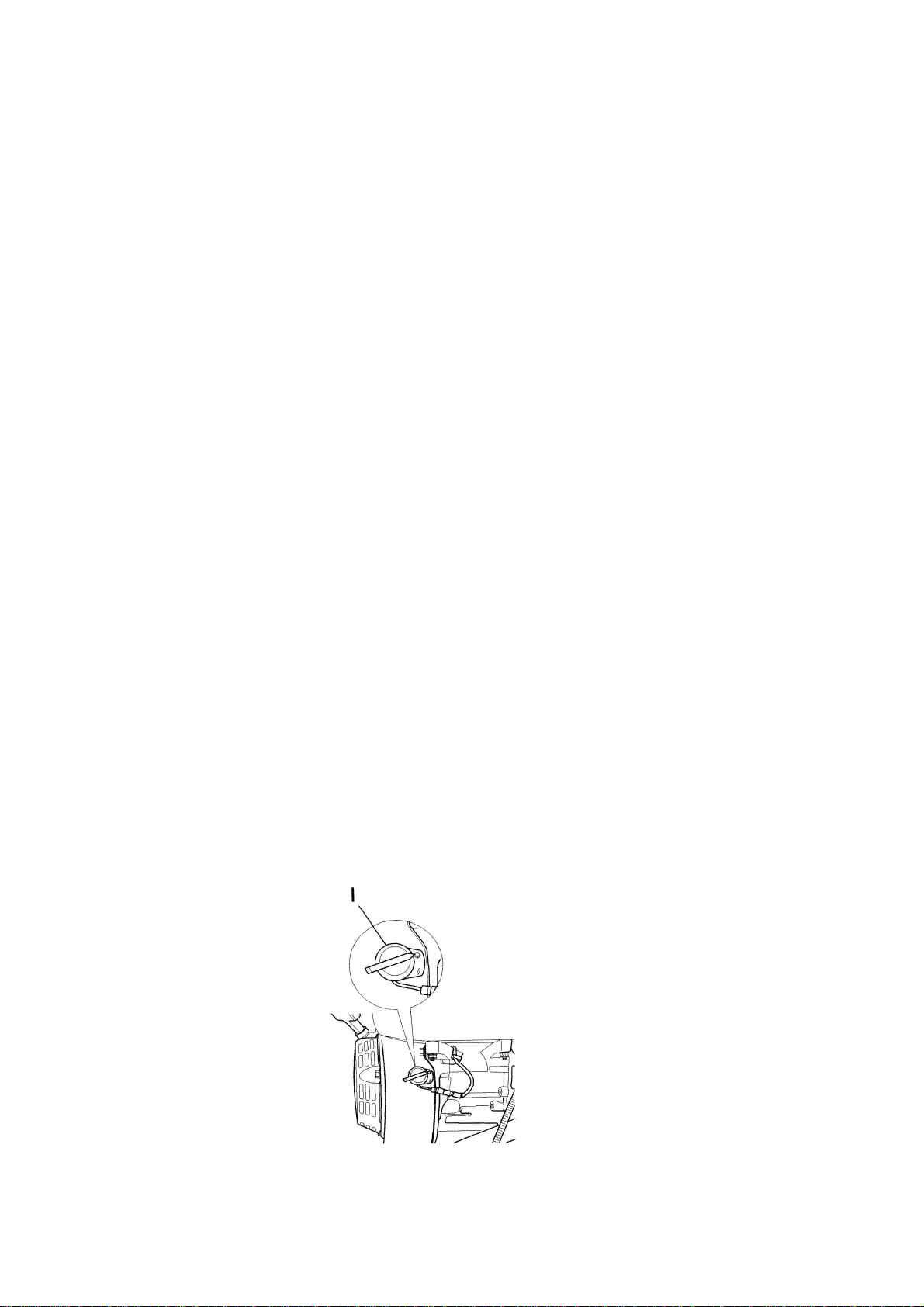

I) ON SWITCH

Two-position switch:

(1) for starting the engine

(0) for switching off the engine

Figure 1 bis
