Action S002102 Manuel utilisateur

6 Station Swing Set

S002102

Instruction Manual

WARNING : To ensure your safety, please do not attempt to assemble this swing set without reading this

instruction manual carefully. Failure to comply with this warning may result in injury and/or property damage.

Prior to assembly, this swing set includes small parts/accessories that are not suitable for children under 3 years

of age as they may cause a choking hazard.

This swing set should be assembled by 2 adults.

Only use this swing set on a soft,

level surface.

This swing set has a maximum user weight of 34kg per unit/seat. Only one child per seat at any time.

The total weight on the swing set at any time must not exceed 204kg.

This swing set is suitable for users aged 3-9 years.

This swing set is designed for outdoor domestic use only, it is not intended for commercial use in play centres,

nurseries etc.

For parts and service enquiries, please contact Action Spares on 1800 465 070 or e-mail [email protected]

flat,

2S002102 6 Station Swing Set

Contents

3 Important Safety Information

5 Swing Parts List

6 Hardware List

7 Assembly Instructions

15 Warranty

3S002102 6 Station Swing Set

Important Safety Information

To reduce the risk of serious injury, read the entire manual before you assemble or use

this swing set. In particular, please note the following safety precautions. Please keep

this manual in a safe place for future reference. Failure to assemble and maintain this

product correctly may cause injury to the user.

1. Regularly check the swing set for wear and damage, replace any worn or damaged

parts immediately. Remove the swing set from use until replacement parts are

Check all hardware regularly and tighten when required.

2. Check swing seats, ropes and any other means of attachment for evidence of

deterioration prior to each use.

3. Prior to assembly, this swing set includes small parts/accessories that are not

suitable for children under 3 years of age as they may cause a choking hazard.

4. Do not overtighten the nuts and bolts. Use hand tools only, do not use power tools

as this can weaken the connection points.

5. This swing set should be assembled by 2 adults.

6. This swing set is designed for use by children 3-9 years of age.

7. This swing set is designed for domestic use only, it is not intended for commercial

use in play centres, nurseries, etc.

8. This swing set has a maximum user weightof 34kg per unit, totalling 204kg across

the entirety of the swing set.

9. Do not install this product over concrete, asphalt or any other hard surface.

10. Do not orientate the swing set directly towards the sun.

11. There should be at least 2m of space surrounding the swing set from any structure

of obstruction such as a fence, garage, house, wall, overhanging branches, laundry

lines, electrical wires, etc.

12. Swings must not exceed an angle of 60 degrees from the ground.

4S002102 6 Station Swing Set

Warnings (cont)

13. The knots in the swings are integral to the safety of the swing set. Please ensure

they are tight and that the swing is in the correct position, there should be no slack

in the rope allowing a loop to form below the swing.

14. The minimum distance between any swing and the ground is 350mm.

15. This swing set must be anchored into the ground using the included anchor

pegs.

16. Do not allow additional foreign objects to be attached or used with the swing set.

17. Children must be supervised by an adult at all times while using the swing set.

18. Only 1 child should use each swing (unless designed for 2 children) or

slide at any time.

19. Do not use the swing set when it is wet as it will become slippery and serious injury

may result.

20. Do not stand on the seats when using the swing set.

21. Do not climb on or jump from the swing set when it is in motion.

22. Do not climb or hang on the frame of the swing set.

23. oD not walk close to, in front of or behind the swing set when in use as moving

units can cause serious injury.

24. Do not wear apparel such as hats with straps, helmets, scarves, garments with pull

strings or any other item of loose clothing while using the swing set as children can

get trapped and may be unable to free themselves causing serious injury.

25. Do not twist swing ropes or wrap them over the top bar.

26. Do not slide head down the slide, walk up the slide or jump/climb off the slide.

5S002102 6 Station Swing Set

Swing Parts List

Leg (x3)

Clamps (x2)

Leg (x1)

Netball Ring (x1)

Nest Swing Fabric (x1)

Nest Swing Rope (x2)

Nest Swing Metal Frame

With Foam Padding (x4)

Short Bracket (x4)

(x2)

(x1)

Top Leg (x2)

Ground Peg A(

Lower Support Tube (x2)

Upper Support Tube (x2)

Upper Slide (x1) Lower Slide (x1)

35 34

6S002102 6 Station Swing Set

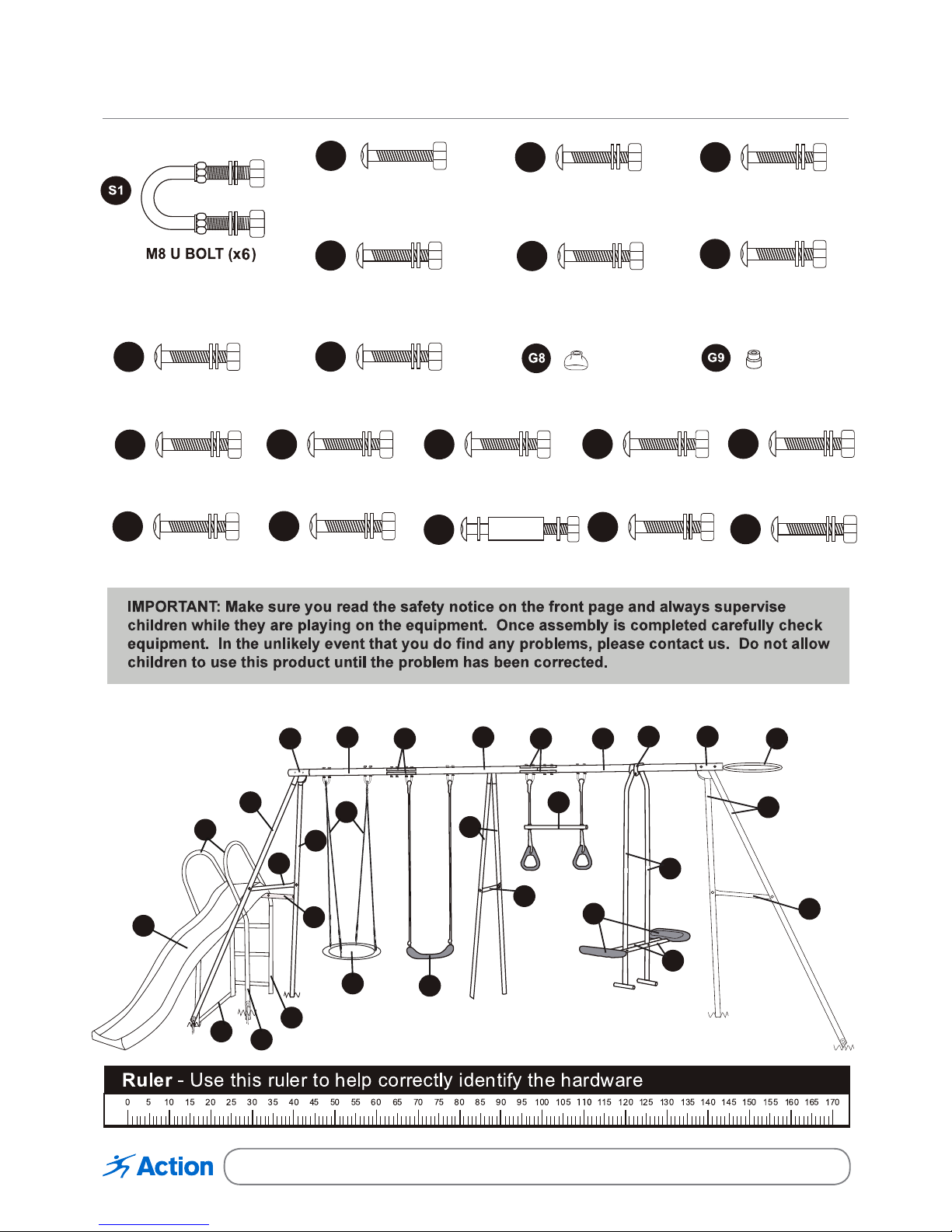

Hardware List

M8 Bolt 62mm (x4)

M8 Bolt 53mm (x6)

M8 Bolt 59mm (x4)

M6 Bolt 49mm (x7)

M6 Bolt 47mm (x2)

M8 Bolt 42mm (x2)

M8 Bolt 82mm (x2)

M6 Bolt 38mm (x8)

Thin Plastic Spacer (x4)

Thick Plastic Spacer (x4)

M6 Bolt 62mm (x2)

M6 Bolt 58mm (x2)

M6 Bolt 32mm (x2)

M6 Bolt 40mm (x2)

M6 Bolt 60mm (x2)

1 9

51 5150 50

721

M6 Bolt 20mm (x6)

M6 Bolt 35mm (x8)

M6 Bolt 66mm (x2)

M6 Bolt 17mm (x3)

M6 Bolt 66mm (x2)

7S002102 6 Station Swing Set

Assembly Instructions

Step 1

Frame, Swing, Trapeze & Netball Ring Assembly

Note: Attach the swing rope to the U-bolt (S1) before connecting the U-bolt (S1)

to the top bar. Ensure that at least 3 threads from M8 U-bolt (S1) protude from the

top.

11 11

189

F1 4

Nest Swing Swing Set Trapeze

8S002102 6 Station Swing Set

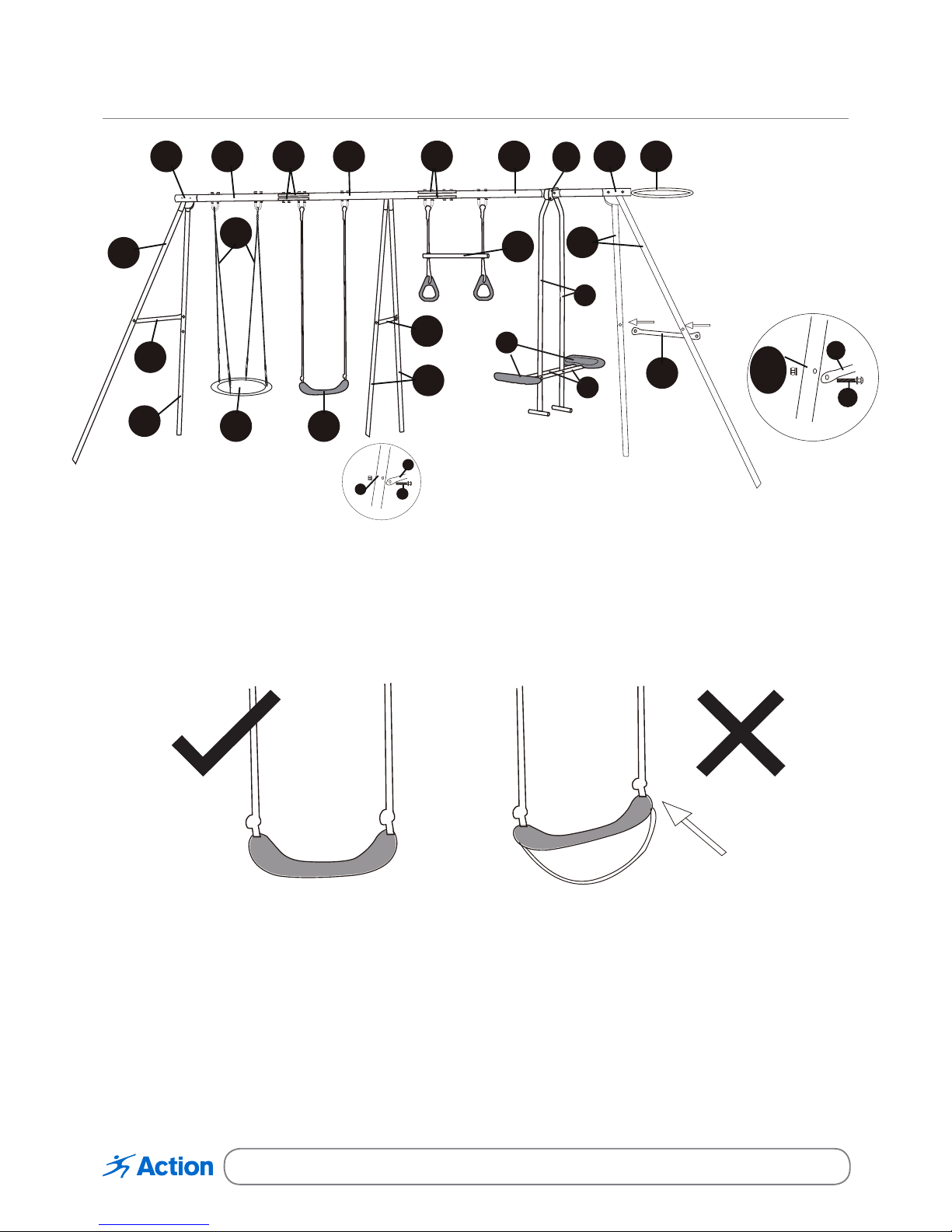

Assembly Instructions (cont)

Position 1 Position 2

Warning: The knots on the swings are integral to the safety of the swing Please

ensure thet are tight and that the swing is in POSITION 1 as shown in the diagram

above. There should be no slack in the rope allowing a loop to form below the

swing.

Correct Assembly Incorrect Assembly

212

951150

18 13 16

By using Bolt F4 to connect

the Leg (3,18) with the Side

Bars (6)

By using Bolt F4 to connect

the Leg (11) with the Side

Bars (4)

9S002102 6 Station Swing Set

Assembly Instructions (cont)

Nest Swing Assembly

Insert the Metal Tube (41) into the fabric of the Nest Swing (13). Join the metal tubes together and

then fasten them by using the bolt at the end of the Rope (43). (See above).

Repeat this for the other side, and then the Nest Swing becomes two semicircles (See below).

Lay the two semicircles on the ground,

join the two part tubes together, and

then press it down so that two parts are

joined together as a circle.

Press Press

PressPress

Semicircle

Finished

Step 2

10 S002102 6 Station Swing Set

Assembly Instructions (cont)

(34)

Step 4

Slide Assembly

Step 3

Glider Assembly
