Acrosser Technology AR-V5430FL Manuel utilisateur
Revision: 1.0
1
Revision Description Date
1.0 Release 2009/07/24
AR-V5430FL
Installation Guide
Revision: 1.0
2
Contents
1 Introduction to AR-V5430FL……………………………………………………... 3
1.1 Specifications..………………………………………………….………….…. 3
1.2 Packing List…………………………………………………………………… 4
1.3 System Dissection ………………………………………………...…………. 5
2 Procedure of Assembly/Disassembly…………..………………………………. 7
2.1 HDD Installation .………………………...…….......................................... 7
2.2 Accessory(SO-DIMM, CF Card, SIM Card, Outline Bracket) Installation 13
2.3 GPS/GPRS/WiFi Modules Installation .………..………………….............. 17
3 Appendix …………………………………………..……………....…………….... 19
Revision: 1.0
3
1 Introduction to AR-V5430FL
AR-V5430FL is a Fan-less system product mainly for vehicles industry PC applications.
With powerful Intel CPU core & diverse memory card extension ( CF card, SO-DIM),
AR-V5430FL can satisfy the users requirements in any vehicles industry applications
environment, especially in vehicles computer fields. AR-V5430FL has diverse physical
interface in the front panel, such as GPIO’s DB15, 2*(10/100/1000Base-T) LANs, VGA/DVI
connectors, build-in LEDs, 3 USB Ports, 2 COM ports, FUSE, ATX Power Switch &Remote
Switch/ Microphone/Speak, DC inlet. In addition, the system provides the capacity for
extending I/O device by options adding GPS/GPRS/WiFi depends on users needs.
1.1 Specifications
Item Description
System AR-V5430FL
CPU Board AR-B5430 series
System Dimensions 279x176x67(mm)
1.2 Packing List
Description Quantity
AR-V5430FL 1
Terminal block (Plug) 1
Wall Mount Bracket(Including label for isolation ) 2
Compact Disk 1
SATA Power Cable 1
SATA Cable 1
KB/MS Y Cable 1
Remote Switch Cable 1
2.5”HDD Bracket (Screws-8PCS) 1
GPS External Cable (Option) 1
GPRS External Cable (Option) 1
WiFi External Cable (Option) 1
Fuse 7.5A for 24V vehicles 1
Revision: 1.0
4

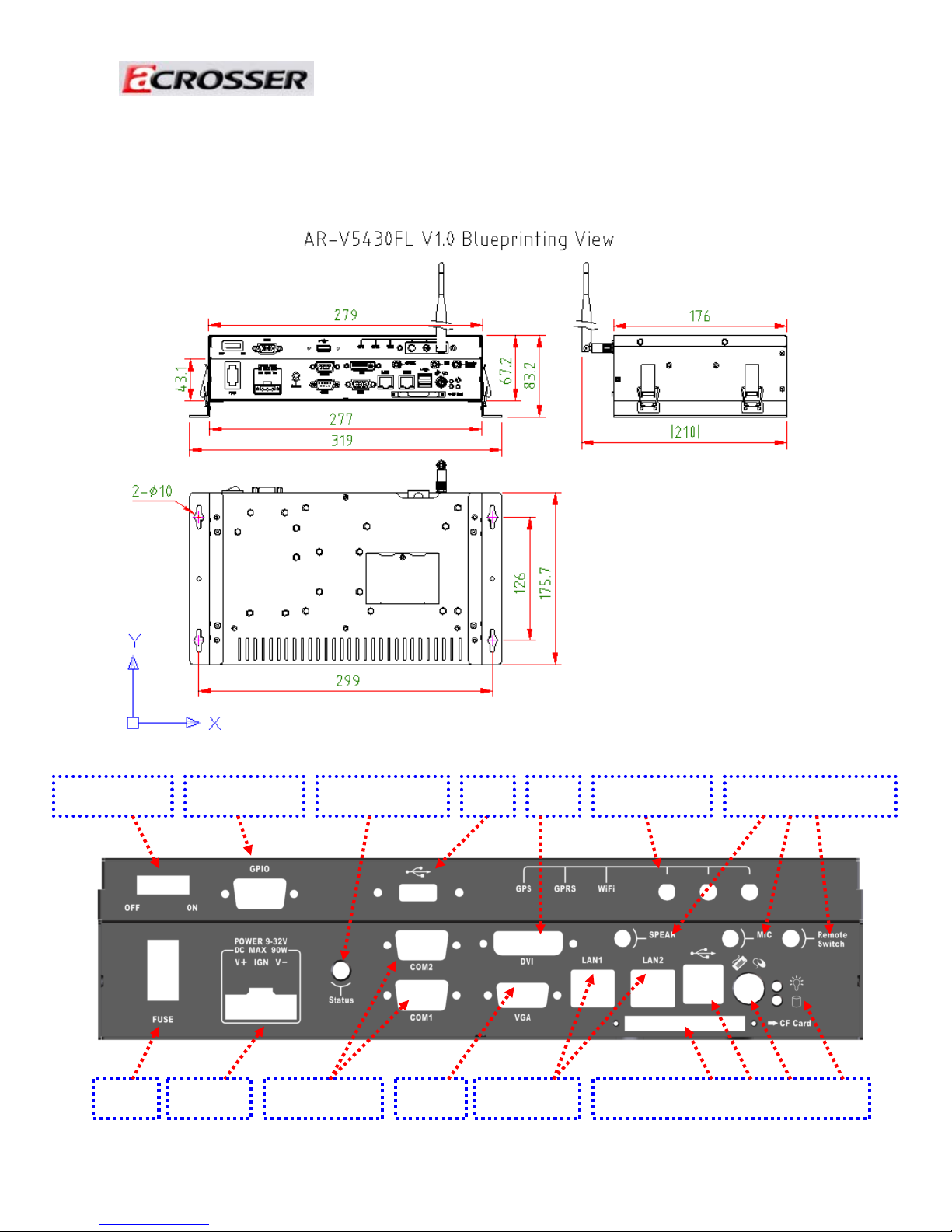

System Dissection
(1)Dimensions
(2)Front Panel “I/O”
GPIO by DB15 Power-on status Speaker/Mic/Remote
COM1/COM2 LAN1/LAN2VGA
DVI
CF Card/USB/KB/MS/HDD&POWER LED
Power Switch
Fuse
USB
DC Inlet
Antenna Inlet
Revision: 1.0
5
(3)System Configuration
1
7
6
2
8
54
10
12
3
11
9
13
Revision: 1.0
6
Item Description Quantity
1 Upper Case 1
2 Bottom Case 1
3 Thermal Module 1
4 Mounting Bracket 2
5 CF Card Bracket 1
6 GPIO Board 1
7 HDD Module 1
8 GPS &GPRS Module 1
9 WiFi Module 1
10 DDRII Lid 1
11 Lock modules of bracket 4
12 GPS/GPRS/WiFi Antenna Inlet 1
13 Fuse 15A for 12V vehicles (default value) 1
Revision: 1.0
7
2 Procedure of Assembly/Disassembly
2.1 2.5” Hard Disk Installation
The following instructions will guide you to install HDD step-by-step.
1.Remove the terminal plug from the AR-V5430FL.
2. Unfasten the screw from top cover of AR-V5430FL.
Unfasten the screw!!
Remove the external power adapter!!
Revision: 1.0
8
3.Remove top cover by below photo direction.
Remove
Push
Push
Revision: 1.0
9
4.Insert the rubbers into the HDD bracket.
5.Place HDD body into HDD bracket and assemble HDD and bracket by 4 screws.
6.Insert SATA connecter and SATA power cable into HDD module.
Install the rubbers on the HDD bracket.
Screws up
Revision: 1.0
10

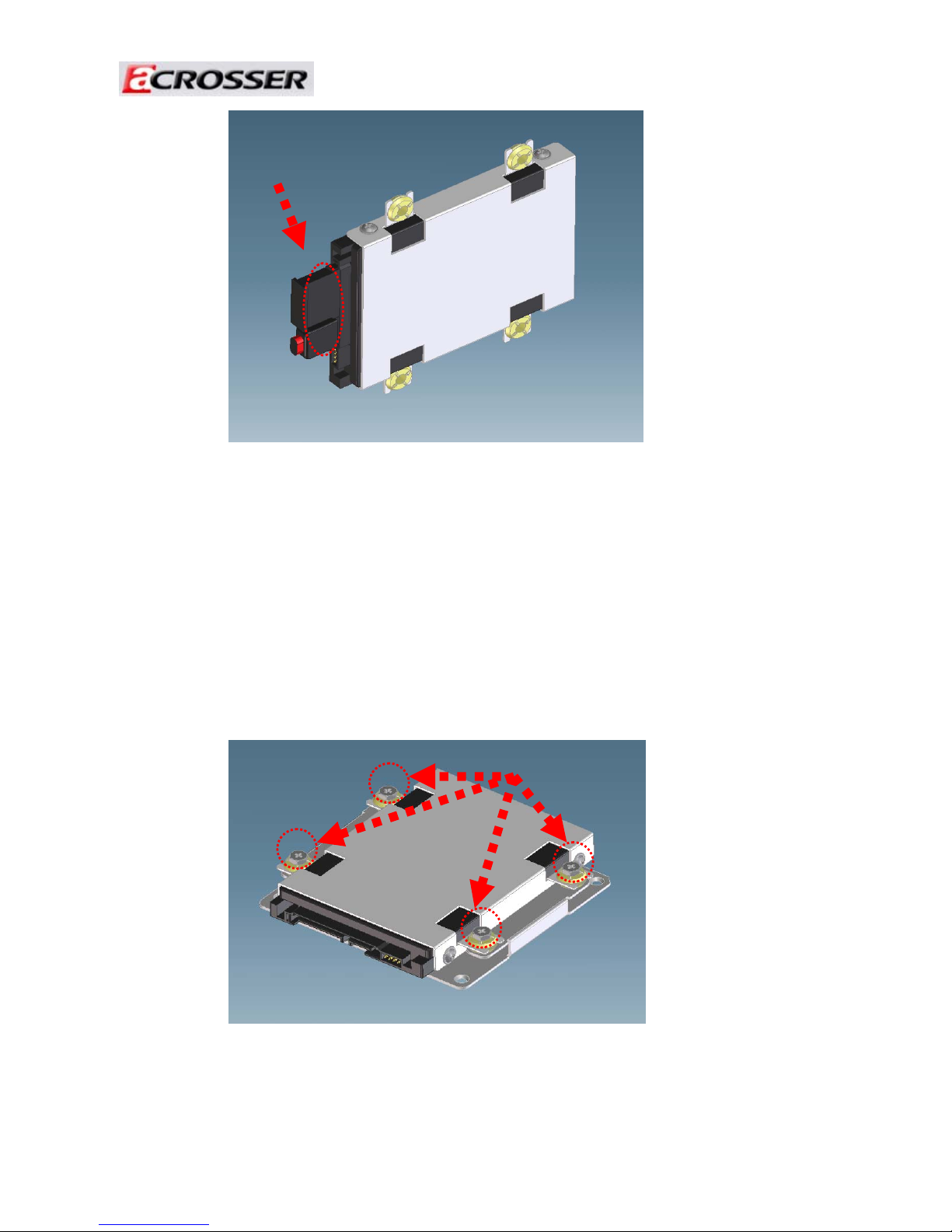

7.Assemble the HDD module and HDD bracket by 4 screws.
Screws up
