Acqua GY-NE200CF Manuel utilisateur
GY-NE175FR
FREEZER
INSTRUCTION MANUAL
CHEST FREEZER
SERVICE MANUAL
GY-NE200CF
Content
1.Safety precautions ………………….……………………………………2~2
2.Specification……………………………………………………………..3~3
3.Parts identification…………...………………………………………….4~4
4.Chest Freezer system diagram………….………………………….……5~5
5.Circuit diagram………………………………………………..………..5~5
6.Maintenance service and Troubleshooting …………..……………….6~24
7.Quality information report……………………………….……………24~24
8.Exploded view and part list……………………………………………25~26
- 2 -

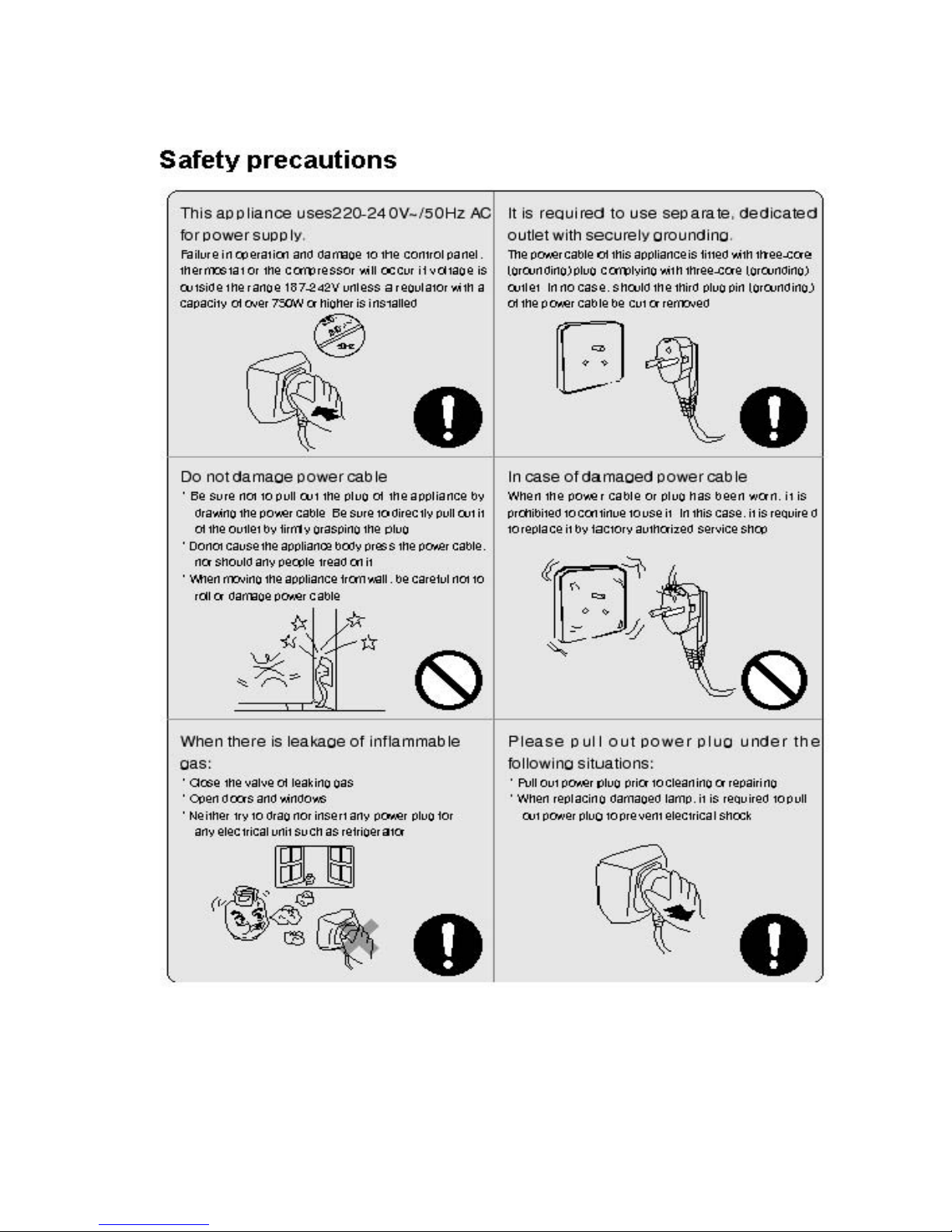

1. Safety precautions
- 3 -
2. Specification
models FC-26DD4HNA
net capacity (L) 205
color white
power supply(V/Hz) 220-240
rated input power (W) 140
net weight (kg) 38
gross weight(kg) 42
unit dimension (D*W*H)(mm) 946*562*830
packing dimension (D*W*H)(mm) 982*982*880
container quantity (PCS) 139
noise 42
- 4 -

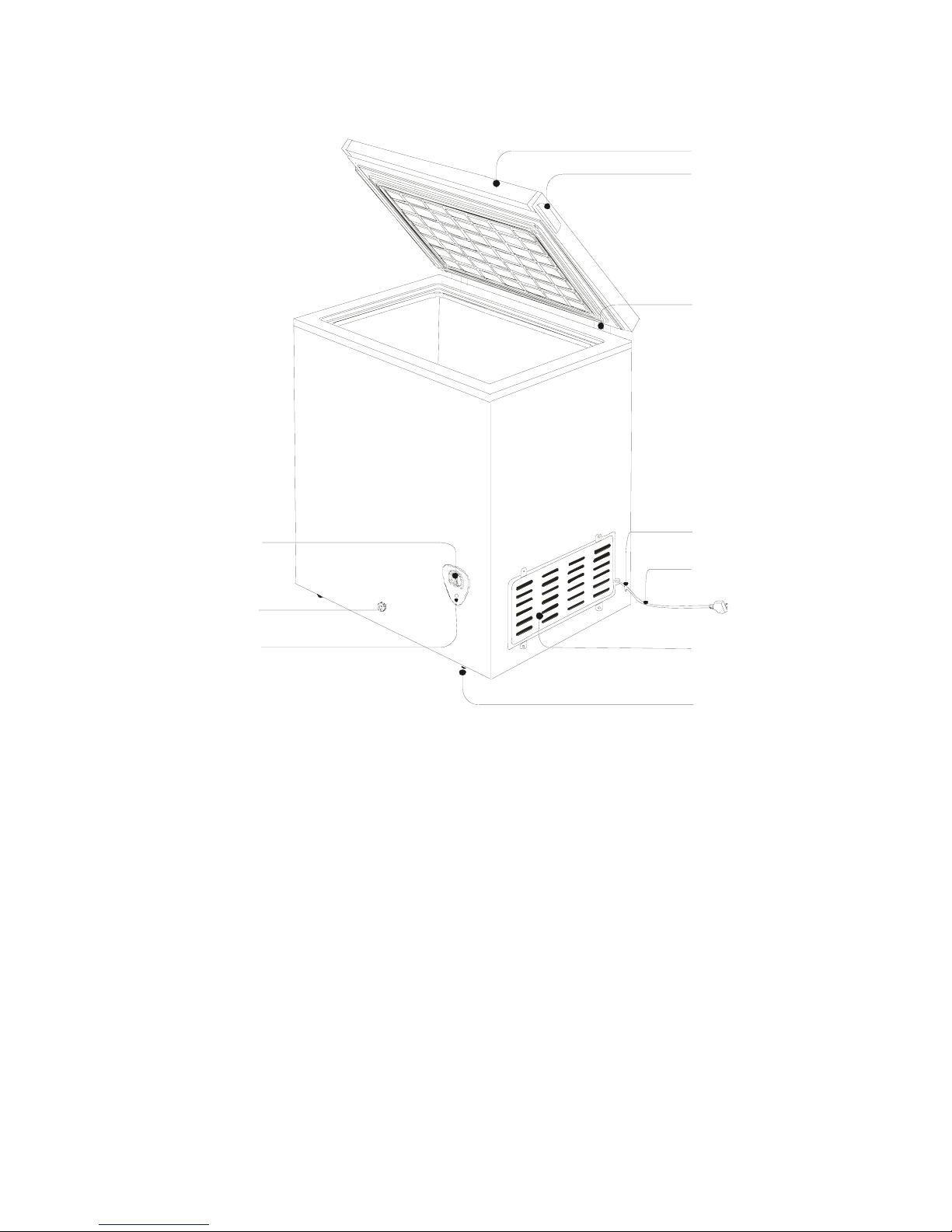

3.Parts identification
Foo
t
Door
Doorknob
Sid e C ov e r
Temperature
ControlVolume
Hinge
Power Su p p l y
Cord with Plu g
Sup ply Ca ble
Clamp
Pow er la m p
Drain cap
- 5 -

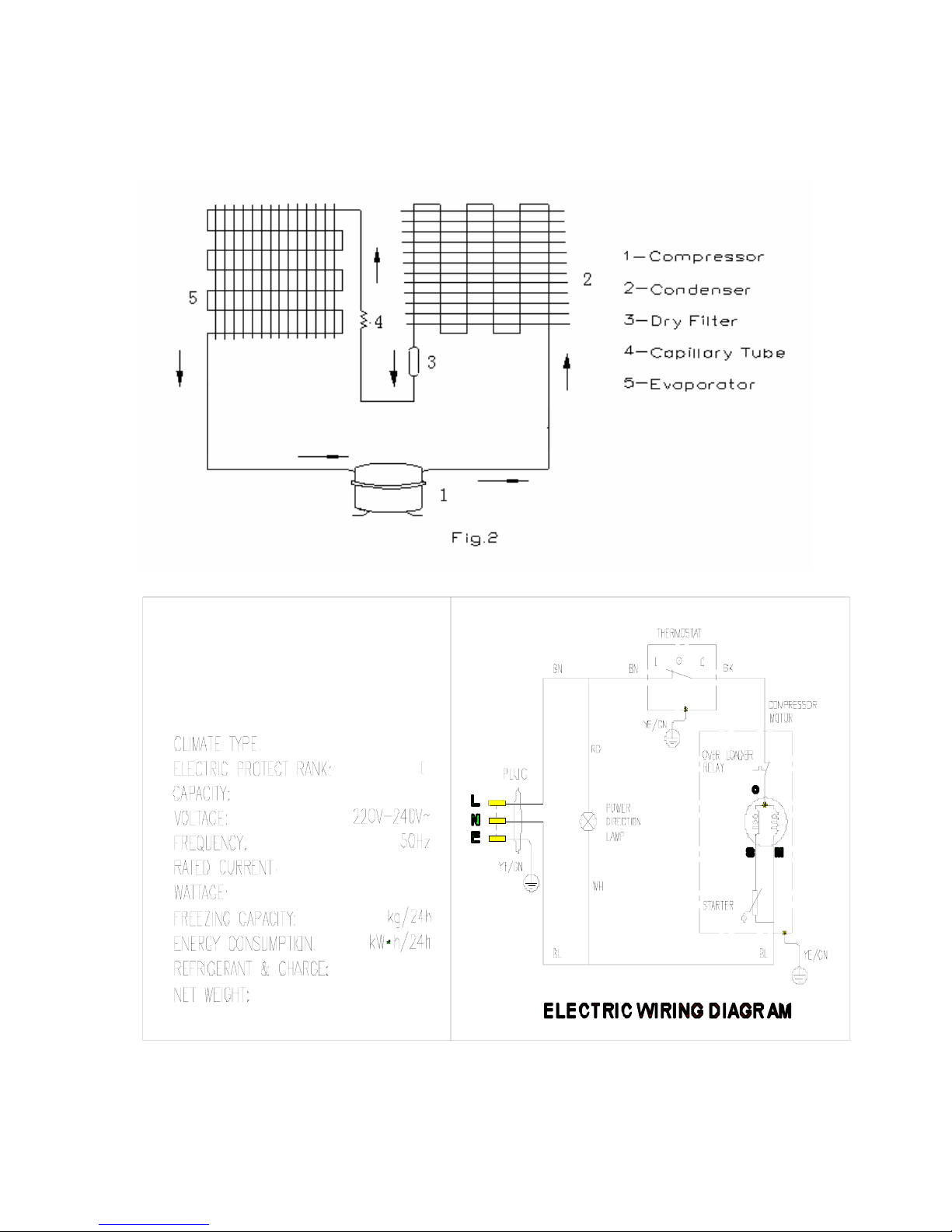

4. Chest Freezer system diagram
when the FREEZER is just powered on. The refrigerant flows in the sequence:
Compressor Condenser Dry filter Capillary tube Evaporator .
5.Circuit diagram
CHESTFREEZER
T
FC 26DD4HNA-
205L
1.2A
140W
12
0.92
R134a 105g
38kg
- 6 -

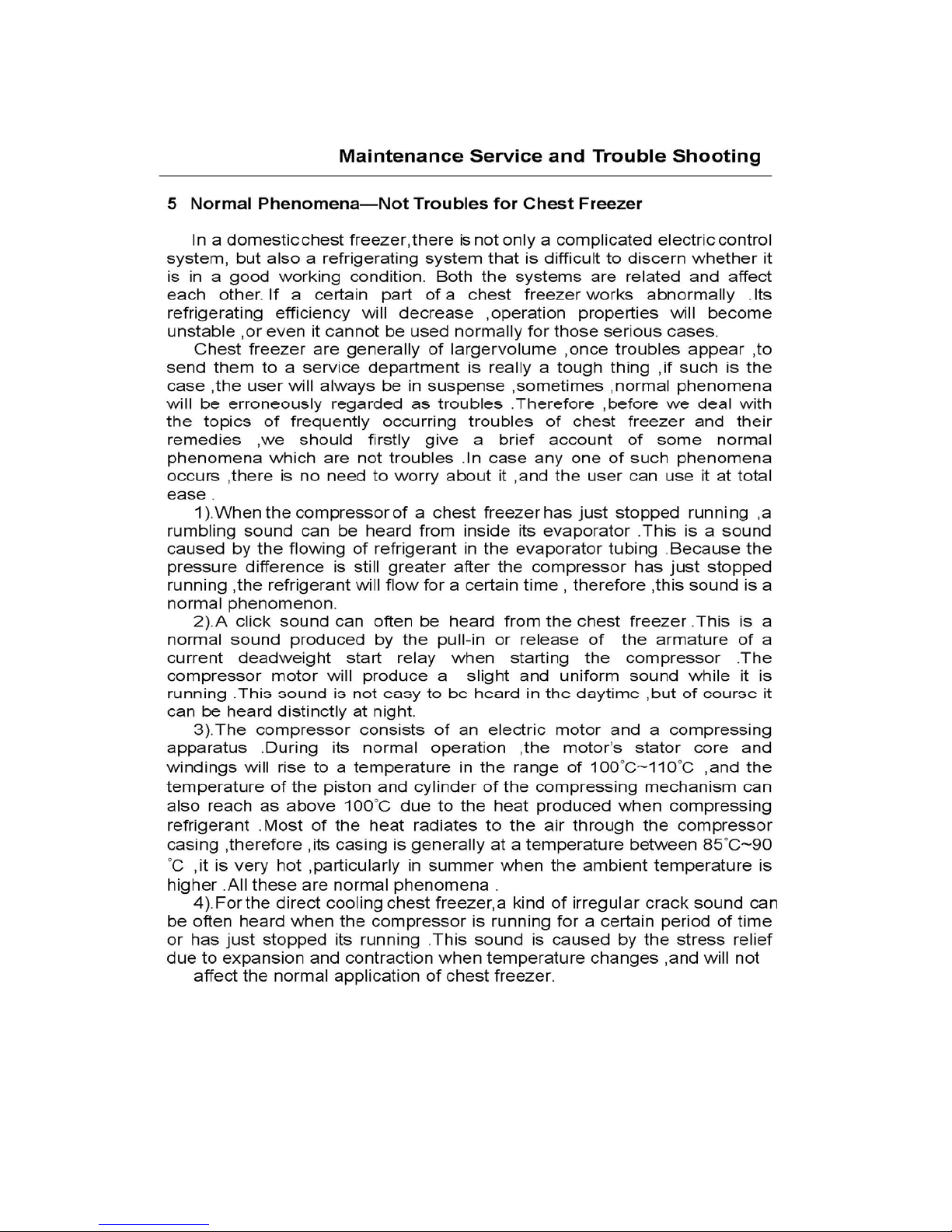

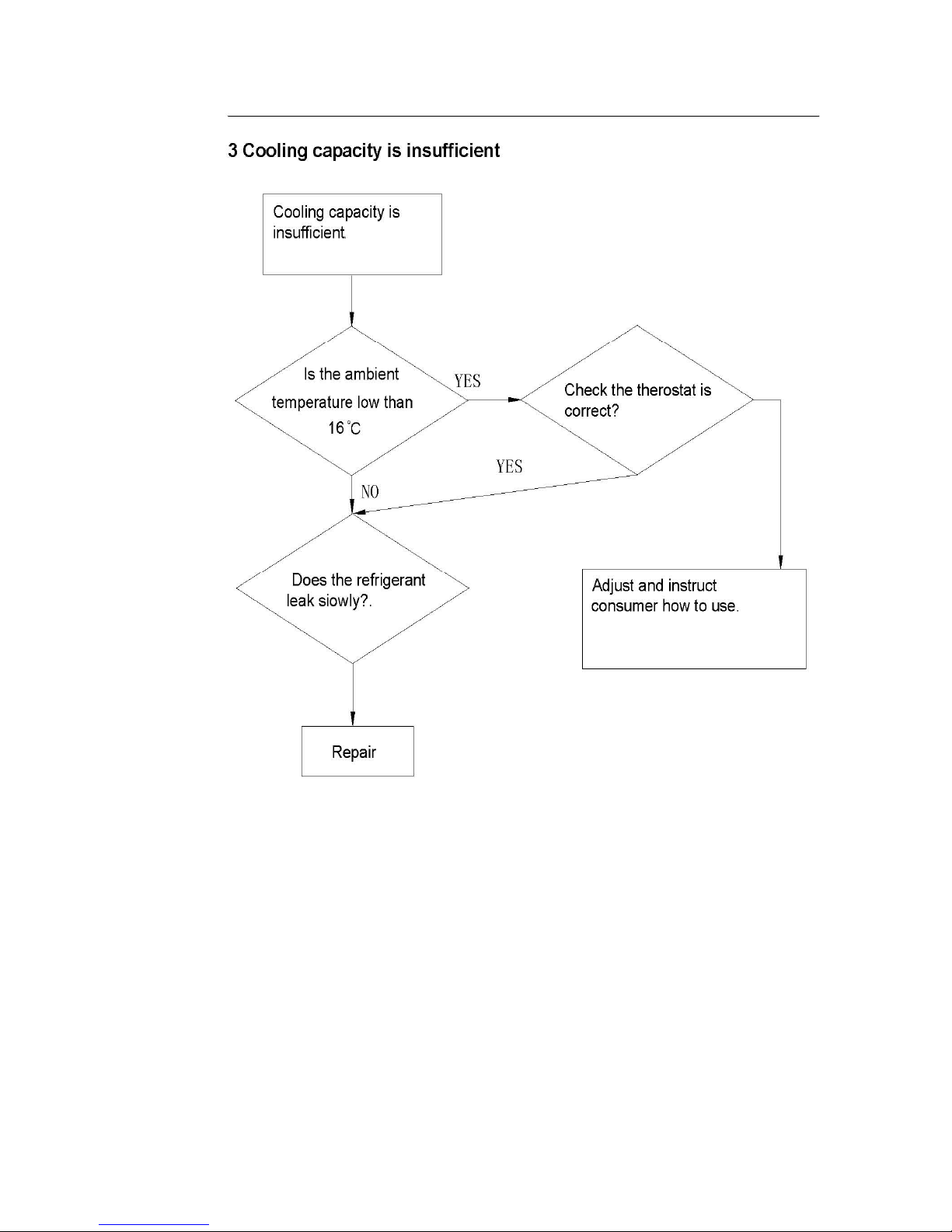

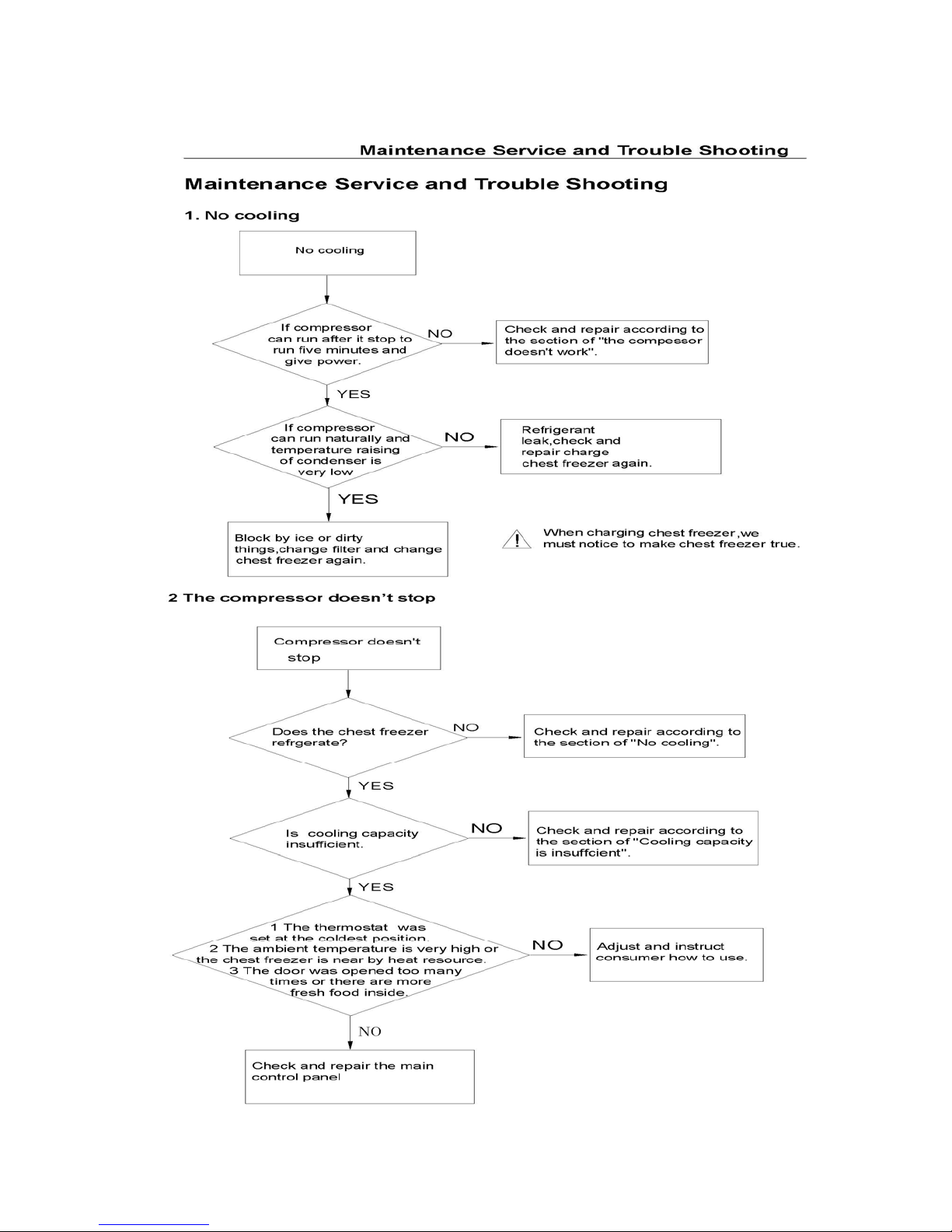

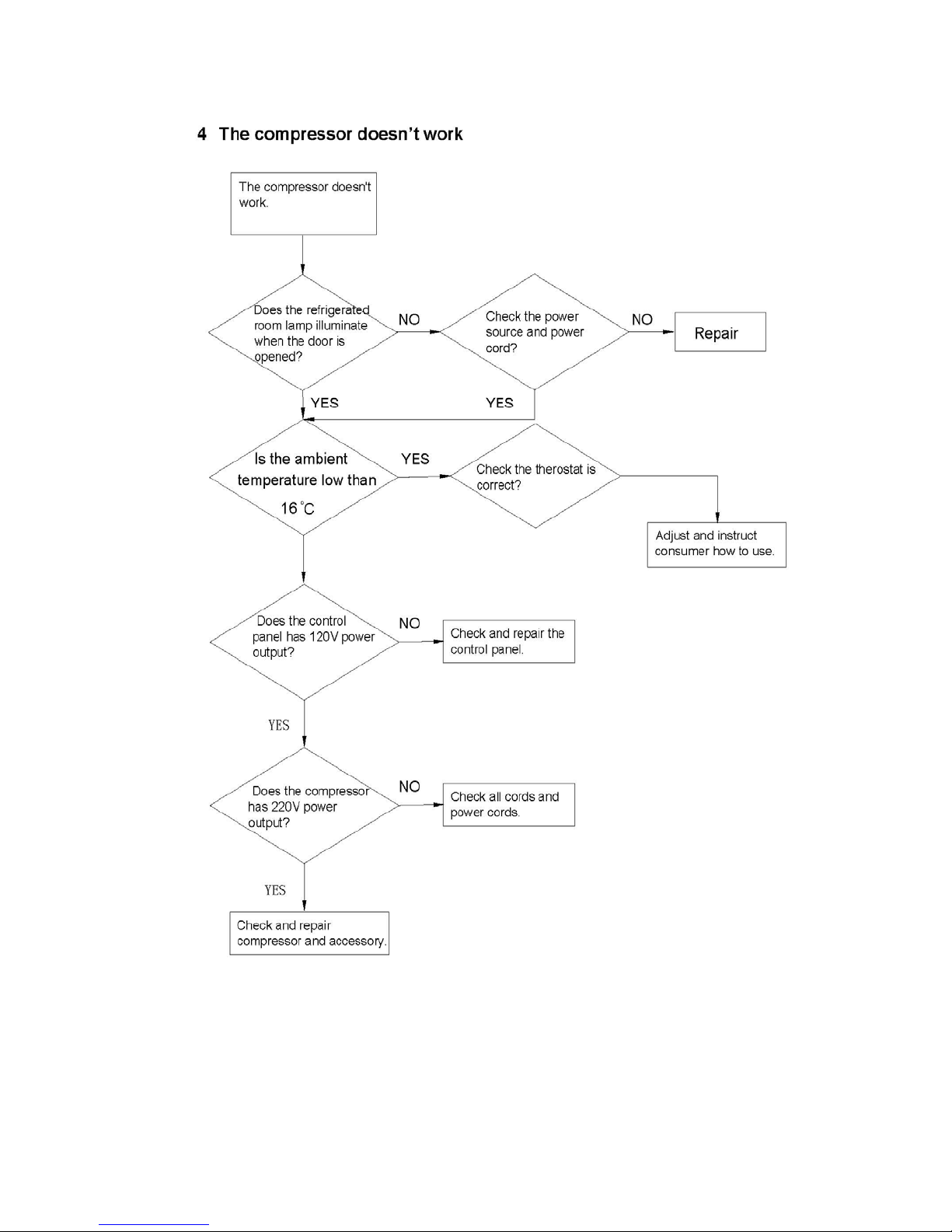

6.Maintenance service and Troubleshooting.
- 7 -
- 8 -
- 9 -
- 10 -
