ACOUSTIC SOLUTIONS CMP3160CLASSIC Instructions de montage

Installation & User Instructions – Please keep for future reference

Important – Please read these instructions fully before using

428/1289 (D)

160GB jukebox with display

These instructions contain important information which will help you get the best from your

appliance and ensure safe and correct installation, use and maintenance.

If you need help or have damaged or missing parts, call the Customer Helpline: 0870 600 3030

SELECT

MODE

BACK

Page 1

Table of contents

Care & maintenance ............................2

Disposal information ...........................2

Rechargeable battery disposal.................. 2

Accessories included..............................3

Overview of controls...............................3

Getting started ................................. 3

Connecting to a PC.............................. 4

Earphone connection........................... 4

Basic operation................................. 4

Power On/ Off .....................................4

Playback controls .................................4

Navigation controls ...............................5

Volume controls...................................5

The playlist menu............................... 5

Updating the playlist library .......................5

Navigating the playlist menu ......................5

The ﬁle browser menu .......................... 5

The ﬁle browser menu (cont).................... 6

Now playing .................................... 6

Playback mode....................................6

Favourites.........................................6

Music setting menu............................. 7

Play mode.........................................7

Boot volume.......................................7

Memory playback .................................7

Update playlist ....................................7

System setting menu ...........................7

Background pattern...............................7

Backlight time.....................................7

Backlight brightness ..............................7

Power off..........................................8

Information .......................................8

Restore factory settings...........................8

Format internal memory ..........................8

Technical speciﬁcations ........................ 8

Troubleshooting ................................9

Product Code

CMP3160CLASSIC

SELECT

MODE

BACK

Page 2

Safety information

Important – Please read these instructions fully before using

CAUTION:TO REDUCETHE RISK OF ELECTRIC SHOCK,DO NOT REMOVE ANY COVER.NO USER-SERVICEABLE

PARTS INSIDE,REFER ANY SERVICING TO QUALIFIED SERVICE PERSONNEL.

• Please read this owner’s guide

• Please take the time to follow the instructions in

this owner’s guide carefully. It will help you set up

and operate your system properly and enjoy all of its

advanced features.

• Please save this owner’s guide for future reference.

• The product label is located on the back of the

product.

• Do not use this apparatus near water or moisture.

• Do not use this product near a bathtub,washbowl,

kitchen sink,and laundry tub,in a wet basement,

near a swimming pool, or anywhere else that water or

moisture is present.

• Only use attachments/accessories speciﬁed by the

manufacturer.

• Unplug this apparatus during lightning storms or

when unused for long periods of time - to prevent

damage to this product.

• Refer all servicing to qualiﬁed service personnel

• Servicing is required when the apparatus has

been damaged in any way:such as liquid has been

spilled or objects have fallen into the apparatus;the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped -

• Do not attempt to service this product yourself.

• Opening or removing covers may expose you to

dangerous voltages or other hazards.

• To prevent risk of ﬁre or electric shock,avoid

overloading wall outlets, extension cords,or integral

convenience receptacles.

• Use suitable power sources - Plug the product into a

suitable power source,as described in the operating

instructions or as marked on the product.

Before making any electrical connections,ensure the

following:

• Do not bend,stretch or pull the supply cable in order

to avoid electric shock.

• The supply voltage should be the same as that

indicated in the technical speciﬁcations and the

appliance rating plate.

• Batteries shall not be exposed to excessive heat such

as sun,ﬁre or the like

This product complies with European low

voltage (2006/95/EC) and electromagnetic

compatibility (2004/108/EC) directives.

Care & maintenance

Care and cleaning

• All care and cleaning operations should be carried out

with the unit unplugged from the mains power.

• Occasionally wipe the cabinet with a lint free duster.

Never clean the unit with liquids or solvents.

Disposal information

WEEE marking“Information for the consumer”

Disposal of your old product Your product is

designed and manufactured with high quality

materials and components,which can be

recycled and reused.When this crossed out wheeled bin

symbol is attached to a product it means the product is

covered by the European Directive 2002/96/EC.Please

make yourself aware of the local collection system for

electrical and electronic products. Please act according

to your local rules and do not dispose of your old

products with your normal household waste.The correct

disposal of your old product will help prevent potential

negative consequences for the environment and human

health.

Rechargeable battery disposal

Your product contains a built-in rechargeable battery

covered by the European Directive 2006/66/EC.To

safeguard the functionality and safety of your product,

always take your product to an ofﬁcial collection point

or service centre where a professional can remove the

battery.

Please inform yourself about the local rules on

separate collection of batteries because the correct

disposal will help prevent negative consequences for

the environmental and human health.Please do not

dispose of your batteries with your normal household

waste. Always bring your product to a professional to

remove the battery.

This product complies with Electromagnetic

compatibility (2004/108/EC) directives.

Page 3

Functions & controls

Please familiarize yourself with the parts and accessories listed below

Accessories included

• 1 x CMP3160CLASSIC • 1 x Instruction manual • 1 x USB charging cable • 1 x earphones

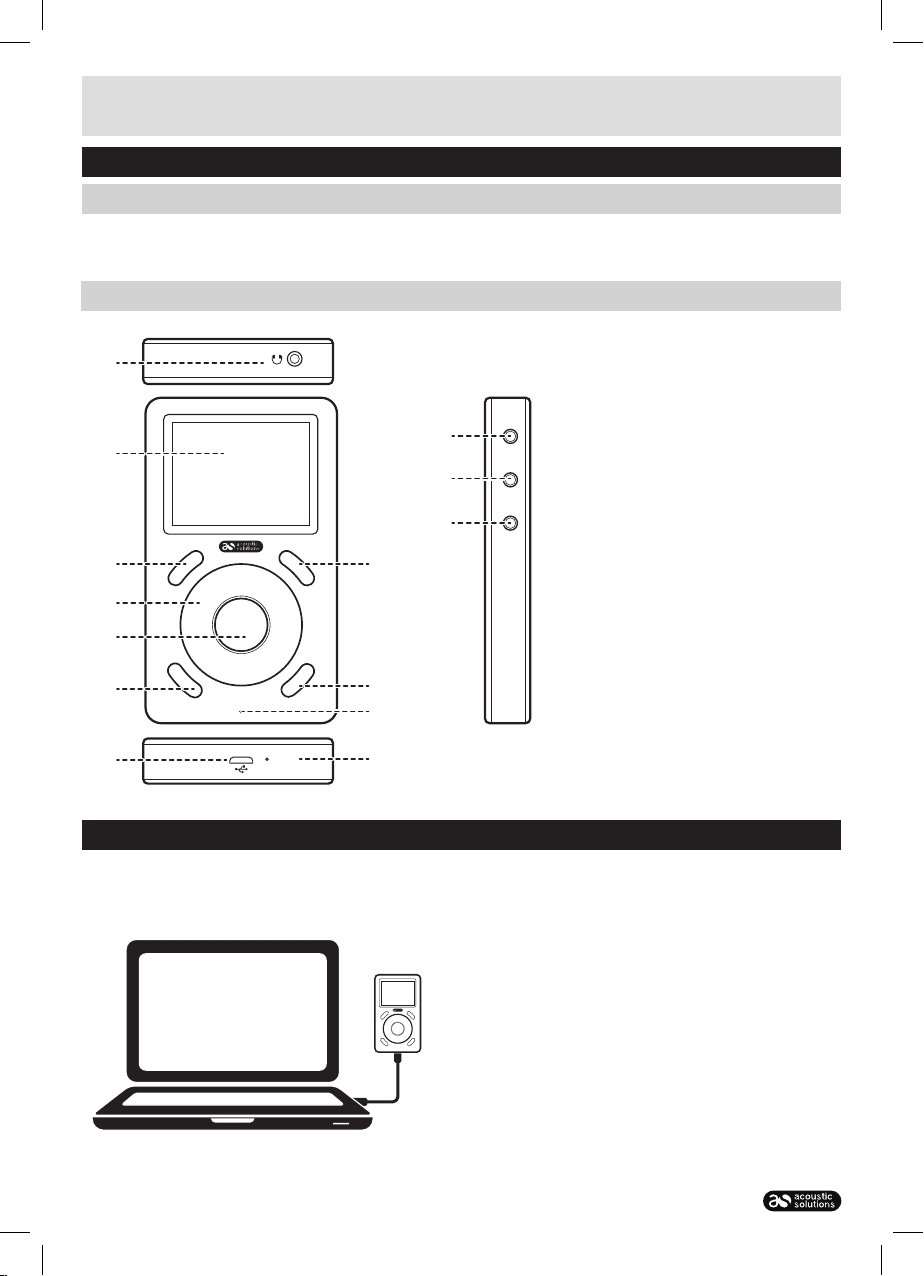

Overview of controls

Getting started

Before use your player will require charging fully.

Follow the below instructions to charge.

SELECT

BACK

1: Using the usb charging cable connect the mini usb

plug into the usb charge socket (7) on the bottom of

the unit.

2: Connect the other end of the cable to a laptop/pc usb

input & power on the pc/laptop.

3: The unit will power ON.

3: During the charging process the LED indicator (9) will

display a RED led light.

4: When fully charged the LED indicator (9) will display a

PURPLE (RED & BLUE) led light.

SELECT

MODE

BACK

VOLPWR

RESET

1: EARPHONE input socket

2: LCD display

3: MODE SELECT button

4: JOG WHEEL control

5: SELECT button

6: PREVIOUS button

7: MINI USB socket

8: RESET button

9: LED indicator

10: NEXT button

11: BACK button

12: POWER ON/OFF button

13: VOLUME + button

14: VOLUME - button

Page 4

Connecting to a PC

Once the unit is charged or during charging you can

copy ﬁles to the player.

1: Follow steps 1-2of ‘Getting started’ to connect the

player to a pc/ laptop.

2: Once connected the player will power up and display

the following screen.

3: When the unit is connected a hardware driver

is automatically installed and the device is

then available in the list of devices (Named

CMP3160_160).On some operating systems an auto

play window will appear. Choose to take no action and

click OK to close the window.

4: Double click ‘My Computer’ Or ‘Computer’ on some

operating systems.Look for ‘Removable disks

or storage’ option and locate the device named

‘CMP3160_160’ and double click.

NOTE:Do not disconnect the USB cable at any

time when copying data to or from the device.

5: Drag & drop media ﬁles into the applicable folders on

the removable device.

6: After data transfer has completed you can disconnect

the device from the PC by right clicking on the

‘CMP3160_160G’ device and selecting ‘EJECT’.

7: Remove the USB cable from the PC & bottom of the

unit (7).

Earphone connection

Instructions for earphone usage.

1: Connect the 3.5mm earphone plug into the

EARPHONE socket (1) on the bottom of the unit.

To prevent possible hearing damage,

do not listen at high volume levels

for long periods.

In music mode,when the volume is adjusted to

85dB the above warning will appear on the

display.

If you hear no sound during playback, do not turn

the volume up as the music may suddenly begin

at a high volume.

Excessive sound pressure from earphones and

headphones can cause hearing loss.

To avoid damaging your ears, adjust the volume to

the lowest safe level before playing, and turn up to

the desired level when playback has started.

Basic operation

Power On/ Off

1: Press and hold the POWER button (12) for 2seconds

to power the unit ON.

2: Press and hold the POWER button (12) for 2seconds

to power the unit OFF. A pop up message will appear

to check you want to power OFF.

3: Press the SELECT button (5) to proceed and power

OFF.

Playback controls

(5) PLAY: ..............................SELECT button

(5) PAUSE: ...........SELECT button during playback

(10) SKIP NEXT:......................... NEXT button

(6) SKIP PREVIOUS: ..................... PREV button

User instructions

Page 5

User instructions

Navigation controls

(10) SKIP NEXT:........Press to navigate NEXT option

(6) SKIP PREVIOUS: ....Press to navigate PREV option

(4) JOG WHEEL: ..Rotate to scroll NEXT/PREV options

(11) BACK: .........Press to return to previous screen

(3) MODE SELECT: ....Press for current mode options

(5) SELECT: ............................Press to select

Volume controls

VOLPWR

1: Press or press & hold the VOLUME+ button (13) to

increase the volume output.

2: Press or press & hold the VOLUME- button (14) to

decrease the volume output.

The playlist menu

Updating the playlist library

The PLAYLIST menu allows songs to be browsed in

various sorted libraries.For example :All Songs,Album,

Artists,Style & Favourite.Follow the below steps to

familiarise yourself with the functions.

NOTE:Before the ‘playlist’ library can be used the

music ﬁles on the internal memory need to be

compiled into the various libraries.

1: Once audio tracks have been transferred to the

internal memory and the device is switched ON,The

playlist database will begin updating automatically in

the background.

2: Should you wish to access music immediately

without waiting you can browse all ﬁles using the

‘File browser menu’.

3: Instructions on how to perform the database update

manually can be found on page 7.

NOTE:The more audio ﬁles you add to the internal

memory the longer the process will take.

Navigating the playlist menu

1: Navigate to the ‘PLAYLIST’ menu icon on the main

screen using the NEXT (10), PREV (6) buttons or jog

wheel.

2: Press the SELECT button (5) to enter the menu.

3: Using the NEXT (10), PREV (6) buttons or jog wheel

select an option from the below list:

All Songs: Displays all songs on the internal memory in

one list.

Album:Sorts all songs in album format.

Artist:Sorts all songs by artist.

Style:Sorts all songs by genre

Favourite:Displays all songs designated as a‘favourite’

(see favourites section page 6).

NOTE:Some libraries like Album, Artist & Style

require an addition press of the SELECT (5) button

to enter the selected Album, Artist or Style.

4: To begin playback of a selected track press the

SELECT (5) button.

The ﬁle browser menu

The FILE BROWSER menu enables navigation of the

internal memory as it is displayed on a PC.

1: Navigate to the ‘FILE BROWSER’ menu icon on the

main screen using the NEXT (10), PREV (6) buttons

or jog wheel.

Page 6

User instructions

The ﬁle browser menu (cont)

2: Press the SELECT button (5) to enter the menu.

3: Using the NEXT (10), PREV (6) buttons or jog wheel

select a track or folder from the list.

4: To begin playback of a selected track or to enter a

selected folder press the SELECT (5) button.

Now playing

Whenever a track is playing you can access the

playback screen by selecting the‘NOW PLAYING’icon.

1: Navigate to the ‘NOW PLAYING’ menu icon on the

main screen using the NEXT (10), PREV (6) buttons

or jog wheel.

2: Press the SELECT button (5) to enter the playback

screen.

48 Now Playing

Artist description

Album description

Bit rate (kbps)

1/13

01 - Track le name.mp3

01:05 03:50

Below is a breakdown of playback screen functions.

A: Volume output level.

B: Play mode icons (see Playback mode section).

C: Audio Track tags:Artist, Album & bit rate.

D: Track time line including elapsed time & time left.

E: Number of track & tracks available in the album/

folder.

F: Battery level indicator.

G: Active playback mode icon (see Playback mode

section).

Playback mode

Select a playback mode from the below options.

Favourite Assign as a favourite track

Order Play all tracks in order

Repeat all Repeats all tracks

Repeat one Repeats the current track

Shufﬂe

Plays all tracks in a

random order

1: Press the MODE SELECT button (3) to display the

playback options.

2: Use the NEXT (10), PREV (6) buttons or jog wheel

to select one of the above options and press the

SELECT button (5) to activate the function.

Favourites

You can tag multiple tracks to appear in the‘favourite’

section of the‘Playlist’ menu.These can then be played

back in order or randomly using the playback modes

described in the previous section.

1: From the ‘Now Playing’ screen with a track playing

press the MODE SELECT button (3) to display the

play mode icons.

2: Use the NEXT (10), PREV (6) buttons or jog wheel

to select the ‘favourite’ icon. Press the SELECT

button (5) to store.

3: The current track is now assigned as a favourite

track and will appear in the ‘Favourite’ list from the

PLAYLIST menu.

4: To remove a favourite there are two options.

Press the MODE SELECT button (3) from the ‘Now

playing’ menu and select the ‘favourite’ icon once

more.

Or from the PLAYLIST menu select the FAVOURITE

list, highlight the track and press the MODE SELECT

button (3). Press the SELECT button when you see

‘CLEAR FAVOURITE’ appear.

Page 7

Music setting menu

Play mode

As an alternative to using the icons in the‘Now playing’

menu you can assign a playback mode from here.

Select one of the options explained below.

Order Play all tracks in order

Repeat all Repeats all tracks

Repeat one Repeats the current track

Shufﬂe

Plays all tracks in a

random order

Boot volume

Select from the below options to set the volume level

when powering ON the device.

Default volume: Restores the volume level to ‘69’ when

powering ON the device.

Memory Volume: Resumes the last volume level when

powering ON the device.

Memory playback

When activated memory playback will remember the

last track played and begin playback of the same track

when powered ON.

Update playlist

The PLAYLIST functions are explained on page 5.The

below instructions explain how to manually update the

playlist database.

1: Select the UPDATE PLAYLIST option to begin

updating the database manually.

2: If you need to cancel the operation at any time press

the BACK button (11).

NOTE:The more audio ﬁles you add to the internal

memory the longer the process will take.

System setting menu

Background pattern

Select from 4 different background patterns.

1: Use the NEXT (10), PREV (6) buttons or jog wheel to

select a pattern.

NOTE:As you scroll through the patterns the

background pattern changes automatically.

2: Press the SELECT button (5).

3: Use the NEXT (10), PREV (6) buttons or jog wheel

to select OK from the ‘Save?’ option box and press

SELECT to store the setting.

Backlight time

Set the time the backlight stays on after no buttons

have been pressed.

1: Use the NEXT (10), PREV (6) buttons or jog wheel

to select a duration from 15s, 30s, 45s, 60s, 120s or

Always on.

2: Press the SELECT button (5).

3: Use the NEXT (10), PREV (6) buttons or jog wheel

to select OK from the ‘Save?’ option box and press

SELECT to store the setting.

Backlight brightness

Set the brightness of the backlight.

1: Use the NEXT (10), PREV (6) buttons or jog wheel to

select a brightness level from level 1-5.

NOTE:As you scroll through the settings the

backlight changes automatically.

2: Press the SELECT button (5).

3: Use the NEXT (10), PREV (6) buttons or jog wheel

to select OK from the ‘Save?’ option box and press

SELECT to store the setting.

User instructions

Page 8

User instructions

Power off

Set the time the unit stays on with no activity.

1: Use the NEXT (10), PREV (6) buttons or jog wheel to

select a duration from No power off, 15 mins, 30 mins,

45 mins,60 mins, 90 mins or 120 mins.

2: Press the SELECT button (5).

3: Use the NEXT (10), PREV (6) buttons or jog wheel

to select OK from the ‘Save?’ option box and press

SELECT to store the setting.

Information

When activated displays system information such as

internal storage available capacity & the total number

of tracks stored on the internal memory.

Restore factory settings

To restore the device back to the default settings follow

the below instructions.

1: With ‘Restore factory settings’ selected in the

menu ,press the SELECT button (5) to display the

conﬁrmation pop up.

2: Use the NEXT (10), PREV (6) buttons or jog wheel to

select OK from the ‘Restore to factory settings?’

option box and press SELECT to reset the settings.

NOTE:This does not delete any audio ﬁles stored

on the internal memory.

Format internal memory

To delete all audio ﬁles stored on the internal

memory and restore to a blank state follow the below

instructions.

1: With ‘Format internal memory’ selected in the

menu ,press the SELECT button (5) to display the

conﬁrmation pop up.

2: Use the NEXT (10), PREV (6) buttons or jog wheel to

select OK from the ‘Formatting Internal Memory

will erase all songs!’ option box and press SELECT to

format the internal memory.

NOTE:This function will remove all ﬁles stored on

the internal memory.

Technical speciﬁcations

Power Supply ..........................2050mAh,3.7V

Dimensions ....................... 96.5 x 57 x 13.6mm

Weight ............................................90g

Capacity ................160GB internal ﬂash memory

Supported OS .............Windows 2000,XP or above

Interface ......................................USB 2.0

Supported music.......... MP3,WMA, AAC,OGG, APE,

formats ..........ALAC,FLAC,WAV, AAC MPC,AIF, AIFF

Page 9

User instructions

Troubleshooting

In the unlikely event of difﬁculties with your appliance please follow the trouble shooting guide below.

If the problem persists,visit the technical support website: www.argos-support.co.uk

Problem Reason(s) Solution(s)

No Power • The unit requires charging • Connect to a PC or laptop using the

supplied cable to charge.

No Sound • Volume is too low

• No audio ﬁles have been copied

to the internal memory

• The earphones have not been

connected correctly

• Increase the volume

• Follow‘Connecting to a PC’

instructions on page 4 of this manual

• Insert the 3.5mm earphone plug into

the earphone socket on the MP3

player

Sound is distorted • Volume is too high • Reduce the volume

Table des matières

Autres manuels ACOUSTIC SOLUTIONS Juke-box

ACOUSTIC SOLUTIONS

ACOUSTIC SOLUTIONS SP150 Manuel utilisateur

Manuels Juke-box populaires d'autres marques

RCA

RCA RTD750 Manuel utilisateur

Sound Leisure

Sound Leisure Rocket Manuel utilisateur

Creative

Creative D.A.P Manuel utilisateur

Octave

Octave TouchTunes MX-1 Manuel utilisateur

Philips

Philips HDD6320 Manuel utilisateur

Ricatech

Ricatech RR510 Manuel utilisateur

CAVS

CAVS JB-199 Premier Manuel

TouchTunes

TouchTunes Photobooth Manuel utilisateur

Fenton

Fenton JKB40 Manuel utilisateur

AUS

AUS Sound Leisure Manuel utilisateur

TouchTunes

TouchTunes ANGELINA Manuel utilisateur

Rowe

Rowe GrandSTAR Manuel utilisateur

Crosley

Crosley CR11 Manuel utilisateur

Gateway

Gateway GCM-4 Manuel utilisateur

Wurlitzer

Wurlitzer One More Time CD Manuel utilisateur

Acesonic

Acesonic KOD-2400 Manuel utilisateur

Philips

Philips HDD120 Manuel utilisateur

Ricatech

Ricatech RR300 Manuel utilisateur
