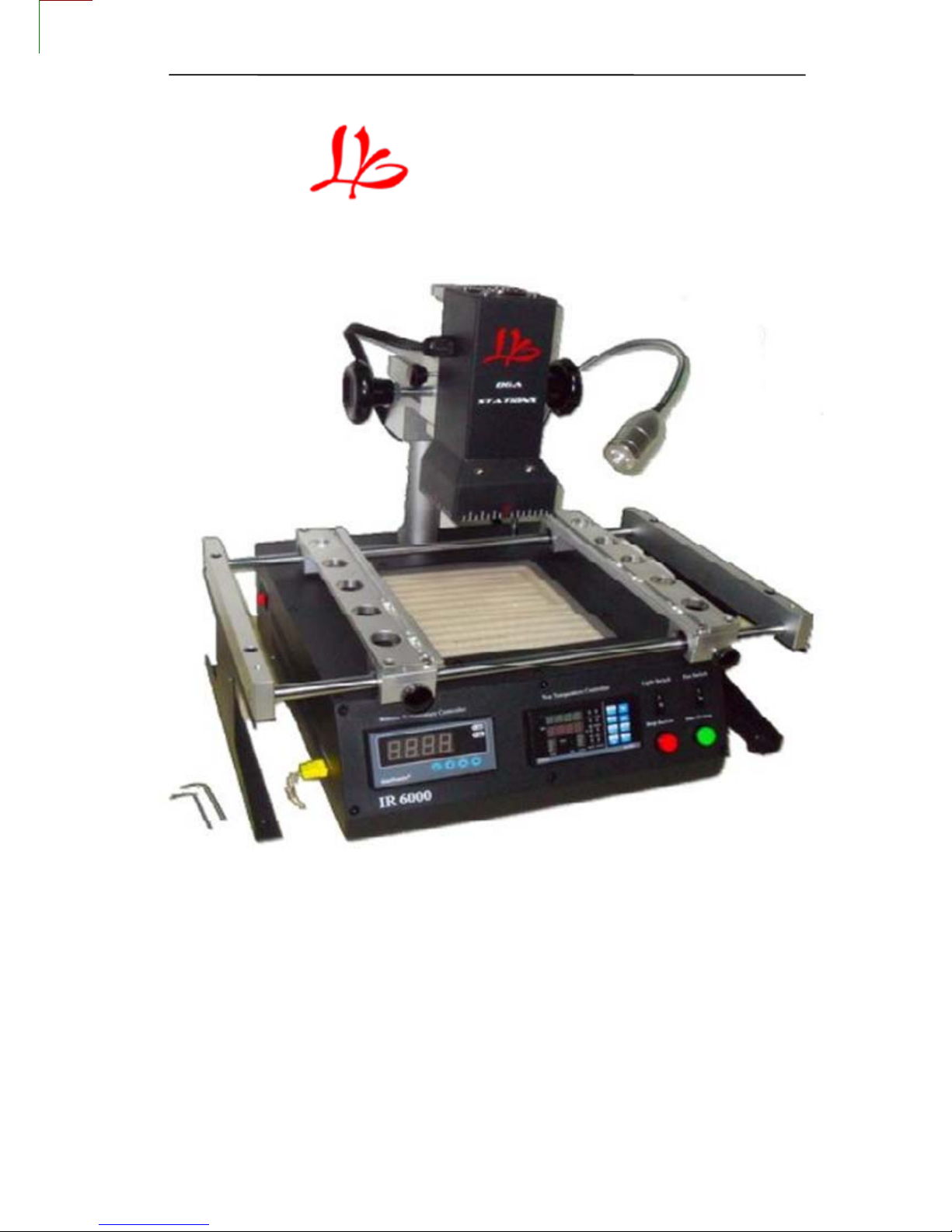

深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
BGA Rework Station
User Manual
IR6000
1
一、LY IR6000 BGA rework stations feature
LY IR6000 BGA Rework Station is designed to meet the ever-changing demands
of today’s fast BGA Rework manufacturing environments ，Have the following
characteristics:
1、IR6000 Rework station for laptop motherboards, desktop computer motherboards,
server boards, industrial computer boards, all kinds of game boards, communications
equipment motherboards, LCD TVs and other large circuit board BGA rework….
2、IR6000 Innovative designs .An effective solution to general of infrared rework
station vulnerable to the impact of air flow. Will lead an inaccurate of temperature
control. Maximum temperature up to 400 ℃. Can easily deal with lead-free soldering
rework.
3、IR6000 can set up 8 rising temperature segments and 8 constant temperature segments
to control. It can save 10 groups of temperature curves at one time.
4、IR6000 can be connected to a computer to be controlled more conveniently with a
built-in PC RS232 serial port and proprietary Software attached to it. programmable
5、IR6000 can easily rework the variety of CPU's seat, all kinds of shielding enclosures,
replacement of various components slot。Can easily deal with lead-free soldering
rework
6、IR6000 sensitive temperature measurement sensor to obtain an accurate and
instantaneous temperature reading and monitoring。
7、IR6000 BGA rework station the technology of closed-loop temperature control ensures
accurate temperature process and even heat distribution.
8、IR6000 Machine overall system integration Design, Rework station more integrated
workbench area occupied by smaller, Didn't mixed and disorderly of cables.
9、IR6000 Linear guide type Bracket for BGA Reworks。can be locking 、adjusted by
rotating the handle, Can be very easily fixed PCB board, effectively prevent the
deformation of PCB board.
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
2
IR6000
Safety Instructions
Ⅰ.Electrical safety
z
z
z
Make sure the supply power voltage accord with the standards----
220V-250V/50hz alternating current before installing.
To avoid possible electric shock caused serious damage, please disconnect the
power cord from the outlet temporary before moving machines.
If the machine damages, please contact us for maintenance. If the damage caused
by the users when they dismantle or repair independently, they should take on
the loss by themselves.
Ⅱ. Operating safety
z
z
z
z
z
z
z
Please carefully read the relevant information provided by the manual before
starting using this product.
Make sure the power cord has been properly connected properly before using the
products.
Installed the equipment in stable work platform to use, where the air mobility
should be small as possible. Avoid it closing to air conditioners, fans and the
other outlet.
In case of electrical short-circuit, avoid the products contacting with water.
Forbid using this equipment in flammable and explosive substances.
The operators’ hands or other parts of the body should maintain a safe distance
from the heater. Forbid touching the heater to avoid scalding.
If you have any technical questions or suggestions in the course of using this
product, please contact with our technology department., We will try our best to
solve.
Ⅲ.Environmental requirements of operation and conservation
1. Operation environment of products
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
3
z
z
z
Operation temperature:15 ~ 45 ℃
Operation humidity:5% to 95%, non-condensing
Products should be kept in the air mobility of a smaller environment under the
welding operation.
2.Conservation environment of products
z
z
Storage temperature:-20 ~ 70 ℃
Storage humidity: 5% to 95%, non-condensing
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
4
Basic Parameters
Heating IR
Dimension L 475mm×W480mm×H420 mm
Weight 16kg
Total weight About 17 kg, vary with the differen need of the users
Electrical Parameters
Power 220V AC
Upper Heating IR
Size of Upper heating 80mm×80 mm
Consumption of upper heating 450W
Bottom Heating IR
Size of Bottom heating 180 mm×180 mm
Consumption of Bottom heating 800W
General power 1250W
Temperature Control
Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ±0.5%, Alarm
Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ±0.5%, NO Alarm
Rework Function
SMD
Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates，EMI
metallic shield product and solder/lead free Rework 、
The parameters of LY IR6000 BGA Rework Station
LY
BGA Rework Station
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
5
welding
Size of applicable chips
Size of applicable PCB
≤70mm×70 mm
≤400mm×305 mm

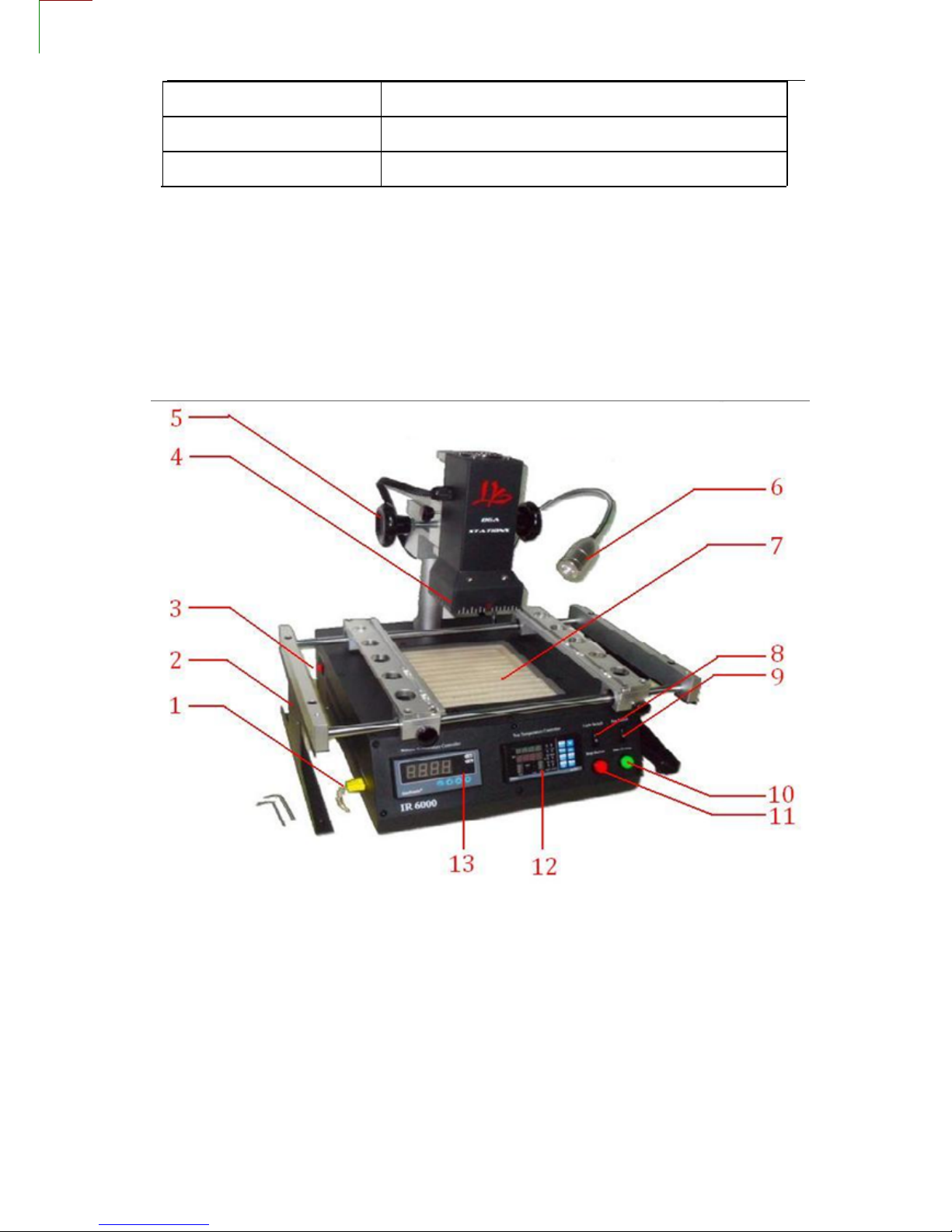

Hardware description
LY IR6000 BGA Rework Station is composed of upper part of Heating Components /
Bottom Preheat Module / Bracket / Temperature Control Parts! Temperature control
Table is control the upper and lower heating, Can Simultaneously heated or first preheat,
then the upper part of heating.
1. Highly Sensitive K-temperature sensor
2. PCB Table
3. Power Switch
4. Upper Heater
5. X-Y Lifting Regulator
6. LED Auxiliary Lighting
7. Bottom Heater (Pre-Heater)
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
WWW.LYBGA.COM
6
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
8. Lighting Switch
9. Upper fan Switch
10. Start Switch
11. Stop Switch
12. Upper Programmable Temperature Control pc410
13. Bottom Temperature Control CH6
Self-help Install
PCB Table
1.
2.
3.
Installation side support.
Installation Slip.
Installation side support.
WWW.LYBGA.COM
7
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Upper Heater
WWW.LYBGA.COM
8
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Cable connector
Temperature sensor
WWW.LYBGA.COM
9
深圳利洋焊接设备 Shenzhen LiYang welding Equipment Co., Ltd LY
Installation of RS232 communication interface
Both suitable for Desktop & Laptop
Interface for desktop transfer cable for laptop
Programmer/Controller General Description
程序控制器内部已设置多个常用程序段，不要轻易尝试修改程序参数。请按 PTN 键
选择您所需要的程序段，
The programmable controller contains an in-built setpoint generator in addition to the
controller function. This setpoint generator can produce a temperature/time profile with
16 segments (0～9). When the program is running, the current setpoint from the setpoint
generator is fed to the control algorithm. The current setpoint is continuously shown on
the lower display.
