Acer MP-340 20GB Manuel utilisateur

Acer MP340

User’s Manual

Ver 1.0

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of

Acer Computer GmbH

Disclaimer

Acer Inc. makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness

for any particular purpose. Any software described in this manual is sold or licensed "as is".

Should the programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary servicing,

repair, and any incidental or consequential damages resulting from any defect in the

software. Further, Acer Computer GmbH, reserves the right to revise this publication and to

make changes from time to time in the contents hereof without obligation to notify any

person of such revision or change.

All brand and product names mentioned in this manual are trademarks and/or registered

trademarks of their respective holders.

Table of Contents

I Safety Instruction............................................................................................2

II Product Introduction ......................................................................................2

1 Major Features........................................................................................2

2 Quick Tour of Acer MP340......................................................................3

3 Pack and Accessories.............................................................................3

4 Charging the Batteries.............................................................................3

5 Installation of USB Drive .........................................................................4

6 Disk Directory Management....................................................................5

7 The Linkage and Safe Remove of USB Cable ........................................5

III Functions......................................................................................................6

1 Basic Functions.......................................................................................6

2 Play Music...............................................................................................7

3 Picture Reviewing....................................................................................9

4 Video Playing ........................................................................................10

5 Recording..............................................................................................11

6 Game ....................................................................................................11

7 Electronic Book .....................................................................................12

8 Files Operations....................................................................................12

9 Setup.....................................................................................................13

10 Firmware Upgradation.........................................................................15

11 Video Formats Conversion Tool..........................................................15

IV Common Problems and Solutions..............................................................16

V Specifications.............................................................................................. 18

I Safety Instruction

1) Make sure a close reading of this Safety Instruction.

2) Be sure to well keep this brochure for further need

3) Please keep MP3 in a dry place.

4) Please keep it out of sunshine.

5) Any liquid should never be poured into this device or destruction or electric leakage

might happen

6) If one of the following cases happens, please contact a professional:

The pouring of any liquid into the device

The device is dampened

Abnormal working of the device or no working can be obtained under the

manual’s guide

The drop or damage of the device

7) No use of MP340 in such cases:

when driving or riding

when doing a high risky job

when walking on the street

any case that needs full attention

8) If you want to format the disk of MP340, please select the format of FAT32.

9) No liquid or spraying detergent can be used for cleaning, and only a wet soft cloth

is enough.

10) Please adjust the volume to proper when the earphone is connected in case of any

listening hurting.

11) Attention: Explosion might happen due to any improper use of the batteries. Please

see the instructions in chapter of “Battery”

12) The used batteries should be recycled rather than disposed as common rubbish.

II Product Introduction

Thank you for choosing Acer’s MP340, which has a chargeable Li-Polymer battery with

high-quality disk. You can play your favorite audio or video file and enjoy the perfect

listening and watching experience. It is also a portable USB storing device which enables

you to store and manage your personal data.

1 Major Features

Display--1.8" TFT LCD window can display clearly the pictures and video files.

High capacity disk --with1.8 " 20/30GB disk, it can store a large amount of data.

Video playing –It supports ACV video files and other format files should be

converted to ACV by the accessory software.

Audio playing—It supports MP3 (MPEG1/2/2.5 Layer3), WMA music files.

Double earphones—Two persons can share the music at the same time.

Lyric Synchronization—Songs will play with lyrics.

Photo viewing—It supports JPEG files and the user can view pictures by

copying them to MP340.

Text reading -- the user can read texts with .Txt files (Unicode)

USB 2.0 Port – It supports USB 2.0’s high-speed and full-speed functions.

SD Card Slot – It supports SD and MMC cards.

Battery – Built-in rechargeable Li-polymer battery is durable.

Video file conversion - the accessory software can convert any unreadable file

formats into readable ones.

Multiple languages - It supports multi-languages, such as English, German,

French, Italian, Dutch, Spanish and Russian.

Firmware upgradation - The firmware can be upgraded.

2 Quick Tour of Acer MP340

3 Pack and Accessories

Please be sure that the pack and accessories include the following pieces:

;Acer MP340 player

;User’s manual

;Installing CD

;Power adapter

;A Line-in cord

;USB cable

;Stereo earphone

4 Charging the Batteries

1) This device has the built-in Li battery and the user can charge the battery by using

the accessory charger. No matter turning on or off, the battery will be charging

when the charger connects it to the live power.

2) If the battery indicator shows one grid or no grid, it means lacking the power and

charging is needed.

3) In order to last the battery life, it is recommended to discharge the battery

completely before charging during the first two times of charging.

4) If there is a long rest time for the device, in case of the damage made by overuse of

battery, please make sure that you charge and discharge the device at least once

a month

5 Installation of USB Drive

The installation is only needed for windows98 and windows 98 se computers. The steps

are as follows:

1) Insert the accessory CD into the CD drive and it will work automatically. The

interface shows as follows.

2) Click <Install>, and finish the installation of the drive with clues. The restart of the

computer is needed afterward.

Confirmation of the installation of USB drive

1) Turn on MP340, and connect it by the USB cable to the computer

2) Choose “Control Panel”,”Syetem”, and enter “Device Manager”, it will show as

follows;

3) Choose “Disk drives” and the installed USB drive will display

Attention: if it doesn’t show as upward, then please uninstall your USB drive and reinstall

it.

6 Disk Directory Management

1) When the device is connected to the computer normally, a disk symbol will show in

[windows explorer] and it includes 7 directories: [music], [Video], [photo], [text],

[Recorder], [Filecopy]and[Config]

Attention: The defaulted directories under the root directory such as [music], [Video],

[photo], [text], [Recorder], [Filecopy] and [Config], can never be deleted or any abnormal

working might occur in the device. In case of any accidental deletion, format the disk of the

device and restart it. MP340 player will automatically build these directories yet the original

data will be lost.

2) Please put your files into accordant directories.

Music Directory music files

Video Directory Video files

Photo Directory Picture files

Text Directory Electronic books

Recorder Directory Audio recording

Filecopy Directory Copyed files

Config Directory System files

7 The Linkage and Safe Remove of USB Cable

7.1 Link the USB cable

Link the MP3 player with the computer by USB cable, and the screen of MP3 will show the

following picture. It means the next step of copying data can start.

When the player is transferring data, no direct break between the player and computer is

allowed. Please safely remove the player device from the computer.

7.2 Safely remove the USB cable from the computer

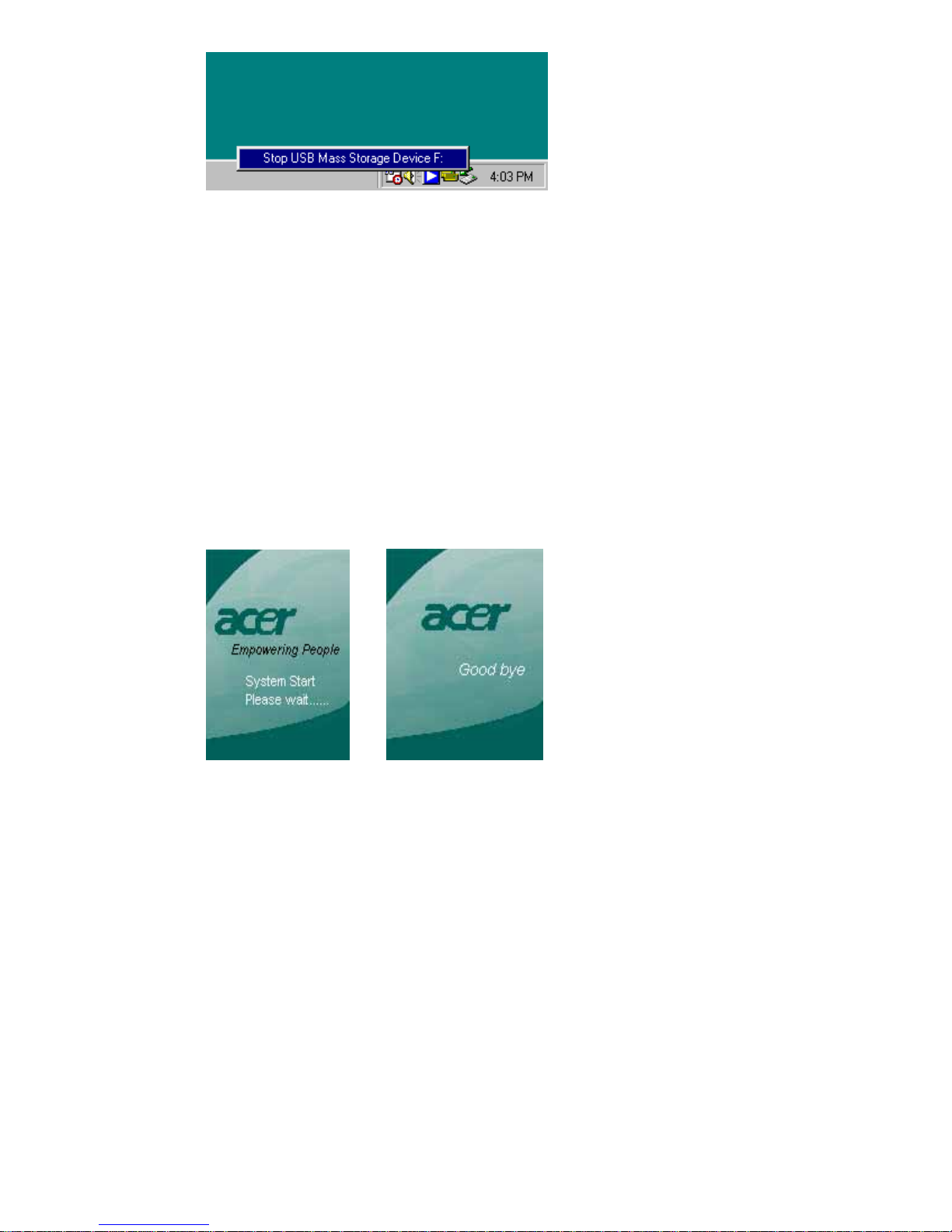

1) Right-click the “Plug and play” button in taskbar and choose “Safely remove the

device”

2) Select the device you want to unplug or eject and then click [stop];

3) Confirm devices to be stopped and choose [OK] to continue;

4) Click [close] to end the whole operation

Attention: any abnormal interrupt of the linkage of the device to the computer might cause

hurt to the product.

III Functions

1 Basic Functions

1.1 Turn on and off the player

1) Turn on: Press the Power Button for 3 seconds and the screen will show the Acer

Logo (shown as Pic 1) and enter the main menu interface.

Pic1 Pic2

2) Turn off: Press the same button for 3 seconds and the Logo will show again and

later it will turn off automatically. (Shown in Pic 2)

3) Restoration: if any unknown reason causes the player into dead status, the power

button might be invalid. Now the single press of “reset” will help turn on the device

and the system will work normally again.

1.2 Function selection

Pic 3

The main menu will show after its turning on as Pic 3. You can select the functions by press

“”or“ ”button; and then press “ENTER” for confirmation.

1.3 Adjusting sound volume

Pic4

During the process of playing video or music, press “ ”or“ ”to increase ot decrease the

sound volume.(Shown in Pic 4)

1.4 Holding function

Pic 5

1) Push up “Hold” button to the position shown in Pic 5 and any key-press to the

player will be null. This is to avoid any unnecessary key-press.

2) Push down “Hold” button and now the keys are available.

2 Play Music

1) Main menu

The defaulted mode is “Music” after entering the main menu as in Pic 6. Press “ENTER” to

the interface of music list, as in Pic 7.

Pic 6 Pic 7 Pic 8

2) Music list

All the music in the music file is listed in the music list. You press “ ”or“ ”to choose the

music you want and press “ENTER” to play it, see in Pic 8; Press “ESC” to return to upper

directory; Or press “MODE” to get a mode menu to copy or delete one or all files.

3) Music playing modes

Display of the music playing modes

Major functional keys:

a) When music is playing, short press “ ”or“ ” to choose the previous or next song

b) When music is playing, long push “ ”or“ ”realizes forward and backward within a song.

c) When music is playing, short press “MODE” to main menu.

d) When music is playing, short press “ESC” to return to music list interface.

4) Pause the music

When music is playing, short press “ENTER” to pause the current music. Push “ENTER”

button again and it will continue to play.

5) Adjust the sound volume

Whenever music is playing or paused, “ ”or“ ”can adjust the sound volume.

6) Playing modes

This player has equipped 5 music playing modes (Normal, Repeat One, Repeat Folder,

random, Intro)

Normal: Play music in a normal order, that is playing the first music file till the last. The

symbol is

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Acer Lecteur MP3

Acer

Acer MP200 Manuel utilisateur

Acer

Acer MP-S10 Manuel utilisateur

Acer

Acer MP-120 1GB Manuel utilisateur

Acer

Acer MF-350 Manuel utilisateur

Acer

Acer MP3 Flash Stick Driver Manuel utilisateur

Acer

Acer MF-550 Manuel utilisateur

Acer

Acer MP400 Manuel utilisateur

Acer

Acer MP-320 Manuel utilisateur

Acer

Acer MF-580 Manuel utilisateur

Acer

Acer MP110 Manuel utilisateur

Acer

Acer MP200 Manuel utilisateur

Acer

Acer MP500 Manuel utilisateur

Acer

Acer MP3 Flash Stick Manuel utilisateur

Acer

Acer MP-150 1GB Manuel utilisateur

Acer

Acer MF-380 Series Manuel utilisateur

Acer

Acer Easy MP3 Player Manuel utilisateur

Acer

Acer MP500 Manuel utilisateur

Acer

Acer Advanced MP3 Player Manuel utilisateur

Acer

Acer MP-330 Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Sony

Sony NW-MS7 - Memory Stick Walkman Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur
