Acer FP855 Manuel utilisateur

Acer FP855

LCD Color Monitor

18.1” (45.9cm) LCD Panel Size

English

Installing the Monitor

This monitor is equipped with an auto-sensing power supply for voltage ranges

100~240V AC, 50~60Hz.

1. Make sure that the system power is

turned off.

2. Plug the signal cable to the signal

connector at the rear of PC.

3. Plug the end of power cord to the

monitor.

4. Connect the other end of power cord

to power source.

5. Turn on the computer and the

monitor.

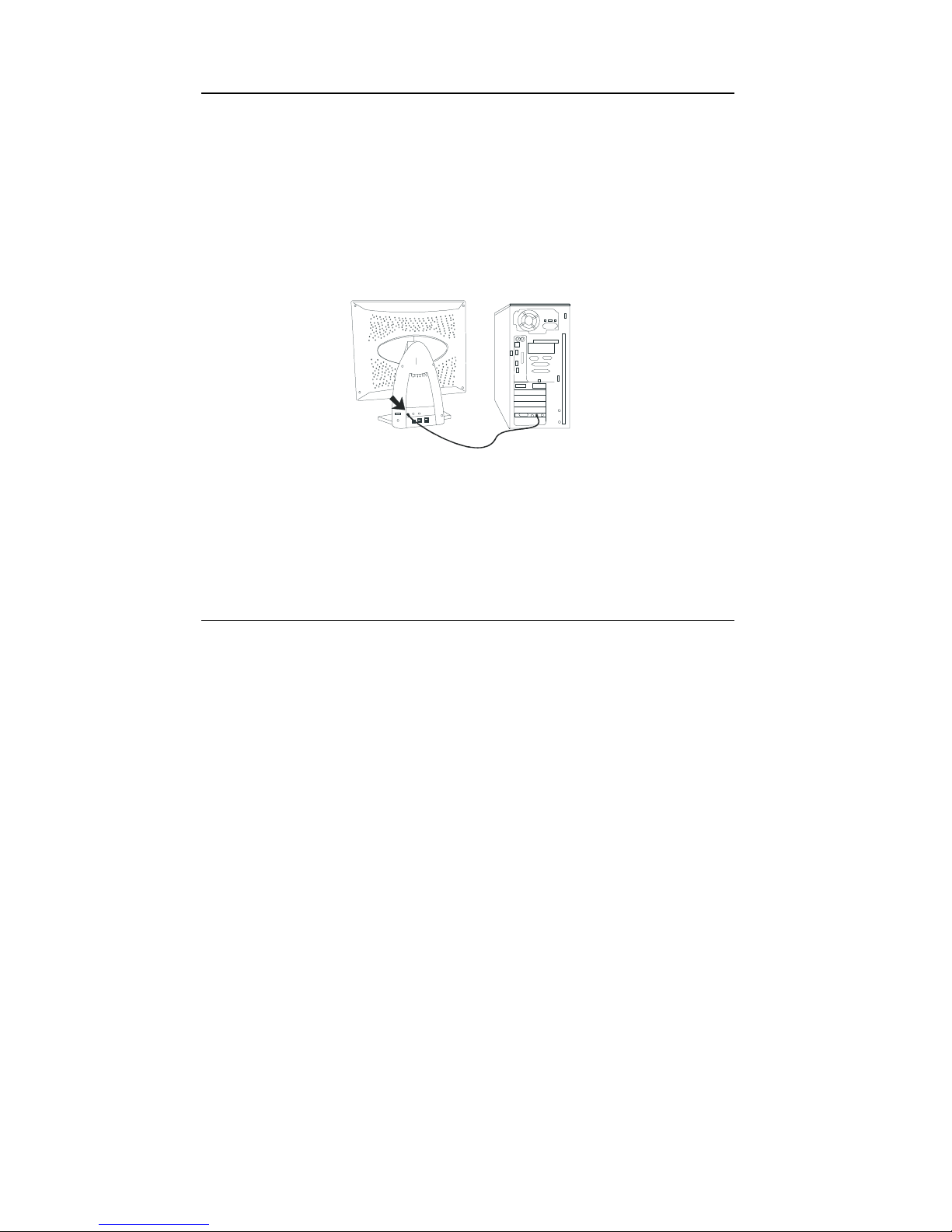

Connecting the Microphone

After connecting the microphone, you can use recording programs to record or edit

audio files.

1. Turn the system power off.

2. Plug one end of audio cable to LINE IN port at the rear of computer and the other

end to the microphone connector.

3. Turn on the computer and the monitor.

)To record, you don't need to get close to the microphone. Staying in

usual operation position allows you to achieve perfect recording

performance.

Connecting the Speaker

This model is equipped with built-in speakers. After connecting the speaker, you can

enjoy music easily.

1. Turn the system power off.

2. Plug one end of audio cable to the LINE OUT port at the rear of computer and the

other end to the speaker port at the back of monitor.

3. Turn on the computer and the monitor.

)To adjust the audio volume, use the volume control at the right side of

your monitor.

Connecting the Earphone

Just plug your earphone to the earphone connector at the rear of monitor, you don't

worry to disturb others while enjoying the audio entertainment.

Connecting your USB Devices

With its USB compliance, you can connect any USB compliant device on one universal

connector. Up to four devices can be connected to the USB connectors.

1. Turn the system power off.

2. Connect the USB cable to the computer and the USB up port at the rear of

monitor.

3. Connect the USB cable supplied with other peripherals to USB connectors and

your peripherals.

4. Turn on the computer and the monitor.

CD Installation

When you place this CD-ROM into your CD-ROM drive, the system will execute

"monitor.htm" automatically. If you can't read it by Windows autorun, please open

"acerlcd.htm" by your Internet browser or double click "monitor.htm" file.

)If you don't have any Internet browser such as Microsoft Internet Explorer

or Netscape Navigator, this CD-ROM provides you Microsoft Internet

Explorer 5.0 for English Version.(Microsoft Internet Explorer is the

)If there is any question, please e-mail us at apidisplaycsd@api.com.tw

A Look at the Control Panel

Power Switch: turns on or off the power.

I-Key botton: intelligent key used for auto-adjustment of color temperature, V-

Position, Phase, H-Position and Pixel Clock.

Fly Wheel: rotates and presses to make OSD adjustments.

Audio Volume Control: rotates to adjust the audio volume.

Supported Timings

Input display data Multi-scan

operation

Resolution Horizontal

Frequency

(Khz)

Vertical

Frequency

(Hz)

Dot Clock

Frequency

(MHz)

Remark Actual

display

resolution

640 x 350 31.47 70.08 25.17 DOS

640 x 350 37.86 85.10 31.50 VESA

720 x 400 31.47 70.08 28.32 DOS

720 x 400 37.93 85.00 35.50 VESA

640 x 480 35.00 67.00 30.24 Macintosh

640 x 480 31.47 60.00 25.18 DOS

640 x 480 37.86 72.80 31.50 VESA

640 x 480 37.50 75.00 31.50 VESA

640 x 480 43.27 85.00 36.00 VESA

800 x 600 35.16 56.25 36.00 VESA

800 x 600 37.88 60.32 40.00 VESA

800 x 600 48.08 72.19 50.00 VESA

800 x 600 46.87 75.00 49.50 VESA

800 x 600 53.67 85.10 56.25 VESA

832 x 624 49.72 74.55 57.29 Macintosh

1024 x 768 48.36 60.00 65.00 VESA

1024 x 768 56.48 70.10 75.00 VESA

1024 x 768 60.02 75.00 78.75 VESA

1024 x 768 35.52 86.95 44.96 Interlace

1024 x 768 60.24 74.93 80.00 Macintosh

1280 x 1024 64.00 60.00 108.00 VESA

1280 x 1024 80.00 75.00 135.00 VESA

Full screen

1280 x 1024

Troubleshooting and

Useful Hints

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble

using this product.

9Can't find Acer FP855 on the Windows 95or Windows 98monitor lists.

You need to update the Windows 95or Windows 98setup information

for your Acer FP855. You can download the updated file from the web site

(http://www.acerperipherals.com.tw/products/md/service/index.htm).

9There is no picture on the screen.

Check:

Power saving mode. Press any key or move the mouse to deactivate the

mode.

Signal cable connector pins. If there are bent or missing pins, consult your

place of purchase.

9The picture is unstable.

Check:

Signal cable connector pins. If there are bent or missing pins, consult your

place of purchase.

Graphics card. See if the settings are made properly.

Scanning frequency. Change the settings of your graphics card to acceptable

options.

9Characters look too dark or too light.

Adjust related settings.

9The speakers don’t work.

Check:

Audio cable. See if the audio cable is connected to PC’s “LINE-OUT” port

and monitor’s speaker port.

Volume control. Make sure that the volume control at the rear of monitor

base is set to proper volume.

9The microphone doesn’t work.

Check:

Audio cable. See if the audio cable is connected to PC’s “LINE-IN” port and

monitor’s microphone port.

9There is noise from speakers when using the microphone.

Set microphone item of volume control function in Windows 95or

Windows 98to “MUTE”.

Please adjust as following steps:

1. Double click the speaker icon in Windows 95or Windows 98

desktop.

2. In the volume control window, set the microphone item to “MUTE”.

9I key does not function properly and "unsupported" message shows.

In some non-full-screen patterns, the i-key function couldn't work properly

and an "unsupported" OSD will pop up. In this situation, you need to use the

fly wheel to adjust your screen rather than i key.

9The sound of speakers distorts and the screen flashes when using speakers.

Check whether the audio cable is connected to “ Line Out” port of PC rather

than the “ Speak Out” port.

Need More Help?

If your problems remain after checking this manual, please contact your place

of purchase or e-mail us at: APIDisplay[email protected]
