AL1716W

E-1

SPECIAL NOTES ON LCD MONITORS

The following symptoms arenormalwith LCD monitorand donotindicateaproblem.

NOTES

·Due to the natureofthefluorescentlight,the screenmay flickerduring initial use.

Turnoff thePower Switch and thenturn it on again to make sure the flicker disappears.

·Youmay find slightly uneven brightness on the screendepending on the desktop

pattern you use.

·The LCD screen has effectivepixels of99.99%ormore.Itmay includeblemishesof

0.01%orless suchas amissing pixelorapixellitallof the time.

·Due tothe nature of the LCDscreen, an afterimage of the previous screen may

remain afterswitching theimage,when thesameimage is displayedfor hours. In

this case,the screen isrecoveredslowlybychanging the image or turning off the

PowerSwitch forhours.

JAPANESEMATERIALCONTENT DECLARATION

AJapanese regulatory requirement,definedbyspecificationJIS 0950,2005.mandates

thatmanufacturesprovideMaterial ContentDeclarations for certain categories ofelectronic

productsofferedforsaleafterJuly 1,2006.

Toviewthe JIS C0950material declaration forthis product. Visit

http://global.acer.com/about/sustainability.htm

E-2

AL1716W

INTRODUCTION

Congratulations for purchasing model AL1716W,ahigh performance 17-inch color TFT

LCD monitor. The AL1716W monitor provides flicker-free and color images at optional

resolutions. Through this user guide, wewill introduce you step-by-step all the features,

functionsand technicalspecificationsof theLCDmonitor.Surelyyouwillhave arefreshing

experience working with the monitor.

FEATURES

TheAL1716W isa17-inchTFTLCDmonitor thatisintelligent,microprocessor-based and

ergonomically designeddisplay,compatiblewithmostanalogRGB (Red, Green, Blue)and

Digital displaystandards, including PS/V,PS/2, optional for Apple Macintosh Centris,

Quadra, and Macintosh II familysignals. The LCD monitor is capable of displaying crisp

and vibrant color graphics with VGA,SVGA,XGA,SXGA(non-interlaced), WXGAand

most Macintosh compatible color video cards.

·The monitor is able to properlyfunction even in case of upgrade video cards or

software because of the wide auto-scanning compatibilityrange without requiring to buy

anewmonitor.

·The internal microprocessor digitallycontrols auto-scanning. For horizontal scan

frequenciesbetween 31KHz and 83KHz, and verticalscan frequencies between56 Hzand

76 Hz. In each frequencymode, the microprocessor-based circuitryallowsthe monitor to

function at the precision-of a fixed frequency.

·The resident memoryallowsfor storing factorydefault settings and also additional

user adjustment parameters.

·Themaximumresolution achievableis WXGA (1440 x900), bestsuited for Windows

applications

·The compact and sleek cabinet design saves lot of your desk space and makes your

desk look neat and tidy.

AL1716W

E-3

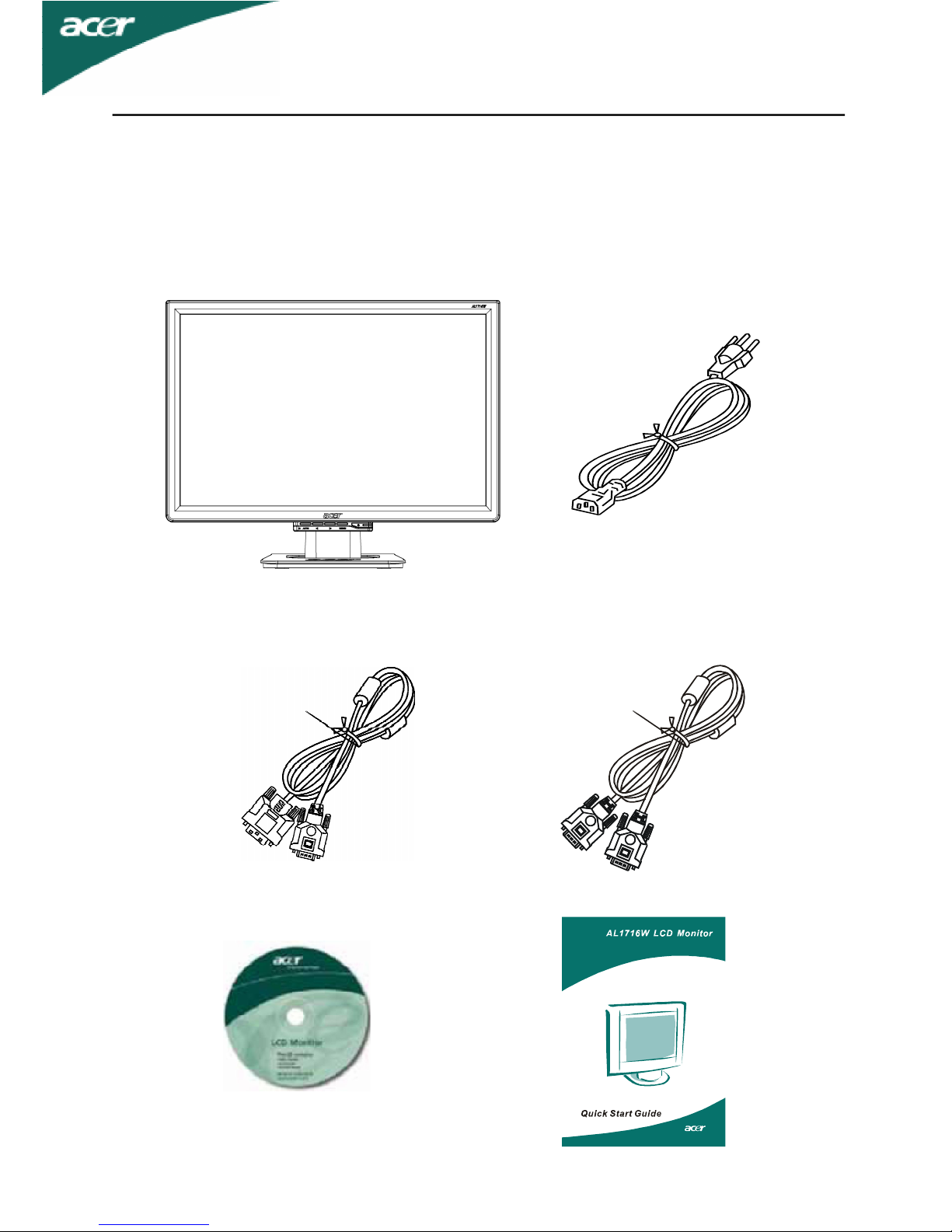

·LCD Monitor

UNPACKING

Please check the following itemsare present when you unpack the box, and save the

packing materials in case you will need to ship or transport the monitor in future.

·User Manual

·ACPowerCord

·DVI Cable

(OnlyDual-Input Model)

·D-SUB Cable

·Quick StartGuide

E-4

AL1716W

SCREEN POSITIONADJUSTMENT

In oder to optimize the best viewing position, you can adjust the tilt of the monitor by

using both of your hands to hold the edges of the monitor as shownin the figure below.

The monitor can be adjusted to 15 degrees up or 5 degrees down as indicated byarrow

below.

Attaching /Removing the Base

Install:

Align the four hooks on the bottomof

the monitor with the corresponding

slots on the bottomof the base.

Remove:

Depress the four hooks as indicated first

before removing the base and followthe

arrowdirection to remove it.

AL1716W

E-5

CONNECTING THE POWER CORD

·Check first to make sure that the power cord you use is the correct type required for

your area.

·This monitor has a universal power supplythat allows operation in either 100/120V

ACor 220/240 VACvoltage area. No user-adjustment is required.

·Plug one end of the power cord to the ACInlet, plug another end to aproper AC

outlet.

·For unit using at 120 VAC:

Use aULListed Cord Set, Type SVT wire and plug rated10 A/125 V.

·For unit using at 220/240 VAC(outsideof U.S.):

Use aCord Set consisting of H05VV-F cord and plug rated 10 A,250 V.The cord set

should have the appropriate safetyapprovals for the countryin which the equipment

willbeinstalled.

SAFETY PRECAUTION

·Avoid placing the monitor,or any other heavy object, on the power cord to avoid

damage to the cable.

·Do not expose the monitor to rain, excessive moisture, or dust.

·Donot covertheventilationslotsor openings of themonitor.Alwaysputthemonitor

in aplace where there is adequate ventilation.

·Avoid placing the monitor against abright background or where sunlight or other

light sources may reflect on the face of the monitor.Place the monitor just below

eye level.

·Handle with care when transporting the monitor.

·Refrain fromgiving shock or scratch to the screen, as screen is fragile.

CLEANING YOUR MONITOR

Please carefullyfollow the below guidelines when cleaning the monitor.

·Alwaysunplug the monitor before cleaning.

·Use asoft cloth to wipe the screen and cabinet front and sides.

E-6

AL1716W

PRESETMODES

Toreduce the need for adjustment for different modes, the monitor has default setting

modes that are most commonlyused as given in the table below.For optimumadjustment,

the user is suggested to performthe Auto Setup under Windows “Full Screen” pattern or

using the pattern in the floppydisk provided. When none of the mode is matched, the user

can store their preferred modes in the user modes. The monitor is capable of storing up to

9user modes. The onlycondition to store as auser mode is the newdisplayinformation

must have 1KHz difference for horizontal frequencyor 1Hz for vertical frequencyor the

sync signal polarities are different from the default modes.

ModeResolution H.Freq.

(KHz)

BandWidth

(MHz)

Polarity

1VGA720 x40070Hz31.4728.322-+

2VGA640 x48060Hz31.4725.175--

3MAC640 x48067Hz35.0032.24--

4VGA640 x48072Hz37.8631.5--

5VESA640 x48075Hz37.5031.5--

6VESA800 x60056Hz35.1636.00++

7VESA800 x60060Hz37.8840++

8VESA800 x60072Hz48.0850.00--

9VESA800 x60075Hz46.8849.5++

10MAC832 x62475Hz49.7357.28--

11VESA1024 x76860Hz48.3665--

12VESA1024 x76870Hz56.4875--

13VESA1024 x76875Hz60.0278.75++

14MAC1125 x87075Hz68.68100--

151280 x72060Hz44.77274.50-+

161280 x80075Hz62.63106.22--

17WXGA1440 x90075Hz70.635136.75-+

18WXGA1440 x90060Hz55.935106.5-+

AL1716W

E-7

POWER SAVING

The monitor will be driven into “Power Saving” mode bythe control

ignal fromthe

displaycontroller,as indicated bythe amber-color power LED.

The powersaving states willbekeptuntilacontrolsignalhas been detected orthe

keyboard or mouseis activated. TherecoverytimefromActiveOFF state back toON state

is around 5seconds.

DDC

To make your installation easier, the monitor is able to Plug and Playwith your systemif

yoursystemalso supports DDC protocol. The DDC (DisplayDataChannel) is a

communication protocol through whichthe monitor automaticallyinformsthehost system

about its capabilities, for example, supported resolutions and corresponding timing. The

monitor supports DDC2B standard.

State Power

Consumption LEDLight

ONNormalGreen

PowerSavingMode<2 WAmber

E-8

AL1716W

INSTALLATION

Toinstall the monitor to your host system,please followthe steps as given below:

Steps

1.1-1Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the VGAvideo cable to the computer.

1-2DigitalCable(Only Dual-InputModel)

a. Make sure both the monitor and computer are powered-OFF.

b. Connect one end of the 24-pin DVI cable to the back of the monitorand

connect the other end to the computer’sport.

2.Connect power cord

Connect the power cord to the monitor, then to a properlygrounded AC outlet.

3.Power-ON Monitor and Computer

Power-ON the monitor first, then power-ON the computer.

This sequence is veryimportant.

4.Ifthemonitor stilldoesnot function properly,pleaserefer to thetroubleshootingsection

to diagnose the problem.

Please don’topenthe cover

AL1716W

E-9

USER CONTROLS

Front Panel Controls

1.Power Switch:

Toturn ON or OFF the power.

2.PowerLED:

Lights up to indicate the power is turned ON.

3.Empowering /Exit:

1) When OSD menu is inactive status, this buttonwill act as EXIT-KEY(EXIT OSDmenu).

2) When OSD menu is in off status, press this button to select scenario mode.

4.</>

Press < or > to select the desired function.

Press <or >to change the settings of the current function.

5.MENU /ENTER:

Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when

OSD is ON or ExitOSD menu whenin VolumeAdjust OSD status.
