Acer TravelMate C200 Series

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on TravelMate C200 service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Chapter 1 1

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

TIntel®Pentium®M processor 725/730/740/750/760/770 (2MB L2 cache, 1.60/1.73/1.86/2/2.13

GHz, 533 MHz FSB)

TIntel®Celeron®M processor 350/360/370/380 (1MB L2 cache, 1.30/1.40/1.50/1.60 GHz, 400 Mhz

FSB)

TIntel®915PM/915GM/910GML+ICH6-M (north bridge+south bridge)

TWireless solution: integrated Intel PRO/Wireless 2915ABG network connection (dual-band tri-

mode 802.11a/b/g) Wi-Fi CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

TDVD/CD-RW combo or DVD-dual drive

THigh-capacity Enhanced-IDE hard disk

TAdvanced Configuration Power Interface (ACPI) power management system

Display

T12.1” XGA Thin-Film Transistor (TFT) liquid-crystal display (LCD) supporting pen-based input, with

16.7 million color at 1024X768 resolution

TLCD slides to convert from notebook to tablet mode

TGraphic controller: NVIDIA®NV44M-V (NVIDIA®GeForceTM Go 6200) with 32MB of VRAM,

supporting NVIDIA®TurboCacheTM technology up to 128 MB, PCI ExpressTM and Microsoft®

DirectX®9.0

TDualViewTM support

Communication

TModem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready

TLAN: gigabit Ethernet; Wake-on-LAN ready

TWLAN: Intel®PRO/Wireless 2915ABG network connection (802.11b/g or 802.11a/b/g) Wi-Fi

CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

TWPAN: integrated Bluetooth®

Input devices

T84-/85-key keyboard with inverted “T” cursor layout

TBuilt-in trackpoint with two buttons

T12 function keys, four cursor keys, two Windows®key, hotkey controls, embedded numeric

keypad, international language support

TFour easy-launch buttons: Internet, email, Empowering Key, user-programmable button

TFour tablet-mode buttons: Windows Security, Screen Rotate, Function, Escape

T3-way scroll wheel (up/down/enter)

TElectromagnetic Resonance (EMR) pen with eraser

System Specifications

Chapter 1

2Chapter 1

Audio

TAudio system with one built-in speaker and microphone

TSound Blaster ProTM and MS-Sound compatible

I/O interface

T124-pin Acer ezDock connector

TThree USB 2.0 ports

T4-in-1 card reader (MS/MS PRo/MMC/SD)

TPC Card slot (Type II)

TIEEE 1394 port

TFast infrared (FIR) port

TExternal display (VGA) port

TEthernet (RJ-45) port

TModem (RJ-11) port

TMicrophone/line-in jack

THeadphones/speaker/line-out jack

TDC-in jack for AC adapter

Chapter 1 3

System Block Diagram

1 2 3 4 5 6 7 8

A A

B B

C C

D D

Size Document Number Rev

Date: Sheet of

Schematic Block Diagram

D2B

142Thursday, August 11, 2005

Size Document Number Rev

Date: Sheet of

Schematic Block Diagram

D2B

142Thursday, August 11, 2005

Size Document Number Rev

Date: Sheet of

Schematic Block Diagram

D2B

142Thursday, August 11, 2005

(478 Micro-FCPGA)

Alviso

4X133MHZ

DMI interface

Azalia

CLOCKS

Generator

CPU VR

DC/DCAC/BATT

CONNECTOR

BATT

CHARGER

Dothan/Celeron-M

DDR-SODIMM1

DDR-SODIMM2

Multi-Bay

Parallel-HDD

1257 PCBGA

533 MHZ DDR II

AL C260

(Codec)

&AMP

Mini-Bluetooth

(USB bus)

+1.05V

+1.5V

+1.8VSUS +2.5V

IDE

+1.8VSUS

+0.9V

+1.2V/+2.5V

+1.05V/+1.5V

+1.8V/+0.9V

+3V/+5V Page 37

n-VIDIA NV44MV

IDE

MDC1.5

Internal-MIC

Head phone

LINE-IN/MIC-IN

Page 36 Page 3

Page 41

Page 40

Page 10,11

Page 32

Page 6,7,8,9

Page 4,5

Page 12,13,14,15

Page 30

Page 31

Page 30

Page 25

DVI

Page 16

CH7307

INT_LVDS

INT_VGA

INT_TVOUT

SWITCH

Page 28

CIRCUIT

Page 17

VGA

CRT

EXT_LVDS

EXT_TVOUT

EXT_VGA

EZ4 DVI

Page 33

DOCKING

EXT. VGA

LCD Connector

Page 24

RJ11

Page 32

609 BGA

+1.5VSUS

ICH6-M

+3VSUS

+3V

Page 18,19,20

+2.5V

+1.5V +1.05V

USB

USB PORT X 3

Page 25

Page 31

Page 23 Page 24

LAN (10M/100M/1G)

BCM5788M

RJ45

Page 22

CARDBUS

CON.

MMC,SD,MS

Page 22

3 in 1

socket

PCI

Page 21

1394 PORT

CARDBUS/1394/3-IN-1

Page 21,22

TI 7411

BUFFER

Page 29

MINI-PCI

Wireless LAN

33MHz PCI

Page 34

+5V

FAN 1

+5V

FLASH

+5V +3VPCU

Page 28 Page 27 Page 27

Page 27

Page 25

Keyboard

3V_591

176 Pins LQFP

Page 28

JOGDIAL

Finger

Printer

Digitizer

Page 26

EC NSC97551

Page 26

FIR

SUPER I/O

PC87391

Page 17

COM A COM B

EZ4 DVI

VGA/s-video

Acer Inc.

TravelMate C200

4Chapter 1

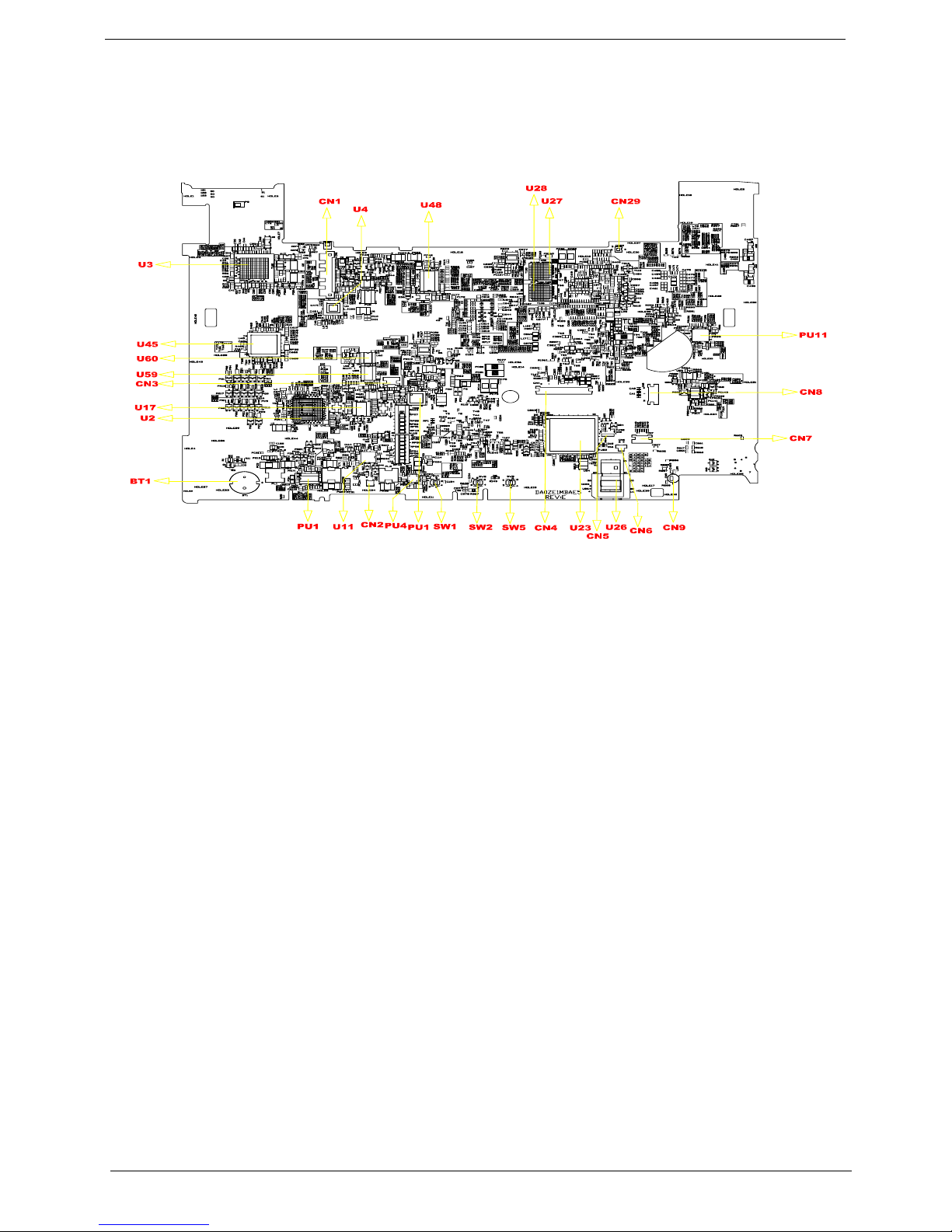

Board Layout

Top View

CN1 LCD connector SW2 Touchpad Switch

U4 DVI Transfer IC SW1 Touchpad Switch

U48 Clock Generator IC PU1 System PWR IC

U28 Video RAM PU4

U27 Video RAM CN2 Speaker Connector

CN29 Lid-Switch U11 CardBus PWR IC

PU11 CPU PWR IC PU1 System PWR IC

CN8 Quick Board Connector BT1 RTC Battery Connector

CN7 Jogdial Connector U2 CardBus IC

CN9 Microphone Connector U17 Track Point IC

CN6 Pen-Sensor CN3 Track Point Connector

U26 BIOS U59 ODD Switch IC

CN5 Bluetooth Connector U60 ODD Switch IC

U23 Keyboard Control IC U45 Super I/O IC

CN4 Keyboard Connector U3 GigaLAN IC

SW5 Power-On Switch
