Nitro 5 AN515-58
Lifecycle Extension Guide
ii
Table of Contents
Self-Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Disassembly Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
FRU (Field Replaceable Unit) List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Personal Data Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Self-Repair 1-1
Self-Repair
This chapter highlights the limited self-repair capabilities of the product.
Prior performing self-repair, familiarize yourself with the Safety Guidelines and Recommended
Equipment sections first as described in the chapter "Disassembly Procedures".
Depending on model, the following key components are eligible for self-repair (if applicable);
• Battery pack
• HDD / SSD module
• DIMM module(s)
• WLAN module
• LTE module
If a particular key component is listed and thus would be eligible for self-repair, but is not described
in the "Disassembly Procedures" section, then this component is either not present on the
respective model, or it is present but embedded on the motherboard and therefore not eligible for
self-repair.
NOTE:
Do not attempt to replace other components than those listed above.
NOTE:
For replacement parts, always use only Acer certified components in order to safeguard quality,
optimum system performance, stability and reliability of the product.
NOTE:
Any damage to the product that occur during self-repair, or which has occurred as a result of a
careless or unsuccessful self-repair attempt, is not covered by the standard product warranty.
Disassembly Procedures
Please refer to the chapter "Disassembly Procedures" for step by step disassembly instructions.
1-2 Self-Repair
System BIOS & Driver Updates
Visit http://www.acer.com/support to discover the available system BIOS and Drivers for this
product. After selecting the desired country/language, either enter the model name or product serial
number, or select the product from the list of suggested models in order to get access to product-
specific software and documentation.
To update the system BIOS:
• Download the desired system BIOS version from the website
• Unzip the downloaded file to your computer
• Double-click the extracted file in order to initiate the update process
• The update process itself is fully automated and its progress is visualized by means of a
progress indicator
• A visual notification is shown when the update is complete
NOTE:
Upgrading the system BIOS incorrectly, or intermittence of the system BIOS update process could
harm the product.
NOTE:
System BIOS upgrades or downgrades, if not performed by an Acer Service Center or authorized
Service Partner, are at own risk.
To update Drivers:
Run Windows Update in order to get the latest drivers from Acer:
• Select the Start button
•Go to Settings > Update & Security > Windows Update
• Available Drivers will automatically be listed on the screen. Press Download to start the
download of the respective driver
• Installation of the driver will start automatically once the download is completed
Software Recovery
This product has embedded software recovery tools which can be used to either perform a partial
or full software recovery, but also to create a Factory Default recovery media.
For more information about the software recovery options, how to perform a software recovery or
creating a Factory Default recovery media, please refer to the chapter "Recovery" which is
available in the User Manual of the product.
NOTE:
In the event of not being able to create a Factory Default recovery media, it is possible to obtain a
copy of the recovery media through Acer Customer Service
(http://www.acer.com/support)
This is not a free of charge service.
Disassembly Procedures 1-3
Disassembly Procedures
Safety Guidelines
This chapter contains step by step procedures on how to remove and de-install components from
the computer. Use the following safety guidelines to ensure your personal safety. Each procedure
included in this chapter assumes that you are preparing your computer for recycling and disposal.
By performing any of these procedures you acknowledge that any remaining warranty
applicable to your computer will be voided. Before you start any of the procedures in this
chapter, make sure to read the following safety guidelines and the respective instructions
within the chapter.
CAUTION!
• Turn off your computer and disconnect all power sources before opening the computer
cover or panels.
• To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface at the same time as touching a
connector on the back of the computer.
• Take off any metal objects on your arms or fingers such as bracelets, rings or watches
and make sure your hands are completely dry. Even if your unit is unplugged, there may
still be some remaining electric charge.
• If a component does not come out easily, do not forcefully remove it. Instead, check that
you are removing it correctly and that no wires or other parts are in the way.
• When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable
itself. Some cables have connectors with locking tabs; if you are disconnecting this type
of cable, press in on the locking tabs before you disconnect the cable.
Recommended Equipment
The following tools are required to perform maintenance on the notebook:
• Wrist grounding strap and conductive mat
• Flat screwdriver
• Philips screwdriver
• Pointed plastic pry or similar object
• Tweezers
1-4 Disassembly Procedures
WEEE Annex VII Component
These components are classified as requiring selective treatment:
• Battery pack
• DIMM modules
• WLAN module
• SSD modules
• RTC battery
• USB board
• Mainboard
• Touchpad module
• LCD panel
Disassembly Procedures 1-5
Getting Started
Perform the following prior to performing any maintenance procedures:
1. Place the system on a flat work surface.
2. Make sure the system is completely powered down.
a. If the device is in powered up mode, shut down the system normally.
b. If the device is in sleep mode, wait for the Home Screen to clear. Then, shut down normally.
3. Disconnect the AC Adapter and remove all cables from the system and its peripherals.
Figure 1-1. Disconnecting the Power Adapter
1-6 Disassembly Procedures
Lower Case Removal

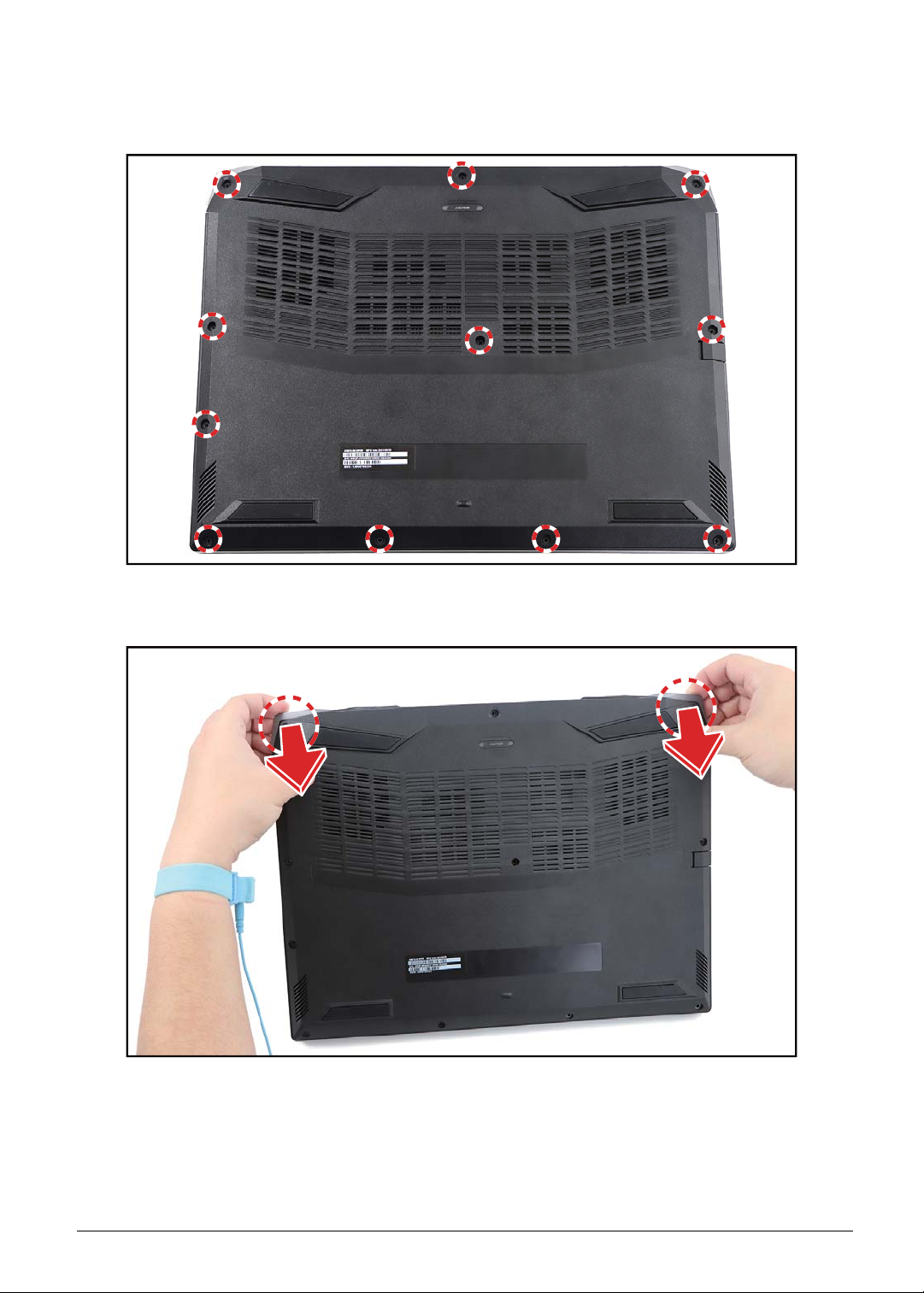

1. Remove the eleven (11) screws securing the lower case to the upper case.
Figure 1-2. Removing the Screws
2. Pry the upper side edges to release the latches, following the direction arrow.
Figure 1-3. Releasing the Lower Case (1 of 2)
Disassembly Procedures 1-7
3. Starting from the upper side, carefully lift the lower case to continue releasing the remaining
latches.
Figure 1-4. Releasing the Lower Case (2 of 2)
4. Remove the lower case.
Figure 1-5. Removing the Lower Case
Table 1-1. Lower Case Screws
Screw Name Screw Type Torque Quantity
M 2.5 x 8.0 2.65~3.0kgf.cm 11
1-8 Disassembly Procedures
Battery Removal
Prerequisite:
Lower Case Removal on page 1-6

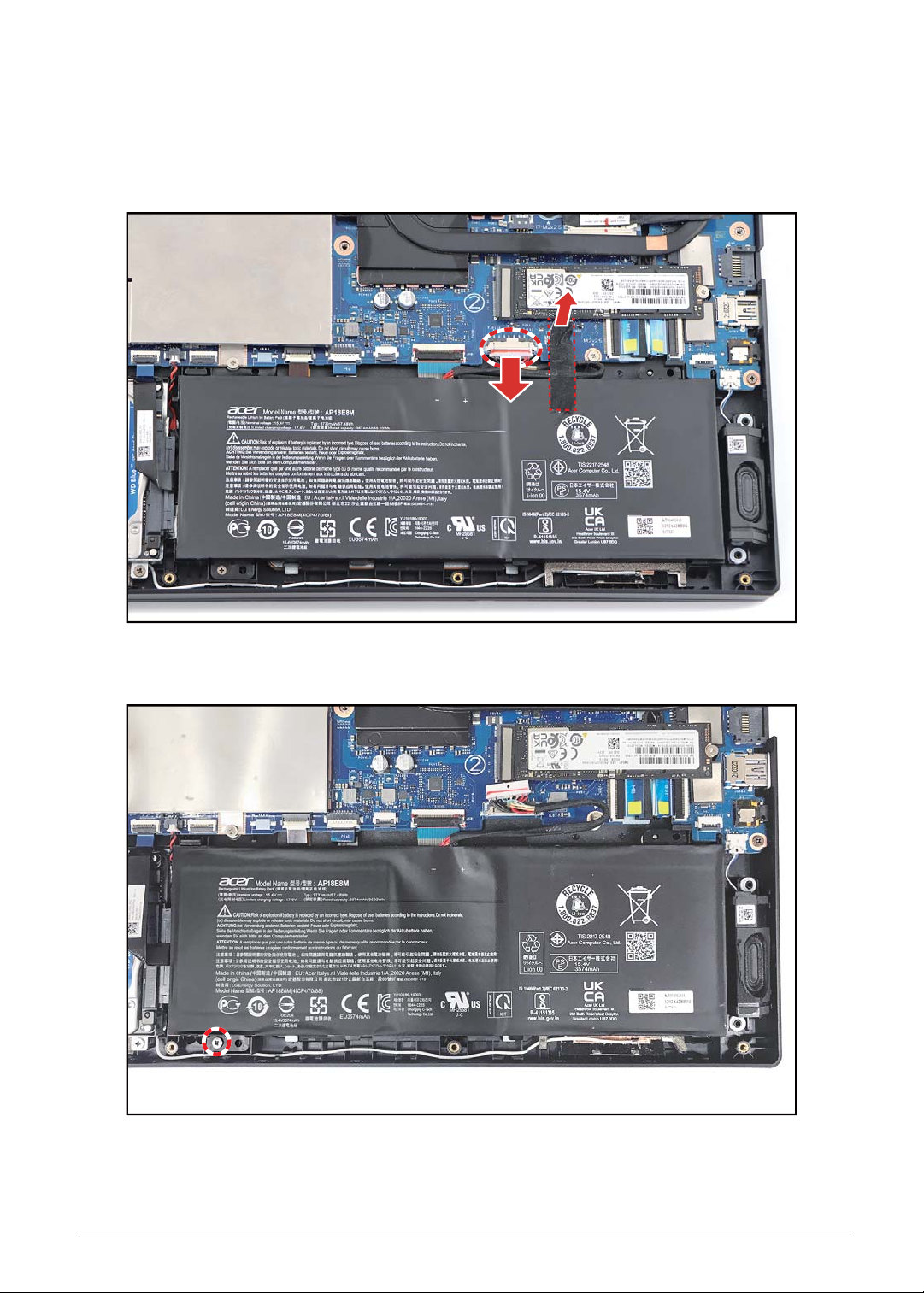

1. Detach the tape and disconnect the battery cable from the mainboard connector.
Figure 1-6. Disconnecting the Battery Cable
2. Remove the screw securing the battery to the upper case.
Figure 1-7. Removing the Screw
