Extensa 7630/7630Z/7230 Series Quick Guide

Original Issue: 11/2008

Extensa 7630/7630Z/7230 Series Notebook PC

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'

product names or trademarks are used herein for identification purposes only and belong to

their respective companies.

First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your

computer.

The Extensa Series Generic User Guide contains useful information applying to

all models in the Extensa product series. It covers basic topics such as Acer's

Empowering Technology, using the keyboard, audio, etc. Please understand

that due to its nature, the Generic User Guide as well as the AcerSystem User

Guide mentioned below will occasionally refer to functions or features which

are only contained in certain models of the series, but not necessarily in the

model you purchased. Such instances are marked in the text with language such

as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the AcerSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on AcerSystem User Guide will run the

Adobe Reader setup program first. Follow the instructions on the screen to

complete the installation. For instructions on how to use Adobe Reader,

access the Help and Support menu.

English

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster,

let us show you around your new Acer notebook.

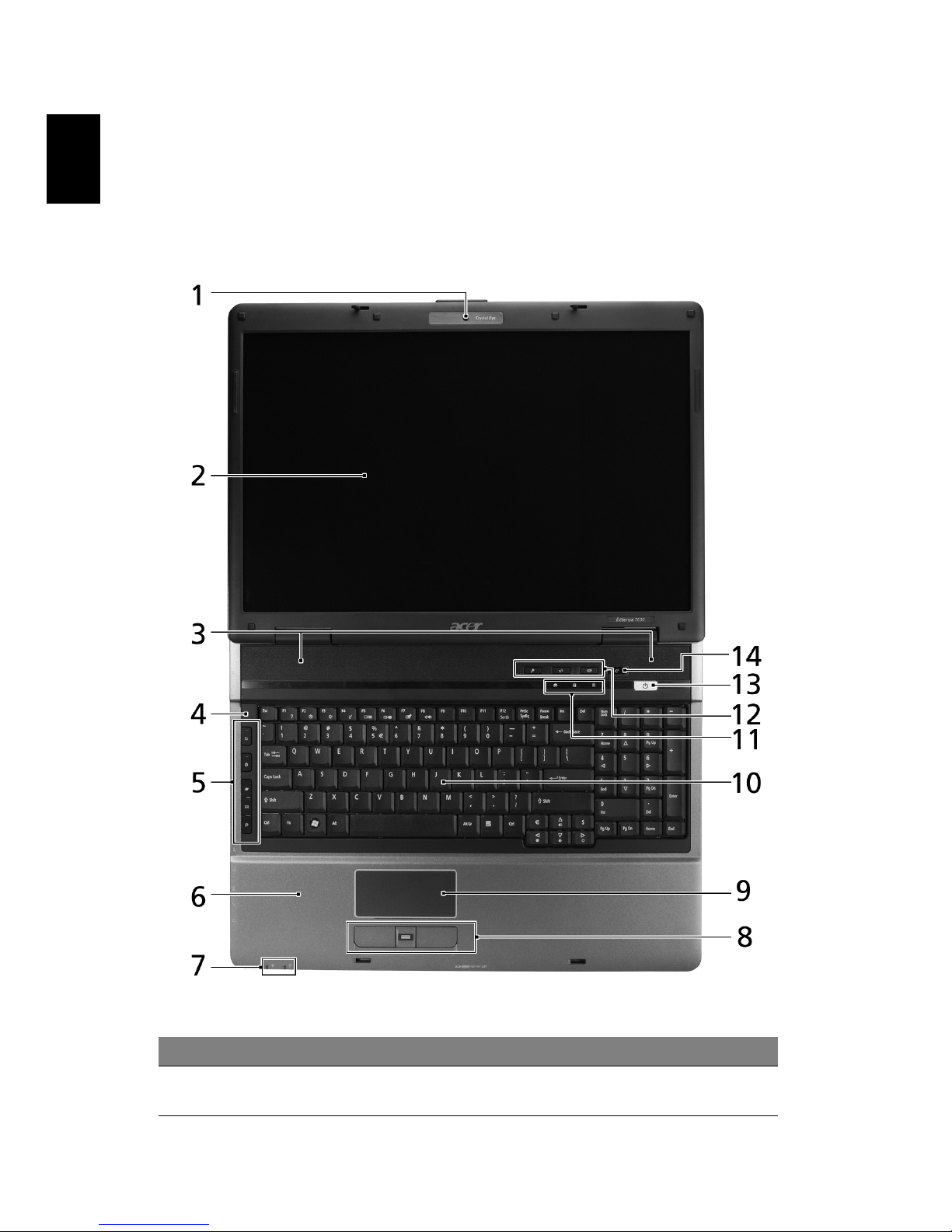

Top view

#Icon Item Description

1 Acer Crystal Eye* Web camera for video communication

(only for certain models).

English

2 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output.

3 Speakers Left and right speakers deliver stereo

audio output.

4 Microphone Internal microphone for sound recording.

5 Easy-launch buttons Buttons for launching frequently used

programs. Please refer to the Generic

User Guide for more details.

6 Palmrest Comfortable support area for your hands

when you use the computer.

7 Status indicators Light-Emitting Diodes (LEDs) that light up

to show the status of the computer's

functions and components.

Please refer to the Generic User Guide for

more details.

8 Click buttons (left,

center* and right)

The left and right buttons function like

the left and right mouse buttons.

*The center button serves as Acer

BioProtect fingerprint reader supporting

Acer FingerNav 4-way control function

(only for certain models).

9 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

10 Keyboard For entering data into your computer.

11 Status indicators Light-Emitting Diodes (LEDs) that light up

to show the status of the computer's

functions and components.

Please refer to the Generic User Guide for

more details.

12 Productivity keys Three productivity keys give users one-

touch access to protection and

manageability features for a more secure,

smarter and easier way to work.

Please refer to the Generic User Guide for

more details.

13 Power button Turns the computer on and off.

14 Empowering key Launch Acer Empowering Technology.

#Icon Item Description

English

Closed front view

Rear view

#Icon Item Description

1 5-in-1 card reader* Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory Stick

(MS), Memory Stick Pro (MS PRO), and xD-

Picture Card. (only for certain models)

Note: Push to remove/install the card. Only

one card can operate at any given time.

2 Latch Locks and releases the lid.

#Item Description

1 Ventilation slots Enable the computer to stay cool, even after prolonged

use.

English

Left view

#Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100/1000-

based network.

3 Acer EasyPort IV

connector*

Connects to Acer EasyPort IV

(only for certain models).

4 External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

5 HDMI HDMI port* Supports high definition digital video

connections (only for certain models).

6 USB 2.0 port Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

7 Headphones/

speaker/line-out

jack.

Connects to audio line-out devices

(e.g., speakers, headphones).

Microphone jack Accepts inputs from external

microphones.

Line-in jack Accepts audio line-in devices (e.g.,

audio CD player, stereo walkman, mp3

player)

8 PC Card slot Accepts one Type II PC Card.

9 PC Card slot eject

button

Ejects the PC Card from the slot.

English

Right view

#Icon Item Description

1 ExpressCard/54

slot*

Accepts one ExpressCard/54 module.

Note: Push to remove/install the card.

(only for certain models)

2 USB 2.0 port Connects to USB 2.0 devices

(e.g., USB mouse, USB camera).

3 Optical drive Internal optical drive; accepts CDs or

DVDs.

4 Optical disk

access indicator

Lights up when the optical drive is active.

5 Optical drive

eject button

Ejects the optical disk from the drive.

6 Emergency eject

hole

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the emergency

eject hole to eject the optical drive tray

when the computer is off.

7Modem

(RJ-11) port*

Connects to a phone line.

(only for certain models)

8 Kensington lock

slot

Connects to a Kensington-compatible

computer security lock.

English

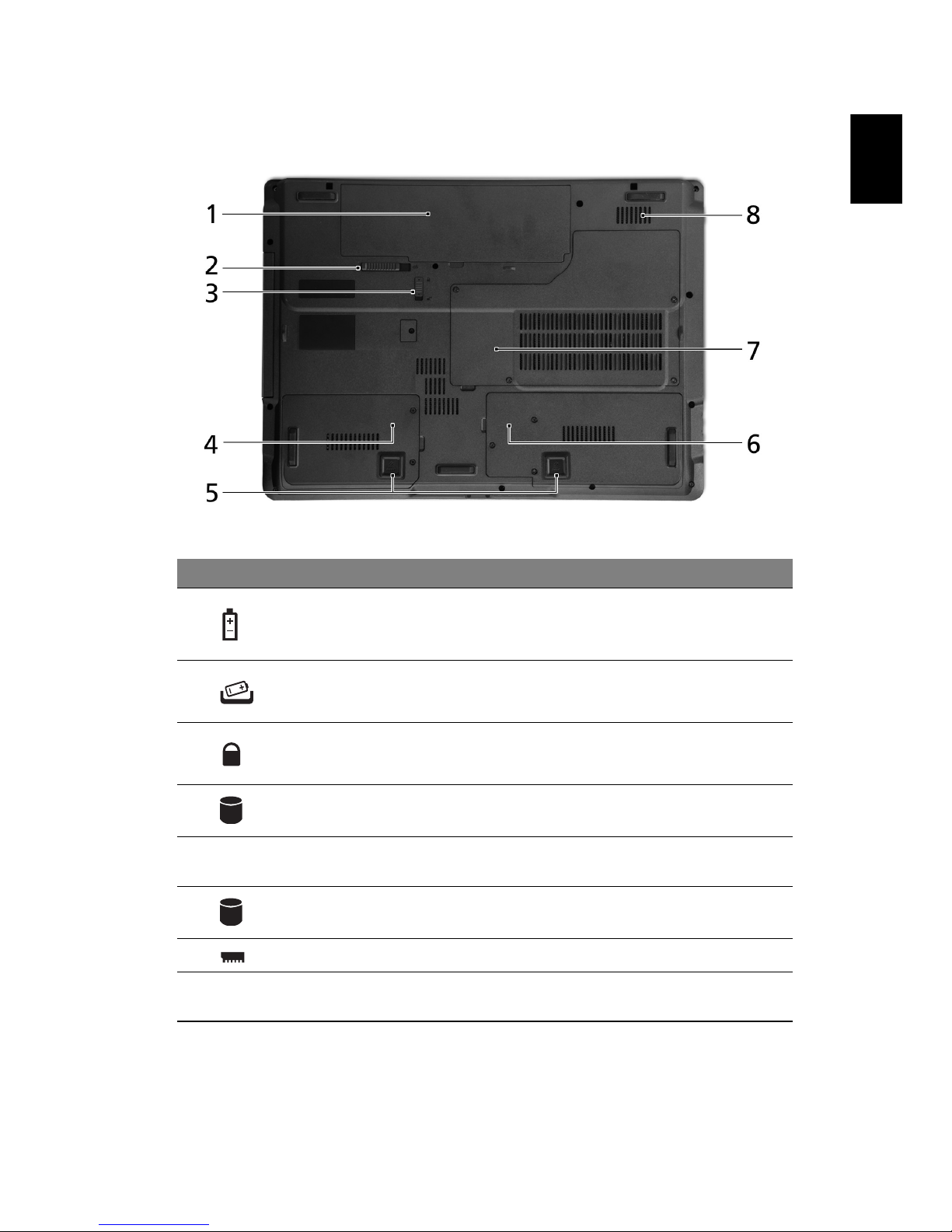

Base view

#Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery to remove the

battery pack.

3 Battery lock Locks the battery in position.

4 Hard disk bay-Main Houses the computer's hard disk

(secured with screws)

5 Acer DASP (Disk Anti-

Shock Protection)*

Protects the hard disk drive from shocks

and bumps (only for certain models).

6 Hard disk bay-

Secondary*

Houses the computer's hard disk (secured

with screws) (only for certain models)

7 Memory compartment Houses the computer's main memory.

8 Ventilation slots Enable the computer to stay cool, even

after prolonged use.

English

Specifications

Operating

system • Genuine Windows Vista®

Platform •Intel

®Centrino®2 processor technology, featuring:

•Intel

®Core™2 Duo processor*

• Mobile Intel®PM45/GM45 Express Chipset*

•Intel

®Wireless WiFi Link 5100/5300*

•Intel

®Pentium®dual-core processor*

•Intel

®Celeron®processor*

• Mobile Intel®GL40 Express Chipset*

• Acer InviLink™Nplify™802.11b/g/Draft-N*

• Acer InviLink™802.11b/g*

System memory • Dual-Channel support

• Up to 2 GB of DDR2 667 MHz memory, upgradeable

to 4 GB using two soDIMM modules*

• Up to 2 GB of DDR3 1066 MHz memory, upgradeable

to 4 GB using two soDIMM modules*

Display • 17" WXGA+ 1440 x 900

Graphics • ATI Mobility Radeon™HD 3650*

• ATI Mobility Radeon™HD 3470*

•NVIDIA

®GeForce®9600M GT*

•NVIDIA

®GeForce®9300M GS*

• Mobile Intel®GM45 Express Chipset*

• Mobile Intel®GL40 Express Chipset*

Storage

subsystem

• 2.5" hard disk drive

•Intel

®Turbo Memory 2GB supported*

• Optical drive options:

• Blu-ray Disc™/DVD-Super Multi double-layer

drive*

• DVD-Super Multi double-layer drive*

• DVD/CD-RW combo drive*

• 5-in-1 card reader

Audio • Two built-in stereo speakers

• High-definition audio support

• MS-Sound compatible

• Built-in microphone*
