Acer Aspire One AOP531h Manuel utilisateur

Series

Quick Guide

Series

Aspire one Pro Series Quick Guide

Original Issue: 03/2009

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Aspire one Pro Series Notebook PC

Quick Guide

Federal Communications Commission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any interference received, including interference that may cause

undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name: Notebook PC

Model number: KAVA0

Machine type: Aspire one Pro

SKU number: Aspire one-xxxxx ("x" = 0 - 9, a - z, or A - Z)

Name of responsible party: Acer America Corporation

Address of responsible party: 333 West San Carlos St. San Jose, CA 95110 USA

Contact person: Acer Representative

Tel: 1-254-298-4000

Fax: 1-254-298-4147

Series

CE Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan

Contact Person: Mr. Easy Lai

Tel: 886-2-8691-3089 Fax: 886-2-8691-3120

E-mail: [email protected]

Hereby declare that:

Product: Notebook PC Trade name: Acer

Model number: KAVA0 Machine type: Aspire one Pro

SKU number: Aspire one Pro-xxxxx ("x" = 0 - 9, a - z, or A - Z)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the

necessary steps have been taken and are in force to assure that production units of the same product will continue comply with

the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022:2006,AS/NZSCISPR22:2006,ClassB

• EN55024:1998+A1:2001+A2:2003

• EN61000-3-2:2006,ClassD

• EN61000-3-3:1995+A1:2001+A2:2005

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1:2001+A11:2004

Quick Guide

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article3.1(a)HealthandSafety

- EN60950-1:2001+A11:2004

- EN50371:2002

• Article3.1(b)EMC

- EN301 489-1 V1.6.1

- EN301 489-3 V1.4.1 (Applicable to non-bluetooth wireless keyboard mouse set).

- EN301 489-17 V1.2.1

• Article3.2SpectrumUsages

- EN300 440-2 V1.1.2 (Applicable to non-bluetooth wireless keyboard mouse set).

- EN300 328 V1.7.1

- EN301 893 V1.4.1 (Applicable to 5GHz high performance RLAN).

Easy Lai /Manager

Regulation Center, Acer Inc.

Feb. 20, 2009

Date

Year to begin affixing CE marking 2009.

Series

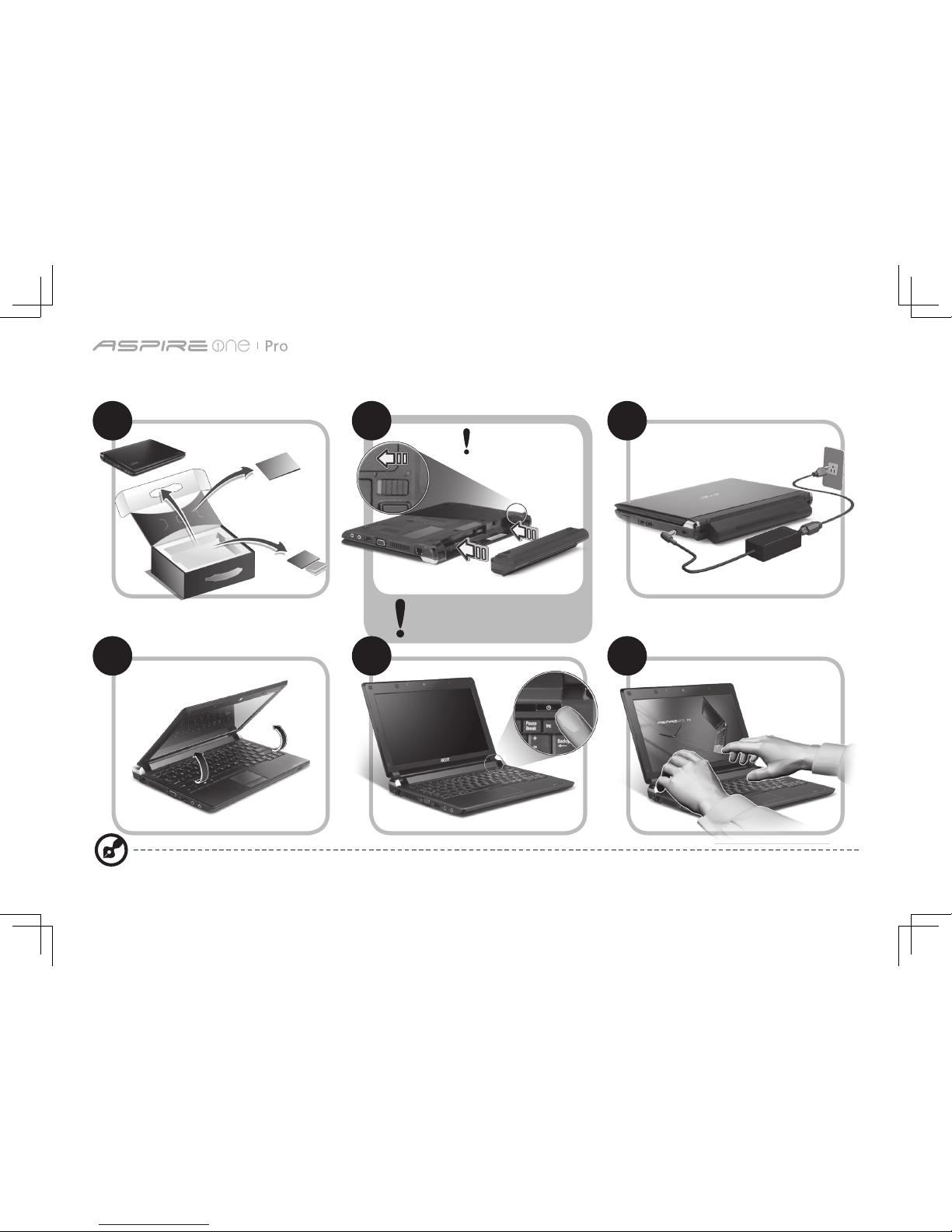

Just for starters

1 2 3

4 5 6

3-1 3-2

3-3

2-1

2-2

Illustrations are for reference only. Actual product specifications may vary.

Ensure that the battery is

probably locked in place, as

illustrated in 2-2.

Quick Guide

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides*:

First off, the Quick Guide helps you get started with setting up your computer.

For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide

contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In

addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem

User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the

installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

* IMPORTANT NOTICE: Please note that the guides mentioned herein, whether in printed or electronic form, are for your

reference only and except as provided in the specific warranty information contained in the AcerSystem User Guide

nothing contained in these guides shall constitute a representation or warranty by Acer with regard to the product you

purchased. Acer expressly disclaims any liability for errors contained in the guides.

Series

Network configuration

This guide will help you configure your LAN and wireless network settings to enable you to connect to the Internet.

Setting up LAN connection

Simply plug in the LAN cable to the Ethernet (RJ-45) port. Please refer to "Left view" on page 10 for the location of the Ethernet

port.

Setting up wireless connection

1. Please turn on the wireless LAN using the switch on the front of your Aspire one Pro.

2. Click the icon on your system tray and choose the wireless access point you want to connect to.

Insert a 3G SIM card (only for certain models)

Remove the battery and carefully insert a 3G SIM card into the 3G SIM card slot. Please refer to "Base view" on page 11 for the

location of the 3G SIM card slot.

Quick Guide

Your Aspire one tour

After setting up your computer as illustrated in the Just

for Starters section, let us show you around your new Acer

notebook.

Top view

# Icon Item Description

1Acer Crystal Eye

webcam

Web camera for video

communication

2Microphone Internal microphone for sound

recording.

3Display screen Also called Liquid-Crystal Display

(LCD), displays computer output.

4Bluetooth

communication

switch/indicator

Enables/disablestheBluetooth

function.

IndicatesthestatusofBluetooth

communication.

(only for certain models)

5Status indicators Light-Emitting Diodes (LED) that

light up to show the status of

the computer's functions and

components.

6Keyboard For entering data into your

computer.

7Touchpad Touch-sensitive pointing device

which functions like a computer

mouse.

8Click buttons

(left, and right)

The left and right buttons function

like the left and right mouse

buttons.

9Battery/3G/Wireless

LAN communication

indicator

IndicatesthestatusofBattery/3G/

Wireless LAN communication.

(only for certain models)

10 Power button/

indicator

Turns the computer on and off.

Series

Closed front view

# Icon Item Description

1Wireless/3G

communication

switch

Enables/disables the wireless/3G function.

Left view

2Ethernet (RJ-45) port Connects to an Ethernet 10/100-based

network.

3Ventilation slots and

cooling fan

Enable the computer to stay cool, even

after prolonged use.

Note: Do not cover or obstruct the opening

of the fan.

4External display

(VGA) port

Connects to a display device (e.g., external

monitor, LCD projector).

5USB2.0port ConnectstoUSB2.0devices(e.g.,USB

mouse).

6Microphone-in jack Accepts input from external microphones.

7Headphone/speaker/

line-out jack

Connects to line-out audio devices (e.g.,

speakers, headphones).
