TouchKit Setup

Reminder:

Be extremely careful when putting back on

the LCD housing; make sure the screws are

NOT tightened all the way down. Discontinue action

immediately as soon as force is felt on the housing.

Further tightening of the screws will cause touch

screen to crack resulting in inaccurate cursor.

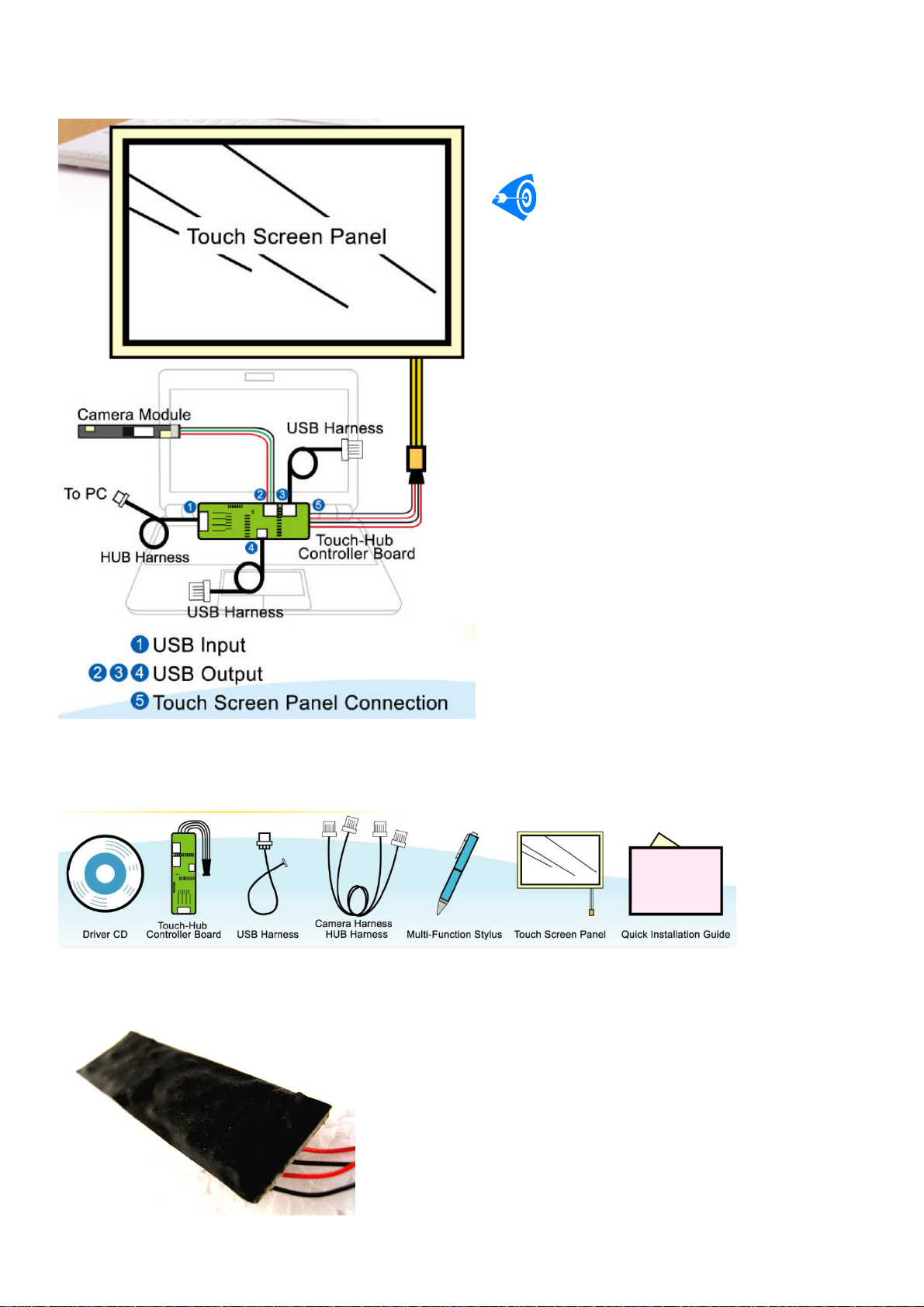

Package Content

Controller Board Preparation

Apply rubber adhesive on the bottom side of the Touch-Hub Controller

board as insulation.

Acer Aspire One Installation Guide

Step 1.

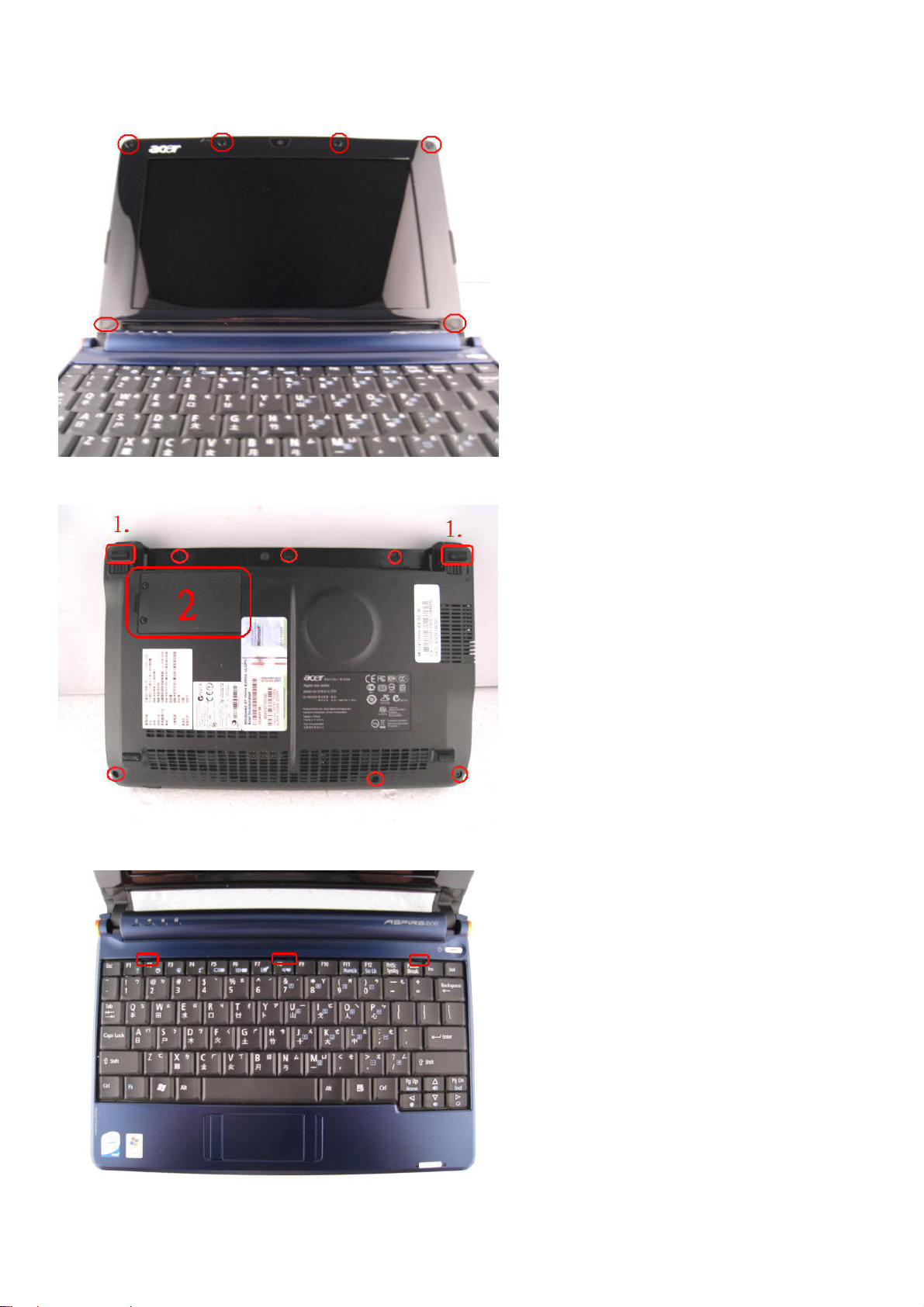

1. Remove all 6 screws for LCD housing.

Step 2.

1. Remove both rubber feet.

2. Remove back door for controller fitting.

zRemove all 8 screws for bottom

housing.

Step 3.

zRemove keyboard by pushing in the 3

springs.

Step 4.

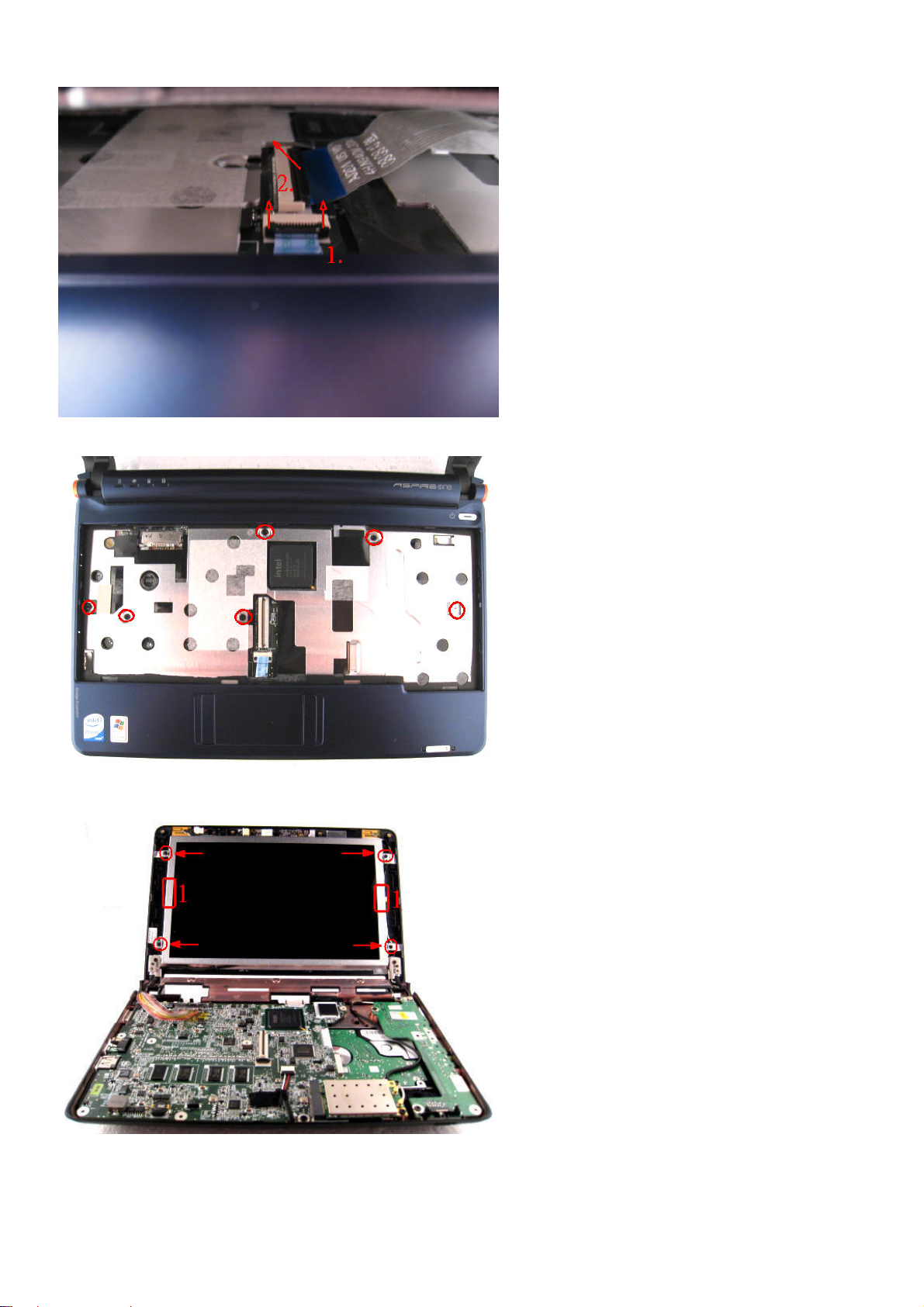

zRemove both FPC for keyboard and

touchpad in the direction indicated.

Step 5.

zRemove all 6 screws for keyboard

housing.

Setp 6.

1. Use thin double-sided tape to secure

the touch screen panel on the metal frame

of the LCD module.

zRemove all 4 screws to detach the LCD

module from the housing.

Step 7.

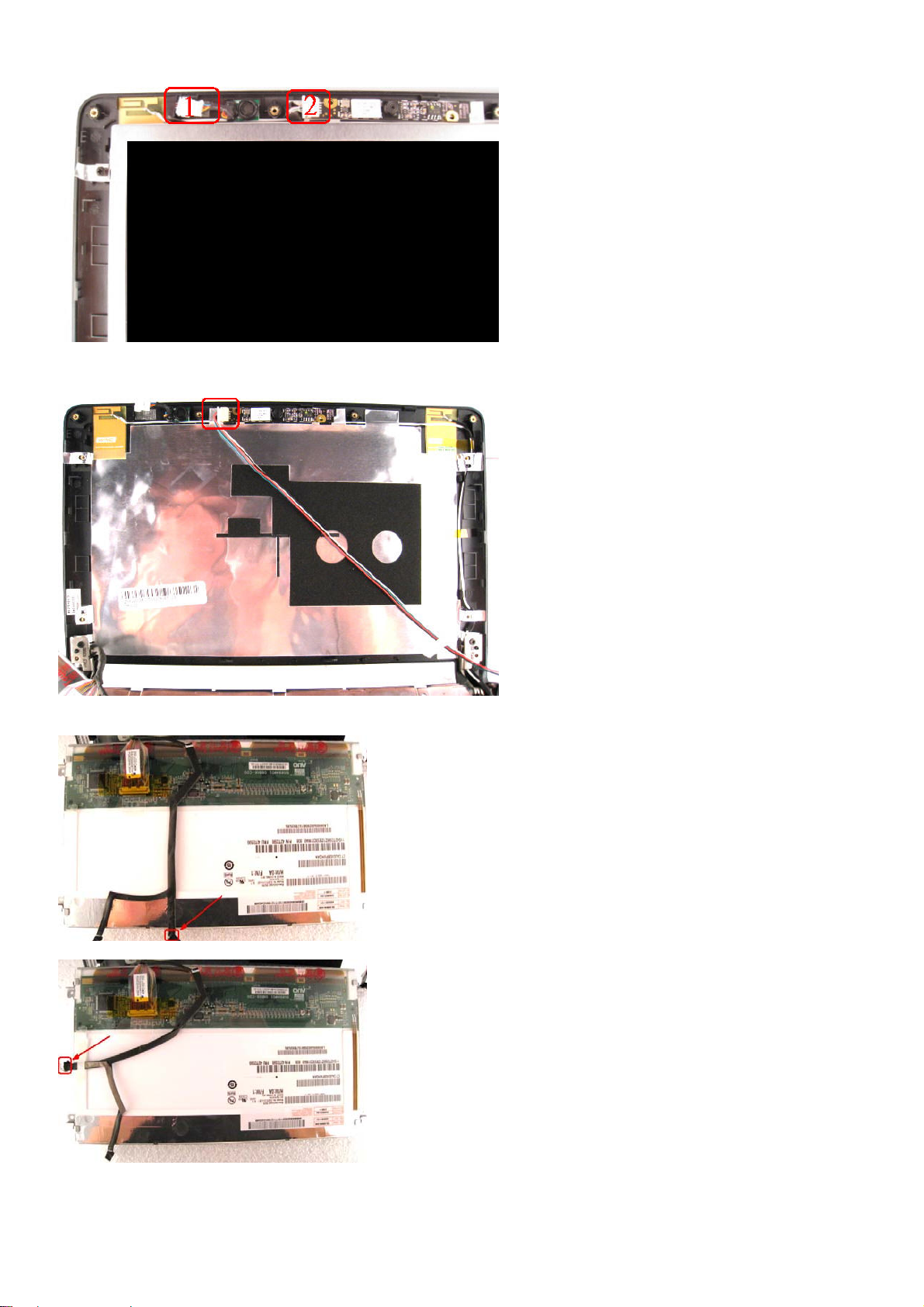

1. Remove microphone connector.

2. Remove camera module connector.

Step 8.

zUse Camera Harness provided in the

TouchKit to connect the camera module to

the USB output port of the controller board.

Step 9.

zMove the camera connector from the top to the left

location of the LCD module indicated by the pictures. This

connector will be used as USB input for the controller board.

Step 10.

1. Hub Harness connecting the camera

connector to the USB input port of the

controller board.

2. Hide all loose wires behind the hinge

for proper fitting.

Step 11.

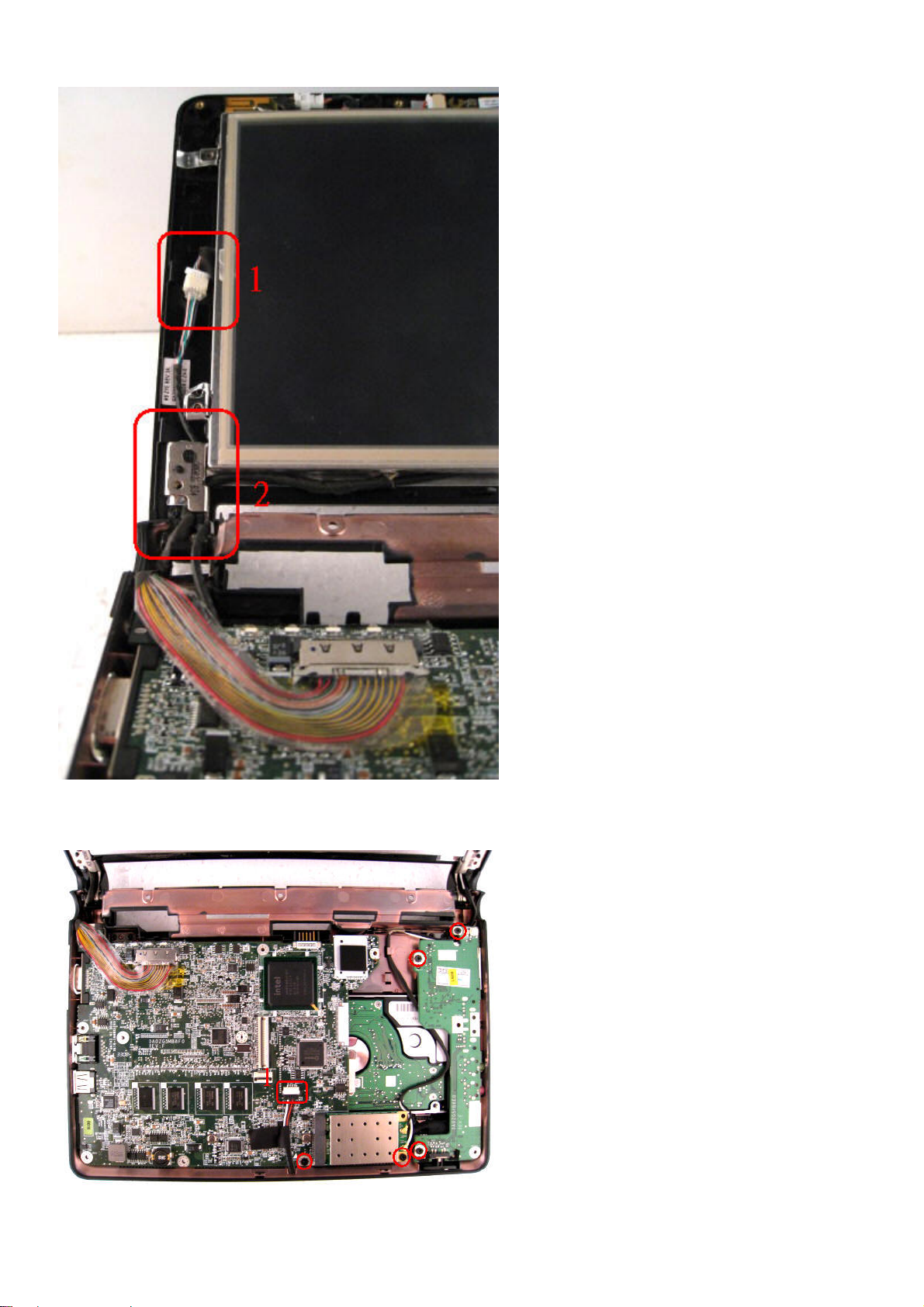

1. Remove speaker connector

zRemove all 5 screws to release

motherboard from the bottom housing.

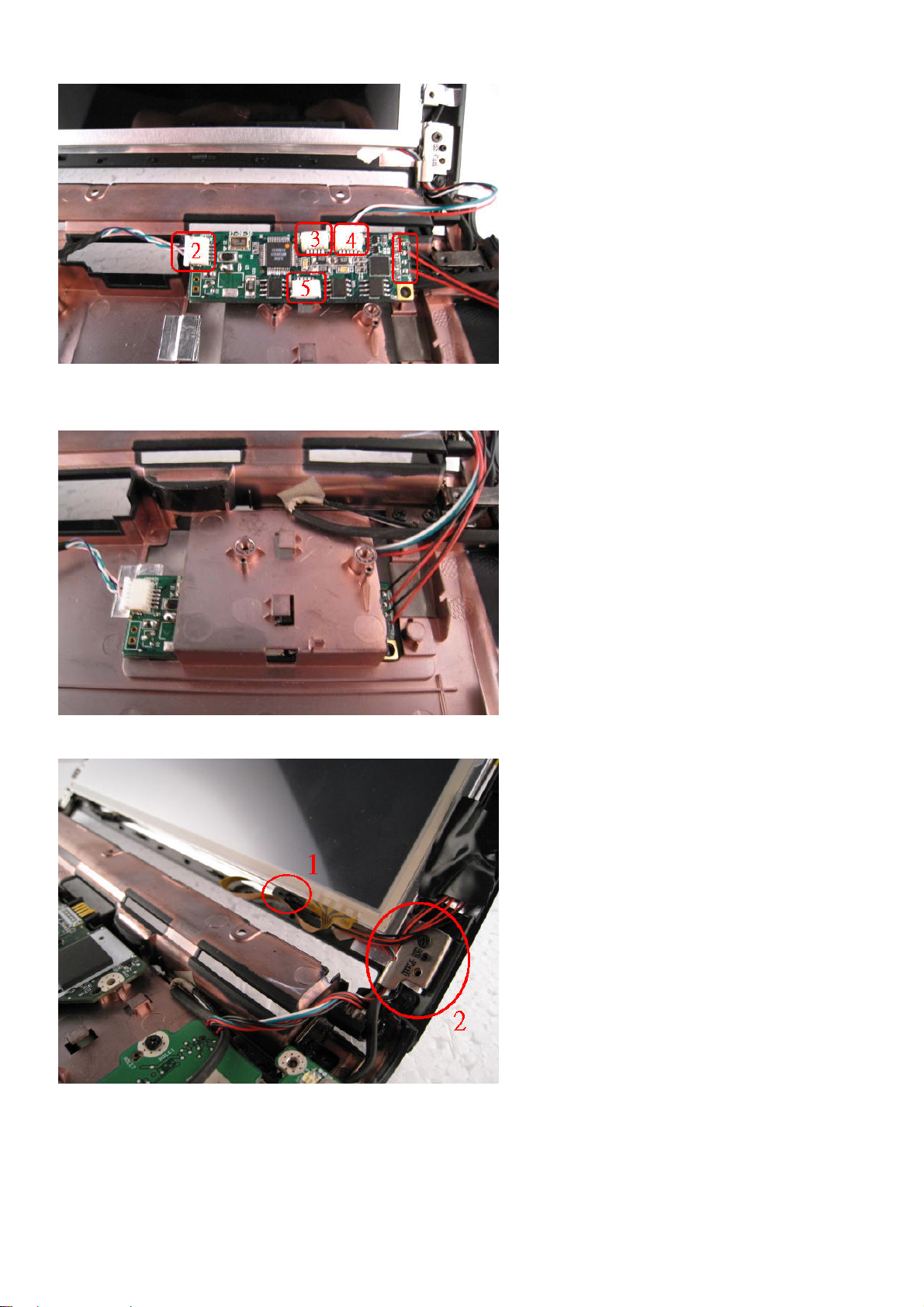

Step 12. Touch-Hub Controller Board

1. To touch screen panel

2. USB input (Hub Harness)

3. USB output

4. USB output (to camera module)

5. USB output

Step 13.

zConnect camera harness to the USB

output port of the controller board and slide

it underneath the chassis from right to left

direction. The back door needs to be

removed to perform this procedure.

Step 14.

1. Touch screen panel connector location.

2. Hide all wires behind the hinge for

proper fitting.

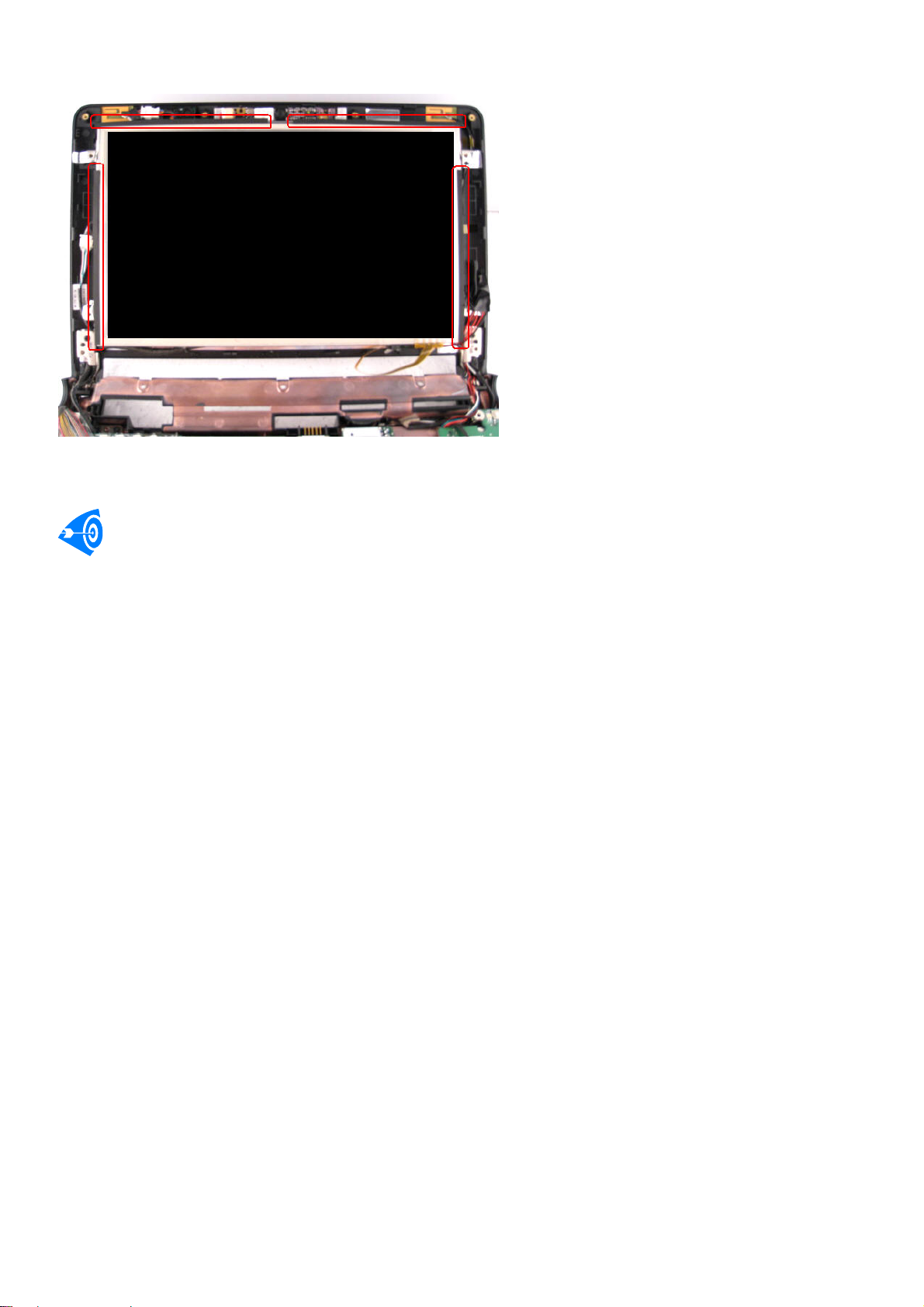

Step 15.

zPlace Shock Absorber Rubber on the

metal frame of the LCD module surrounding

the touch screen panel.

Be extremely careful when putting back on the LCD housing; make sure the screws are NOT

tightened all the way down. Discontinue action immediately as soon as force is felt on the

housing. Further tightening of the screws will cause touch screen to crack resulting in inaccurate

cursor.
