Acer Aspire 9110 Manuel utilisateur

Aspire 9110/9120 Series

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on Aspire 9110 service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Chapter 1 1

Features

Below is a brief summary of the computer’s many feature:

Operating system

TGenuine Windowsl®VistaTM Capable

TGenuine Windowsl®XP Home Edition (Service Pack 2)

TGenuine Windowsl®XP Media Center Edition 2005 (Rollup 2)

Platform and memroy

TIntel®Centrino®Duo mobile technology, featuring:

tIntel®CoreTM Duo processor T2300/T2400/T2500/T2600 (2 MB L2 cache, 1.66/1.83/2/2.16 GHz, 667 MHz

FSB) or higher (for Aspire 9110)

tIntel®CoreTM 2 Duo processor T7200/T7400/T7600 (4MB L2 cache, 2.0/2.16/2.33 GHz, 667 MHz FSB) and

T5500/T5600 (2 MB L2 cache, 1.66/1.83 GHz, 667 MHz FSB), supporting Intel®EM64T(for Aspire 9120)

tIntel®945PM Express chipset

TIntegrated Intel®PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g)

Wi-Fi CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

TCore logic: Intel®945PM+ICH7M (north bridge+ south bridge)

TUp to 2GB of DDR2 533/677 MHz memory, upgradeable to 4GB using two soDIMM moules (dual-

channel support)

Display and graphics

T15.4” 200-nit WXGA Acer CrystalBriteTM high-brightness color TFT LCD, 1280 x 800 pixel

resolution, 16 ms response time, supporting simultaneous multi-window viewing via Acer

GridVistaTM

T16:10 viewing ratio

TNVIDIA®GeForce®Go 7600 with 128/256MB of external GDDR2 VRAM, supporting Microsoft®

DirectX®9.0, Shader Model 3.0, OpenEXR High Dynamic Range (HDR) technology, NVIDIA®

PowerMizerTM 6.0 and PCI Express®

T16.7 million colors

TMPEG-2/DVD hardware-assisted capability

TS-video/TV-out (NTSC/PAL) support

TDVI-D (ture digital video interface) support

TAcer CinemaVisionTM technology (Acer ArcadeTM)

TAcer ClearVisionTM optimization (Acer ArcadeTM)

TV-tuner

TAcer TV-tunver options:

tAnalog TV-tuner supporting hardware MPEG-2 stream encding

tDigital and analog hybrid TV-tuner supporting hardware MPEG-2 stream encoding

tDigital and analog hybrid TV-tuner supporting software MPEG-2 stream encoding

System Specifications

Chapter 1

2Chapter 1

TAnalog TV-tuner supporting international analog TV standards (NTSC/PAL/SECAM)

TDigital TV-tuner supporting DVB-T (Digital Video Broadcasting Terrestrial) standard (6 MHz to

8MHz)

TTV-tuner I/O:

tRF jack for digita/analog TV antenna cable input

tAV-in port for composite/S-video/line-in audio/video input

TTV-tuner cables:

tNTSC/PAL cable for digital/analog TV input, NTSC converter to convert port from PAL/SECAM to NTSC

tMini DIN cable: RCA jack and S-video port for audio/video input

TAcer DVB-T antenna (UHF/VHF reception) supporting Acer SignaUpTM wireless technology

Audio

TIntel®High Definition audio support

TS/PDIF (Sony/Philips Digital Interface) support for digital speakers

T2.1-channel speakers with built-in subwoofer (1.5W)

TSound Blaster ProTM and MS Sound compatible

TBuilt-in microphone

Storage subsystem

T80/100/120/160 GB Serial ATA hard disk drive

THigh Definition DVD-ROM

TDVD-Super Multi double-layer drive (slot-load)

T5-in-1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick®(MS),

Memory Stick PROTM (MS PRO), xD-Picture CardTM (xD)

Input devices

T88/89-key Acer FineTouchTM keyboard with 5-degree curve

TTouchpad with 4-way scroll button

TFour easy-launch buttons

TTwo front-access switches: WLAN LED and Bluetooth®LED-switches (for selected models)

Communication

TAcer Video Conference, featuring Voice and Video over Internet Protocol (VVoIP) support via Acer

OrbiCamTM and optional Acer Bluetooth VoIP phone

TAcer OrbiCamTM 1.3 megapixel CMOS camera, featuring:

t225 degree ergonomic rotation

tAcer VisageOnTM technology

tAcer PrimaLiteTM technology

TWWAN: UMTS WCDMA (3G) at 2100 MHz and GPRS/EDGE, tri-band capable (900/1800/1900

MHz), upgradeable to HSDPA 1.8 Mbps (for selected models)

TModem: 56K ITU V.92 modem with PTT approval; wake-on ring ready

TLAN: gigabit Ethernet; wake-on-LAN ready

TWPAN: Bluetooth®2.0+EDR (Enhanced Data Rate)

TWLAN: Intel®PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) Wi-

Fi®CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

Chapter 1 3

I/O Ports

TExpressCardTM/34 slot

TPC Card slot (one Type II)

T5-in-1 card reader (SD/MMC/MS/MS PRO/xD)

TFour USB 2.0 ports

TIEEE 1394 port

TConsumer infrared (CIR) port

TFast infrared (FIR) port

TExternal display (VGA) port

TAV-in port

TRF-in Jack

TS-Video/TV-out (NTSC/PAL) port

THeadphones/speaker/line-out jack with S/PDIF support

TMicrophone-in jack

TLine-in jack

TEthernet (RJ-45) port

TModem (RJ-11) port

TDC-in jack for AC adaptor

Environment

TTemperature:

toperating: 5 C to 35 C

tNon-operating: -20 C to 65 C

THumidity (non-condensing):

toperating: 20%~80%

tNon-operating: 20%~80%

°°

4Chapter 1

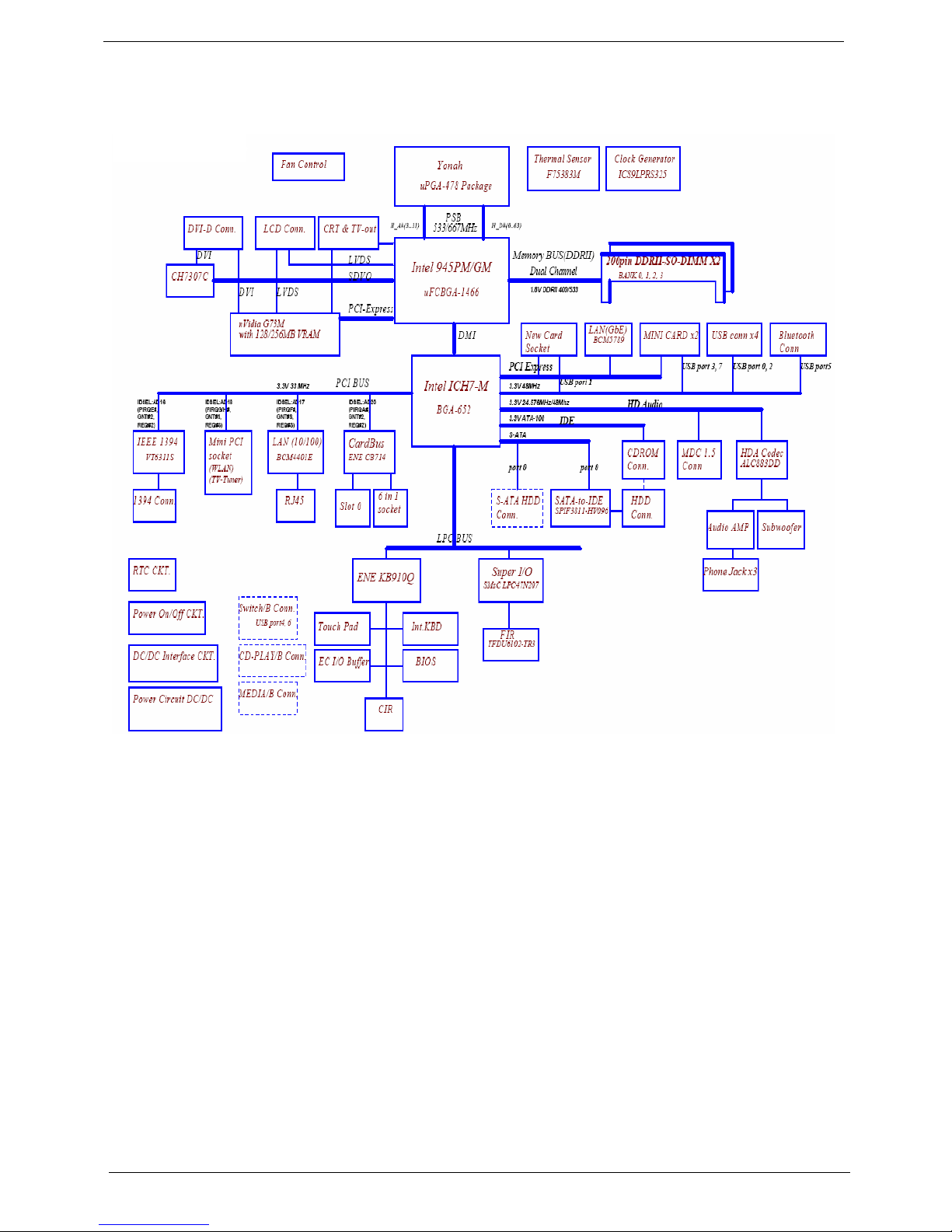

System Block Diagram
