Acer Aspire 5540 Manuel utilisateur

Aspire 5540/5560 Series

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on Aspire 5540/5560 service guide.

Date Chapter Updates

2006/02/17 Chapter 3 and Chapter 6 Add CCD module (camera) information to Chapter 3 and

Chapter 6 for Aspire 5560 series.

2006/4/1 Chapter 1 Add Radeon X1600 VGA chipset on page 1.

2006/4/6 Chapter 3 Revise CCD module (digital camera) disassembling steps

to Chapter 3 for Aspire 5560 series.

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Chapter 1 1

Features

Below is a brief summary of the computer’s many feature:

Platform and memroy

TIntel®Centrino®Duo mobile technology, featuring:

tIntel®CoreTM Duo processor T2300/T2400/T2500/T2600 (2 MB L2 cache, 1.66/1.83/2/2.16 GHz, 667 MHz

FSB) or higher

tIntel®945GM/945PM Express chipset

TIntel®PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) Wi-Fi

CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

TIntel®945GM/945PM+ICH7M

TTwo DIMM slots support 256/512MB to 2GB (1G memory has not qualified yet) system memory

Display and graphics

T14.1” WXGA color TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window

viewing on dual display via Acer GridVistaTM

T16.7 million colors

TIntel®945GM integrated 3D graphics, featuring Intel Graphics Media Accelerator 950 and up to

128 MB of VRAM, supporting Microsoft®DirectX®9.0 and dual independent display

TIntel®945PM with ATI MOBILITYTM RADEON X1300/X1400/X1600 with up to 512 MB of

HyperMemoryTM (128 MB of dedicated GDDR2 VRAM; up to 384 of shared system memory),

supporting ATI POWERPLAYTM 5.0, Microsoft®DirectX®9.0 and PCI Express®(ATI MOBILITYTM

RADEON X1300 for Aspire 5540/X1400/X1600 for Aspire 5560)

TDualViewTM support

TSimultaneous LCD and CRT display, with LCD panel resolution at 70 Hz refresh rate

TUp to 2048 x 1536 resolution on ono-interlaced CRT display

TMPEG-2/DVD hardware-assisted capability

TS-Video/TV-out (NTSC/PAL) support (for Aspire 5560)

Storage subsystem

T60/80/100/120 GB PATA/SATA hard disk drive

TOptical drive options:

tDVD-Super Multi double-layer

tDVD-Dual double layer drive

tDVD/CD-RW combo drive

T5-in1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick®(MS)

Memory Stick PROTM (MS-PRO) and xD-Picture CardTM (xD) (for Aspire 5560)

Input devices

T88/89-key Acer FineTouchTM keyboard with 5-degree curve

TTouchpad with 4-way scroll button

System Specifications

Chapter 1

2Chapter 1

TFour easy-launch buttons

TTwo front-access switches: WLAN LED and Bluetooth®LED-switches (for selected models)

Audio

TIntel®High-Definition audio support

TSound Blaster ProTM and MS-Sound compatible

TS/PDIF (Sony/Philips Digital Interface) support for digital speakers

TAudio system with two built-in speakers

TBuilt-in microphone

Communication

TModem: 56K ITU V.92 modem with PTT approval; wake-on ring ready

TLAN: 10/100/1000 Mbps Fast Ethernet; wake-on-LAN ready (Gigabit for Aspire 5560)

TWLAN: Intel PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) Wi-Fi®

CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology

TWPAN: Bluetooth®2.0+EDR (Enhanced Data Rate)

I/O Ports

TExpressCardTM/34 slot (for Aspire 5560)

TPC Card slot (one Type II)

T5-in-1 card reader (SD/MMC/MS/MS PRO/xD) (for Aspire 5560)

TThree USB 2.0 ports

TIEEE 1394 port (for Aspire 5560)

TFast infrared (FIR) port (for Aspire 5560)

TExternal display (VGA) port

TS-Video/TV-out (NTSC/PAL) port (for Aspire 5560)

THeadphones/speaker/line-out jack with S/PDIF support

TMicrophone-in jack

TLine-in jack

TEthernet (RJ-45) port

TModem (RJ-11) port

TDC-in jack for AC adaptor

Environment

TTemperature:

toperating: 5 C to 35 C

tNon-operating: -20 C to 65 C

THumidity (non-condensing):

toperating: 20%~80%

tNon-operating: 20%~80%

°°

Chapter 1 3

System Block Diagram

Title

Size Document Number Rev

Date: Sheet of

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

AG1 -1M

BLOCK DIAGRAM

153Wednesday, January 11, 2006

Title

Size Document Number Rev

Date: Sheet of

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

AG1 -1M

BLOCK DIAGRAM

153Wednesday, January 11, 2006

Title

Size Document Number Rev

Date: Sheet of

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

AG1 -1M

BLOCK DIAGRAM

153Wednesday, January 11, 2006

DMI I/F

HOST BUS

DDR2

ICH7M

PCI BUS

Calistoga

CLK GEN.

400/533/667MHz

100MHz

KBC

533 MHz

4, 5

6,7,8,9,10

11,12

15,16,17,18

MDC Card

G1421B

OP AMP

AZALIA

MODEM

ALC883

Block Diagram

INPUTS

SYSTEM DC/DC

TPS51120

5V_S5

OUTPUTS

DCBATOUT

G792

3D3V_S5

1D8V_S3

DCBATOUT 1D05V_S0

INPUTS OUTPUTS

Mobile CPU

Yonah 478

1.83G/2G/2.16G

Project code: 91.4A901.001

PCB P/N : 55.4A901.XXX

REVISION : 05217-1

(Hannstar, ACCL)

533/667MHz

TPS51100

DDR_VREF_S01D8V_S3

Line Out

(SPDIF)

RE144B

CARDBUS

PCI 7412

1394

CONN

24,25

CardReader

1394

Line In

MIC In

6 in 1

DDR2

533 MHz

11,12

533/667MHz

LPC BUS

Mini Card*1

TOP

GND

VCC

BOTTOM

PCB STACKUP

APL5332KAC

3D3V_S0 2D5V_S0

APL5912-U

1D8V_S3 1D5V_S0

38,39

VCC_CORE_S0

0~1.3V

44A

OUTPUTS

CPU DC/DC

INPUTS

DCBATOUT

MAXIM CHARGER

OUTPUTSINPUTS

CHG_PWR

DCBATOUT

UP+5V

5V 100mA

18V 4.0A

MAX8725

ISL6262

IDT CV125PA

(ICS 954206)

INT.SPKR

Codec

MS/MS Pro/xD/

MMC/SD/SDIO

LAN

10/100

BCM4401-E

Mini-PCI

802.11A/B/G

TXFM RJ45

RJ11

INT.

Touch

Pad

33 33

FIR

27 27

TSP2220A

PCMCIA

SLOT

Support

TypeII

PCMCIA I/F

PWR SW

New card

PCI Express

PWR SW

TPS2231

BCM5789/5787M

Giga LAN

ATI M54 DC/DC

INPUTS

VGA_CORE_S0

FAN5234

OUTPUTS

DCBATOUT

APL5331KAC

1D8V_S0 1D2V_S0

TVO

VRAM x4

RGB CRT

LVDS

CRT

45,46,47,48,49

ATI

M54P / M52P

14"WSXGA+

LCD

PCI Express x16

50,51

PATA

USB

3 PORT

HDD

MINI USB

Blue-tooth

CDROM

128/256M

(Discrete)

SPI I/F

PCIEx1

BIOS

SIO

NS87381

INT.MIC

Ver. : B0, 71.ICH7M.A0U / QK65

KI.80101.017

Ver.:A3 :71.945PM.A0U / QK58 M56 Ver.: B24

M52 Ver.: A12

M54 Ver.: A12

SST25LF080A

Renesas

BCM5787MKFBG-A1

BCM5789KFBG-C1

BCM4401EKFBG-B0

802.11A/B/G

SATA

TPS51124

SYSTEM DC/DC

DEBUG

CONN.

LPC

KBC_MATRIX2 4 - 8 ON

1 - 5 ON

KBC_MATRIX1

PSW_CLR#

3 - 7 ON

Low Active

2 - 6 ON

SW1 Setting

4Chapter 1

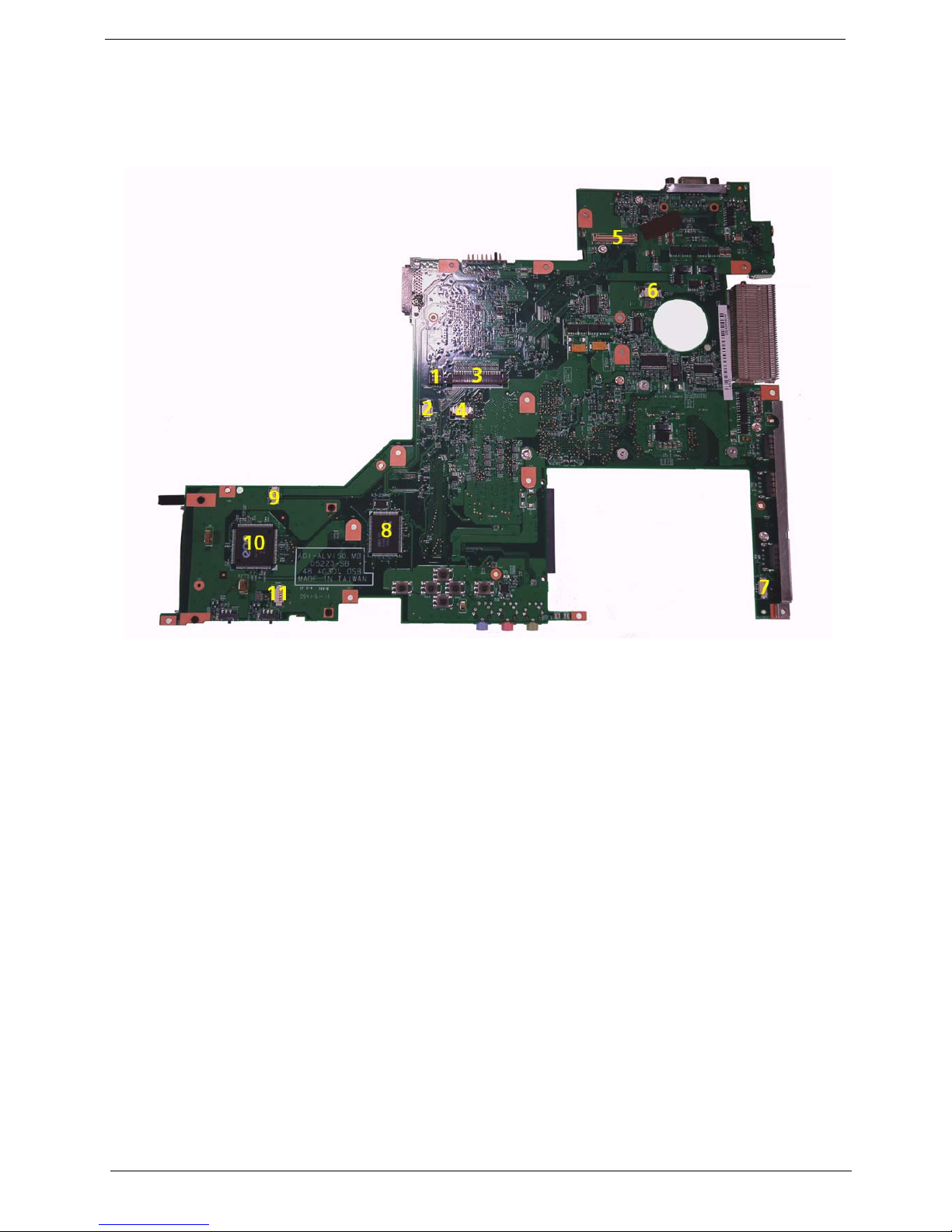

Board Layout

Top View

1 SW1 Switch 7 BLUE1 Bluetooth Cable Connector

2 LEDB1 LED Board Cable Connector 8 U39 LAN Connector: RTL8100CL

3 KB1 Keyboard Connector 9 RTC1 RTC Battery Connector

4 TPAD1 Touchpad Cable Connector 10 U40 Keyboard Controller: ENE CB-

1410QF

5 LCD1 LCD Cable Connector 11 SPKR1 Speaker Set Cable Connector

6 LAUNCH1 Launch Board Cable Connector

Autres manuels pour Aspire 5540

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Acer Ordinateur portable

Acer

Acer Extensa 4010 Manuel utilisateur

Acer

Acer Aspire 5739G Manuel utilisateur

Acer

Acer Travelmate 2300 Series Guide de configuration

Acer

Acer Extensa 5010 Series Manuel utilisateur

Acer

Acer TravelMate Notebook Series Manuel utilisateur

Acer

Acer TravelMate 5542 Manuel utilisateur

Acer

Acer Chromebook 11 Manuel utilisateur

Acer

Acer Predator Triton 300 Manuel utilisateur

Acer

Acer Aspire 3100 Series Manuel utilisateur

Acer

Acer TravelMate 290 Guide de configuration

Acer

Acer Aspire Series Generic Manuel utilisateur

Acer

Acer Aspire 5530 Series Manuel utilisateur

Acer

Acer Aspire 5330 Manuel utilisateur

Acer

Acer TravelMate 2310 Series Manuel utilisateur

Acer

Acer TravelMate 3000 Guide de démarrage rapide

Acer

Acer 5050 4697 - Aspire Guide de configuration

Acer

Acer Aspire V5-571P Manuel utilisateur

Acer

Acer TravelMate P453 Manuel utilisateur

Acer

Acer 3100 1868 - Aspire Guide de configuration

Acer

Acer TravelMate 4730 Series Manuel utilisateur

Acer

Acer Predator Helios PH18-71-70NA Manuel utilisateur

Acer

Acer Ferrari 4000 Manuel utilisateur

Acer

Acer Aspire 1710 Series Manuel utilisateur

Acer

Acer Aspire S7-191 Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
