Aspire 3040/5040 Series
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
II
Revision History
Please refer to the table below for the updates made on Aspire 3020/5020 service guide.
Date Chapter Updates
III
Copyright
Copyright © 2005 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.
V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
VI
Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
Platform and memroy
Aspire 3040 Series
TMobile AMD SempronTM processor 2800+ to 3300+ or higher with 128/256 KB L2 cache
supporting AMD PowerNow!TM technology, and AMD HyperTransportTM technology
Aspire 5040 Series
TAMD TurionTM 64 ML-30/ML-32/ML-37/ML-40 processor at 1.6/1.8/2.0/2.2 GHz or higher with 512
KB or 1MB of L2 cache, supporting AMD PowerNow!TM technology, and AMD HyperTransportTM
technology
TATI RS482M and SB450 chipset
T256/512 MB of DDR333 memory, upgradeable to 2 GB using two soDIMM modules
Display
T15.4” WXGA Acer CrystalBriteTM clolor TFT LCD, 1280 x 800 pixel resolution, supporting
simultaneous multi-window viewing on dual display via Acer GridVistaTM
T15.4” WXGA color TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window
viewing on dual display via Acer GridVistaTM
T15.0” XGA color TFT LCD, 1024 x 768 pixel resolution
T16.7 million colors
TATI MOBILITYTM RADEONTM X1300 with 64 MB or above of external DDR VRAM, supporting ATI
HyperMemoryTM with up to 512 MB of shared system memory
TMicrosoft®DirectX®9.0 and DualViewTM support
TMPEG-2/DVD hardware-assisted capability
TAcer CinemaVisionTM video technology (Acer Arcade)
TAcer ClearVisionTM video optimization technology (Acer Arcade)
Storage subsystem
T40/60/80/100/120 GB ATA/100 hard disk drive
TOptical drive options:
tDVD-Dual double-layer drive
tDVD/CD-RW combo drive
Input devices
T88/89-key keyboard
TTouchpad with 4-way integrated scroll button
TFour easy-launch buttons
System Specifications
Chapter 1
2Chapter 1
TTwo front-access LED-buttons:WLAN, Bluetooth®
Audio
TAudio system with two built-in speakers
TMS-Sound compatible
TBuilt-in microphone
Communication
TModem: 56K ITU V.90/V.92 modem with PTT approval; wake-on ring ready
TLAN: Gigabit Ethernet; Wake-on-LAN ready
TWLAN: integrated Acer InviLinkTM 802.11g Wi-Fi CERTIFIEDTM solution, supporting Acer
SignalUpTM wireless technology
TWPAN: integrated Bluetooth®
Human-centric design and ergonomics
TRugged, yet extremely portable design
TStylish appearance
TFull-size keyboard with four programmable launch keys
TErgonomically-centered touchpad pointing device
TInternet 4-way scroll button
I/O Ports
TPC Card slot (one Type II)
TFour USB 2.0 ports
TExternal display (VGA) port
THeadphones/speaker/line-out jack
TMicrophone/line-in jack
TEthernet (RJ-45) port
TModem (RJ-11) port
TDC-in jack for AC adaptor
Chapter 1 3

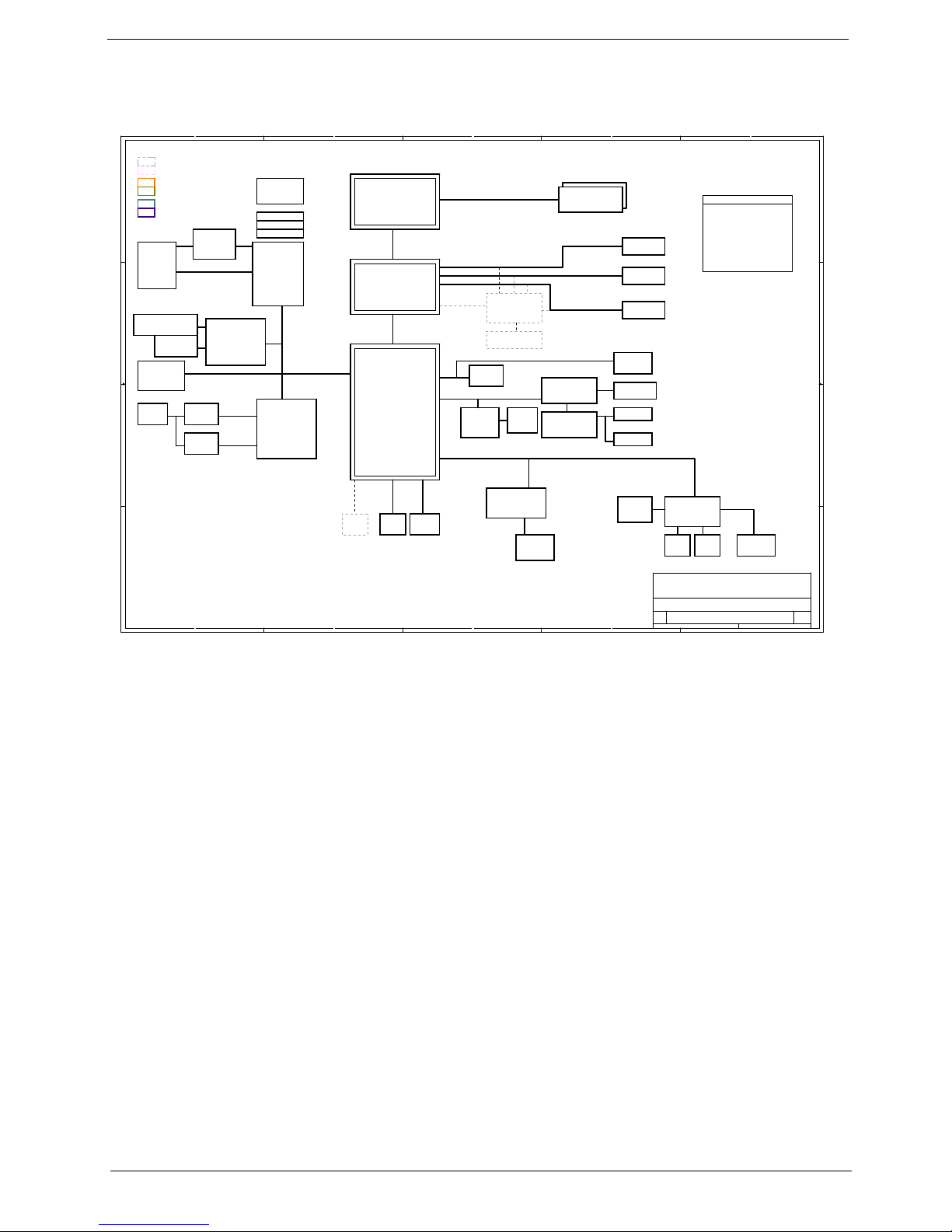

System Block Diagram
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Taipei Hsien 221, Taiwan, R.O.C.
Bolsena-E
-1
BLOCK DIAGRAM
A3
158Thursday, December 01, 2005
DISCRETE256M
Title
Size Document Number Rev
Date: Sheet of
Taipei Hsien 221, Taiwan, R.O.C.
Bolsena-E
-1
BLOCK DIAGRAM
A3
158Thursday, December 01, 2005
DISCRETE256M
Title
Size Document Number Rev
Date: Sheet of
Acer Inc.
9F, 88, Sec., Hsin Tai Wu Rd., Hsichih
Taipei Hsien 221, Taiwan, R.O.C.
Bolsena-E
-1
BLOCK DIAGRAM
A3
158Thursday, December 01, 2005
DISCRETE256M
VRAM x4
54,55
Bolsena-E(AB2) Block Diagram
ISA ROM
RGB CRT
LVDS
CRT
LCD
ATA 133
M52P
LPC Bus / 33MHz
AZALIA
LPC I/F
HyperTransport
6.4GB/S 16b/8b
35W/25W
AMD CPU
DDR x2
200-PIN DDR SODIMM
KBC
KB3910
Touch
Pad Int.
KB
ATI
SB450
ACPI 2.0
PCI 6xUSB 2.0
ATI
AGTL+ CPU I/F + UMA
CLK GEN
PCI-Express
x2
802.11a/b/g
Mini-PCI
PCI Bus / 33MHz
PCB Layer Stackup
RS482M
34
35 35
29
17,18,19,20,21
11,12,13,14
4,5,6,7
3
49,50,51,52,53
16
15
ATI
PCI Express x16
DDR 333/400
8,9,10
CP2211
1* Slot Cardbus
PCMCIA I/F
CB1410
ENE
26
PCMCIA
SLOT
Support
TypeII
PWR SW
25
26
IDT CV137
PIDE
DVD/
CD-RW
24
SIDE
HDD
24
AZALIA
MDC Card OP AMP
G1421
3323
MODEM
Line In
MIC In
3
Line Out
33
10/100Mb
USB x 4
24
RJ11
CONN
CODEC
32
ALC883
Int. SPKR
33
PCI LAN
Realtek
RTL8110SBL
1000/100/10
RTL8100C
100/10
TXFM
31
RJ45
31
1000Mb
TXFM
31
L1: Signal 1
L2:VCC
L3: Signal 2
L4: Signal 3
L5: GND
L6: Signal 4
31
Thermal
& Fan
G792
23
30
36
XBUS
Project Code: 91.4G401.001
SATA
24
BlueTooth
miniUSB
23
Dummy when use 'UMA'
Dummy when use 'DIS'
Dummy when use '10/100'
Dummy when use 'GIGA'
Dummy when use 'SATA'
Dummy when use 'IDE'
LEDs
16
BUTTONs
33
RTC BAT.
17
See 'TEXT' in 0MEMO or 1MEMO property in component
Power Block Diag -> Page 40
REVISION: 05236-SB
RICOH
R5C832
1394
CardReader
MS/MS Pro/xD/
MMC/SD
5 in 1
1394
CONN
27,28
28
28
NS SIO
PC87381
37
TFDU6102 37
FIR
16
tv
4Chapter 1
Board Layout
Top View
1 (LCD1) LCD cable connector 8 (BAT1) Battary-in jack
2 (MIC1) Microphone connector 9 (U32) Keyboard controller
3 (LID1) Lid switch cable connector 10 (U4) Audio codec
4 (BLUE1) Bluetooth module connector 11 (SPK1) Speaker set cable connector
5 (KB1) Keyboard connector 12 (PC1) PC card slot
6 (SW1) Switch 13 (RTC1) RTC battery connector
7 (TPAD1) Touchpad connector
