Acer AcerPower M2 Manuel utilisateur
AcerPower M2
User’s Guide
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revision or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date, and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your computer. All correspondense concerning your unit should include the serial
number, model number, and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopy, recording, or otherwise,
without the prior written permission of Acer Incorporated.
Model Number :__________________________________
Serial Number:___________________________________
Purchase Date: ___________________________________
Place of Purchase: ________________________________
Copyright© 2004 Acer Incorporated
All Rights Reserved
AcerPower M2
User’s Guide
Acer and the Acer Logo are registered trademarks of Acer Inc. Other company's product
names or trademarks are used herein for identification purposes only and belong to their
respective companies.
Contents
System Tour 1
Front panel 1
Rear panel 2
System Features 3
Performance 3
Multimedia 3
Connectivity 3
System peripherals 4
Mouse(PS/2 or USB, manufacturing option) 4
Keyboard(PS/2 or USB, manufacturing option) 4
Speakers 5
System upgrade 6
Open the computer 6
Set up new components 6
Setting up your computer 7
Necessary to know before Setup 7
Select location 7
Open package 7
Connecting the peripherals 8
Starting your computer 8
Shutting down your computer 8
Troubleshooting 9
Taking Care of your computer 11
Important tips 11
Cleaning and servicing 11
To clean your computer and keyboard 11
To clean your pointing device 12
To clean your optical mouse 12
To clean your monitor 12
When to contact a service technician 12
Asking for technical assistance 12
Energy Star Guidelines Compliance 13
Declaration of Conformity for EU countries 13
Modem notices 13
TBR 21 13
Important safety instructions 13
Lithium battery statement 15
Laser compliance statement 15
Declaration of Conformity for CE marking 17
Remark: All the drawings in the Guide are diagrams. About
components’s quantity and style, substances shall take precedence.
1
English
System Tour
Your computer’s front panel consists of the following:
Front panel
No. Description No. Description
1 Optical Drive 2 Floppy Drive
3 7-in-1 Card Reader
(Manufacturing Option)
4 Power button
5 Speaker or Headphone Jack 6 Microphone Jack
7 USB Ports 8 Indicators
System Tour2
English
Rear panel
No. Description No. Description
1 Power cord socket 2 Voltage selector switch
3 Fan Aperture 4 PS/2 Mouse Connector
5 PS/2 Keyboard Port 6 USB Connectors
7 Printer Connector 8 Serial Port
9 VGA Port 10 USB Connectors
11 RJ-45 Ethernet Connector 12 Microphone Jack
13 Line-out Jack 14 Line-in Jack
15 VGA Port 16 S-video out port
17 Digital Visual Interface 18 TV Tuner Card
3
English
System Features
Your computer features:
Performance
• AMD Athlon™ XP CPU
• System Memory DDR 266/333/400, 2 DIMM Slots, expandable to
2GB
• Power management function
• 3.5 inch floppy drive
• CD-ROM, DVD-ROM, CD-RW (52X/24X), DVD/CD-RW combo or
DVD writer
• High-capacity, Enhanced-IDE drive
• Support USB 2.0 high performance peripherals
Multimedia
• 3D quality audio system via onboard audio controller
• Audio-in/Line-in, Audio-out/Line-out, Headphone out and external
Microphone in jacks
Note: the system has two Microphone-in Jacks (front and rear)
However, you can not use both of them at the same time. By
default, you system enables your microphone-in jack in front and
disables the one at the back.
Connectivity
• Two PS/2 ports for keyboard and mouse
• One S-video out port
• One Parallel port
• One VGA port
• Six USB 2.0 ports (two on the front, four on the rear panel)
• High speed V.92, 56K fax/Data modem (optional)
• 10 Base-T/100 Base-TX Ethernet Network
System Tour4
English
System peripherals
The AcerPower M2 computer consists the system itself, and system
peripherals, like a mouse, a keyboard and a set of speakers (optional).
This section provides a brief description of basic system peripherals.

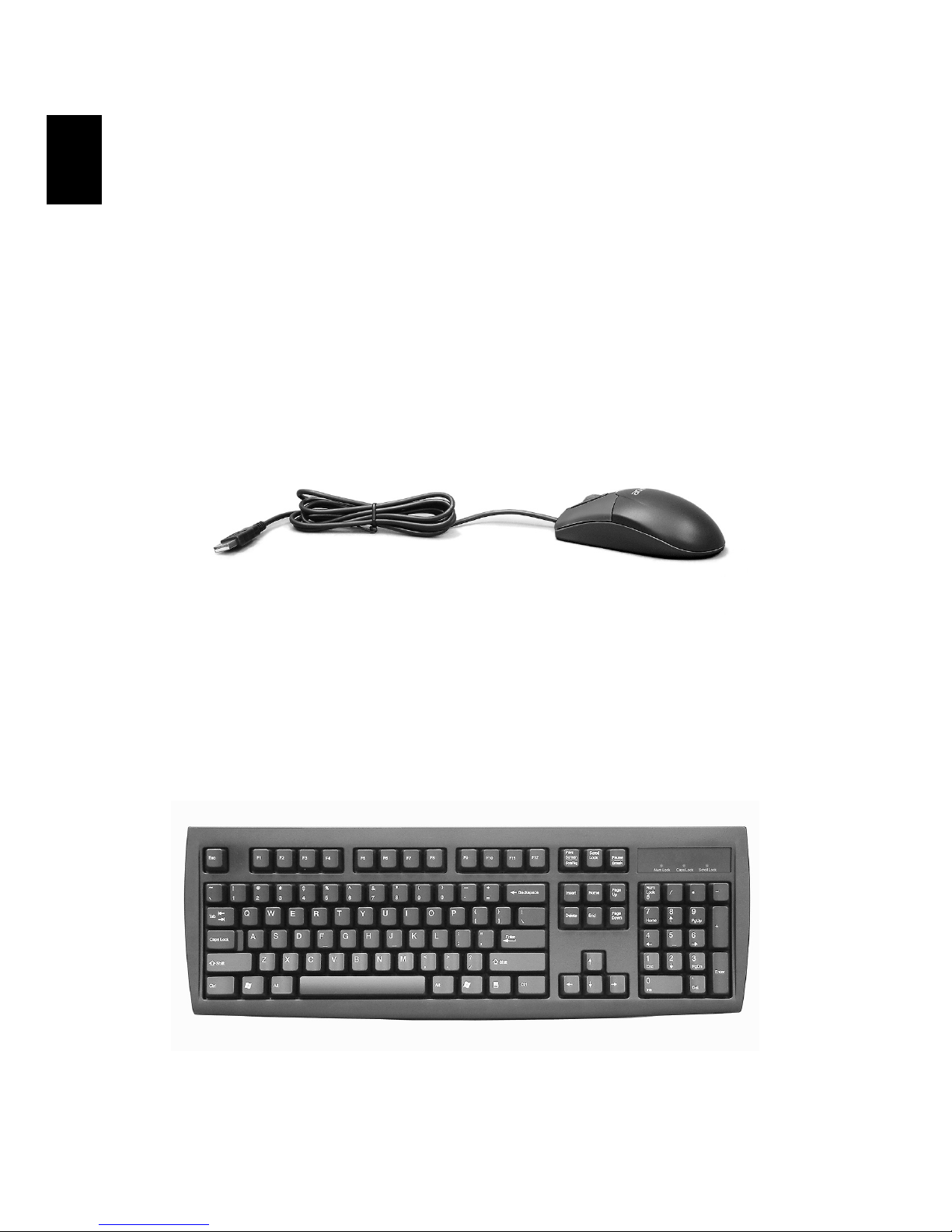

Mouse(PS/2 or USB, manufacturing option)
The included mouse is a standard two-button wheel mouse. Connect
the mouse to the PS/2 mouse port or USB port on the back panel of the
system.
Keyboard(PS/2 or USB, manufacturing option)
Connect the keyboard to the PS/2 keyboard port or USB port on the
back panel of the system.
5
English
Speakers
For systems bundled with speakers, before powering on the system,
connect the speaker cable to the audio out (external speaker) port on
the back panel of the system.
For more detailed information about the speakers, please refer to the
included operating instructions.
Note: speakers are optional and the appearance might be
different depending on the actual product.
System Tour6
English
System upgrade
You can expand your AcerPower M2 system quickly and easily by
adding components. You can also upgrade the components of your
AcerPower M2 system.
Open the computer
Before removing any panels or covers, please make sure to shut off the
computer and unplug the power cord from the outlet.
• Remove the two screws on the side panel.
• Slide the panel back and off.
Set up new components
You can only use components compatible with AcerPower M2
computers. Before you choose new components, please ask your
authorized Acer dealer whether the part will operate within your
AcerPower M2 system.
In order to ensure proper setup and installation, please consult the
instructions provided with your new components.
Probable upgrades are:
- Upgrade to High Capacity HDD
- Expand high-level memory
- Upgrade from a CD-ROM drive to CD-RW, DVD-ROM, DVD/CD-
RW combo, or DVD writer
- Install additional interface cards in empty PCI slots e.g., PCI
fax/modem card
