Acer Liquid Z630S Quick Guide

Model: T04

This revision: 10/2015

Product information

For detailed product information, please go to www.acer.com.

For service and support information, or to download the User

Guide, drivers and applications, please follow the instructions

below:

1. Go to www.acer.com and click Support > DRIVERS AND

MANUALS.

2. Select appropriate items from Group > Series > Products.

3. Select the operating system from the drop-down menu.

Acer Liquid Z630S Smartphone

Model number:

Serial number:

Date of purchase:

Place of purchase:

Android is a trademark of Google Inc. Use of this trademark is

subject to Google Permissions.

Your smartphone

111

4 3

5 7

ptio

headphone

jac

conn

ecto

nnec

ste

ero

adphon

nnec

USB

cable

cha

camera

Fro

faci

camera

video

and

por

rai

hone

pea

audio

smar

phone

;

sui

able

ldi

your

Touchscreen Touchscreen

displ

phone

con

and

English

No. Item Description

6 Handsfree

speaker

Emits audio from your

smartphone; suitable for

handsfree use.

7 Power button Press to turn the screen on/off

or enter sleep mode; press and

hold to turn the smartphone on

or off.

8 Volume up/

down button

Increases or decreases the

phone volume.

9 Flash LED flash for taking photos in

low-light environments.

10 Spaker Internal Spaker.

11 Camera A camera for taking high-

resolution images.

Note:

For more on howyour computer can help you to be

more productive, please refer to the User’s Manual.

The User’s Manual can be downloaded from the Acer

support website by going to:

http://go.acer.com/?id=17883

Specifications

Note

Specifications may vary depending on region and configuration.

Performance

• 1.3 GHz octa-core processor

• System memory:

•32 GB

• 3 GB

• Android operating system

Display

•5.5.0" IPS LCD,1280 x 720 resolution

Multimedia

Formats supported:

Type Formats

Image JPEG, GIF, PNG, BMP

Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,

MIDI, WAVE

Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,

MIDI, WAVE

Video recording H.263, H.264, MPEG4

Video playback H.263, H.264, MPEG4, VP8

USB connector

• Micro USB connector

• USB client

• DC power-in (5.2 V, 1.35 A)

Connectivity

• Bluetooth 4.0 + EDR

• IEEE 802.11b/g/n

• EU：LTE Band 800(B20) / 1800(B3) / 2100(B1) / 2600MHz(B7) MHz

• EU：WCDMA 900(B8) / 1900(B2) / 2100(B1) MHz

• US：LTE Band 1900(B2) / 1700(B4) / 2600(B7) / 700MHz(B12) MHz

• US：WCDMA 850(B5) / 1900(B2) / 1700(B4) MHz

• JP：LTE Band 2100(B1) / 1800(B3) / 800(B19) / 1500(B21) / 700(B28) MHz

• JP：WCDMA 800(B19) / 2100(B1) / 1700(B9) / 800(B6) MHz

•TW：

LTE Band 3 (1710-1770 MHz)

LTE Band 8 (885-915 MHz)

LTE Band 28 (703-748 MHz)

•TW：WCDMA 900(B8) / 1900(B2) / 2100(B1) MHz

• GSM 850 / 900 / 1800 / 1900 MHz

• HSPA / GPRS / EDGE

• GPS

Frequencies depend on model.

「因應各地區/國家所屬之規範、頻道及開放時程等服務細項的不同，請

依據當地主管機關與電信業者實際公告資訊為主。如服務細則有所變更，

請自行洽詢電信業者，恕不另行通知。」

Camera

•8 MP rear camera

• Auto-focus

• LED flash

• 8 MP front camera

• Fixed

focus

Expansion

• microSD memory card slot (up to 32 GB)

Battery

•3900 mAh Li-Polymer battery (replaceable)

Note

Length of battery operation will depend on power consumption which is

based on system resource use. For example, constantly using the backlight

or using power-demanding apps will shorten battery life between charges.

Dimensions

Height

156.9 mm

Width 77.4 mm

Thickness

8.9 mm

Weight 165 g (with battery)

English

Setting up for the first time

Inserting the SIM cards and microSD card

1. Turn off the phone by pressing and holding

the power button.

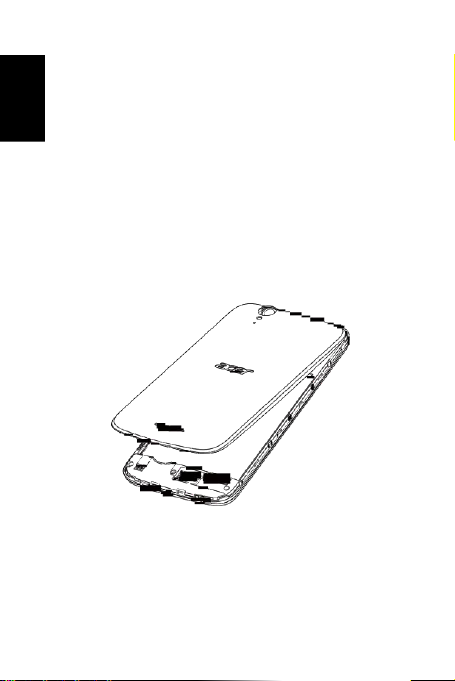

2. Insert your fingernail into the notch located at

the bottom of the phone and remove the

cover as illustrated.

English

3. Insert the SIM or microSD card as shown.

SIM2 (Optional)

Micro SD

SIM1

* Note: Your smartphone may be equipped with one or two SIM slots

depending on model.

4. Align the gold-colored connectors on the

battery with the connectors at the top of the

battery compartment and insert the battery.

5. Replace !he cover by aligning !he !abs on

!he

cover in!o !he slo!s on !he phone.

Gen!ly

press !he cover un!il i! snaps in

place

English

Charging your phone

For initial use, you need to charge your smartphone for

eight hours. After that you can recharge the battery as

needed.

Connect the AC adapter cord to the micro USB

connector on your smartphone. Plug the AC adapter

into any AC outlet and charge the device.

It is normal for the phone to heat up when charging or

during long periods of use.

All phones are factory tested before release.

Resetting and restarting the phone

Open Settings from the Applications menu, then tap

Backup & reset. Tap Factory data reset and then tap

Reset phone. Tap Erase everything to format your

phone.

If your phone is no longer responding, press and hold

the power button for 10 seconds to restart the phone.
