Z500

Service Guide Level1~2

1Version 1.0

SERVICE GUIDE

Z500

Z500

Service Guide Level1~2

2Version 1.0

System Spec

Features……………………………………………………………………………………………………..3

System Block Diagram……………………………………………………………………………………..4

Product 6six view …………………………………………………………………………………………...5

Software upgrade

Software upgrading…………………………………………………………………………………………6

SD card upload SOP………………………………………………………………………………………..9

Acer 22 code define and SOP……………………………………………………………………………14

Machine Disassembly and Assembly

Product Fixture……………………………………………………………………………………………......20

Disassembly procedure…………………………………………………………………………………….20

Assembly procedure………………………………………………………………………………………..26

Diagnostics SOP………………………………………………………………………………………………33

Explode Diagram……………………………………………………………………………………………45

Z500 Spare part List………………………………………………………………………………………...46

Z500

Service Guide Level1~2

3Version 1.0

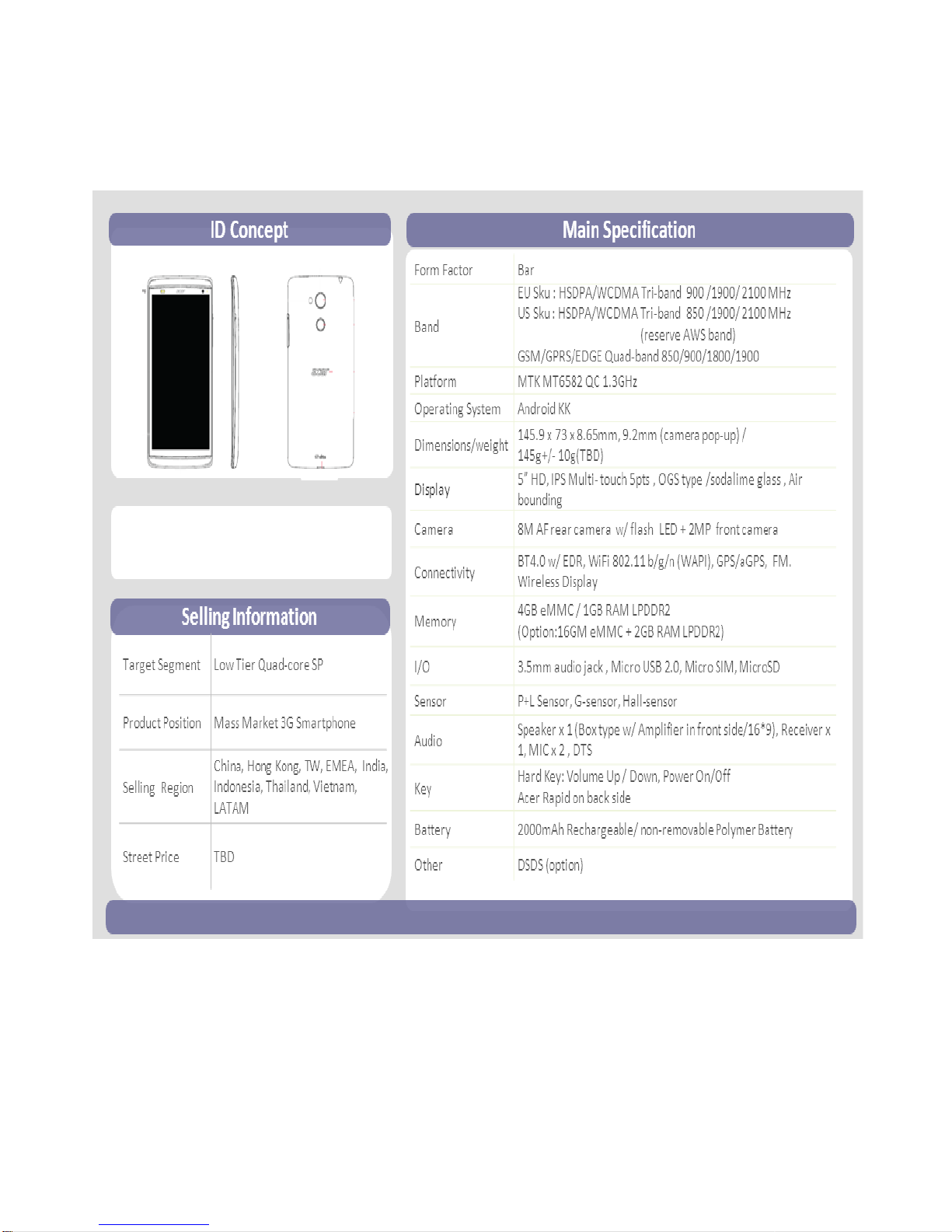

Features

Z500

Service Guide Level1~2

4Version 1.0

System Block Diagram

Z500

Service Guide Level1~2

5Version 1.0

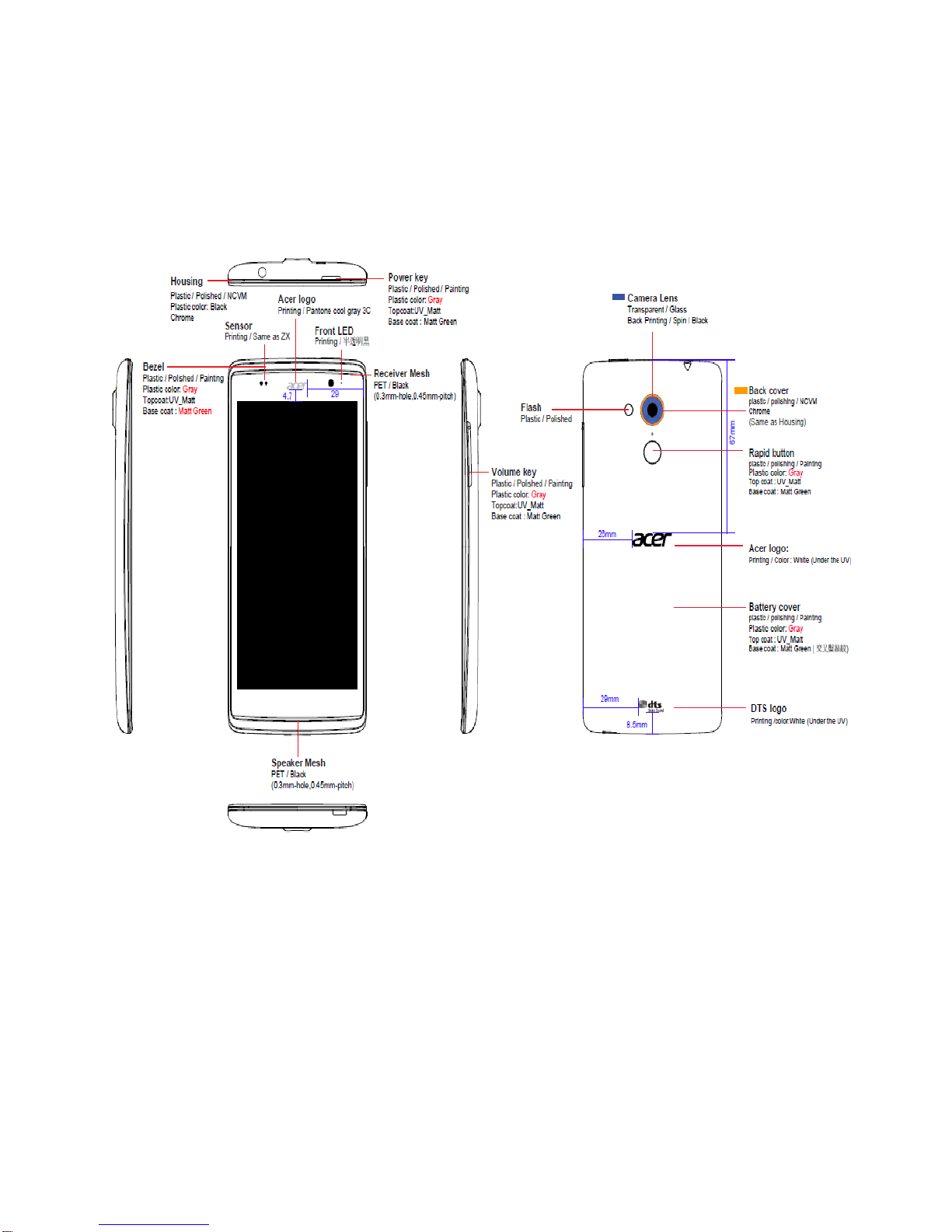

Product six view

Z500

Service Guide Level1~2

6Version 1.0

Software Upgrade SOP

1. Install USB Driver

1.1 Run “Install.bat”Which in Driver_Auto_Installer_V1.352.00

2. When you upgrade the FW, you can see the follow item if the driver is install ok

3. Upgrade Phone SW

3.1 Open “Flah tool”

Z500

Service Guide Level1~2

7Version 1.0

3.2 Load “Scatter File”, Tap scatter loading choose “MT6582…TXT”and loading

3.3 Tap Firmware Upgrade

Z500

Service Guide Level1~2

8Version 1.0

3.4 Download Finished when show this page

Z500

Service Guide Level1~2

9Version 1.0

SD Card upload SOP

1. At APP list, Select setting icon，then select ”About phone”.

2. Record Acer SW version like figure1.Do Phone had Power off!

3. Copy the upgrade file into root path of SD card, and then insert into phone

Upgrade file:update-Acer_AV0K0_Z500_1.003.00_EMEA_GEN1-user.zip

If we need upgrade different SKU, pls. select Upgrade file:

update-Acer_AV0K0_Z500_1.003.00_EMEA_GEN1_sds.zip

Note. Make sure the SD card has enough free space which should be double than

Upgrade package, for example, 200M upgrade file needs 400M free space.

4. Keep press Vol.-UP and power button for 2 seconds and enter into Select Boot

Z500

Service Guide Level1~2

10 Version 1.0

Model UI as the Figure2

5. When see the P1 UI, then press Vol.-up to move the cursor to “Recovery Mode”，

Press Vol.-down to select, then the system will migrate intofigure3
