AccuraSEE MINT Manuel utilisateur

ORTABLE

EAT

ECOVERY

ENTILATOR

Model MINT

User Manual

We aim to provide our customers with exceptional niche products that are superior to alternative options.

Our products are handcrafted and built with respectful cognizance of sustainability and quality.

Please, kindly contact us if there are any issues or errors in the User Manual.

 AccuraSEE| 2022 – version 3

info@accuraseemechanical.com

Table of Contents

Introduction ................................................................................ 1

Product Description ................................................................... 1

Warning ..................................................................................... 3

Installation ................................................................................. 4

Maintenance .............................................................................. 5

Filter ................................................................................................. 5

Duct .................................................................................................. 6

Electrical Parts ................................................................................. 6

Caveat ....................................................................................... 6

Terms and Agreements ............................................................. 7

Return Policy .................................................................................... 7

Disclaimer ........................................................................................ 7

Introduction

he User Manual simplifies the installation and operation of the product. The

careful observation of the points that are laid out in the User Manual will

ensure that the product works in accordance with the design of the

manufacturer. The Terms and Agreements that are set forth by the

manufacturer shall be invalidated if the instructions that are presented in the User

Manual are not observed.

Product Description

The product is a portable heat recovery ventilator which is housed in a compact and

attractive cabinet enclosure. The heat recovery ventilator is designed to supply filtered,

fresh air into a building space, passively regulate the temperature and humidity of air,

and simultaneously expel stale air and contaminants from the same space.

The external and internal parts of the product are visually depicted in Figures 1 and 2,

respectively.

(a)

(b)

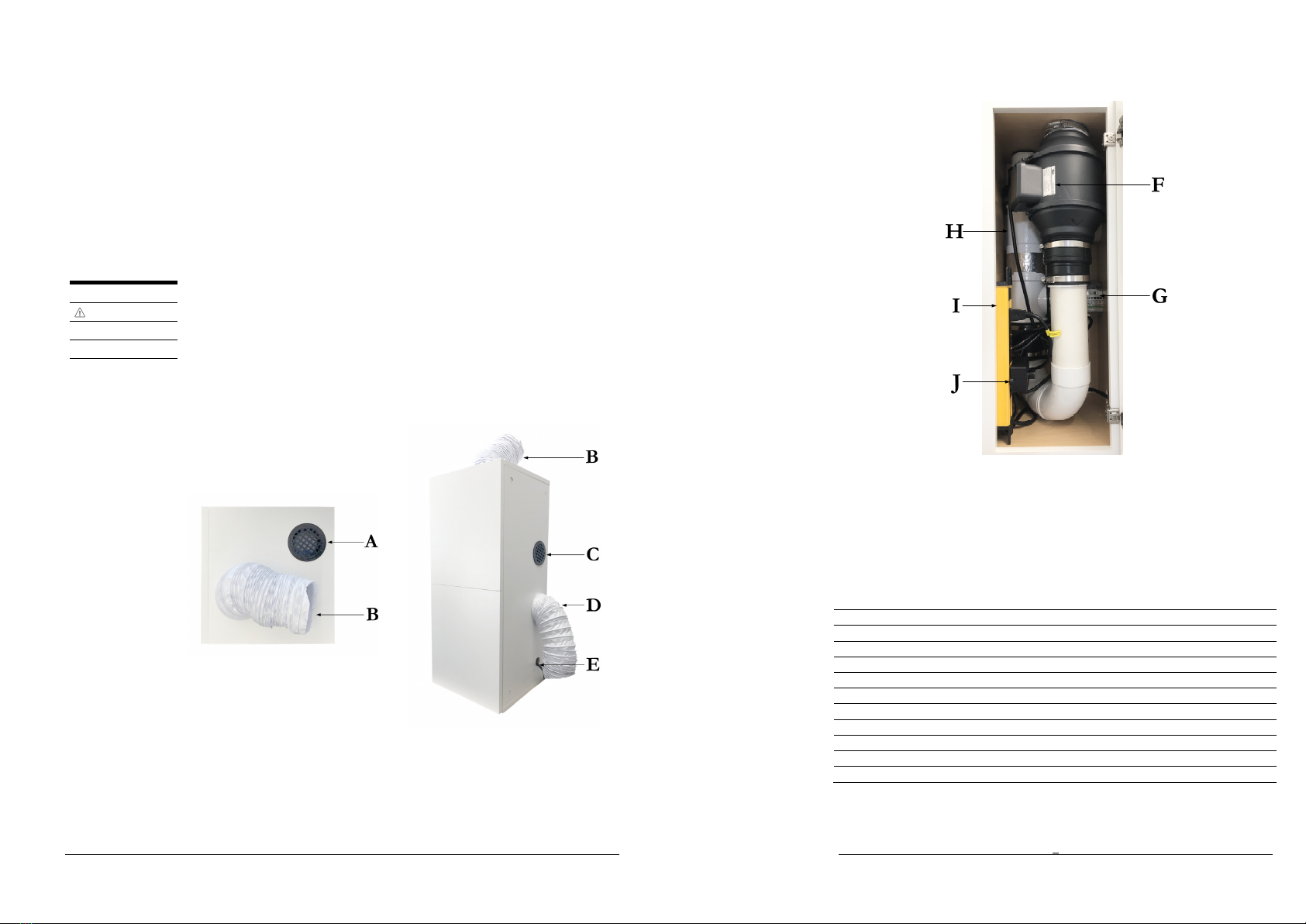

Figure 1. The (a) top and (b) side views of the portable heat recovery ventilator.

The legends A to E are defined in Table 1. The approximate external dimensions of the product are 30 in × 12 in × 12.5 in

(76.2 cm × 30.5 cm × 31.8 cm). The actual product that is received by the customer may slightly differ from what is shown in Figure 1.

Note. Figure 1 is not drawn to scale.

I C O N K E Y

Warning



Note

†

Caveat

Figure 2. Internal parts of the portable heat recovery ventilator. The legends F to J are defined in Table 1.

The actual product that is received by the customer may slightly differ from what is shown in Figure 2.

The parts of the product that have been identified with the legends A to J in Figures 1

and 2 are defined in Table 1.

Table 1. Parts of the portable heat recovery ventilator.

Legend

Part

Reference Figure

Supply vent

Figure 1(a)

Supply duct

Figure 1(a) and (b)

Exhaust vent

Figure 1(b)

Exhaust duct

Figure 1(b)

Power supply cord

Figure 1(b)

Supply fan

Figure 2

Exhaust fan

Figure 2

Heat exchanger

Figure 2

Power bar

Figure 2

Supply fan controller

Figure 2

Warning

The following warnings must be exactingly observed:



Failure to comply with the warnings may result in fire, property

damage, electric shock, injury, or death.



To prevent suffocation, electric shock, injury or death, the customer

is responsible to ensure that children shall NOT access the product.



The product shall not be modified, disassembled or serviced.



The product shall be shut down if the outdoor air temperature

exceeds 35ºC or 95ºF.



The vents (A and C) of the product shall NOT be blocked at all.



The enclosure shall not be opened when the product is powered.



The electrical parts of the product shall not be touched even if the product

has been shut down. The electrical parts are the fans (F and G),

power bar (I), and supply fan controller (J).



As soon as possible, the power supply cord (E) shall be safely

disconnected from the wall power or electrical mains if liquid spills on or

around the product.



The power bar (I) shall only be connected to an electrical receptacle that is

permanently installed in a building.



The power bar (I) shall not be connected to a relocatable power tap.



There shall be no connection of any external devices to the power bar (I).



The cables of the fans (F and G) shall not be disconnected from the

power bar (I).



The supply fan controller (J) may not be arbitrarily adjusted in order not to

disrupt the calibration of the product.

NOTE 

The manufacturer

supplies third-party

locks that the customer

may install to shut the

door of the enclosure.

NOTE 

An indicator is affixed

to the supply fan

controller (J) on a

parallel axis to the

nominal position of the

controller knob.

Installation

The following points shall be strictly observed when installing the product:



The product shall not be installed near hazardous or toxic materials.



The product shall only be installed in either vertical or horizontal

orientations and shall not be positioned at an oblique angle.



For vertical orientation, the supply vent (A) shall face upwards as

indicated in Figure 1(a). There is no restriction on the horizontal

orientation of the product provided the exhaust vent (C), exhaust

duct (D), and power supply cord (E) are not obstructed.



The product may be placed on the floor or a sturdy table.

Professional help may be needed to install the product on a wall.



The vents (A and C) and ducts (B and D) shall NOT be connected

to external appliances such as dryers, fans, furnaces, etc.



The product shall be installed in the conditioned space of a building where

the temperature and relative humidity of air are within the range of

22ºC – 24ºC and 35% – 50%, respectively.



The product shall not be powered until the ducts (B and D) are installed.



A ventilation kit (not bundled with the product) is needed to install the two

ducts (B and D) such that air can securely and simultaneously be supplied

to and expelled from the building space.



The ventilation kit can interface with the outdoors though a window, door

or wall as illustrated in Figure 3. The customer is responsible for

complying with all applicable codes and regulations.



To power the product, connect the plug of the power supply cord (E) to

the wall power (~120V AC, ~60Hz). To shut down the product,

disconnect the power supply cord (E) from the wall power.

NOTE 

The product shall not be

installed at a location

where there is probable

contact with liquids.

NOTE 

The product shall be

carefully positioned

such that it may not trip

and cause property

damage or bodily injury.

NOTE 

The product shall not be

installed at a location

where there is excessive

heat or exposure to

direct sunlight.

NOTE 

The ports of the

ventilation kit shall be

4 in (~10.2 cm).

NOTE 

The product is designed

to deliver air at a flow

rate of 10 – 20 CFM.

The product shall not be

operated outside of this

prescribed range.

Figure 3. Installation of the product using a ventilation kit.

RECOMMENDATIONS



Screens (not bundled with the product) shall be attached to the ports of the ventilation kit

to prevent the encroachment of animals that can damage the product or constitute hazard

to the building occupants.



A minimum separation distance of 1 ft is recommended between the supply and exhaust

ducts.



The ducts (B and D) shall be installed without any bends that may impede the flow of air.



The ducts (B and D) shall be insulated to minimize energy losses.

Maintenance

A few activities may be performed during the course of using the product.

The product shall be shut down before any maintenance activity is performed.

Filter

It is recommended to change the filter in the supply vent (A) at least once in three

months depending on the outdoor air quality. The procedure for changing the filter is

presented as follows.



To remove the old filter in the supply vent (A):

o Shut down the product;

o Open the door of the enclosure;

o Locate and hold the heat exchanger (H) firmly with one hand;

o Carefully twist and pull out the supply vent (A) with the other

hand.

NOTE 

The heat exchanger (H)

shall not be washed.

NOTE 

A filter shall not be

installed in the exhaust

vent (C).



Remove the filter in the supply-vent (A) port and replace it with a new

filter.



To reinsert the supply vent (A):

o Clean the vent (A) with a paper towel that is moistened with

isopropyl alcohol;

o Use one hand to hold the heat exchanger (H) and ensure that it

lines up with the port of the supply vent (A) at the top of the

enclosure;

o Use the other hand to insert the supply vent (A) into the port until

it is flush with the top surface of the enclosure.

Duct

A damaged duct can be replaced by using a similar duct with a diameter of 4 in

(~10.2 cm).

The following steps can be followed when changing a duct:

o Shut down the product;

o Loosen the nuts of the clamp of the damaged duct;

o Remove the damaged duct from the port of the appropriate fan;

o Attach a new duct to the port of the appropriate fan;

o Tighten the nuts of the clamp.

Electrical Parts

An electrical part (F, G, I, and J) shall only be replaced if it is faulty. In this situation,

the product shall be shut down and the manufacturer shall be consulted for further

instructions.

Caveat

The electrical parts (F, G, I, and J) of the product are deemed to be certified to ensure

customer safety. Products are submitted for field inspection only if a request is made to

the manufacturer. Consequently, the manufacturer is not liable if approval is required

by the Authority Having Jurisdiction where the product is purchased and/or installed.

NOTE 

Excessive force shall not

be applied when

replacing the filter in the

supply vent (A).

NOTE 

The length of a newly

installed duct shall be

5 in (~12.7 cm).

NOTE 

Do not apply excessive

force when tightening

the clamp.

†

Terms and Agreements

The product is protected by intellectual property and shall not be reverse-engineered,

imitated or copied except under an approved licensing agreement with the

manufacturer.

Return Policy



Please, check the return policies of the online merchant(s) and store

owner(s) from whom the product was purchased.

Disclaimer



The warranty does not apply to defects that are caused by normal wear and

tear, normal corrosion, and normal failure that ensue from the operation

of electrical or mechanical devices.



The warranty does not extend to products that have been subject to

misuse, neglect, abuse, alteration, testing, improper installation, improper

storage, improper maintenance, improper handling during shipping,

unauthorized attempts to repair, accident, fire, lightning or other hazard,

and damage by current, temperature, physical stress, and deviation from

the environmental specifications of a conditioned space that is stated in the

User Manual.



The warranty does not extend to products that have been modified,

disassembled, serviced, or reassembled by a third party.



The warranty is exclusive and in lieu of all other warranties, expressed or

implied, including, without limitation, any warranty of merchantability or

fitness for a specific purpose. Without limiting the generality of the

foregoing, the manufacturer disclaims any other claim against the

manufacturer (whether arising by operation of law or otherwise), including

any claim or liability for special, indirect or consequential damages of any

kind relating to or arising out of the product or any part thereof.



The manufacturer’s obligation is limited to repair or replacement, at the

option of the manufacturer, of any product determined to be defective in

workmanship or material during the applicable warranty period, subject to

the fact that the warranty:

o Covers the heat exchanger (H) for a maximum period of five years

from the date of purchase by the customer;

o Covers the electrical parts (F, G, I, and J) for a maximum period

of one year from the date of purchase by the customer;

o Does not cover the enclosure;

NOTE 

The manufacturer

provides a warranty for

the product that is

subject to a Disclaimer.

o Does not cover goods and services that are sourced from third-

party and sold or delivered to the customer “as is”.



The manufacturer neither assumes nor authorizes any person to assume

for it any other liability in connection with the manufacture, sale, shipping,

delivery, installation and operation of the product or any part thereof

except as aforesaid.

Table des matières

Autres manuels AccuraSEE Ventilateur

AccuraSEE

AccuraSEE MINI Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
