Accolmile 700C Manuel utilisateur

Owner’s Manual

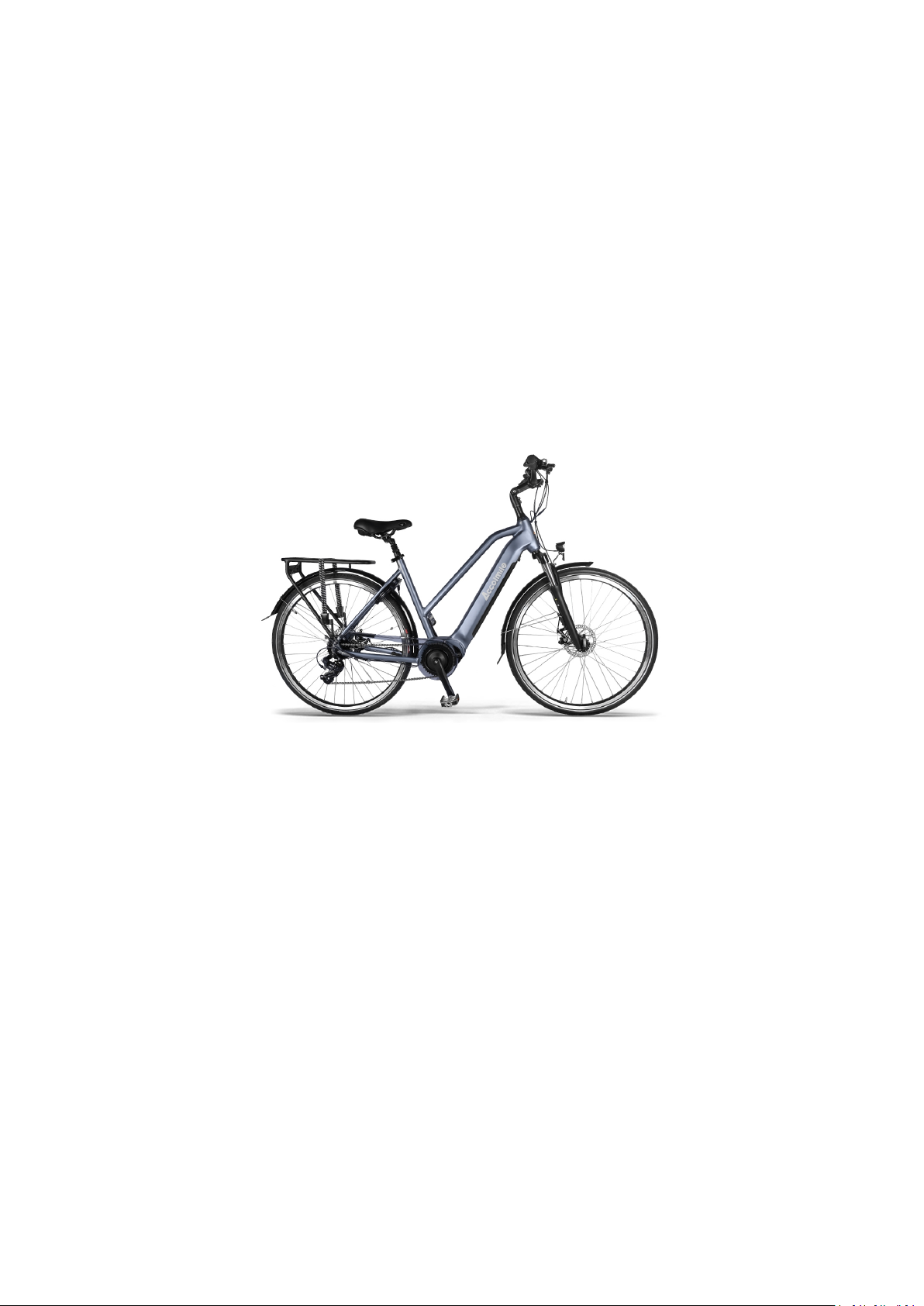

Accolmile A-2850014WM 700C CITY Bike Middle Drive

We strongly recommend that you read this entire manual before using your Accolmile bike.

Content

1 Introduction..................................................................................................................................... 2

2 Caring for your Accolmile bike and pre-use checks.........................................................................3

2.1 Before you set off for the first time.........................................................................................4

2.2 Before each use....................................................................................................................... 5

2.3 Battery care..............................................................................................................................6

2.4 Recharging your battery.......................................................................................................... 7

2.5 Waterproof.............................................................................................................................. 7

2.6 Maintenance and adjustments................................................................................................8

2.7 Technical specifications & performance..................................................................................9

2.8 Simple Trouble shooting........................................................................................................10

3 Controls and equipment................................................................................................................10

3.1 Battery on/off switch and lock.............................................................................................. 10

3.2 The ON/OFF button and Light button................................................................................... 11

3.3 Pedal assist power................................................................................................................. 12

3.4 Battery capacity meter, riding style and affect on range......................................................12

3.5 Brakes.....................................................................................................................................13

3.6 The connectors...................................................................................................................... 14

3.7 Quick release saddle height adjustment............................................................................... 14

3.8 Rims and spokes.................................................................................................................... 14

3.9 Chain and drive wheel removal............................................................................................. 15

3.10 Derailleur and gear change....................................................................................................15

4 Warranty, battery maintenance and user responsibilities............................................................16

4.1 Battery maintenance and user responsibilities.....................................................................16

5 Extra recommendations and warnings........................................................................................... 18

6 Service............................................................................................................................................. 19

7 Pre Delivery Inspection check list....................................................................................................21

1 Introduction

Thank you for choosing a Accolmile electric bicycle.

Before you use your Accolmile electric bike it is important that you read this manual carefully. If

there is anything you do not understand completely, please contact us.

Please observe traffic regulations, and do not lend your bicycle to anyone who is unfamiliar with it.

We strongly advise you to always wear an approved cycle helmet when riding your bicycle. If you are

unfamiliar with cycling we advise attending a cycle proficiency course prior to using your new bicycle

on the public highway.

When using any bicycle, it is important that you stay within safe limits; if you feel as if you are

travelling too quickly, you probably are.

Always test your brakes prior to using the bike and remember the bike will not stop as quickly in the

wet as it would in the dry!

Before you use the bike for the first time, please make absolutely certain that it has been correctly

assembled. You can do this by either taking it to your nearest cycle engineer or if you are proficient

in cycle mechanics, inspecting it yourself. In particular you must make sure that the pedals, saddle,

handle bars and any self assembled items have been fitted correctly.

Avoid consuming alcohol before you ride your electric bike. The use of alcohol greatly reduces

reflexes and limits your ability to ride safely.

If you need to replace your battery, please either dispose of it properly or preferably send it back to

us or one of our distributors and we will make sure it is properly recycled.

Above all, enjoy your Accolmile bike, happy cycling!

2 Caring for your Accolmile bike and pre-use checks

Your Accolmile bike has been thoroughly tested at the factory prior to delivery and undergone a pre-

delivery inspection by your Accolmile Stockist.

It is very important that you check the bike thoroughly before its first use. Equally important are

frequent and regular spot-checks, as they will protect you and your Accolmile bike.

Please read this manual carefully. Only on full understanding all of the functions of this electric

bicycle should you attempt to use it.

This city bike can be used for riding on the flat roads, it shall not be used for off-road, sports and

performance downhill. If consumers violate the regulations for off-road, sports and performance

downhill and cause accidental injury, they shall bear their own responsibility.

Before you set off for the first ride: suggested information to measure and adjust saddle height to

suit rider height:

Please try to confirm whether the pedals are locked before riding. If they are loose or damaged, they

need to be adjusted before use.

2.1 Before you set off for the first time

2.1.1 Check the handlebar and stem are properly tightened.

2.1.2 Check all other nuts, bolts and fixings are properly tightened.

2.1.3 Check brakes are functioning properly.

2.1.4 Check tires pressure are correct and tires are not damaged.

2.1.5 Check reflectors and lights function if fitted.

2.1.6 Make sure the battery is fully charged.

2.1.7 Load the battery into bicycle and turn on with the switch located directly above the battery.

To remove the battery, turn the battery key hold in unlocked position and slide the battery

out. Remove key from battery and keep save during operation of the bike.

2.1.8 Turn on the bike by pressing the on/off switch adjacent to the left hand grip for two seconds.

(Turn off the bike by repeating the same process).

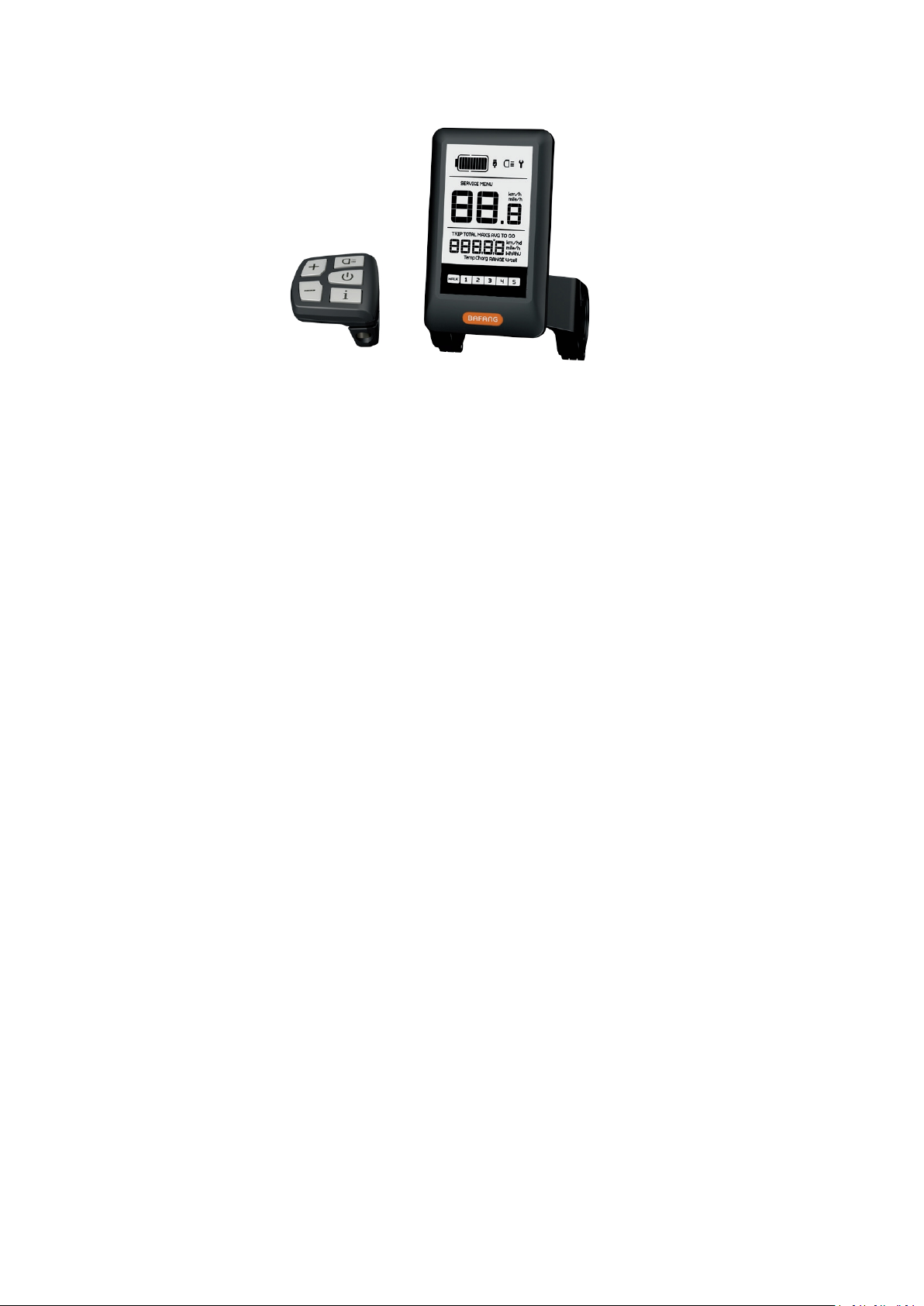

Fig 1

The bike will be ready to ride and the LCD will activate showing battery state, assist level,

time, trip and speed. Turning the pedals for more than ¼ of a revolution will now activate

the motor.

2.1.9 To avoid unplanned acceleration, always make sure that the LCD assist level is set to 0 when

mounting, dismounting and turn the bike off when leaving it unattended.

To set the assist levels, toggle with the + and – buttons (see fig 1)

2.1.10 For full information regarding the LCD display please refer to separate hand book available

from Accolmile Bikes or your retailer.

2.1.11 To avoid the use of a bicycle trailer or outboard bicycle.

2.2 Before each use

It is important you check your bike prior to each time you use it. Checks should include the following:

(If you do find any damage or problems, do not use the bike until the problem has been solved or

you have had the faulty item checked by an electric bike mechanic or your retailer).

2.2.1 Check the tires for any visible damage.

2.2.2 Check the tires pressure.

2.2.3 Check for any loose nuts, bolts or fixings. Check all folding mechanism clamps are closed

tight and locked.

2.2.4 Check the brake functions.

2.2.5 Check the electronic functions.

2.2.6 Check the reflectors are in place and the lights are working.

2.2.7 Check the battery for any visible signs of damage.

2.3 Battery care

2.3.1 Your Accolmile bike comes with a high quality lithium ion battery. All lithium batteries need

to be looked after to ensure years of full use. The latest Accolmile batteries come with new

technology installed to assist you in looking after your battery and will be dealt with

separately. Following these easy steps will ensure the long life of your battery.

2.3.2 Recharge your battery after every use if possible. Keeping your battery charged extends its

life and your bike is always ready to go.

2.3.3 You do not have to “condition” your battery by charging and discharging before it’s first use.

This was the case with old lithium ion technology but is not necessary on modern batteries.

2.3.4 Never leave your battery completely discharged for more than 24 hours. Voltage dropping

below minimum for any length of time will cause serious damage to your battery cells.

2.3.5 Recharge your battery every month even if you are not using the bike. Most lithium ion

batteries will continue to discharge even when the bike and battery are turned off. If your

battery falls below minimum Voltage, it may not be recoverable.

2.3.6 Do not expose the bicycle or battery pack to fire, heat sources, acid or alkaline substances.

2.3.7 When leaving your bicycle during hot weather, always leave in a shaded well ventilated area.

2.3.8 For best results, always recharge and store the battery at room temperature.

2.3.9 Before unloading the battery, make sure it is turned off and unload the battery using its

handle.

2.3.10 Further information on user responsibilities and battery maintenance are included in the

warranty section of this manual.

The most common cause of battery failure the owner not keeping to points 4 and 5 above.

This is the most common reason for customers to need to replace batteries. This is

particularly noticeable in the spring when customers are using their bike for the first time in

the new year. We get most calls regarding failing batteries during this period.

IMPORTANT

If your battery is damaged due to your leaving it discharged, or not recharging when

advised as per this manual your battery is not covered by our warranty.

Battery safety

2.3.11 i. Never leave a battery connected to the charger or mains power over-night.

ii. Never recharge a battery outside, in damp conditions or in temperatures less then 0

degrees centigrade.

iii. Never open a battery case, try and fix the battery or give it to any one other

than a registered Accolmile Stockist for maintenance. (Failure to comply will void the

warranty)

iv. If a battery is or appears to be damaged or overheating for any reason, do not use the

bike and immediately return the battery to your retailer for advice and a safety check.

IMPORTANT

Ignoring any of the safety rules above could cause serious injury or fire.

2.4 Recharging your battery

2.4.1 Before charging, make sure the charger is turned off and connect your battery to the charger

at the charging socket. Plug the charger into a mains socket and turn on the mains socket.

A red lamp will light up on the charger indicate the battery is charging. When the red light

turns green, the battery is fully charged. To optimize battery life, leave the charger

connected for a further hour and then turn off the charger and disconnect it from the

mains after charging. Always disconnect the charger from the mains before disconnecting

the charger from the battery. It is possible that the battery will take up to twelve hours to

charge on the first three charges.

2.4.2 When charging the battery, always do so in a well ventilated area.

2.4.3 Do not leave the charger connected to the mains when not in use.

2.5 Waterproof

2.5.1 Your electric bicycle is rain and splash proof and can be used in all weathers.

2.5.2 The electrical components of the bicycle, such as motor, battery, and controller, must not be

submerged in water.

2.5.3 Do not directly flush the bike with water to avoid direct contact with the brake levers,

handlebars, electronic equipment, etc., causing hidden dangers of the accident.

2.5.4 Please use neutral detergent, wipe the headlight lampshade, instrument case and other

plastic parts with a soft clean cloth or sponge dipped in water, and then wipe with a dry cloth

to avoid scratches;

2.5.5 It is strictly forbidden to refuel the front and rear brakes and tires;

2.5.6 Please avoid frequent bike washing, the best bike washing cycle is 10-20 days, too frequent

will accelerate the aging of bike paint;

2.5.7 To protect the environment, please try to wash the bike in the place where the sewer pipe is

laid to prevent the road area water from affecting the traffic safety.

2.6 Maintenance and adjustments

2.6.1 IMPORTANT! Do not attempt to open the casings of the battery, motor or controller. It

could be dangerous and all warranties will become void. If you experience a problem,

contact our service department or the retailer.

2.6.2 Wheel spokes should be checked after 300 miles of riding. Handlebar and saddle tubes

should never be raised beyond the maximum permissible, indicated by a safety line around

the tubes. The recommended torque (tightness) of crucial fixings is as follows:

Front axle nuts. 46N.m

Back axle nuts. 70N.m

Handlebar and stem clamp bolts. 12N.m

Handlebar stem expander bolt. 10N.m

Seat pillar clamp nut/bolt. 5-8N.m

Seat clamp nuts. 24N.m

Crank axle Allen bolts. 40N.m

Gear shifter nuts. 4N.m

Rear carrier nuts. 8N.m

Mudguard bracket nuts. 8N.m

Other general torque settings depend on the thread size. M4: 2.5-4.0N.m, M5: 4.0-6.0N.m,

M6:6.0-7.5N.m.

2.6.3 Your bike has a rear derailleur that will automatically tension your chain. However, if the

chain becomes loose or frequently comes off the front chain-wheel, please seek advice from

the dealer.

2.6.4 Brake levers should lock the wheels when compressed half way between their open position

and touching the handle bars.

2.6.5 Warning: Handlebar hand grips or tube end plugs should be replaced if damaged, as bare

tube ends can cause injury.

2.6.6 Brake pads must be replaced if the pad material wears to less than 1mm.

IMPORTANT! braking distances increase on wet or icy roads.

2.6.7 Lubrication:

6.7.1. Lubricate all pivot points on the derailleur and chain with light oil or chain lube on a

regular basis.

6.7.2 Once a year, have the dealer re-grease the headset bearings, front wheel bearings

and pedal bearings.

2.6.8 Recommended tools for proper maintenance:

Torque wrench with lb/in or N/m gradations

2, 4, 5, 6, 8mm Allen wrenches

9, 10, 15 mm open-end spanners and 15mm box end spanner

14, 15, and 19mm socket

T25 Torque wrench

No. 1 Phillips head screwdriver, bicycle tube patch kit and tire pump

2.7 Technical specifications & performance

Motor Bafang 36V 250W M200 middle motor

Battery Lithium battery 36V 15AH 2500MAH cells

Charger 36V 2A

Max speed 25KM/H with powered assistance

Controls LCD display panel with bike and light on/off switch

Power assistance: five levels 1, 2, 3, 4, 5

Load capacity 150KGS

Frame 700C, 6061 Alloy

Forks Suntour NEX Suspension fork

Seat post Yousen, 300MM, black, aluminium

Saddle Velo Saddle VL-6268A

Handlebars 600MM, black, aluminium

Stem 110MM, black, aluminium

Gears SUNRACE 8 speed derailleur system

Brakes Taiwan Logan front& rear hydraulic disc brakes

2.8 Simple Trouble shooting

Problem

Possible reason

Solution

Top speed too slow

1. Low battery voltage

2. Handlebar control problem

3. Damage to motor drive-line

1. Recharge battery fully

2. Call service

3. Call service

Power on, but motor

not working

1. Battery not connected

2. Motor connection damaged

3.Handlebar control problem

1. Re install battery

2. Call service

3. Call service

Low range after

recharging the battery

1. tire pressures too low

2. Undercharge or charger fault

3. Battery capacity loss or

damage

4. Hill climbing, frequent stops, strong

headwinds, overloading.

1. Check pressures

2. Recharge completely or have

charger inspected

3. Replace battery

3 Controls and equipment

In this section, the functions and any specific maintenance needed on all the main controls and

ancillary equipment are described.

3.1 Battery on/off switch and lock

3.1.1 Your Accolmile bike is supplied with two identical keys. The key locks the battery to the bike.

3.1.2 The battery is connected to the electrical system of the bike automatically when you slide

the battery into the frame. To turn on the bike’s electrical system, Press down the button

directly above the frame to turn on the power, press the button again to turn off the power.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Accolmile Accessoires pour vélos

Accolmile

Accolmile A-27541002MM Manuel utilisateur

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
