All features listed except those marked with a † require the user to lift the receiver

before operating the feature. Press [FEAT]+[#]+[9]+{button} to determine the function

of a button.

Absence Message

Return Time [Absence Message]+ 1+HH:MM

Return Date [Absence Message]+ 2+DD

Meeting Time [Absence Message]+ 3+HH:MM

Telephone No. [Absence Message]+ 4+(Phone No.)+#

Cancel [Absence Message]+*

Account Code [Account Code]+(Code)+ *

Auto Repeat Dial [Auto Repeat Dial]

Cancel [Auto Repeat Dial]+ *

BGM-On† [BGM]

Off† [BGM]

Busy ICM Callback [ICM Call Back]

Cancel [ICM Call Back]+ *

Busy Number Callback [Timed Trunk Queue]

Cancel [Timed Trunk Queue]+ *

Busy Trunk Queue [Trunk Queuing]

Cancel [Trunk Queuing]+ *

Call Coverage [CCV][Delayed n],[Immed. n], [No ring n]

Immediate [CCV]+1

Delay Indication [CCV]+2

No Ring [CCV]+3

Call Mode Change Tone to Voice: ICM extension + #

Call Mode Change† Voiceto Tone:[Calling Mode CHG]

Call Park Pick Up [Call Park Pickup]+Ext.No.

Call Pick Up

Internal Group [Call Pickup In]

External Group [Call Pickup Out]+Group No.

Direct Extension [Spec.CallPickup]+Ext.No.

Conference

Add On [TRAN]+Ext.No.+[ADD]

Multi Line [HOLD]+(Line 2)+[ADD]+(Line1)

TrunktoTrunk [HOLD]

Display Change [LCD Mode Change]

Extension Lock [Station Lockout]+(Password)

Release [Station Lockout]+(Password)

Flexible Call Forwarding

All [FORWARD]+Call Type (1-3)+ 1+(Destination)

Busy/No Answer [FORWARD]+Call Type (1-3)+ 2+(Destination)

No Answer [FORWARD]+Call Type (1-3)+ 3+(Destination)

All External [FORWARD]+Call Type (1-3)+ 4+(Destination

(90-99))

Cancel [FORWARD]+ *+Call Type (1-4)

Follow Me [FORWARD]+[FORWARD]+Call Type+(Ext. No.)

Flash-Short [Short Flash]

Last No. Redial [SPEED]+ #

Meet-Me Page Answer [Meet Me]

Memo Dial

Set [Memo Dial]+(Phone No.)+[Memo Dial]

Dial [Memo Dial]

MessageWaiting

Set [MESSAGE ]+ #

Cancel [MESSAGE ]+ *+Ext.No.

Display [MESSAGE ]

Answer [MESSAGE ]+ #

Clear [MESSAGE ]+ **

Privacy Release [Privacy Release]

Save No. Redial [Save No. Redial]

Speed Dial Registration†

Number [FEAT]+[SPEED]+(Code)+(Phone No.)+[FEAT]

Trunk Group [FEAT]+[SPEED]+ #+(Code)+(LineNo.)+[ FEAT]

Name [FEAT]+[SPEED]+ *+(Code)+(Name)+[FEAT]

Speed Dial [SPEED]+(Code)

Speed Dial-Scroll [SPEED]+ *+(Code)+ */ #+[SPEED]

Transfer to Park [TRAN]+[PARK]+Ext.No.

TimeReminder

Set [Reminder]+HH:MM

Cancel [Reminder]+ *

Universal Night Answer [UNA Pickup]

Whisper Page Press *

Depending on the hardware, software and programmed functions in your X-EO

system, available features and feature operations may differ from those listed in this

guide.Formoreinformationcontact yourauthorized Abrivodealer.

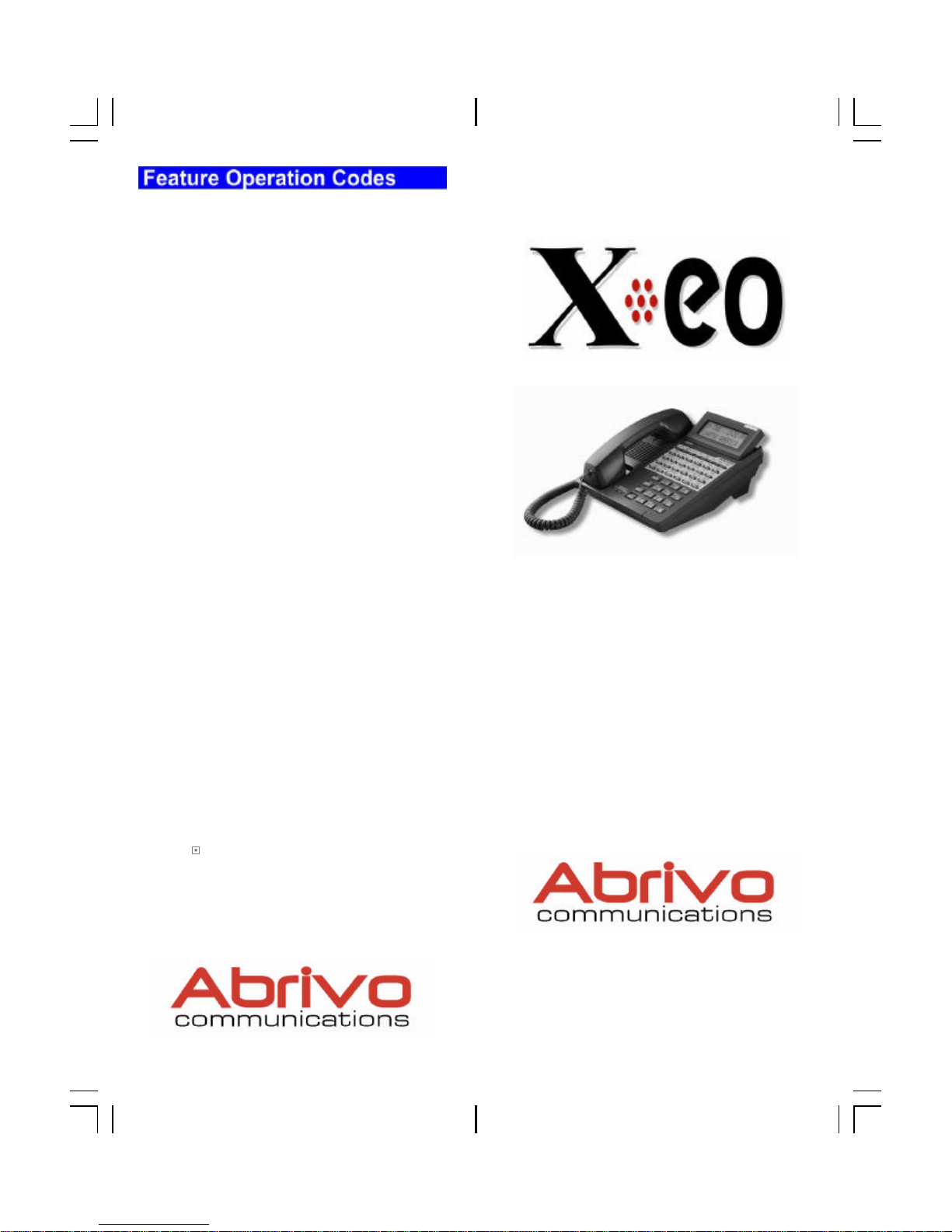

Digital Telephone

Station User

Quick Reference

This guide describes basic features and operations for

X-EO telephones. This includes X-EO Digital Multiline

Telephones and the X-EO 8 Line Digital Key Tele-

phone.

Certain features are not available on all X-EO models.

For more information, refer to the X-EO Owner's Man-

ual or contact your authorized Abrivo distributor.

Multipurpose Keys -These keys can be pro-

grammed for specific functions, including outside line

access, individual extension selection, and one-touch

feature operation.

Key Lamps -These lamps light up or flash when

someone is using the line or feature corresponding to

that key. A green lamp indicates that you are using

that line/feature. A red lamp indicates that someone

else is using that line/feature.

SPKR (Speaker) -This button allows you to dial and

receive outside or internal calls and converse without

lifting the receiver while using the hands-free opera-

tion feature.

TRAN (Transfer) -This button allows you to transfer

a call from your phone to another extension.

FEAT (Feature) -This button is used to access many

X-EO features.

Making an E-Response Help Call

If programmed, X-EO provides emergency notification

to a group of telephones or paging system.

♦Go off hook and do not dial for more than 10

seconds,

Go off hook and begin dialing a system exten-

sion. Between digits pause for more than 10

seconds,

At ICM dial tone dial the E-Response Group

access number.

♦The system will initiate an E-Response Help Call

to the stations in your E-Response Group and/or

a paging system.

Universal Night Answer

If you need to pick up an incoming call when the sys-

tem is in the night mode

♦Lift receiver

♦Press [FEAT] button and dial 36

♦Press the [UNIVERSAL NIGHT ANSWER] but-

ton (if assigned)

You are connected with the incoming call

HOLD/DND (Hold/Do Not Disturb) -This key is used

to put a call on Hold or to set the Do Not Disturb func-

tion to prevent any calls from getting through or ring-

ing at your extension.

Handset Volume Control -The handset volume

control key allows you to adjust the handset volume to

one of three levels. Pressing the button will toggle

between the three volume levels.

Speaker Volume Control -The speaker volume

control key allows you to adjust the volume control of

the speaker when using speakerphone. Pressing the

[+] key raises the volume to one of nine settings.

Pressing the [-]will decrease the volume.

Ringer Volume Control -Pressing the ringer volume

control button allows you to adjust the ringer volume

to one of four levels.

[Mute] Key -When talking using the handset, press-

ing the [Mute] key mutes the handset transmitter. If

using the speakerphone, pressing the [Mute] key

mutes the station microphone. When using the head-

set jack, the [Mute] key mutes the transmitter on the

headset.

ICM -The intercom system is the internal network

used to communicate between the telephone exten-

sions in your

X-EO system. Pressing the [ICM] key connects you to

an intercom line for conversation with other exten-

sions.

Making an Outgoing Call

♦Lift the receiver

♦Press an outside line button. You will hear a dial

tone.

♦Dial telephone number

Makeadialingmistake?

♦Press the [FLASH] button to get new dial tone

♦Dial again

Receiving an Incoming Call

♦When your phone rings and lamp flashes

♦Lift the receiver to connect the call

If your phone does not connect you to the call

automatically

When your phone rings and lamp flashes

♦Lift the receiver

♦Press the button with the flashing lamp to

connect the call

Making an Intercom Call

♦Lift the receiver and wait for dial tone

♦Dial an extension number

If your phone has a [DIRECT STATION

SELECTION] button assigned for the extension

♦Lift the receiver and wait for dial tone

♦Press the assigned extension button

Receiving a Call From Another Extension

When you hear the intercom call signal -either the

caller's voice or intercom ringing tone

♦Pick up the receiver, and the call is connected

♦Speak into the microphone without lifting the

receiver

Making an Intercom Group Call

♦Dial the Intercom Group access number when

you hear the Intercom Dial Tone.

Putting a Call On Hold

When speaking on an outside line

♦Press the [HOLD/DND] button

The active outside line button lamp flashes green

on your phone and red at other extensions.

If the call is not picked up, the call will ring again

at your phone.

Picking Up a Call On Hold

♦Press the key with either the green or the red

flashing lamp to pick up the call being held on

that line

Transferring a Call to Another Extension

When speaking on an outside line

♦Press the [TRAN] button. You will hear a dial

tone

♦Dial an extension number

♦Press an extension button (if assigned)

♦Announce the call when the extension answers

♦Hang up

StoredTextMessages

To select and send a stored text message to an-

othersystemextension

While calling a busy or idle extension

♦Press [TEXT MSG] + text message number (00-

99), or [TEXT MSGn]

♦Press #

To display a stored text message

♦Press [TEXT MSG] + #to display a stored text

message

To respond to a stored text message by calling

theoriginatingextension

♦Press [TEXT MSG] + #to display the stored text

message

♦Press #a second time to call the station that

sent the text message

To delete a stored text message

While your text message key is lit

♦Press [TEXTMSG] + #+ *

Scrolling and Selecting Text Messages

To scroll through the available system text mes-

sages

♦Go off hook and press [TEXT MSG] + *+ text

message number (00-89)

♦With a message displayed press#to scroll

forward and *to scroll backward

To scroll through the available personal text

messages

♦Go off hook and press [TEXT MSG] + *+ text

message number (90-99)

♦With a message displayed press#to scroll

forward and *to scroll backward.

Registering Personal Text Messages

To enter a personal text message

♦Press [FEAT] + [TEXT MSG] + text message

number (90-99)

♦Press the following keys for text message data

entry:

1-,.,[space],1 2A,B,C,2 3D,E,F,3

4G,H,I,4 5J,K,L,5 6M,N,O,6

7P,R,S,7 8T,U,V,8 9W,X,Y,9

*Alphanumeric 0Q,Z,0 #U/L Case

[FEAT] All delete [HOLD]Enter/1 character delete

♦Press [FEAT] to end the operation

To Speed Dial a Number

Outside Line Pre-Select

♦Lift the receiver

♦Press an outside line button

♦Press the [SPEED] button, then dial the SPEED

DIAL CODE

The system will automatically dial the registered

number.

Quick Dial

♦Lift the receiver

♦Press the [SPEED] button, then dial the SPEED

DIAL CODE

The system will automatically dial the registered

number. This operation will not work unless you

Alphanumeric Speed Dial By Name Feature

♦Press [SPEED] [SPEED]

♦To search for a registered name, press the num-

bers on the dial pad

♦To focus the search, press [HOLD/DND], and

enter another character

♦To scroll through the registered names, press

FORWARD #or BACKWARD *

♦Press [SPEED] to dial the number

TextMessaging

You may send a manual signaling or busy bypass text

message to the display of another system extension.

You may also send a stored text message that lights

the Text Message button [TEXT MSG] at another

system extension.

Busy Bypass/Manual Signaling Text Messages

To select and send a manual signaling text

message

♦Lift the receiver and press [TEXT MSG] + text

message number (00-99), or [TEXTMSGn]

♦Dial an extension number or press [DSS] or

[CCV]

To select and send a busy bypass text message

While calling a busy or idle extension

♦Press [TEXT MSG] + text message number (00-

99), or [TEXT MSGn]

To respond to a busy bypass text message while

on a call

While on a call with a busy bypass text message on

your display

♦Press [TEXT MSG] + *+ text message number

(00-99) + [TEXT MSG]

To delete a busy bypass text message from your

display

While a text message is on your display

♦Press [TEXTMSG] + #+ *

Call Park

Park a call so that it can be reached from another

extension.

Putting a call in Call Park

When speaking on an outside line

♦Press the [PARK] button

♦You will hear confirmation tone and the [PARK]

button will flash green

If the call is not picked up, it will return to your

phone.

Picking up a call in Call Park

From the extension that parked the call

♦Lift receiver

♦Press flashing [PARK] button

From another extension

♦Lift receiver

♦Press [PARK PICK-UP]

♦Dial extension number where the call is parked

to pick-up the call

Transfer to Park

You can transfer a call to another user's individual

park on their telephone. The call can then be picked

up remotely from another telephone. The call can also

be picked up from the telephone where it is parked.

Transferring a call to another user's individual

park

When speaking on an outside line

♦Press [TRAN] + [PARK]

♦Dial the number of the extension where the call

is to be parked, or press the extension button (if

assigned)

♦When you hear confirmation tone, hang up

♦The [PARK] key on the user's phone will be lit

♦If desired, use the paging system to inform the

user of the call parked on their telephone

Picking up a call parked on your individual park

from your telephone

♦Lift the receiver (handset)

♦Press [PARK]

Picking up a call parked on your individual park

from another telephone

♦Lift the receiver (handset)

♦Press [PARK]

♦Dial the number of the extension where the call

is parked, or press the extension button (if as-

signed)

♦Lift the receiver (handset)

♦Press the [FEAT] button and dial 34

♦Dial the number of the extension where the call

is parked, or press the extension button (if as-

signed)

♦Lift the receiver (handset)

♦Press [PARK PICK-UP]

♦Dial the number of the extension where the call

is parked, or press the extension button (if as-

signed)

Save Dialed Number

While speaking on an outside line

♦Press the [FEAT] button and dial 21

♦Press the [SAVE DIAL] button (if assigned)

You will hear a confirmation tone that indicates

the phone number you just dialed has been

saved.

To dial the saved number

♦Lift the receiver

♦Press the [FEAT] button and dial 21

♦Press the [SAVE DIAL] button (if assigned)

♦The saved number is automatically dialed

Last Number Redial

To automatically redial the last number you called

♦Lift the receiver

♦Press the [SPEED] button and dial #

Call Storage

Your telephone may be programmed to capture, store

and display telephone numbers and IDs from calls

received with Caller ID, ANI or DNIS information.

To view call information

For station

♦Press [SPKR]

♦Press the illuminated [USAS] key to display in-

formation about the first call that occurred at your

station

♦Press #to scroll forward and *to scroll back-

ward in sequence

For trunk group

♦Press [SPKR]

♦Press the illuminated [USATn] key, or

♦Press the [USAT] key + trunk group number to

display information about the first call that oc-

curred on a specific trunk group

♦Press #to scroll forward and*to scroll back-

ward in sequence

Speed Dial

Personal Speed Dial Registration -To register per-

sonal speed dial numbers

♦Press the [FEAT] button.

♦Press the [SPEED] button, then dial the desired

PERSONAL SPEED ACCESS CODE (90-99).

♦Enter the phone number.

♦Press [FEAT] to end the operation.

Personal Speed Dial Registration -To register

severalspeeddialnumbers

♦Press the [FEAT] button

♦Press the [SPEED] button, then dial the desired

PERSONAL SPEED ACCESS CODE (90-99).

♦Enter the phone number.

♦Press the [SPEED] button, enter another speed

dial code number

♦Repeat same procedure.

♦Press the [FEAT] button.

To register a pause time

♦At the desired location, press [HOLD/DND]

♦Dial to for the desired pause time in

seconds.

To set an outside line to be selected for speed

dialing

♦Do not lift receiver

♦Press the [FEAT] button

♦Press [SPEED] and then dial the desired

PERSONAL SPEED DIAL CODE (90-99)

♦Dial the desired outside line group number (01-

60 or 00)

♦Press [FEAT] to end the operation

To register a directory name for a speed dial

number

♦Do not lift receiver

♦Press the [FEAT] button

♦Press the [SPEED] button and then dial the

desired PERSONAL SPEED DIAL CODE

(90-99)

♦Register the letters of the name using the dial

pad

♦Press the button until the desired letter is dis-

played, then press the [HOLD/DND] button to

enter that letter or number (up to 10 characters).

1-,.,[space],1 2A,B,C,2 3D,E,F,3

4G,H,I,4 5J,K,L,5 6M,N,O,6

7P,R,S,7 8T,U,V,8 9W,X,Y,9

*Alphanumeric 0Q,Z,0 #U/L Case

[FEAT]All delete [HOLD]Enter/1 character delete

♦Press [FEAT] to end the operation

To Answer Messages

When the [MESSAGE] button lamp is lit at your exten-

sion

♦Lift the receiver

♦Press the [MESSAGE] button until the desired

extension number is displayed

♦Press #

The system will automatically call back the ex-

tension that left the message.

Paging

♦Lift the receiver

♦Hold down the [PAGE] button

♦When you hear the confirmation tone, make your

announcement by speaking into the receiver

♦Release the [PAGE] button and hang up

Whisper Page

You may communicate with a busy station without

interrupting their call using the Whisper Page feature.

To communicate with a busy extension:

♦After calling a busy station, press the *button

♦You may now speak to that extension

To Respond to Whisper Page

♦After receiving a whisper page while on a call,

♦Press the *button to speak with the extension

that called using the whisper page feature

♦Press the *button a second time to resume

speaking with the original calling party

Note: The original calling party cannot hear the whis-

per page or your response to a whisper page.

To Respond to Whisper Page with a Text Message

♦After receiving a whisper page while on call fol-

low the procedures in "Text Messaging"

Personal Ringing Tones

You may choose one of eight different ringing tones to

distinguish your station from others.

To play a ringing tone at your system extension

♦With your station idle press [FEAT] + #+ *

+ 1-8

To select a ringing tone for your system extension

♦With your station idle press [FEAT] + #+ *

+ 1-8+ #

To restore default ringing tone at your system

extension

♦With your station idle press [FEAT] #+ *+ 0+

To delete a call record from system memory

♦With a call record displayed, press the [USD] key

To make a call by automatically dialing the Caller

ID number

♦Display a call record

♦Press the [USAS] key, [USAT] + trunk group

number or [USATn] key a second time, or

♦Press [FLT], [OPT], or [COL]

To add digits to the displayed number before call-

ingout

♦Display a call record

♦Dial the additional digits to be added to the out-

going number (the added digits do not appear on

the display when entered)

♦Press the [USAS] key, [USAT] + trunk group

number or [USATn] key a second time

♦Press [FLT], [OPT], or [OPT]

Answering Machine Emulation (Voice Mail

Monitor)

Station users may monitor voice mail messages as

they are recorded. During recording monitor, the sta-

tion user may select to initiate a conversation with the

caller. You may activate or deactivate this feature

from your extension.

To begin Voice Mail Monitor

When a call is answered by voice mail at an idle sta-

tion, you will hear a monitor tone.

♦The [Voice Mail Monitor] key red LED will begin

to flash

♦Press the [VoiceMail Monitor] key

♦When the [Voice Mail Monitor] key green LED

lights, you will hear the caller's message as it is

recorded.

♦Press the [Voice Mail Monitor] key a second

time to begin talking to the caller.

♦Press [SPKR] or hang up to end voice mail

monitoring. The caller's message will be saved to

your voice mailbox.

To Activate / Deactivate or Change the Voice Mail

MonitorMode:

♦While your station is idle, press [SPKR]

♦Press [FEAT]

♦Press the [VoiceMail Monitor] key

♦Press 1to deactivate / activate Voice Mail Moni-

toring.

Busy ICM Callback

When you call another extension and get a busy sig-

nal, do not hang up

Press the [FEAT] button and dial 43

Press the [ICMCALLBACK] button (if assigned)

Hang up after you hear a confirmation tone

When the busy extension becomes available, the

system will call you back

Lift receiver

You are automatically connected to the extension.

Busy Number Callback

When an outside number you have called is busy, you

may tell the system to remind you to try again.

Do not hang up

Press the [FEAT] button and dial 24

Press the [TRUNK CALLBACK] button (if assigned)

Dial the desired time you want to be called back

Hang up after you hear a confirmation tone

After the set time, the system will call you back to try

again

Lift receiver to automatically dial the number

To Cancel Busy Number Callback

Lift the receiver

Press the [FEAT] button and dial 024

Press the [TRUNK CALLBACK] button and *

Hang up after you hear a confirmation tone

Call Coverage

Multipurpose buttons on digital multiline telephones

can be assigned as Call Coverage buttons to indicate

calls ringing at another extension. If you have a Call

Coverage button for another extension on your tele-

phone, you can answer calls ringing at that extension

by pressing the Call Coverage button.

Set Follow Me Destination

♦Lift the receiver (handset)

♦Press [FWD] + [FWD]

♦Enter the Call Type you wish to forward

1 = All calls (CO/Intercom)

2 = CO calls only

3 = Intercom calls only

♦Enter the extension number of the originating

forwardingstation

Hold/Quick Forward Operation

♦If your phone is equipped with this feature,

pressing [HOLD/DND] will automatically forward

all incoming calls to you fixed call forward desti-

nation.

Master Hunt Groups

X-EO allows extensions to be programmed into Hunt

Groups. Each Hunt Group is assigned code and when

dialed the system searches for the first idle extension.

To Call a Hunt Group

♦Lift the receiver

♦Wait for the dial tone

♦Dial Hunt Group access code

♦Press [HUNT] if assigned as a Multipurpose

button

Message Waiting

To Leave a Message

When the extension you are calling is busy or does

not answer

♦Do not hang up

♦Press the [MESSAGE] button and #

♦After you hear a confirmation tone, hang up

The [MESSAGE] button lamp will stay lit at the

called extension.

To Cancel Message Waiting

If you want to cancel a message you left at an exten-

sion

♦Lift the receiver

♦Press the [MESSAGE] button and *then

dial the extension number

♦After you hear a confirmation tone, hang up

The [MESSAGE] button lamp will go out at the

extension.

Note: This feature is not available if the [MBOX] key is used for

voicemail access.

Flexible Call Forwarding

You can set your phone to forward calls to another

extension or to an external telephone number. To

forward calls externally, you must first register the

external telephone number to a personal speed dial

code (90-99). (See the Speed Dial feature in the Digi-

tal Telephone Station User Quick Reference Guide.)

You can also separate Call Forward destinations for

ICM calls and CO incoming calls. For example, you

could forward all ICM calls to your cellular telephone

and all CO calls to your Voice Mail.

Set Forward Destination

♦Lift the receiver (handset) or press [SPKR]

♦Press [FWD]

♦Enter the Call Type you wish to forward

1 = All calls (CO/Intercom)

2 = CO calls only

3 = Intercom calls only

♦Enter the Flexible Call Forward Mode

1 = All calls to another extension or hunt group

2 = Busy/No Answer calls to another extension

or hunt group

3 = No Answer calls to another extension or hunt

group

4 = All Calls forward to an external number

(using Personal Speed Dial Codes 90-99)

♦Do one of the following

If you chose Mode 1,2, or 3, enter the extension

or hunt group number

If you chose Mode 4, enter the Personal Speed

Dial Code (90-99)

Forward Cancel

♦Lift the receiver (handset)

♦Press [FWD]

♦Press *

♦Enter the Call Type number you wish to cancel

1 = Cancel Forwarding of All calls (CO/Intercom)

2 = Cancel Forwarding of CO calls only

3 = Cancel Forwarding of Intercom calls only

SetActive/Inactive

♦Press [FWD]

♦Enter the Call Type you wish to make

Active/Inactive

1 = All calls (CO/Intercom)

2 = CO calls only

3 = Intercom calls only

To answer a call ringing at another extension

When you hear the Call Coverage tone or see the

green Call Coverage lamp indication on your phone

♦Lift the receiver

♦Press the [CALL COVERAGE] button

♦You will be connected to the call

To change the type of indication at your phone

♦Do not lift the receiver

♦Press the [FEAT] button

♦Press the desired [CALL COVERAGE] button

The present indication mode will be displayed

♦Dial the number for the desired mode

♦Dial 1for immediate display and ringing

♦Dial 2for delayed indication (display and ring-

ing starts if call is not answered within a prepro-

grammed time)

♦Dial 3for no ringing (lamp indication only)

Call Pick-Up

Internal Group

You may answer calls to any extension in your pick-

up group without dialing the extension number.

When you hear a call ringing at another extension

♦Lift receiver

♦Press [FEAT] and dial 31

♦Press the [GROUP CALL PICK-UP] button (if

assigned)

The incoming call is connected to your exten-

sion.

Direct Extension

You may also answer an incoming call at another

extension

♦Lift the receiver

♦Press the [FEAT] button and dial 33

♦Press the [DIRECT CALL PICK-UP] button

♦Dial the number of the extension where the call

is ringing

The incoming call is connected to your exten-

sion.

Conference

The X-EO system allows you to make conference

calls with any combination of up to four extensions

and outside lines on the same call.

Add-on (up to one outside + three inside parties or

four inside parties)

While speaking on a CO or ICM call

♦Press the [TRAN] button and dial the extension

number

When the party answers

♦Press the [ADD] button

After you hear a tone burst, all parties are con-

nected

♦To add another extension, repeat same proce-

dure.

Multiline (up to three outside + one inside)

While speaking on an outside call

♦Put the first call on Hold, pressing [HOLD/DND]

♦Access the second outside line

After the second or outside line has answered

♦Press the [ADD] button

♦Press the first line that has been on hold

All three parties are connected

♦To add a third outside line, repeat same proce-

dure.

Trunk-to-Trunk (up to two outside parties)

When you are speaking with two outside parties in a

multiline conference call

♦Press the [HOLD/DND] button

♦Hang up

The two outside parties are connected.

Conversation Recording

You can record a conversation to voice mail by follow-

ing the procedures listed below.

Important: Use of this feature may be prohibited by state law.

To start recording a call to voice mail

While on an ICM, outside line or conference call

♦Press the [RECORD] button

♦Your conversation will begin recording to voice

mail

Note: A four-party conference call cannot be re-

corded.

To stop recording a call to voice mail

While recording a call with the [RECORD] button lit

♦Press the [RECORD] button or hang up

To play a recorded conversation

♦Follow the same procedure for playing a voice

mail message

Do Not Disturb

If you do not wish to be disturbed, you can set your

extension to prevent any calls from ringing to or get-

ting through to your extension.

♦Do not lift receiver

♦Press the [HOLD/DND] button

The lamp on the [HOLD/DND] button will stay lit.

To cancel Do Not Disturb

♦Do not lift receiver

♦Press the [HOLD/DND] button

The lamp on the [HOLD/DND] button will go out.

Note: See [Hold/Quick Forward].

Exclusive Hold On Outside Line

A call on "exclusive" hold may only be picked up from

your extension.

While speaking on an outside call

♦Press the button for the outside line you are

already using. The green lamp on that outside

line button will flash slowly on your phone. The

red lamp will stay lit at other extensions.

To retrieve a call on Exclusive Hold

♦Press the same outside line button on your

phone again to be connected to the call

Flash

Flash allows you to receive a dial tone on the same

outside line that you are using without having to hang

up. Flash may also be used to receive an intercom

dial tone to place another intercom call.

After you complete a call or if you make a dialing

mistake

♦Press [FLASH]

♦Dial the new number.

To Use Centrex or PBX features

♦Press [S FLASH]

♦Dial the new number or feature code.

If your phone does not have [FLASH] or

[S FLASH] buttons

♦Press [FEAT] then dial 11 for Flash

♦Press [FEAT] then dial 12 for Short Flash

Autres manuels pour X-EO

Autres manuels ABRIVO Téléphone IP

ABRIVO

ABRIVO X-EO Manuel utilisateur

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
