Abocom WP2000 Instructions d'utilisation d'origine

M73-APO01-600

802.11b

Wireless

PCI Card

Quick Installation

REGULATORY STATEMENTS

FCC Certification

The United States Federal Communication Commission (FCC)

and the Canadian Department of Communications have

established certain rules governing the use of electronic

equipment.

Part15, Class B

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

1) This device may not cause harmful interface, and

2) This device must accept any interface received, including

interface that may cause undesired operation. This

equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning off and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

◗ Reorient or relocate the receiving antenna.

◗ Increase the distance between the equipment and

receiver.

◗ Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

CAUTION:

1) To comply with FCC RF exposure compliance

requirements, a separation distance of at least 20 cm must

be maintained between the antenna of this device and all

persons.

2) This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

INSTALLATION

Caution: Do not insert the Wireless PCI Card

into your computer until the procedures in

“Install the Driver & Utility” has been

performed.

Install the Driver & Utility

1. Exit all Windows programs. Insert the

CD-ROM into the CD-ROM drive of your

computer.

If the CD-ROM is not launched

automatically, go to your CD-ROM drive

(e.g. drive D) and double-click on Setup.exe.

2. The main screen of the CD-ROM opens.

Click Driver & Utility to start the

installation.

3. Click the Windows Version to install the

Driver & Utility. (There are some slight

- 1 -

differences in the installation process

between the different Windows operating

systems.)

4. When the Welcome screen appears, click

Next to continue.

5. The Choose Destination Location screen

will show you the default destination chosen

by the utility. Click Next to continue.

6. Follow the instruction to select the program

folder. Click Next to continue.

- 2 -

7. In Start Copying Files, click Next to

continue.

8. Select Yes, I want to restart my computer

now. Click Finish.

Install the Device

Note: Make sure the procedures in “Install the

Driver & Utility” has been performed.

1. Before installing the device, make sure the

computer is turned off.

2. Remove the expansion slot cover from the

computer.

3. Carefully slide the Wireless PCI Card into the

PCI slot. Push evenly and slowly and ensure

it is screwed securely in place using the

mounting screw.

4. Once the device has been connected to your

computer, Windows will detect the new

hardware and then automatically copy all of

the files needed for networking.

- 3 -

Note for Windows 98 users:

Before installation of the device, make sure you

have your operating system CD-ROM at hand.

You may be asked to insert the OS CD-ROM in

order to download specific drivers.

Note for Windows 2000 users:

When the Digital Signature Not Found

message appears, click Yes to continue.

Note for Windows XP users:

1. Select Install from a list or specific

location (Advanced) and click Next.

- 4 -

2. Select Include this location in the search:

and click Browse to provide the appropriate

path (e.g. D:\Driver). Click Next.

3. Click Continue Anyway.

- 5 -

- 6 -

4. Click Finish to complete the installation.

Verify Device Installation

To verify that the device has been properly

installed in your computer and is enabled, go to

Start ÆSettings ÆControl Panel ÆSystem

(ÆHardware) ÆDevice Manager. Expand the

Network adapters item. If the 802.11b Wireless

PCI Card is listed, it means that your device is

properly installed and enabled.

CONFIGURATION

After successful installation of the Wireless PCI

Card’s driver, a Network Status icon will

display in the task bar. You will be able to access

the Configuration Utility through the Network

Status icon.

If the icon doesn’t appear automatically, go to

Start ÆPrograms ÆWireless LAN Utility Æ

Wireless LAN Utility, it will appear in the task

bar.

The Network Status Icon

The Network Status Icon will display on the

task bar of your desktop and show the current

network connection status of your system.

- 7 -

- 8 -

Icon Link Status

Access Point mode.(Green) (Please

refer to below table for the exact link

quality)

Peer-to-Peer mode. (White)

No connection.(Red)

Icon Signal Strength

Excellent link quality.

Good link quality.

Fair link quality.

Poor link quality.

Drag your cursor to the network status icon, you

will see the link status.

Table des matières

Autres manuels Abocom Carte PCI

Abocom

Abocom 802.11b/g Wireless LAN PCI Card WPG2500 Manuel utilisateur

Abocom

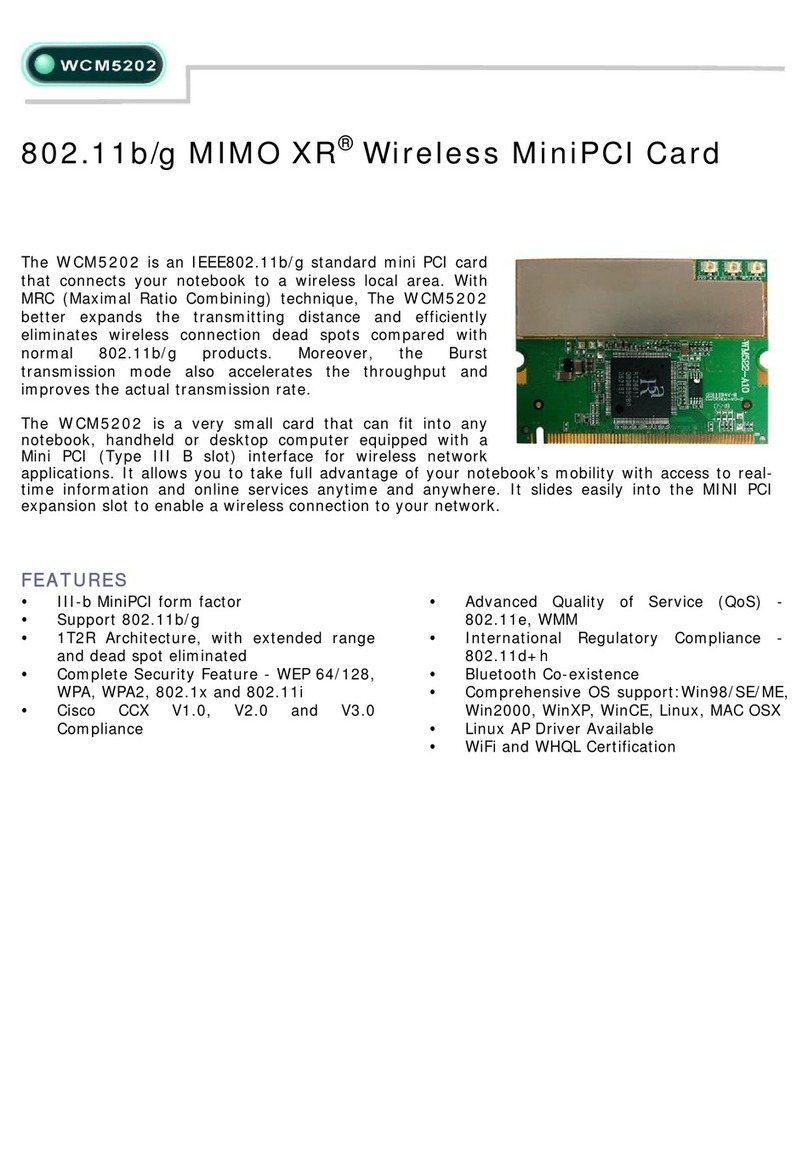

Abocom WCM5202 Manuel utilisateur
