AI-Vue Camera
Bullet Quick Start Guide
Copyright ©Ability Enterprise Co., Ltd.
All rights reserved.
Quick Start Guide
Ver：01
AI-Vue Camera Quick Start Guide
2
1. Start to Use
1.1 Accessing via Web Browser
Default IP address
User name
Password
https://192.168.0.11
admin
AbAi.Camera1
1.2 Appearance Description
The overview of the bullet camera is shown below:
AI-Vue Camera Quick Start Guide
3
1.3 Packing List
Component
PCS
Camera
1
Drilling sticker
1
Power terminal
1
Crimping terminal
（support 0.75mm2 and 1.0mm2 cable）
2
Allen wrench（M4）
1
Waterproof connector for network cables
1
Quick Start Guide
1
Desiccant packet
1
Expansion tube
4
Tapping screw
4
AI-Vue Camera Quick Start Guide
4
1.4 Cable
No
Item
Description
1
LAN/POE
Ethernet/POE connection. This interface
supports POE.
2
DC 12V+ / DC 12V –
AC 24V + / AC 24V -
Power input interface. DC 12V（9.0V～15.0V）
and AC 24V（18.0V～29.9V）
3
GND
Ground interface of an IPC
4
ALARM_OUT
ALARM_REF
Alarm output and reference interfaces. The
interface work together to form the alarm output.
ALARM_IN
GND
Alarm input interface. There may be multiple
alarm interfaces. For a given number of
interfaces, n, they are numbered (for example:
ALARM_IN0, ALARM_IN1, …,ALARM_INn).
Each one connects to the GND connection to
form a single alarm input.
5
AUDIO IN/
AUDIO OUT/
AUDIO_GND
Audio input/output interface and audio ground
interface.
※Cable interface
AI-Vue Camera Quick Start Guide
5
2. Installation
2.1 Note
2.1.1Make sure the device in the package is in good condition and all the assembly parts
are included.
2.2 Caution
Please do not lift a camera by its cable.
(NG)
AI-Vue Camera Quick Start Guide
6
2.3 Reset
Use the phillips screwdriver to remove the front panel of camera.
Step 1：
To restart the camera, you need to press and hold the reset button less than 3 seconds.
To restore the camera to factory settings, you need to press and hold the RESET button and
power on the camera.After the power on of the camera, you must still press and hold the
Reset button for about 10 seconds.
Step 2：
The SD card slot supports only class 6 or higher Micro SD card. To replace a Micro SD
card, the device must be powered off. Otherwise, system exception may occur. When a
Micro SD card is used for the first time, log in to the web client of the device and format the
Micro SD card. For details, see the Configuration Guide.
※Reset Button
1
2
AI-Vue Camera Quick Start Guide
7
2.4 Micro SD Card Installation
Please refer to figure 2.4, insert the memory card to memory card slot on the rear panel of the
camera. Use phillips screws (#2) to remove the front panel of camera and insert the SD card.
During SD card installation, you are advised to turn the camera maintenance window downward
and insert the SD card into the SD card slot from below to avoid accidentally dropping the SD
card into the camera.
AI-Vue Camera Quick Start Guide
8
2.5 Front panel of camera installation
Please remove the dirt on the waterproof rubber strip and you need to avoid catching the fall
prevention rope or other foreign objects, finally make sure tighten the screw before locking the
front cover of the camera.
Avoid catching the fall prevention
rope or other foreign objects
(NG)
(OK)
Tighten the screw
AI-Vue Camera Quick Start Guide
9
2.6 Camera mounting
Step 1:
Confirm that the cable outlet on the wall is large enough for the pigtails
to pass through.Affix the drilling sticker to the camera installation
position and ensure that the center of the sticker matches the cable
outlet on the wall.
Step 2:
Use an 5mm drill bit to drill four 35mm deep holes in the positions
marked by the drilling sticker. Use a hammer to carefully drive the
white plastic expansion tubes into the holes.
Step 3:
Connect the external cabling to camera pigtails, insulate the connections (see Cable
Connections), and feed the cabling through the cable entry on the wall. Fasten the tapping
screws. Make sure the cable outlet at the camera base is installed facing downwards and is
sealed with waterproof glue to prevent water from getting into the camera.
AI-Vue Camera Quick Start Guide
10
※adjust the angle of the camera
Step 4:
Loosen the three hex socket bolts and adjust the camera to the required angle. Then re-tighten
the screws, and adjust the position of the sunshield.
※Tighten 3 hex socket head cap screws after adjustment.
Autres manuels pour AI-Vue VS1NL70
3
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Ability Caméra de sécurité
Ability
Ability AI-Vue VS1NL70 Manuel utilisateur
Ability
Ability VS68211 Manuel utilisateur
Ability
Ability AI-Vue VS6NLB0 Manuel utilisateur
Ability

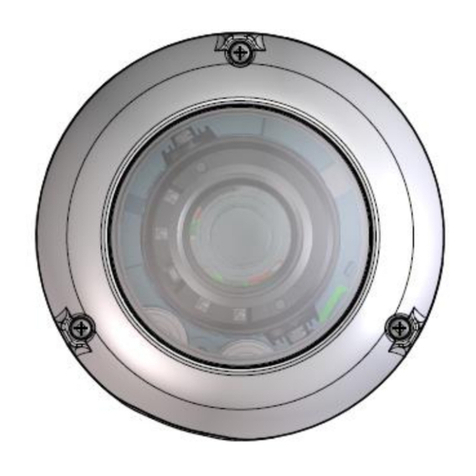

Ability VS68210 Manuel utilisateur
