Abicor Binzel SI4 Series Manuel utilisateur

TECHNOLOGY FOR THE WELDER’S WORLD.

www.binzel-abicor.com

ABICOR BINZEL Corporation

650 Medimmune Court, Suite 110

Frederick, MD 21703

Phone: (301) 846-4196

Fax: (301) 846-4497

ABIROB W Liner Instructions

SI4-XXX Series Liners

LINCOLN DIRECT TORCHES

1. Position the torch cable as straight as possible.

2. With the torch neck and consumables ﬁtted, insert the liner into the rear of the torch until it bottoms in the tip

holder/tip or wire-brake if ﬁtted.

3. At the rear end of the torch measure the distance from the feeder plug to the end of the liner collet (Fig. 1). This is

dimension “X”.

4. Remove the liner from the torch and remove the dimension “X” from the front end of the liner (Fig. 2).

5. At the rear end of the liner, you must trim the excess liner which protrudes from the liner collet. Measure 4mm

past the collet and cut the excess oﬀ (Fig. 3). Note: When cut properly the liner should be ﬂush to 1mm recessed in

the liner nut.

6. Apply O-ring grease. Install the liner into the torch and tighten the liner retention nut (Fig. 4).

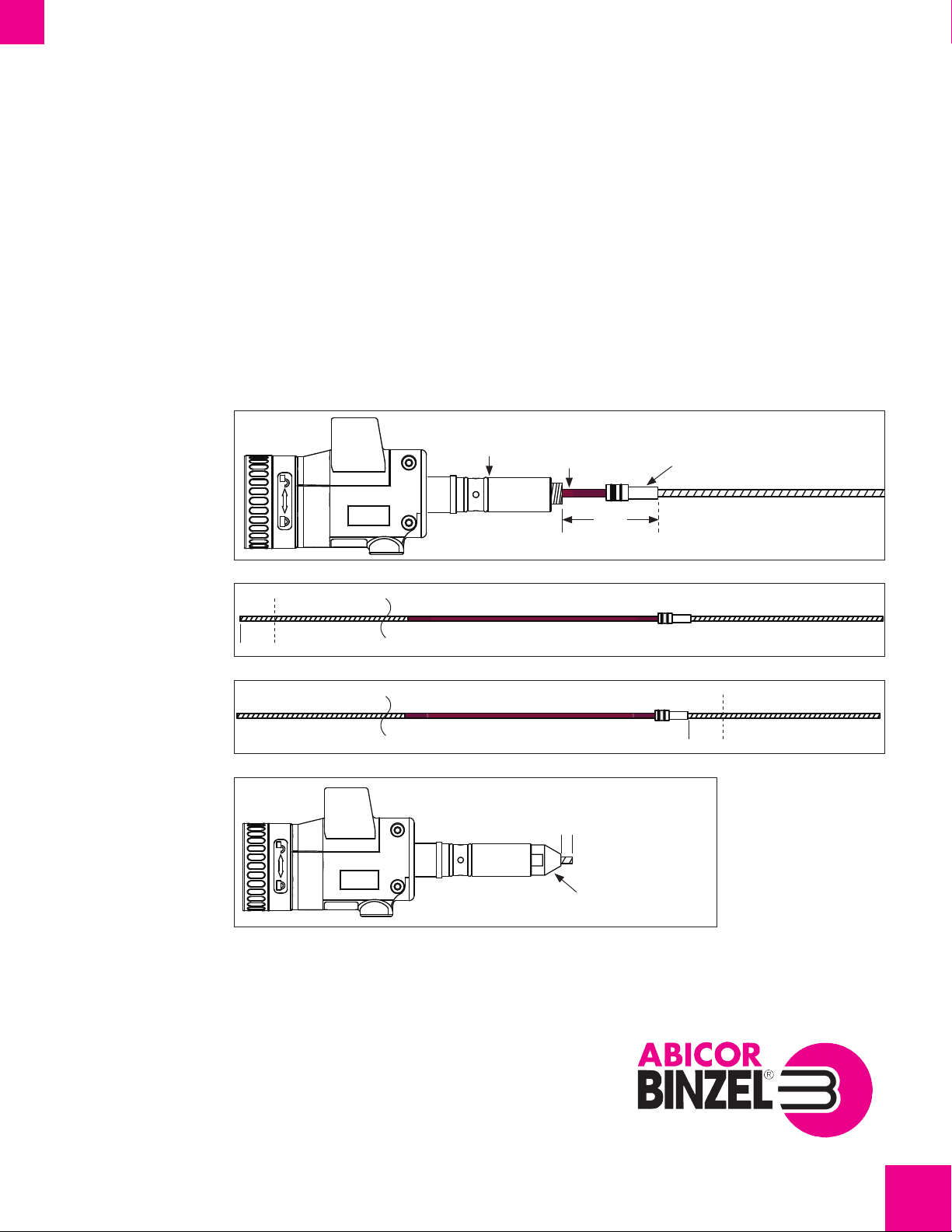

Fig. 1

Fig. 2

Fig. 3

Fig. 4

liner liner collet

4mm

liner retention nut

cut

Feeder plug

(Miller Direct Torches

on back...)

TECHNOLOGY FOR THE WELDER’S WORLD.

www.binzel-abicor.com

ABICOR BINZEL Corporation

650 Medimmune Court, Suite 110

Frederick, MD 21703

Phone: (301) 846-4196

Fax: (301) 846-4497

ABIROB W Liner Instructions

SI4-XXX Series Liners

MILLER DIRECT TORCHES

1. Position the torch cable as straight as possible.

2. With the torch neck and consumables ﬁtted, insert the liner into the rear of the torch until it bottoms in the tip

holder/tip or wire-brake if ﬁtted.

3. At the rear end of the torch measure the distance from the feeder plug to the end of the liner collet (Fig. 1) and

subtract 5mm. This is dimension “X”.

4. Remove the liner from the torch and remove the dimension “X” from the front end of the liner (Fig. 2).

5. At the rear end of the liner, you must trim the excess liner which protrudes from the liner collet. Measure 7mm

past the collet and cut the excess oﬀ (Fig. 3). Note: When cut properly the liner should protrude from the liner collet

by approximately 2mm or two coils.

6. Apply O-ring grease. Install the liner into the torch and tighten the liner retention nut (Fig. 4).

Fig. 1

Fig. 2

Fig. 3

Fig. 4

liner liner collet

7mm

liner retention nut

cut

2mm

(L - 5mm = X)

Feeder plug

(Lincoln Direct Torches

on back...)
