ABC Kliima ELK 9M Guide de l'utilisateur

01.12.2017

ELK 9M

Installer manual

Immersion heater

List of contents

Important information________________________ 4

General __________________________________ 4

Assembly_________________________________ 5

Component positions________________________ 5

Pipe connections___________________________ 6

Electrical connection ________________________ 8

Activating ELK 9M_________________________ 10

Technical data ____________________________ 11

4ELK 9M

Important information

Recovery

Leave the disposal of the packaging to

the installer who installed the product or to

special waste stations.

Do not dispose of used products with nor-

mal household waste. It must be disposed

NOTE

This symbol indicates danger to machine or person.

CAUTION

This symbol indicates important information about

what you should observe when maintaining your in-

stallation.

TIP

This symbol indicates tips on how to facilitate using

the product.

WARNING

This symbol indicates serious danger to person or ma-

chine.

of at a special waste station or dealer who provides

this type of service.

Improper disposal of the product by the user results

in administrative penalties in accordance with current

legislation.

General

ELK 9M is an electric heater that can be used to sup-

plement the heating capacity of your MHI climate unit.

When the heating demand is greater than the climate

unit’s capacity, the electric heater connects automat-

ically. The electrical equipment is adapted to the cli-

mate unit’s function.

The electric heater is in principle an immersion heat-

er mounted in a water container or an electric boiler

without a water heater. The steel electric coils and

electric boiler tube are made of steel which gives a

very good service life.

Thanks to a small water volume and a well-insulated

electrical heater, ELK 9M has very small heat losses.

Compatible products

Connection is di󰀨erent depending on which product

ELK 9M is to be used with.

These products can be connected directly to ELK 9M:

• RC-HY 20

• RC-HY 40

Contents

1 x Immersion heater

5ELK 9M

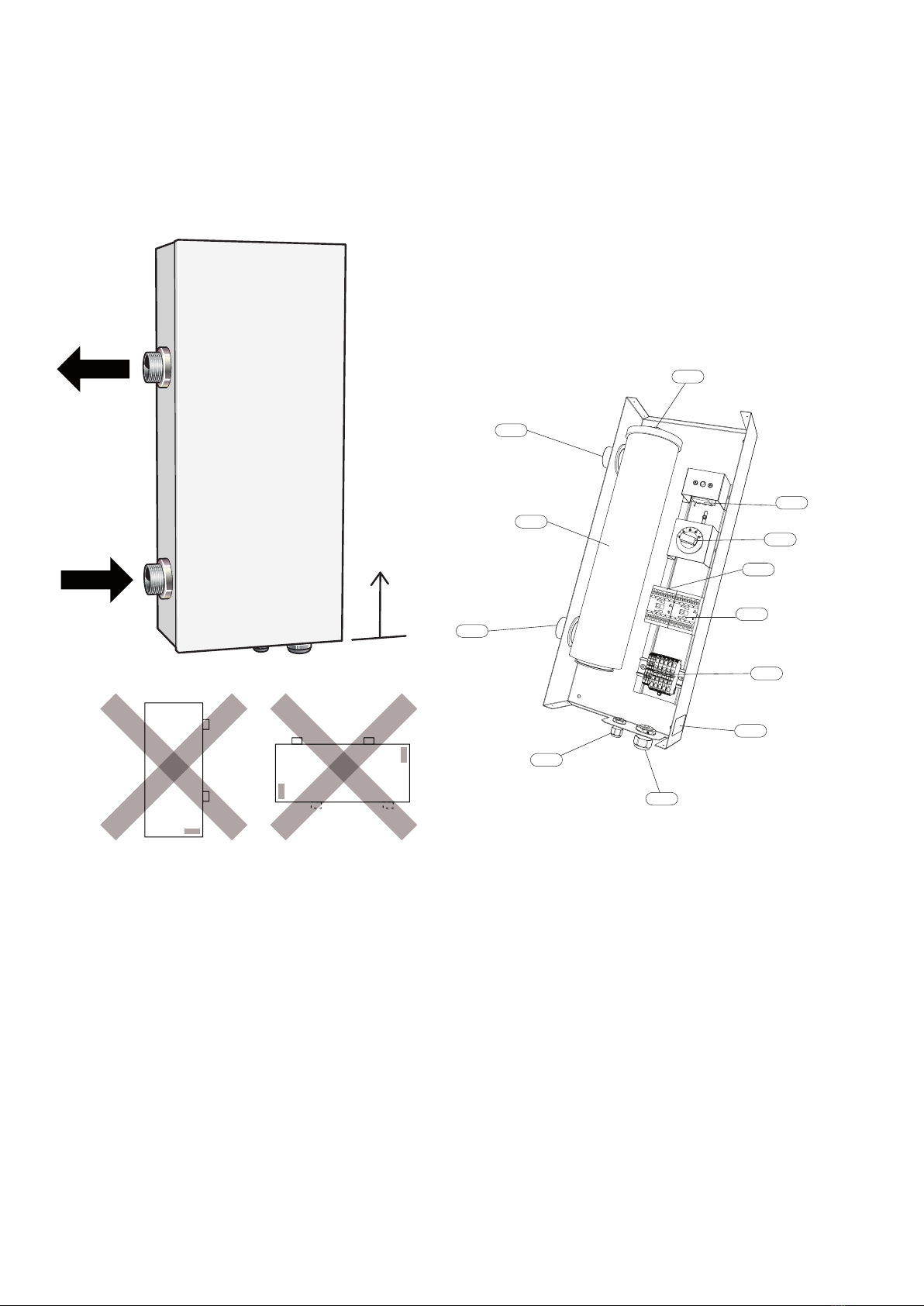

Assembly

The electric heater must be installed upright (see im-

age below).

Free space of 500 mm is required in front of the water

heater for service. If this is not possible, detachable

connections must be used.

Component positions

Component list

EB1 Immersion heater

FD1 Overheat protection

X1 Terminal block

QA1 Contactor 3,0 kW(-K1)

QA2 Contactor 6,0 kW(-K2)

BT30 Emergency mode thermostat

XL1 Connection supply line, G 32

XL2 Connection return line, G 32

UB1, UB2 Cable gland

QM60 Venting

PF1 Rating plate

XL1

EB1

XL2

UB1

UB2

PF1

QA1

QA2

BT30

FD1

QM60

6ELK 9M

Pipe connections

General

The pipe installation must be carried out in accor-

dance with applicable standards.

A circulation pump must be used to ensure the ow

over the immersion heater. If the heating system

valves can close the circulation completely, the by-

pass valve must be installed so that the ow through

the electric heater does not stop. In closed installa-

tions an approved safety valve and pressure expan-

sion vessel must be used.

NOTE

The pipe work must be ushed before the electric

heater is connected, so that any contaminants do not

damage the component parts.

CAUTION

Also see the installer manual for your heat pump/in-

door module.

Draining

The system is most easily drained by installing a

drainage valve at the lowest point on the pipe instal-

lation. The remaining water in ELK 9M is drained

through the return line connection (XL2), see “Com-

ponent location” on page 5. If the return line connec-

tion on ELK 9M is normally used for draining the unit,

a drain valve can be installed here.

Pressure drop diagram ELK 9M

Flow (l/s)

(kPa)

07,04,03,02,01,00

0,5

1,0

1,5

2,0

2,5

(kPa)

(l/s)

0,60,5

7ELK 9M

System diagram

Explanation

EB1 Electric heater ELK 9M

CM4 Expansion vessel

FL2 Safety valve

QM40 - QM41 Shut o󰀨 valves

RN11 Control valve

GP10 Circulation pump

RM5 Non-return valve

BT25 Flow line sensor

BT71 Return line sensor

Designations in component locations according to

standard IEC 81346-1 and 81346-2.

System diagram

-BT25

-BT71 -GP10

-RM5-QM41

-QM40

-FL2

-CM4

-EB1

Värmepump/

Inomhusmodul

-RN11

Heat pump/

Indoor module

NOTE

This is an outline diagram. Actual installations must be

planned according to applicable standards.

8ELK 9M

Electrical connection

NOTE

All electrical connections must be carried out by an au-

thorised electrician.

Electrical installation and wiring must be carried out in

accordance with the stipulations in force.

The climate unit must not be powered when installing

ELK 9M.

ELK 9M must be installed via a circuit breaker with a

minimum breaking gap of 3mm.

ELK 9M contains overheat protection and two con-

tactors to control the two power steps 3 kW and 6 kW

respectively. For best function the power should be

binary controlled, that is to say 3, 6 and 9 kW.

9ELK 9M

RC-HY 20 and RC-HY 40

Terminal block X1 in ELK 9M connects to the termi-

nal blocks X1 and AA7-X2 in the control module as

illustrated.

9 kW electric heater step active.

Without thermostat, two active power steps

LEK

1 1 0 PE

-X2

654321

23456

-X1

AA7- X2

LN234

SMO

ELK

2 3 41 0 PE

J1,2J1,1 J2,2

X1 AA7:X2

ELK

Contr

ol module

X1 AA7- X2

1 2 3 4 5 6

9 kW electric heater step active.

6 kW electric heater step active in emergency mode.

With thermostat, two active power steps

SMO

ELK

2 3 41 0 PE

J1,2J1,18 J2,2

X1 AA7:X2

ELK

Contr

ol module

X1 AA7- X2

1 2 3 4 5 6

10 ELK 9M

Activating ELK 9M

The menu setting of ELK 9M can be performed via

the start guide or directly in the menu system.

CAUTION

Also see the Installer manual for the product that ELK

9M will be connected to.

Start guide

The start guide appears upon rst start-up after heat

pump installation, but is also found in menu 5.7.

Menu system

RC-HY 20 and RC-HY40

Menu 4.9.3 - degree minute setting

Here you select when the additional heat is to start

and the degree minute intervals.

Menu 5.1.12 - addition

Setting:

• Max. number of permitted additional steps

• If binary stepping is to be used.
