Commercial Storage Tanks

FACTORY JACKETED AND

INSULATED STORAGE TANKS

These A. O. Smith storage tanks are designed for storing potable water. Fitting locations

are designed to meet the needs of normal installations plus those for the

A. O. Smith Cer-Temp 80® and Shure -Temp™ piping methods.

MODELS

TJ-80S, TJ-80A

TJV-120A, TJV-120M

& TJV-200M

120 Gallon Model

(FOR SELECT MODELS)

FEATURES

A. O. Smith storage tanks are ideal for

use with gas-ﬁred copper heat exchanger

equipment for storage of any potable water

at temperatures up to 180°F.

GLASS-LINED TANK - Alkaline borosilicate

composition permanently fused to steel

by ﬁring at a temperature of 1600°F,

providing years of corrosion protection and

dependable use.

HEAVY GAUGE STEEL JACKET - With

baked enamel ﬁnish.

THREADED OPENINGS - All tanks

furnished with threaded openings for

thermometer, relief valve, 2” recirculation

lines, tankstat, and drain valve.

INSULATION - Storage Tanks meet or

exceed R12.5 minimum thermal insulation

requirements of the U. S. Department

of Energy and current edition of

ASHRAE/IESNA 90.1

TJ-80S, TJ-80A, TJV-120M and TJV-120A

• Fits through 30” door

• Magnesium anode for anti-corrosion

protection

TJ-80A

• 80 gallons

• High density foam insulation saves energy,

helps reduce standby heat loss

• 160 psi ASME standard working pressure

TJV-120A

• 119 gallons

• High density foam insulation saves energy,

helps reduce standby heat loss

• 160 psi ASME standard working pressure

TJ-80S

• 80 gallons

• High density foam insulation saves energy,

helps reduce standby heat loss

• 160 psi working pressure

TJV-120M

• 119 gallons

• High density foam insulation saves energy,

helps reduce standby heat loss

• 160 psi working pressure

OPTIONS

Perfectly balanced manifold kits (120 gallon

models) allow installation where 240 to 480

gallons of stored water is required.

TJV-200-M - 175 GALLONS

• 160 psi ASME standard working pressure

• 2” foam insulation

• Handhole cleanout (Standard)

• Fits through 33” door

• Storage is downsized to 175 gallons for

a 32” x 77” envelope for space restrictive

installations. Model TJV-200 is available

with 200 gallons of storage.

• Magnesium anodes for extra

corrosion protection

5 YEAR WARRANTY

If the tank should leak any time during

the ﬁrst 5 years, under the terms of the

warranty, A. O. Smith will repair or replace

the tank. Installation, labor, handling

and local delivery are extra. For complete

information, consult the written warranty

or contact A. O. Smith.

AOSTT35100 R August 2010 Storage Tank Spec.indd 1 9/1/10 12:13 PM

For Technical Information and Automated Fax Service, call 800-527-1953. A.O. Smith Corporation reserves the right to make product changes or improvements without prior notice.

Commercial Storage Tanks

Revised September 2010

Page 2 of 4

www.hotwater.com

AOSTT35100

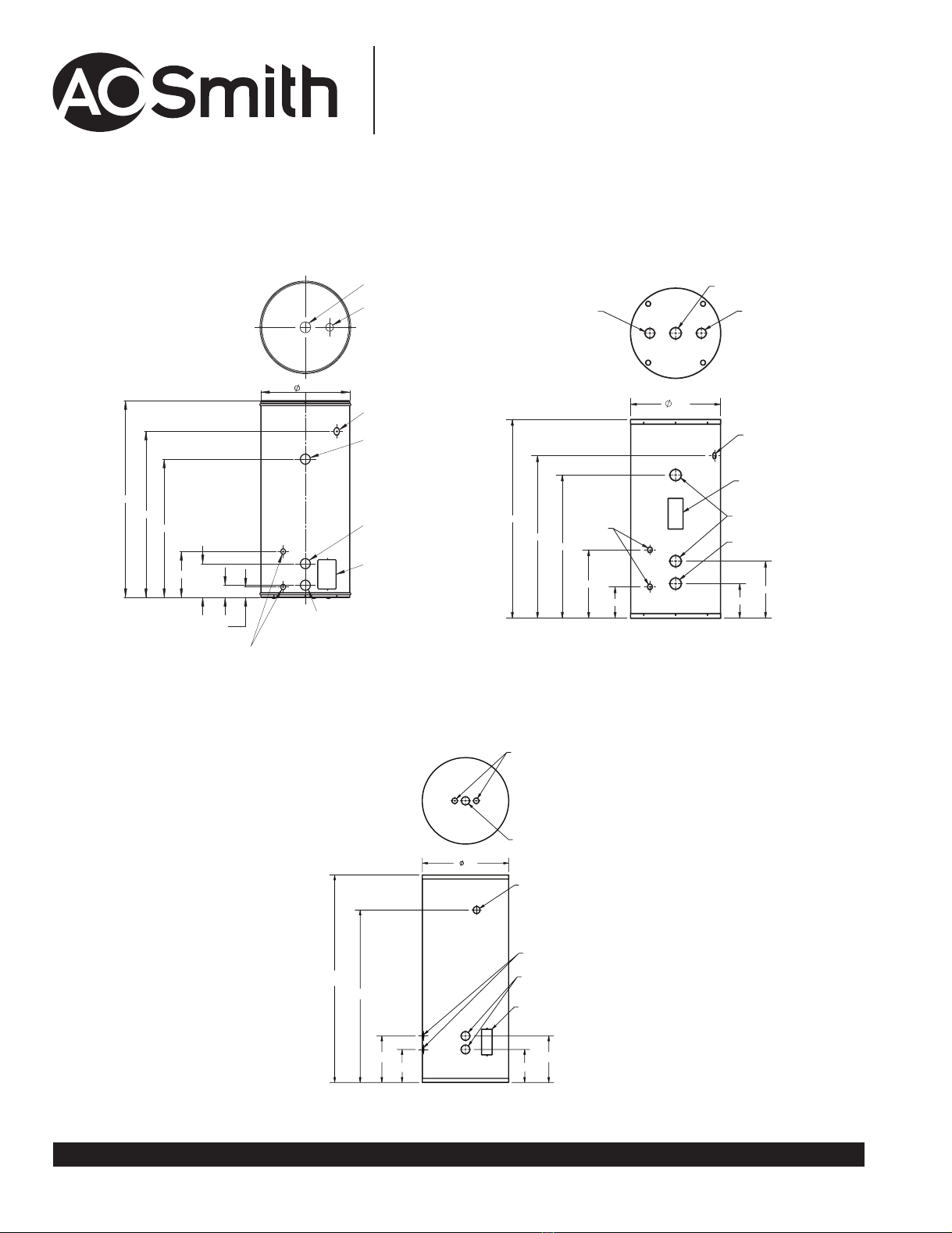

77 "

12 1/4"

17 1/4"

32 "

12 1/4"

17 1/4"

64"

1" NPT

ASME PLATE

LOCATED UNDER

COVER

2" NPT

3/4" NPT

(ANODES)

2" NPT

TJV-200M

4 1/8"

11"

42 1/4"

62"

3 1/2"

15"

54 1/4"

1" NPT

FRONT

2" NPT

FRONT

2" NPT

FRONT

CLEANOUT

2" NPT

FRONT & REAR

3/4" NPT

FRONT

2" NPT

3/4" NPT

(ANODE)

29 3/8"

TJV-120M

10 3/4"

17 3/4"

44 1/2"

61 3/4"

28"

9 3/4"

21 1/4"

50 1/2"

2" NPT FRONT

& REAR

3/4" NPT

1" NPT

ASME PLATE

LOCATED UNDER

COVER

1" NPT

1-1/4" NPT

(ANODE)

2" NPT

TJV-120A

AOSTT35100 R August 2010 Storage Tank Spec.indd 2 9/1/10 12:13 PM

11"

19 1/2"

32 1/4"

42 3/4"

54 7/8"

26 1/2"

9 3/4"

2" NPT

FRONT & REAR

3/4" NPT

REAR

ASME PLATE

UNDER COVER

3/4" NPT

FRONT

2" NPT

FRONT & REAR

3/4" NPT

REAR

3/4" NPT

(ANODE)

2" NPT

1" NPT

TJ-80A

16"

47"

51 7/8"

63"

25 1/4"

3 3/4"

2" NPT

FRONT & REAR

3/4" NPT

REAR

3/4" NPT

FRONT

2" NPT

FRONT & REAR

3/4" NPT

REAR

2" NPT

3/4" NPT

(ANODE)

TJ-80S

For Technical Information and Automated Fax Service, call 800-527-1953. A.O. Smith Corporation reserves the right to make product changes or improvements without prior notice.

Commercial Storage Tanks

Revised September 2010

Page 3 of 4

www.hotwater.com

AOSTT35100

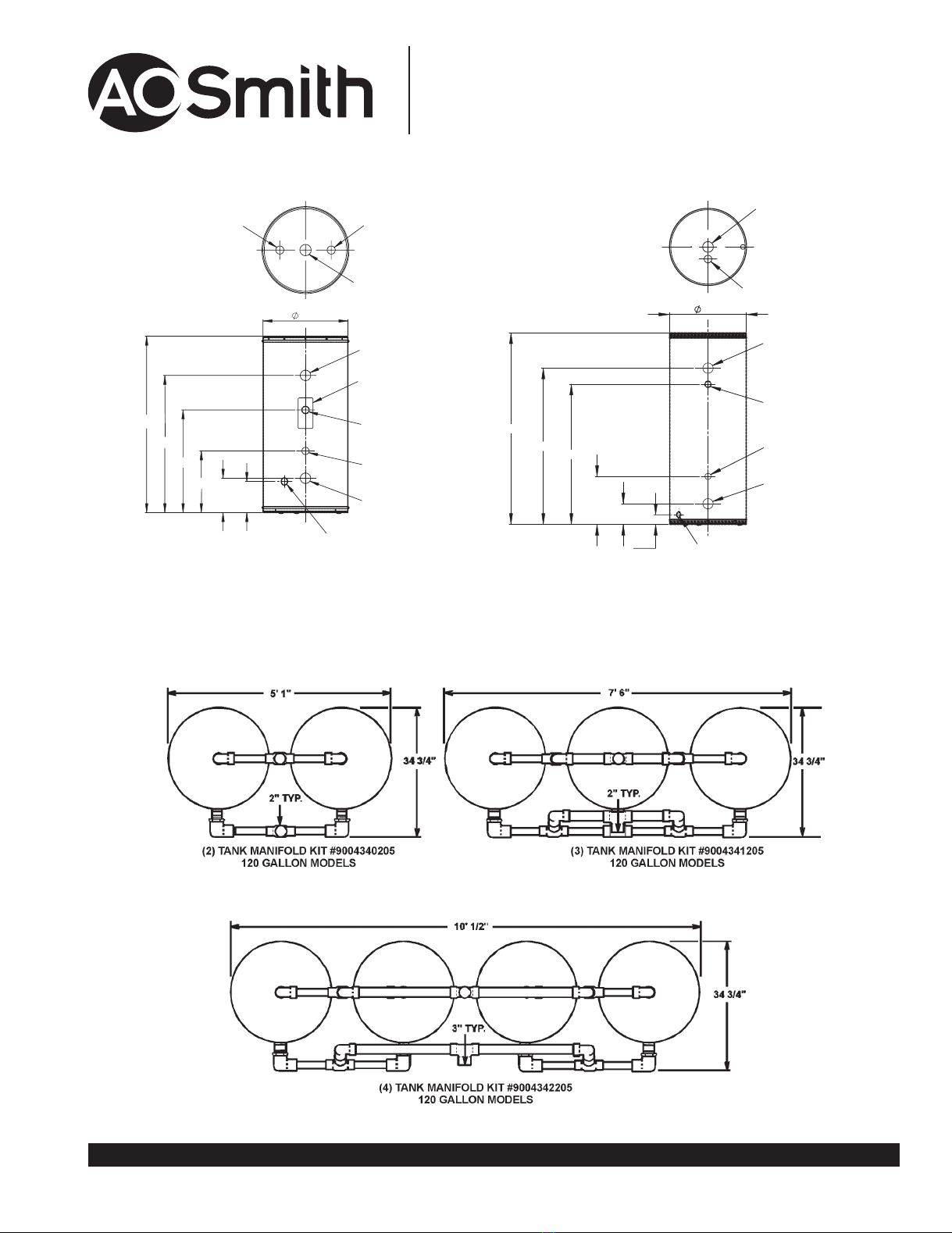

FLOOR SPACE REQUIREMENTS

AOSTT35100 R August 2010 Storage Tank Spec.indd 3 9/1/10 12:13 PM

For Technical Information and Automated Fax Service, call 800-527-1953. A.O. Smith Corporation reserves the right to make product changes or improvements without prior notice.

Commercial Storage Tanks

Revised September 2010

Page 4 of 4

www.hotwater.com

AOSTT35100

SUGGESTED SPECIFICATION

Storage tank shall be A. O. SMITH glass-lined storage tank. Tank shall be _______” x _______” and have a nominal

capacity of ____ gallons. Tank(s) shall have threaded openings as shown on drawings. Interior of tank(s) shall be

glasslined with an alkaline borosilicate composition which has been fused to the steel by ring at a temperature of 1600°F.

Glass coating shall be continuous over the entire inner surface of the tank. Outer jacket shall have a baked enamel

nish. Meets or exceeds R12.5 minimum thermal insulation requirements of the U. S. Department of Energy and current

edition of ASHRAE/IESNA 90.1. Cathodic protection shall be provided. Tank shall have a working pressure of ____ psi.

Tank shall have a ve year limited warranty as outlined in the written warranty.

AOSTT35100 R August 2010 Storage Tank Spec.indd 4 9/1/10 12:13 PM
