3S n8072 Manuel utilisateur
N8072 Cube Network Camera 2 Megapixel + H.264
- 2 -
TABLE OF CONTENT
INTRODUCTION .......................................................................................................................................................................... 4
FEATURES..........................................................................................................................................................................................4
PACKAGE CONTENTS............................................................................................................................................................................ 5
SYSTEM REQUIREMENTS ............................................................................................................................................................ 6
VIEW OF N8072 CUBE NETWORK CAMERA................................................................................................................................. 7
Front View................................................................................................................................................................................. 7
Rear View .................................................................................................................................................................................. 7
MAKING CONNECTIONS .......................................................................................................................................................................8
Micro SD Card ........................................................................................................................................................................... 8
Lan............................................................................................................................................................................................. 9
Power ......................................................................................................................................................................................10
Factory Reset...........................................................................................................................................................................11
Getting Started........................................................................................................................................................................ 12
HARDWARE INSTALLATION....................................................................................................................................................... 13
Tripod Mounting...................................................................................................................................................................... 14
Adjust the Lens Angle ..............................................................................................................................................................15
SOFTWARE INSTALLATION ........................................................................................................................................................ 16
READY TO USE .......................................................................................................................................................................... 18
ACCESS TO THE IP CAMERA................................................................................................................................................................. 18
VIEW OF CAMERA MAIN PAGE ................................................................................................................................................. 20
LIVE VIEW .......................................................................................................................................................................................20
3Svision Logo........................................................................................................................................................................... 20
Product Name ......................................................................................................................................................................... 21
Mode ....................................................................................................................................................................................... 21
Language................................................................................................................................................................................. 22
Video Format .......................................................................................................................................................................... 23
View Size .................................................................................................................................................................................24
Streaming................................................................................................................................................................................25
Color ........................................................................................................................................................................................ 26
Brightness............................................................................................................................................................................................... 27
Contrast .................................................................................................................................................................................................. 27
Saturation............................................................................................................................................................................................... 27
Set to default .......................................................................................................................................................................................... 27
Alert.........................................................................................................................................................................................28
Alert Message .........................................................................................................................................................................29
Alert Message Text ................................................................................................................................................................................. 29
Disable.................................................................................................................................................................................................... 30
Alert Snapshot ........................................................................................................................................................................................ 30
Clear ....................................................................................................................................................................................................... 30
Shortcuts ................................................................................................................................................................................. 31
+ZOOM IN............................................................................................................................................................................................... 31
-ZOOM OUT ............................................................................................................................................................................................ 32
Original Size............................................................................................................................................................................................ 32
Full Screen............................................................................................................................................................................................... 33
Jitter Time............................................................................................................................................................................................... 33
Record..................................................................................................................................................................................................... 34
Snapshot................................................................................................................................................................................................. 35
Version.................................................................................................................................................................................................... 35
Shortcut Bar ............................................................................................................................................................................ 36
Microphone ............................................................................................................................................................................................ 36
Buzzer ..................................................................................................................................................................................................... 36
Path ........................................................................................................................................................................................................ 37
N8072 Cube Network Camera 2 Megapixel + H.264
- 3 -
Snapshot................................................................................................................................................................................................. 39
Record..................................................................................................................................................................................................... 39
Shortcut Bar Message............................................................................................................................................................................. 39
SETTING USER PREFERENCES............................................................................................................................................................... 41
Basic Setting............................................................................................................................................................................ 42
System .................................................................................................................................................................................................... 42
System Setting................................................................................................................................................................................... 42
System Log ........................................................................................................................................................................................ 43
Video/Image........................................................................................................................................................................................... 44
Video................................................................................................................................................................................................. 44
PreProc/Overlay ................................................................................................................................................................................ 45
Sensor ............................................................................................................................................................................................... 47
Audio ...................................................................................................................................................................................................... 49
User ........................................................................................................................................................................................................ 50
Network.................................................................................................................................................................................................. 51
Network Setting ................................................................................................................................................................................ 51
Wireless Setting ................................................................................................................................................................................ 52
Services ............................................................................................................................................................................................. 55
Stream Setting................................................................................................................................................................................... 56
PPPoE Setting (Dial-up Networking Setting)...................................................................................................................................... 57
DDNS (Dynamic Domain Name Server)............................................................................................................................................. 59
UPnP (Universal Plug and Play) ......................................................................................................................................................... 60
SMTP (Mail Server Setting)................................................................................................................................................................ 63
Samba ............................................................................................................................................................................................... 64
Notification ....................................................................................................................................................................................... 65
Multicast ........................................................................................................................................................................................... 66
Date/Time .............................................................................................................................................................................................. 67
IP Filter ................................................................................................................................................................................................... 68
Storage ................................................................................................................................................................................................... 69
Application Setting .................................................................................................................................................................. 71
Event....................................................................................................................................................................................................... 71
Event ................................................................................................................................................................................................. 72
Trigger ............................................................................................................................................................................................... 75
Event Servers (Upload Server) ........................................................................................................................................................... 77
Recording List ......................................................................................................................................................................................... 79
Motion Detection.................................................................................................................................................................................... 80
Blind Detection ....................................................................................................................................................................................... 81
Privacy Mask........................................................................................................................................................................................... 82
Firmware upgrade .................................................................................................................................................................................. 84
Factory Default ....................................................................................................................................................................................... 87
Reboot .................................................................................................................................................................................................... 90
APPENDIX ................................................................................................................................................................................ 91
CHANGE THE INTERNET EXPLORER SETTINGS ..........................................................................................................................................91
SET UP THE ROUTER SETTING WITH IP CAMERA ...................................................................................................................................... 92
DDNS APPLICATION.......................................................................................................................................................................... 93
How to apply and setup the DDNS service? ............................................................................................................................ 93
How to check if the DDNS service is successful?...................................................................................................................... 98
MOBILE APPLICATION ........................................................................................................................................................................99
Symbain System ....................................................................................................................................................................103
iPhone System .......................................................................................................................................................................106
SUPPORT THE CELLULAR /MOBILE PHONE LIST ....................................................................................................................................111
MULTICAST APPLICATION..................................................................................................................................................................112
H264 (Main) ..........................................................................................................................................................................114
H264 (Sub).............................................................................................................................................................................115
Motion JPEG ..........................................................................................................................................................................116
TROUBLESHOOTING AND FAQS.......................................................................................................................................................... 119
N8072 Cube Network Camera 2 Megapixel + H.264
- 4 -
Introduction
N8072 is a cube network camera which is with H.264 high resolution.
Unlike traditional CCTV, it is built in the Web Server and Camera to provides users with
mechanism for the 24 hours security and it can deliver dual video streams simultaneously
(H.264 or Motion JPEG), allowing for optimization in image quality and bandwidth. It provides
a professional application to remote monitors (VMS).
It provides intelligent image detection system that can lock or target automatically and enlarge
the image when an abnormal object is detected.
It offers many application functions such as DDNS, samba, FTP, Mail, Multicast, motion
detection, privacy mask, event management and multi-level passwords for meeting user
variety level of security needs.
Features
N8072 can operate smoothly without the need to install additional software or hardware. All
you need is a PC that is equipped with IE browser (6.0 or above) and connect the Internet
Camera to the network to monitor the pre-set places remotely. N8072 can provide you with
protection of your personal, home, and property security.
H.264/MJPEG Dual Codec & Streaming simultaneously
Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)
3D Noise Reduction
2 Way Audio Support
PIR sensor and illumination LED
3GPP Support
Microphone and Speaker Embedded
Micro SD Card Support
PoE Power Over Ethernet IEEE802.3af (Option)
Wireless (Option)
N8072 Cube Network Camera 2 Megapixel + H.264
- 5 -

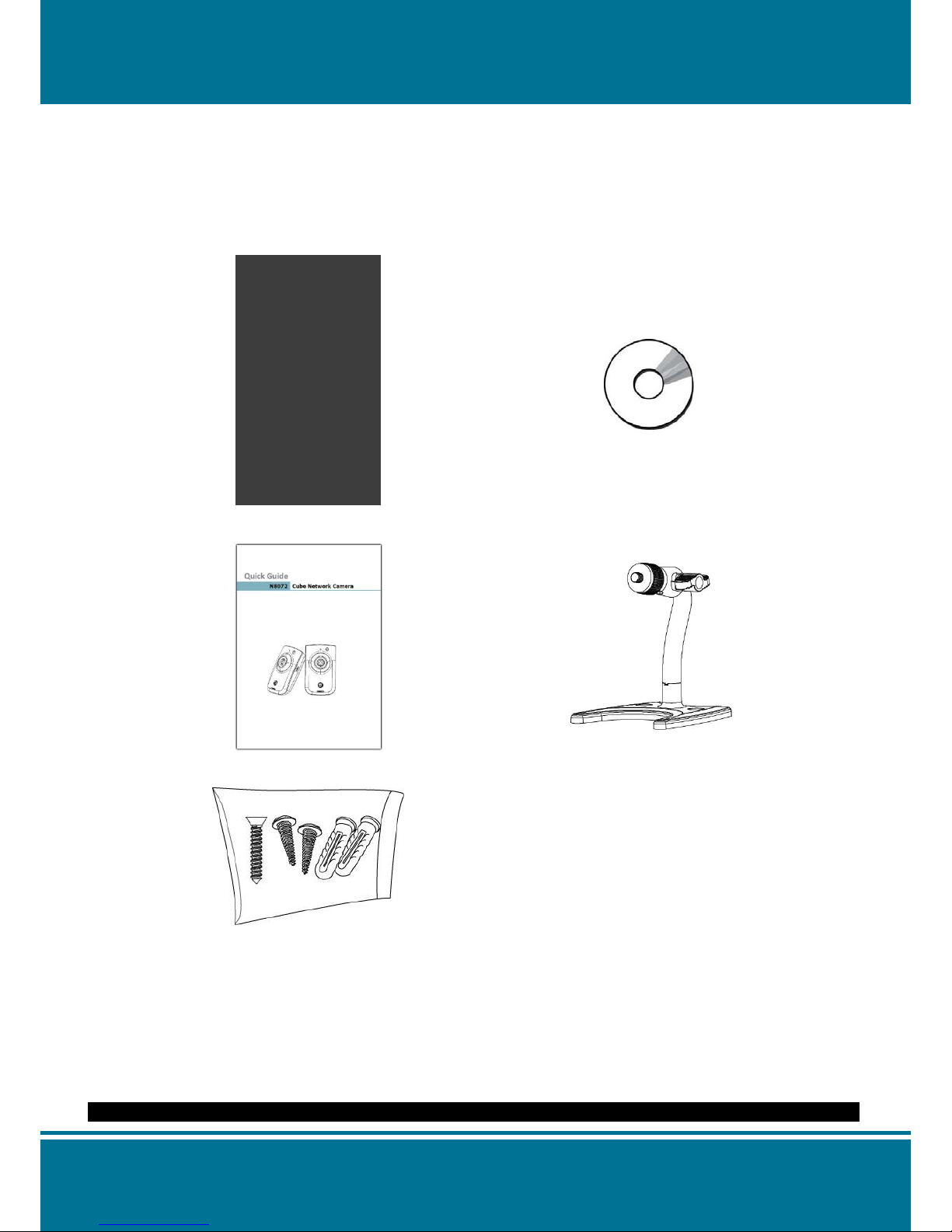

Package Contents
After unpacking, check that if all the following items have been included:
N8072 Cube Network Camera
Installation CD (Manual & Software)
Quick Guide
Tripod
Screw Pack
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.
N8072 Cube Network Camera 2 Megapixel + H.264
- 6 -
System Requirements
Before installing N8072 Cube Network Camera, please make sure your system has the
following recommended minimum hardware requirements.
Internet Environment
Ethernet 10/100M Ethernet
Monitor System Requirements
OS support Windows 2000, XP, Vista and 7
Browser support Internet Explorer 6.x or later
Hardware CPU: Pentium 4 2.4 GHz or later
Memory: 512 MB (1G MB recommended)
VGA card resolution: 1024x768 or higher
N8072 Cube Network Camera 2 Megapixel + H.264
- 7 -
View of N8072 Cube Network Camera
Front View
Rear View
N8072 Cube Network Camera 2 Megapixel + H.264
- 8 -
Making Connections
Before you connect your N8072, please make sure your PC has the LAN port available for
connect to the network.
Follow these instructions to connect the N8072 into your PC and LAN Port.
DESCRIPTION
1.
Micro SD Card Slot
Insert the Micro SD Card here.
2.
LAN/PoE
Connect to 10/100 RJ45 network / PoE here.
3.
POWER
Connect to Power here.
4.
Reset Button
Reset to factory setting
Micro SD Card
N8072 Cube Network Camera is compatible with Micro SD card (Maximum 32GB).
N8072 Cube Network Camera 2 Megapixel + H.264
- 9 -
Lan
Connect to the Switch HUB.
Use a network cable and plug it into the LAN port of the N8072. Plug the other end of the
cable in the LAN port of the HUB.
Connect to the Switch HUB to PC.
Make sure your PC has a LAN port available for connect to the network.
N8072 Cube Network Camera 2 Megapixel + H.264
- 10 -
Power
Please connect N8072 Cube Network Camera to the power supply from the DC/POE Power
Inlet. The power inlet of N8072 Cube Network Camera is non-polarized, it can automatically
determine the type of the incoming current.
NOTE：
N8072 provides 2 different kind of power input including DC & POE.
PoE Power Over Ethernet IEEE802.3af (Option)
Please make sure the accurate model to come with the purchasing.
Attention: Please take notice of connection of positive and negative electrode. Wrong connection will
damage the camera.
Table des matières
Autres manuels 3S Caméra de sécurité
