Operating and assembly instructions
3P Twin Filter
Rainwater filter for bigger roof areas
Item No. 1000650 Twin Filter
Item No. 1000650 + 1000654 Twin Filter trafficable
The 3P Twin filter can be installed in an underground chamber or outside in frost-free regions
directly on the wall. The filter can be delivered to the construction site in the shaft in pre-assem-
bled condition. Due to its 2-stage cleaning principle, it has a high degree of efficiency indepen-
dently of the volume of flow. The filtered-out dirt is continuously flushed towards the sewerage
system due to the steep inclination of the filter inserts. The clean water is collected in a sump
and directed to the reservoir.
How it works:
1. Incoming rainwater is collected in the sump and
evenly directed on both sides via the cascades =
weir over principle.
2. Pre-cleaning according to the cascade principle.
Coarse dirt is directed straight to the sewerage system
via the cascades.
3. Pre-cleaned water is guided to the filter mesh screens
(mesh width 0.65 mm). The filtered-out dirt is flushed into
the sewerage system via the bottom connections due to
the special owen mesh structure and the steep inclination of the mesh.
4. The cleaned water is collected in the central sump and directed
to the rainwater storage tank via one or both connections.
5. The filtered-out dirt is flushed into the sewerage system
via the shaft or pipe outlet.
Connections:
Rainwater supply 2 x DN 100 / DN 150
Rainwater reservoir supply 2 x DN 100 / DN 150
Dirty water connection
2 x DN 100 / DN 150
Operating and assembly instructions
Twin Filter
680 mm
873 mm
160 mm
Difference Alignment
Sole, supply Sole, drain into reservoir 350 mm directly underneathone another
Sole, supply Sole, drain intosewerage system 510 mm offset by 160 mm
fh h
1
2
3
4
5
Rainwater supply
Rainwater reservoir
connection
Dirty water / channel connection
Installation in the pilot shaft:
Standard concrete shafts with a diameter of Ø 1000 mm can be used. The openings for the
supply and drain lines should be made using a core drill. In doing so, please observe the
following points:
1. Determine the diameters of the supply and drain lines
and select the appropriate drill or core bits.
2. Place the filter into the shaft and connect using short
pipe sections rockers through the concrete walls.
The connections can then be later quickly and easily
made on the construction site.
3. Seal off the openings in the concrete shaft either with
seals (Forsheda or Densio) or wall foam.
4. When installing the pipes, pay attention to the height
differences and position of the connections,
see table on the left side below
When inserting the shaft in the ground, compress the soil well and install the shaft in horizontal
position. Compress the soil underneath the pipes well. No ground settlement must occur in order
to keep the filter housing free from tension. The cascade inserts must be easy to remove and
re-install. This ensures perfect functioning.
468 mm
521 mm
680 mm
510 mm
350 mm
Rainwater supply
Draining
of cleaned
water into the
reservoir
Draining of dirty
water into the
sewerage system
Rainwater supply
optionally DN 100 or DN 150
on one side or both sides possible
assembly of a Twin Filter
assembly of a
Twin Filter trafficable

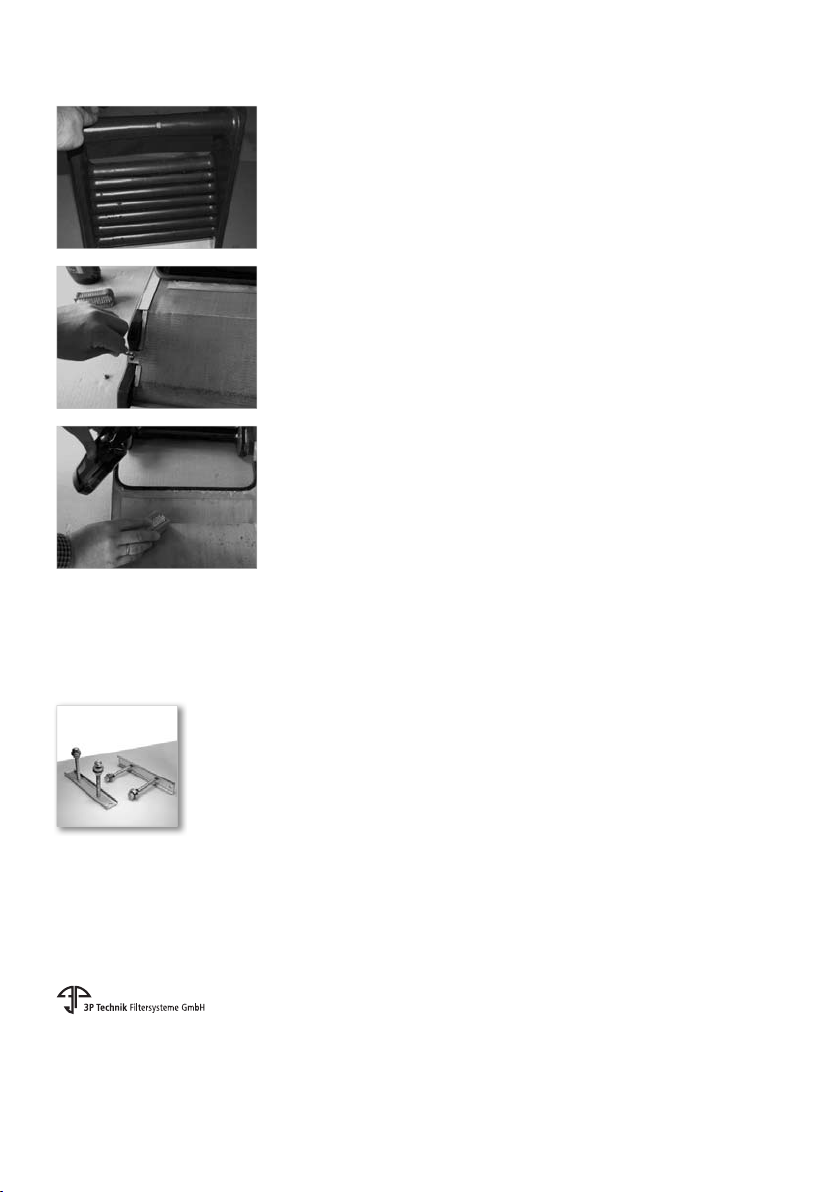

Cleaning and Maintenance:
Cleaning: Spray the inside of the filter with water, clean the sump.
Remove the filter inserts and rinse with water. High-pressure
cleaners may also be used.
Afterwards loosen the filter mash with an Allen key. To degrease the
mesh fabric (pollen, heating oils, etc.) the mesh must be thoroughly-
cleaned using a detergent and a brush.
Rinse well, re-insert the mesh, place the cascade inserts back
into the filter.
Maintenance: In the first year, check the filter every three months,
to obtain an idea of the degree of contamination, then clean
as required, at least twice a year.
Recommended Accessories:
Wall bracket for Twinfilter for installation on the wall
The wall mounting bracket for the Twin Filter* is required for wall installation.
The brackets are fastened to the wall at the desired height (heavy duty steels).
Push the filter rear side first into the recesses provided and fix using the
enclosed washers and nuts. Ensure filter sits horizontally for optimal
functioning. All UK filters come with a wall bracket. Item No. 1000655
*as accessorie available
Guarantee:
3P Technik Filtersysteme GmbH offers this product the guarantee required by law
(from date of purchase).
Öschstraße 14
73072 Donzdorf - Germany
T +49 (0) 71 62 - 94 60 7-0
F +49 (0) 71 62 - 94 60 7-99
www.3ptechnik.com
