User’s Guide

3M™EM Aware TNG ESD Event

Monitor

Models 3M034-3-TNG, 3M034-030-TNG

and 3M034-031-TNG, Including Starter Kits

Table of Contents

Section Page

Intended Use .........................................................................................................3

Safety Statements..................................................................................................4

Package Contents ..................................................................................................5

Installation and Mounting Instructions .................................................................5

Controlling the Monitor ........................................................................................7

Changing the ESD Event Parameters....................................................................8

Data Acquisition System.....................................................................................10

Regulatory Information.......................................................................................11

Warranty..............................................................................................................14

Read, understand and follow all safety information contained in these user

guide instructions prior to installation of the 3M™EM Aware TNG ESD Event

Monitor. Retain these instructions for future reference.

INTENDED USE

The EM Aware TNG ESD Event Monitor monitors up to three key parameters

that keep you aware of critical symptoms of ESD problems: 1) ESD events*; 2)

change in static voltage; 3) verify ionizer**. The thresholds for these parameters

are fully adjustable to suit your needs. The improved design features a metal case

module with built-in LCD display, a control joystick, remote antenna, power

supply and a data output.

The monitor system must be installed as speciﬁed in this user’s guide. It is

intended for use in the following environmental conditions only:

1. Indoor use

2. Altitudes up to 2,000 meters above sea level

3. Temperature range of 10ºC to 40ºC

4. Maximum relative humidity of 80% for temperatures up to 31ºC, decreasing

linearly to 50% relative humidity at 40ºC

5. Pollution degree two (ofﬁce, laboratory, test station)

The monitor system has not been evaluated for other uses or locations. If the

monitor is used in a manner not speciﬁed by 3M, the protection provided by the

equipment may be impaired.

*Not all ESD events are captured by the EM Aware TNG ESD Event Monitor. The magnitude of

the event can be measured. CDM, HBM and MM Model results are estimated based on proprietary

algorithms.

** Function is designed to work ONLY with critical environment ionizers having an offset balance

of less than +/- 5 volts.

WARNING

To reduce the risks associated with hazardous voltage, which if not avoided, could result in death or

serious injury:

• Do not modify or disassemble this product;

• Never allow children or other non-qualiﬁed persons to come into contact with power adapter;

• Never use power adapter outdoors or other wet locations;

• Always use extreme caution to avoid coming into contact with any exposed electrical conductors of

the equipment being monitored with the EM Aware TNG ESD Event Monitor.

To reduce the risks associated with hazardous voltage or possible explosion, which if not avoided,

could result in death or serious injury,

• Use only the power adapter provided with the product;

• If power adapter is missing or damaged, only replace with one supplied by 3M.

Safety Information

Explanation of Signal Word Consequences

WARNING Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury and/or property damage.

CAUTION Indicates a potentially hazardous situation which, if not avoided, could

result in minor or moderate injury and/or property damage.

NOTICE Indicates a potentially hazardous situation, which, if not avoided, may result

in property damage.

Explanation of Product Safety Label Symbols

Earth Ground

Indicates DC (Direct Current)

Important safety information, refer to the user’s guide.

To reduce the risks associated with Electrostatic Discharge (ESD) voltage, which if not avoided, could

result in damage to the meter:

• To install or change antennas, turn off the meter, install or change antennas, turn meter back on;

• Avoid touching antenna when meter is turned on.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN IRREVERSIBLE DAMAGE TO EM AWARE TNG

AND HARM TO PERSONNEL AND EQUIPMENT:

• If the 3M™EM Aware TNG ESD Event Monitor is connected to a facility monitoring system (FMS),

always verify that there is zero voltage and low resistance between FMS ground and ground at

the location where EM Aware TNG ESD Event Monitor is installed and is being grounded. If ground

conditions are unacceptable, correct them ﬁrst prior to installing the EM Aware TNG ESD Event

Monitor. Otherwise, damage to the EM Aware TNG ESD Event Monitor and/or to the FMS may occur.

NOTICE

To reduce the risks associated with ground water contamination:

• Never incinerate or dispose of product in a manner which is inconsistent with local, state, or federal

regulations.

CAUTION

Package Contents

Check that the following items are included with the 3M™EM Aware TNG ES

Event Monitor Starter Kit shipping package:

• EM Aware TNG module

• Remote antenna with cable

• Power adapter

• Data Acquisition System (Data box, installation CD, and USB cable)

• Multi-port cable

• Grounding terminal with screw and washer

• Container with metal screws (for testing functionality of the monitor)

Installation and Mounting Instructions (Optional)

The EM Aware TNG ESD Event Monitor Model 3M034 can be mounted

horizontally or vertically. For semi-permanent positioning, two #4-40 screws or

an equivalent may be used. For such an installation, mark the surface where the

holes should be drilled and drill pilot holes using a #44 tap drill size.

Connect the 3M™EM Aware TNG ESD Event Monitor

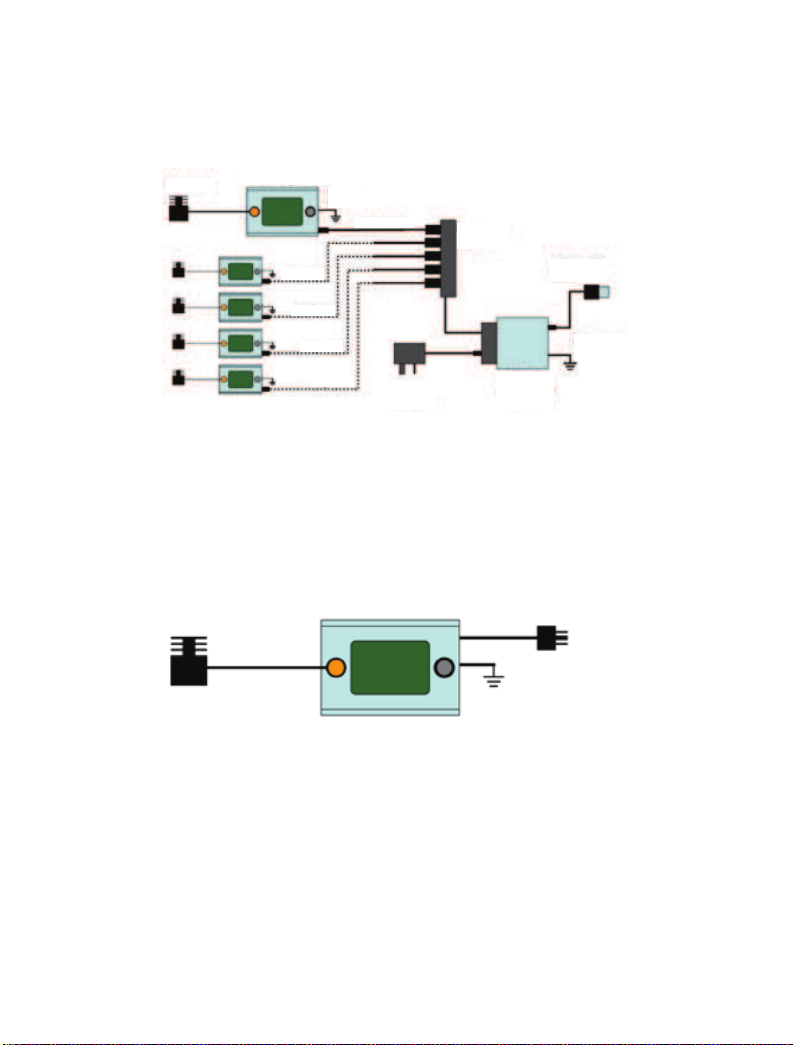

Connect the EM Aware TNG ESD Event Monitor shown in Figure 1.

Alternatively, the EM Aware TNG ESD Event Monitor can be connected as a

standalone system. Follow the connection shown in Figure 2.

Without connecting the USB plug into the PC, test the 3M™EM Aware TNG

ESD Event Monitor by plugging the power adaptor into the main power supply.

The power adapter is a +12V DC supply with a 2.1 mm barrel connector, center

positive. The EM Aware TNG ESD Event Monitor will light up with the display.

Shake the container above the antenna and the EM Aware TNG ESD Event

Monitor should respond with beeps. In an installation where power

supply provides power to more than just EM Aware TNG monitors, it is

recommended to consider a separate power supply just for the network of

EM Aware TNG units.

Antenna

3M™EM Aware

TNG ESD Event Monitor

Option 2

RJ45 cable

Electrical

Ground

Electrical

Ground

Multi-port

Cable

USB to PC

cable

Power

Adapter

Data

Acquisition

System

Option 3

Option 4

Option 5

Figure 1

Antenna

3M™EM Aware

TNG ESD Event Monitor

Power

Adapter

Figure 2

Setting up the the Data Acquisition System

(See procedures in the Data Acquisition System section)

Controlling the EM Aware TNG ESD Event Monitor

The EM Aware TNG ESD Event Monitor is controlled using a 5-way joystick on

the right side of the screen; 1) Left, 2) Right 3) Up, 4) Down, and 5) Push. They

will be referred as L, R, U, D and P in this user’s guide. The ﬁrst level control

takes place upon power up, in which case all L, R, U, D, controls do the same

function. All of the directions scroll through the parameter displays as shown in

Figure 3.

At any of the parameters displayed, the push of the joystick brings the next level

control, which allows you to change the parameter settings, i.e. thresholds.

Power Input (12vDC, + cen)

Ground

RJ45 cable

Antenna Input LCD Display Joystick

> > > ESD Event > > > Voltage > > > Ionization > > > Sound off/on > > >

Figure 3

Changing the ESD Event Parameters

1. To reset the ESD counter to zero, press the joystick momentarily.

2. To change the ESD threshold, press the joystick longer until “ESD” is

displayed. Move the joystick left or right to decrease or increase the threshold

value. On this screen, a “REF” symbol appears on the top left corner.

3. To disable or enable CDM ﬁlter, move the joystick up or down to “on” or

“off ” CDM ﬁlter. A PEAK symbol appears on screen when the ESD ﬁlter

is active.

4. To ﬁnalize the settings, push the joystick longer until the main ESD Event

screen appears. A “MEM” symbol appears momentarily in this process.

Change in the Static Voltage - Parameters

1. At the main screen display (no “REF” symbol), move the joystick until the

display is as shown above.

2. To reset the over-threshold counter to zero, press the joystick momentarily.

3. To change the voltage range and thresholds, push the joystick longer until a

new screen appears. The new screen shows a “REF” symbol at the right top

corner.

4. Move the joystick up or down to scroll on the voltage range options.

5. Move the joystick left or right to decrease or increase the static voltage

threshold.

6. To ﬁnalize the settings, push the joystick longer until the screen shows the

main static voltage screen.

ESD Event Mode

ESD Threshold Level

ESD Threshold Marker

MAX - maximum

PEAK - ESD mode

ESD Counter

ESD Threshold in dBuV

ESD Event Main Screen

Static Symbol

Dot Level Graphics Over-threshold Counter

Change in Static Voltage measured, V

Veriﬁcation of Ionization - Parameters

1. At the main screen display (no “REF” symbol), move the joystick until the

display is as shown similar above.

2. To manually test the discharge time, press the joystick momentarily.

3. The discharge time is also automatically measured every two minutes.

4. To change the voltage range and thresholds, push the joystick longer until a

new screen appears. The new screen is as shown below.

5. Move the joystick up or down to increase or decrease the time threshold.

6. Move the joystick left or right to decrease or increase the ionization

threshold.

7. To ﬁnalize the settings, push the joystick longer until the screen shows the

main static voltage screen.

Polarity (+/-) Symbol

Dot Level Graphics

Voltage Seen, V

Time, Seconds

Threshold Status

Threshold, V

Charge Threshold, (3.0 seconds as shown)

Application note: Measuring Ionization

Observe the waveform in the third row. Notice that the line is close to the zero level. This would indicate a balanced condition. A line that is above

or below the zero level represents the voltage seen. An alarm indication on the 3M

™

EM Aware TNG ESD Event Monitor means that the voltage

threshold was exceeded.

Application note: Measuring Discharge Time

Time to discharge is measured at intervals of approximately two minutes. Observe the dot level line on the bottom of the display (see previous

page). If the time to discharge exceeds the threshold time, an alarm is heard on the EM Aware TNG ESD Event Monitor.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels 3M Moniteur

3M M1866PW Manuel utilisateur

3M M170 - MicroTouch - 17" LCD Monitor Manuel utilisateur

3M MicroTouch CT150 Manuel utilisateur

3M 11-81336-225 - MicroTouch M150 High... Manuel utilisateur

3M Dynapro ET 3170 Terminal Series B Manuel utilisateur

3M QUESTempo II Manuel utilisateur

3M Dynapro ET 350L3 Manuel utilisateur

3M WS Aware CTC061 Manuel utilisateur

3M ChassisTouch 450 Manuel utilisateur

3M MicroTouch CT150 Guide de dépannage

3M MicroTouch M150 Manuel utilisateur

3M C3266PW Manuel utilisateur

3M W-2808/37027 Manuel utilisateur

3M M1500SS MicroTouch Manuel utilisateur

3M C3266PW Manuel utilisateur

3M Dynapro ET 350 Monitor Manuel utilisateur

3M Wall Display Manuel d'installation et d'exploitation

3M Multi-Touch C2167PW Manuel utilisateur

3M MicroTouch M150 Manuel utilisateur

3M Multi-Touch Desktop Display Manuel utilisateur

3M Dynapro ET 355 Monitor HL Manuel utilisateur

3M MicroTouch C2234SW Manuel utilisateur

3M C1510PS Manuel utilisateur

3M ChassisTouch 15 Guide de dépannage

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
