netCAMit User’s Guide
Copyright of 3JTech Co., Ltd. (also doing business as A3J Engineering Inc.)
6

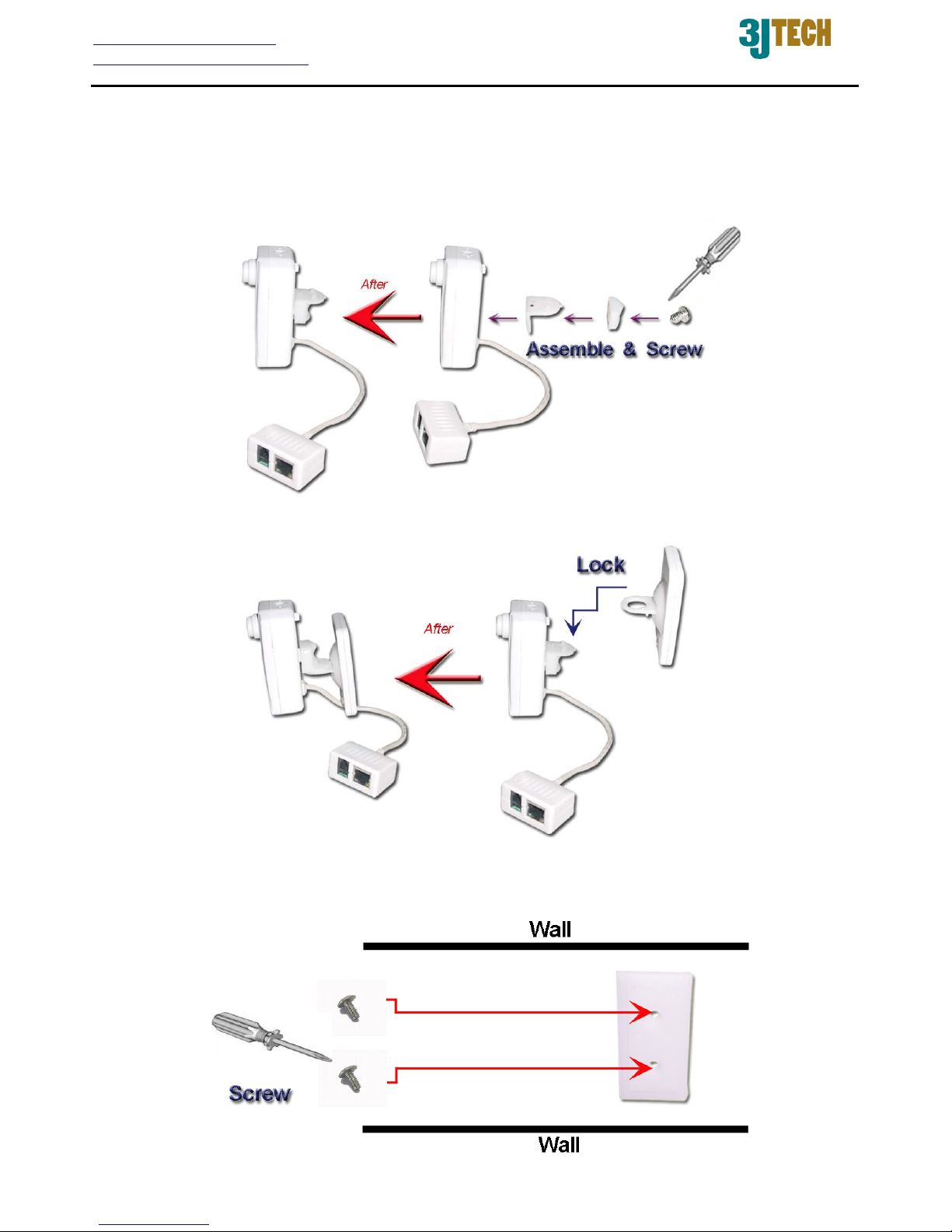

2.2 Illustration
No. in
Figures Name on
netCAMit Description Remark
1 RJ45 network
connector To connect to the camera and
Ethernet port via RJ45 cable Refer to section 2.2.1 for front
panel information
2 RJ22 power
supply connector To connect to the camera and
power adaptor via RJ22
interface
Refer to section 2.2.1 for front
panel information
3 Lens 300k pixels CMOS sensor Refer to section 2.2.1 for front
panel information
4 RFIO slot To install the optional RFIO
device
Refer to section 2.2.1 for front
panel information
5 SW_1 Press SW_1 button, then
netCAMit will perform the
power reset N/A
6 SW_2 Press and hold SW_2 button
for 5~10 seconds to reset the
camera to its factory defaults
The green indicator LED of RJ45
port will light when it is finished
with the reset procedure
7 Camera
information Serial number, camera ID and
firmware version Refer to section 2.2.2 for real
panel information
2.2.1 Front Panel Information
RJ45 Network Connector
netCAMit is designed for 10/100Mbps Ethernet networks. netCAMit connects to the network via
category 5 cable.
RJ22 Power Supply Connector
netCAMit adopts unique RJ22 cable for power supply. The special featured RJ22 cable includes
Input / Output (I/O) function. Simply connect the Input / Output cable to the desired device and no
hardware jumper fixing on camera is required.
Lens
netCAMit box includes a standard 60° wide angle lens fixed to the camera. Other types of lens are
also available upon request. Please note that different price may apply to different lenses.
