3Com 7760 - Wireless 11a/b/g PoE Access Point Manuel utilisateur

Secure and reliable,

108 Mbps wireless

connectivity with PoE,

for small to medium

businesses. This

innovative access point

provides advanced

security features

including WPA2, AES,

support for multiple

SSIDs, VLANs and Rogue

AP detection making it

a true enterprise-class

solution.

DATA SHEET

OVERVIEW

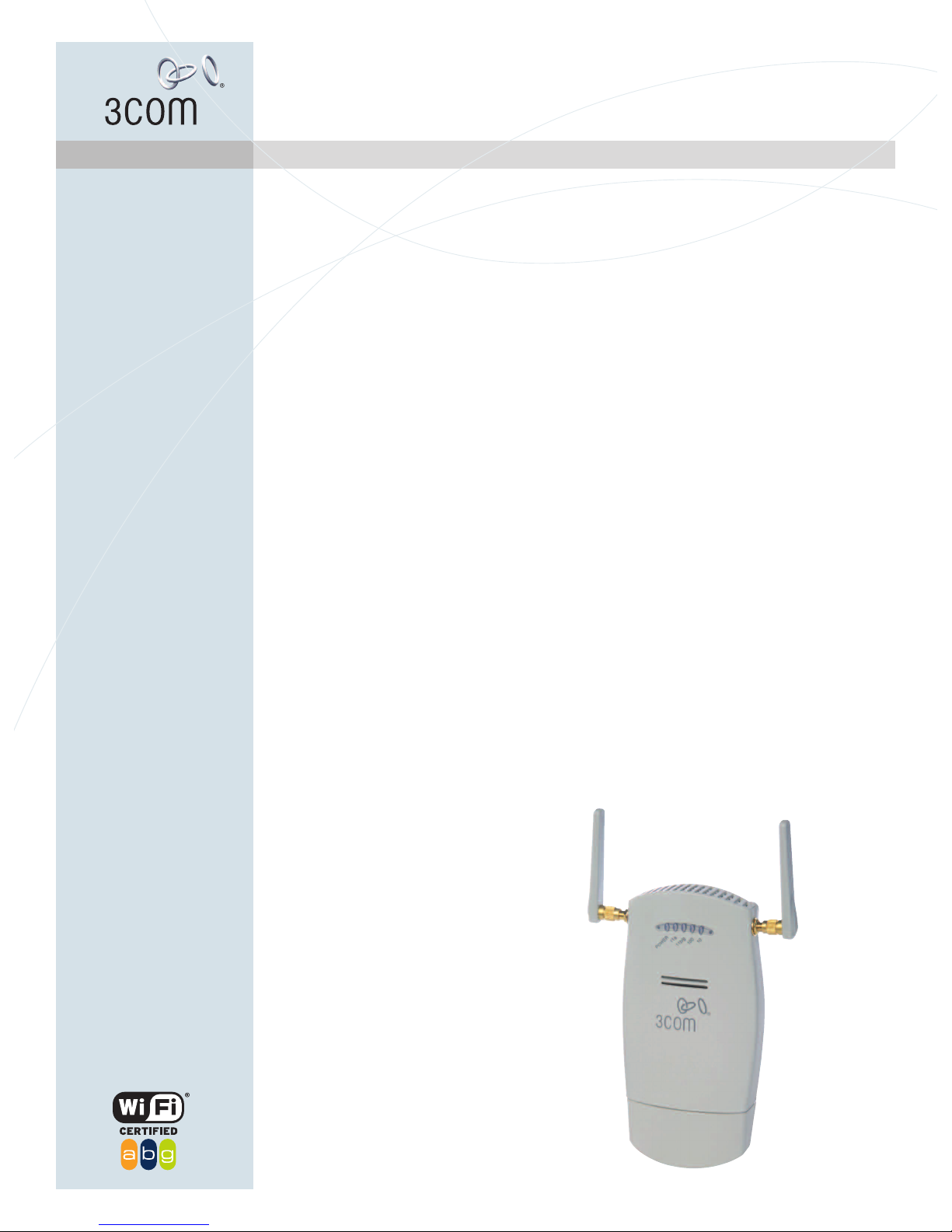

The 3Com®Wireless 7760 11a/b/g PoE Access Point is a cost-effective

dual band, Power over Ethernet (PoE) wireless solution for small and

medium enterprises. Configurable, this access point can operate at IEEE

802.11a or can be used as an IEEE 802.11b/g access point.

With the latest advanced security features such as Wi-Fi Protected Access

(WPA/ WPA2), Wired Equivalent Privacy (WEP) and Open system this

access point (AP) provides ultra-fast speeds of up to 108 Mbps in turbo

mode and offers superior long-range connectivity with eXtended range

(XR) technology. This new access point also provides multiple SSID

support and VPN passthrough along with VLAN support.

KEY BENEFITS

ENABLE WIRELESS FREEDOM

Take advantage of the freedom of high-speed networking without wires

with this Wi-Fi CERTIFIED 3Com Wireless 7760 11a/b/g PoE Access

Point. WLANs are an attractive solution for cost-effectively and securely

extending mobile access to wired network resources and for creating

full-featured networks in small to medium businesses, remote sites or at

temporary locations.Each access point supports upto 64 wireless users,

allowing plenty of room for growth.

PROVIDE POE DEPLOYMENT FLEXIBILITY

PoE support makes it easier than ever to overcome installation problems

byeliminating the need for an AC power plug at each AP. The 3Com

Baseline Switch 2226-PWR Plus or other 802.3af-compliant PoE products

supplyboth power and data to the access points through Category 5 or

6Ethernet cable, giving you flexible installation options in hard-to-wire

or -reach locations.

3Com®Wireless 7760 11a/b/g PoE Access Point

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

KEY BENEFITS

(CONTINUED) SECURE AND PROTECT WIRELESS COMMUNICATIONS

3Com delivers enterprise-class security features to small and medium

businesses. To shield wireless communications at the source, WPA2

with TKIP/AES encryption provides the latest, toughest standards-based

security—WEP encryption supports legacy 802.11b wireless clients.

For additional protection, this access point supports IEEE 802.1X and

MAC address access control, authentication, and authorization through

backend RADIUS servers.

PROVIDE FLEXIBLE SECURITY AND ACCESS CONTROL

You can configure and store up to four SSIDs with different security

profiles for groups of users. IEEE 802.1Q-compliant VLAN support

works with the multiple SSID feature to control access to network

resources and segment user traffic.

SOLVE COMPLEX CONNECTIVITY PROBLEMS

The Wireless Distribution System bridging feature solves complex

wireless connectivity problems. The access point supports both

point-to-point and point-to-multipoint WDS links as well as repeater

and client bridge modes for flexible network deployment.

DELIVER ENTERPRISE-CLASS FEATURES

3Com delivers superior business value byoffering enterprise-class

solutions without the complexity. 3Com also backs each product with

global sales, service and support along with technology, financial and

operational strength.

FLEXIBLE HIGH-SPEED CONNECTIVITY

Configurable radio support Supports and offers IEEE 802.11a or IEEE 802.11b/g.

High-speed access 802.11a and 802.11b/g standard supports speeds up to 108 Mbps in

SuperG mode.

Wi-Fi a/b/g CERTIFIED Helps ensure interoperability with Wi-Fi CERTIFIED products from other

vendors.

ROBUST SECURITY FEATURES

Encryption: WPA/WPA2, AES, TKIP Toughest industry-standard algorithms help keep wireless transmissions

and WEP private.

Multiple security profiles Store up to eight different security settings; up to four security profiles

can run at any time.

Multiple SSID support with SSIDs can be bridged together or isolated.

SSID isolation

Access control Screens device MAC addresses to ensure that only trusted clients gain

access to the WLAN.

802.1Q VLAN support Groups users according to data or traffic requirements to segment traffic

flow based on business priorities.

RADIUS server MAC-based and Centralizes wireless security through existing network RADIUS servers.

802.1X AAA support

Rogue AP detection and logging Identifies and logs unauthorized, potentially harmful APs for remedial

action.

FEATURES AND BENEFITS

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

INSTALLATION AND MANAGEMENT CONVENIENCE

WDS bridge and repeater Multiple APs can function as bridges supporting point-to-point or multi-

configuration point modes; repeater mode extends wireless coverage.

PoE support Expands installation options by eliminating the need for power adapters

and AC outlets for APs.

Access Point Discovery program Automatically discovers AP devices to simplify configuration and management

(PCs with Windows-based operating systems only).

SNMP support Enables the AP to be centrally managed by popular standards-based

network management applications.

Auto configuration Copies settings from compatible APs on the WLAN, simplifying and

speeding setup.

SNMP support Enables the AP to be centrally managed by popular standards-based

network management applications such as SNMP v1 and v2c.

Syslog support Enables the AP to be centrally monitored by sending data to the network

Syslog server.

Web browser-based administration Familiar browser interface lets you configure and manage APs from

anywhere on the network.

Auto firmware update Automatically checks an FTP server for available firmware updates.

FEATURES AND BENEFITS (CONTINUED)

PoE Support

Choose from several power options to

match your installation needs. First, the

PoE access point can be powered with

the supplied PoE adapter.

You can also power the access point

using an 802.3af-compliant PoE switch.

The switch provides both data and power

through the Ethernet cable.

Non-PoE switch

3CRWX120695AWireless LAN Switch WX1200

3CRWX120695AWirelessLANSwitchWX1200

Ethernet Data

Ethernet Data and

Power

3Com

Wireless 7760

11a/b/g PoE Access Point

TO ACCESS POINT

TO HUB/SWITCH

Data and power

Ethernet

3Com Baseline

Switch 2226-PWR

3Com

Wireless 7760

11a/b/g PoE Access Point

Data and power Data only

Fast Ethernet switch

3Com Power over Ethernet

Multiport Midspan Solution

3Com

Wireless 7760

11a/b/g PoE Access Point

The mid-span solution distributes power

to the PoE access point over existing

switch connections, seamlessly

extending network connectivity into hard

to wire locations.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

WPA2 clients

SSID1 = WPA2

Legacy WEPclients

SSID2 = WEP

3Com

Wireless 7760

11a/b/g PoE Access Point

SuperStack3

WPA2 clients

Legacy WEP clients

SSID1

SSID1 = VLAN1

SSID2 = VLAN2

VLAN1

VLAN2

SSID1

SSID2

3Com Switch 4400 PWR

Wired desktops

VLAN2

Wired desktops

3Com

Wireless 7760

11a/b/g PoE Access Point

Multiple SSID Support

Multiple SSID support enables many flexible configurations,

including simultaneous multiple client security schemes.

You no longer need to dumb down your wireless network to

support a few legacy WEP devices.

Multiple SSID and VLAN Support

With the 3Com Wireless 7760 11a/b/g PoE Access Point, a

single Ethernet link supports multiple VLAN traffic tunnels.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Wired desktops

Wireddesktops

WDS

3Com

Wireless 7760

11a/b/g PoE Access Point

in PTP mode

3Com

Wireless 7760

11a/b/g PoE AccessPoint

in PTP mode

3Com

OfficeConnect

Switch 8

3Com

OfficeConnect

Switch 8

Wired desktops

WDS

3Com

Wireless 7760

11a/b/g PoE Access Point

in PTMP mode

3Com

Wireless 7760

11a/b/g PoE Access Point

in PTMP mode

3Com

Wireless 7760

11a/b/g PoE Access Point

in PTMP mode

3Com

OfficeConnect

Switch 8

3Com

OfficeConnect

Switch 8

3Com

OfficeConnect

Switch 8

Point-to-Point WDS Link

With the 3Com Wireless 7760 11a/b/g PoE Access Point,

you can connect wired LANs with a wireless WDS link.

The APs act as wireless bridges, forwarding traffic

between LANs.

Point-to-Multipoint WDS Link

The 3Com Wireless 7760 11a/b/g PoE Access Point can

function as a wireless bridge in either point-to-point (PTP) or

point-to-multipoint (PTMP) modes for installation flexibility.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Wired desktops

Wireless clients

3Com

Wireless 7760

11a/b/g PoE Access Point

3Com

Wireless 7760

11a/b/g PoE AccessPoint

in Repeater mode

3Com

OfficeConnect

Switch 8

Wired desktops

Device with

Ethernet port

3Com

Wireless 7760

11a/b/g PoE Access Point

in Client mode

3Com

Wireless 7760

11a/b/g PoE Access Point

3Com

OfficeConnect

Switch 8

Wireless Repeater Mode

The 3Com Wireless 7760 11a/b/g PoE Access Point can

also extend the range of WLANs by acting as a wireless

repeater, forwarding traffic between associated wireless

workstations and another AP connected to the wired LAN.

Client Bridge Mode

The 3Com Wireless7760 11a/b/g PoE Access Point can

transform an Ethernet device intoawireless device to

expand connectivity options.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

MINIMUM SYSTEM

REQUIREMENTS

Computer with an Ethernet 10BASE-T,

10/100, or 10/100/1000 interface

configured for Internet communication

Operating system that supports an

Ethernet connection with an IP stack

(Installation CD Discovery Application

requires Windows XP, orWindows

2000)

PCs and laptops require 802.11a or

802.11b/g adapter cards for wireless

access

MEDIA INTERFACES

RJ-45, IEEE 802.11a, 802.11b, 802.11g

One 10BASE-T/100BASE-TX IEEE

802.3af-compatible PoE port with

auto-negotiation

DATA RATES

802.11g/a:54, 48, 36, 24, 18, 12, 9,

6 Mbps with automatic fallback

802.11b:11, 5.5, 2, 1 Mbps with

automatic fallback

FREQUENCY BAND

802.11a: 5 GHz; 802.11b/g: 2.4 GHz

WIRELESS TRANSMIT POWER

18 dBM

USERS SUPPORTED

Up to 64 simultaneous 802.11b/g wire-

less users for optimal throughput

OPERATING RANGE

802.11a: up to 50 meters (164 feet)

transmit and receive

802.11b/g: up to 100 meters (328 feet)

transmit and receive

Unobstructed range maximum: 457

meters (1,499 feet)

OPERATING CHANNELS:

Channel availability depends on local

country regulations. Wireless LAN

system administrator must choose

correct country of operation. Channels

are then automatically configured

to comply with specified country’s

regulations.

MODULATION TECHNIQUE

DSSS (Direct Sequence Spread

Spectrum)

OFDM (Orthogonal Frequency

Division Multiplexing)

MEDIA ACCESS PROTOCOL

CSMA/CA

POWER CONSUMPTION

6W maximum (from PoE port)

TRANSMIT POWER SETTINGS

Based on the regulatory domain set by

the system administrator,not to

exceed the following:

802.11a

6 Mbps: ≥+18 dBm

9 Mbps: ≥+18 dBm

12 Mbps: ≥+18 dBm

18 Mbps: ≥+18 dBm

24 Mbps: ≥+18 dBm

36 Mbps: ≥+18 dBm

48 Mbps: ≥+16 dBm

54 Mbps: ≥+16 dBm

802.11b/g

1–11 Mbps: ≥+18 dBm

12 Mbps: ≥+18 dBm

18 Mbps: ≥+18 dBm

24 Mbps: ≥+18 dBm

36 Mbps: ≥+18 dBm

48 Mbps: ≥+16 dBm

54 Mbps: ≥+16 dBm

RECEIVE SENSITIVITY

802.11a

6 Mbps: ≤-87 dBm

9 Mbps: ≤-86 dBm

12 Mbps: ≤-84 dBm

18 Mbps: ≤-82 dBm

24 Mbps: ≤-79 dBm

36 Mbps: ≤-75 dBm

48 Mbps: ≤-72 dBm

54 Mbps: ≤-71 dBm

802.11b/g

1 Mbps: ≤-95 dBm

2 Mbps: ≤-92 dBm

5.5 Mbps: ≤-91dBm

6 Mbps: ≤-89 dBm

9 Mbps: ≤-88 dBm

11 Mbps: ≤-88 dBm

12 Mbps: ≤-86 dBm

18 Mbps: ≤-84 dBm

24 Mbps: ≤-81 dBm

36 Mbps: ≤-77 dBm

48 Mbps: ≤-73 dBm

54 Mbps: ≤-72 dBm

STANDARDS CONFORMANCE

IEEE 802.11a, 802.11b,802.11g,

802.11i, 802.3, 802.3af, 802.1X; WEP,

AES, WPA, WPA2, WMM, and Wi-Fi

CERTIFIED

ANTENNA

2 removable 2dB gain antennas with

R-SMA connector

SECURITY

WPA2 AES and TKIP encryption;

64/128/152-bit WEP encryption;

802.1X with EAP-TLS, EAP-TTLS, and

PEAP; WPA-PSK authentication; MAC

address authentication and filtering;

802.1QVLAN; multiple SSID; RADIUS

client authentication, authorization,

and accounting

NETWORKING PROTOCOLS

TCP/IP, Bridging Protocol, DHCP,

HTTP, FTP

PERFORMANCE

Dynamic rate shifting

Packet bursting

Clear channel connect

802.11a/b/g SuperG mode

MANAGEMENT

SNMP v1 and v2c support

Remote management with Web

browser over SSL or HTTPS; command

line interface over SSH v2 or Telnet

LEDS

Power, 10/100 Mbps, 802.11a, 11b,

or 11g activity

POWER SUPPLY

PoE adapter: 48VDC, 400 ma

SPECIFICATIONS

Visit www.3com.com for more information about 3Com secure converged network solutions.

3Com Corporation, Corporate Headquarters, 350 Campus Drive, Marlborough, MA 01752-3064

3Com is publicly traded on NASDAQ under the symbol COMS.

3Com Corporation. All other company and product names may be trademarks of their respective companies. Wireless speed and performance depend on number

of users,physical conditions, and other electronic devices in the area. While every effort is made to ensure the information given is accurate, 3Com does not

accept liability for any errors or mistakes which may arise. All specifications are subject to change without notice. 400989-006 10/06

PRODUCT DESCRIPTION MODEL N0 3COM SKU

3Com Wireless 7760 11a/b/g PoE Access Point WL-561 3CRWE776075

Managed Wireless LAN Access Point Antenna Options

3Com 6/8dBi Dual-Band Omni Antenna 3CWE591

3Com 3/4dBi Dual-Band Ceiling Mount Antenna 3CWE592

3Com 4/6dBi Dual-Band Hallway Antenna 3CWE597

Antenna Cables

3Com Ultra Low Loss 6-Foot Antenna Cable 3CWE580

3Com Ultra Low Loss 20-Foot Antenna Cable 3CWE581

3Com Ultra Low Loss 50-Foot Antenna Cable 3CWE582

3Com RSMA to SMA 6” Antenna Cable 3CWE586

3Com Wireless LAN-Related Products

3Com Power over Ethernet Single-Port Midspan Solution 3CNJPSE

3Com Power over Ethernet Multiport Midspan Solution (24 Ports) 3CNJPSE24

3Com Switch 5500-EI PWR 28-port 3C17171-91

3Com Switch 5500-EI PWR 52-port 3C17172-91

3Com Switch 4500 PWR 26-Port 3CR17571-91

3Com Switch 4500 PWR 50-Port 3CR17572-91

3Com Baseline Switch 2226-PWR Plus 3C16490

3Com OfficeConnect®Managed Switch 9 3CR16708-91

3Com Global Services

3Com Wireless LAN Site Survey, Network Health Check,

Installation Services, and ExpressSM Maintenance www.3com.com/services_quote

3Com University Courses www.3com.com/3comu

ORDERING

INFORMATION

SPECIFICATIONS

(CONTINUED)

DIMENSIONS AND WEIGHT

Height: 16.5 cm (6.5 in)

Width: 8.25 cm (3.25 in)

Depth: 3.2 cm (1.25 in)

Weight: 198 g (7.0 oz)

REGULATORY/AGENCY

APPROVALS

Safety

UL/CSA 60950

EN/IEC 60950

NOM-019- SCFI

AS/NZS 60950

EMC/EMI

FCC 15 Subpart C

IC RSS-210

EN 300 328

EN 301 893

EN 301 489-1, -17

EN 60601

ENVIRONMENTAL RANGES

Operating temperature: -10 to 40°C

(14 to 104°F)

Storage temperature: -40 to 70°C

(-40 to 158°F)

Humidity: 10 to 95% non-condensing

PACKAGE CONTENTS

3Com Wireless 7760 11a/b/g PoE

Access Point

Two external dual-band 2.4/5.15GHz

antennas with R-SMA connectors

Mounting hardware

PoE injector

Quick Installation Guide

Support and Safety sheet

Warranty sheet

CD-Rom with drivers and documentation

WARRANTY AND OTHER SERVICES

Three-year Hardware Warranty.

Limited SoftwareWarranty for 90 days

Advance Hardware Replacement

with Next Business Day shipment in

most regions.

90 days of telephone technical support

Refer to www.3com.com/warranty

for details.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Table des matières

Autres manuels 3Com Point d'accès sans fil

3Com

3Com OfficeConnect 3CRWE454G75 Instructions d'utilisation et d'entretien

3Com

3Com 3CRWEASYA73 / WL-575 Manuel utilisateur

3Com

3Com 3CRGPC10075 Manuel utilisateur

3Com

3Com AirConnect 9550 Manuel utilisateur

3Com

3Com WL-607 Manuel utilisateur

3Com

3Com 3CRWE820096A - Wireless LAN Access Point... Manuel utilisateur

3Com

3Com 8250 Manuel utilisateur

3Com

3Com OfficeConnect Manuel utilisateur

3Com

3Com 3CRWX395075A - Wireless LAN Managed Access Point... Manuel utilisateur

3Com

3Com AP9152 Manuel utilisateur

3Com

3Com 8200 Manuel utilisateur

3Com

3Com AirConnect Manuel utilisateur

3Com

3Com OfficeConnect 3CRWE41196 Manuel utilisateur

3Com

3Com AP9152 Manuel utilisateur

3Com

3Com 3CRWE91096A - Wireless LAN Building-to-Building... Manuel utilisateur

3Com

3Com 3CRWEASY96A - 11 Mbps Wireless LAN Outdoor Bridge... Manuel utilisateur

3Com

3Com OfficeConnect 3CRWE454G75 Manuel utilisateur

3Com

3Com 3CRWE675075 - 11a/b/g Wireless LAN Workgroup... Manuel utilisateur

3Com

3Com 3CRWEASYG73 - 11g Wireless LAN Outdoor Manuel utilisateur

3Com

3Com 8000 Manuel utilisateur

3Com

3Com AirConnect Manuel

3Com

3Com 3CRWX375075A - Wireless LAN Managed Access Point... Manuel utilisateur

3Com

3Com 8760 - Wireless Dual Radio 11a/b/g PoE Access... Manuel utilisateur

3Com

3Com 3CRWE20096A - Wireless LAN Access Point 2000 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
